 Post subject: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 10:29 am
Oompa Loompa
Offline

Age: 30

Posts: 33

Joined: 18th Nov 2011

Gallery: 4 images

Ride: FORD 1995 EF FALCON SEDAN

Location: Mudgee
NSW, Australia

HI whats the easy way to go to push more power out of a tickford 6 i have extractors and sports exhaust im after more bits and peices to do to it lol



_________________

[img]C:\Users\LEVO\Desktop[/img]
MY95EF

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 10:31 am
Oompa Loompa
Offline

Age: 30

Posts: 33

Joined: 18th Nov 2011

Gallery: 4 images

Ride: FORD 1995 EF FALCON SEDAN

Location: Mudgee
NSW, Australia

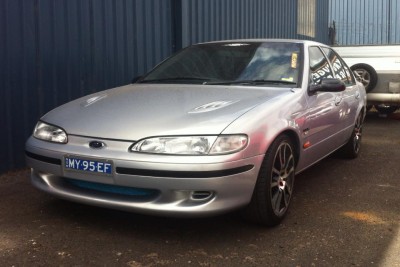

its an ef gli which i have striped it and put all the xr6 interior and bits of the exterior on to it within the last year of owning it





Attachments:
312834_3461366872969_117079621_n.jpg [ 73.57 KiB | Viewed 138 times ]



_________________

[img]C:\Users\LEVO\Desktop[/img]
MY95EF

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 10:41 am
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

How far do you want to go with the car? Keep it NA or you want to turbo it later?
If NA your next step would be a bigger intake, cam upgrade and a J3 chip dyno tuned.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 11:26 am
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I have a wade 1673 cam I no longer have a need for.

That should give it some more go, without sacrificing drive ability, and works without a tune. A J3 Chip to suit would be more beneficial though.

PM me if you want more info.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 11:35 am
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

I had that cam in my car with intake/exhaust mods with a J3 dyno tuned and it made ~145rwkw. Did high 14's down the quarter, was nice and torquey as well.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 12:42 pm
Oompa Loompa
Offline

Age: 30

Posts: 33

Joined: 18th Nov 2011

Gallery: 4 images

Ride: FORD 1995 EF FALCON SEDAN

Location: Mudgee
NSW, Australia

it has the el intake pipe, k&n filter & big mouth allready



_________________

[img]C:\Users\LEVO\Desktop[/img]
MY95EF

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 12:46 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

au injectors, cam as said and J3
Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 1:48 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 841

Joined: 20th Feb 2010

Gallery: 2 images

Ride: AU Fairmont Ghia

Location: Elizibif Norf (Local Spelling!!)
SA, Australia

I'd also suggest the BA or Territory intake piping from airbox to throttle body over the EL/AU type.. Hell, even the original EF BBQ plate intake flows better than the EL/AU. :)



_________________

dc_todd wrote:
Cheap pads squeal like cheap hookers, and you can take that to the bank.


Au Fairmont Ghia
My (Old) 95 EF Wagon

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 2:07 pm
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

next time i take mine to the dyno I will bring a 3" stainless pipe, EL pipe and Ef intake and see which makes the most power I dont reckon the EL an EF will show any difference



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 2:18 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

GeZza200 wrote:
next time i take mine to the dyno I will bring a 3" stainless pipe, EL pipe and Ef intake and see which makes the most power I dont reckon the EL an EF will show any difference

I dont know if its been done before but that would be interesting. I was told the BBQ plate was better than the El/Au direct pipe and thats why I have kept the BBQ plate, but I am only going on advise and not spec's so Id be interested in the outcome
Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Thu Dec 13, 2012 6:47 pm
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

EF has an 80mm trumpeted exit from the air box lid, the EL and AU have a 50mm exit.

Makes a fair bit of difference.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Fri Dec 14, 2012 2:29 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 841

Joined: 20th Feb 2010

Gallery: 2 images

Ride: AU Fairmont Ghia

Location: Elizibif Norf (Local Spelling!!)
SA, Australia

BenJ wrote:
EF has an 80mm trumpeted exit from the air box lid, the EL and AU have a 50mm exit.

Makes a fair bit of difference.

Cheers
BenJ

Also the EF intake has a nice smooth curve in towards the throttlebody (As does the BA/F & Territory) rather than the relatively sharp bend the EL/AU setup has. Air flows MUCH better trough a curved pipe than it does hitting a sudden bend.
I've used all 3 intakes (EF/EL/BA) in the wagon and I noticed the EL one just wasn't as responsive as the EF BBQ plate, while the BA setup was a very noticeable difference in throttle response. Probably does sweet F.A. in regards to overall power increase (minimal, if any at all) but she certainly picks up revs better.
In my opinion all the EL/AU setup does over the EF is tidy up the top of the motor.
But as per my original post, it would be worthwhile hunting down BA intake piping and an EF airbox.



_________________

dc_todd wrote:
Cheap pads squeal like cheap hookers, and you can take that to the bank.


Au Fairmont Ghia
My (Old) 95 EF Wagon

Top
 Profile


 Post subject: Re: EF FALCON CONVERTED 5 SPEED
Posted: Fri Dec 14, 2012 4:02 pm
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I now have a Territory Intake between the Throttle Body and EF Airbox in my EB.

Best bang for your buck using factory parts.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile
