 Post subject: EF How do I remove this plug?
Posted: Mon Oct 18, 2010 9:03 pm
Parts Gopher
Offline

Age: 37

Posts: 87

Joined: 7th Sep 2009

Location: melbourne
VIC, Australia

Howdy

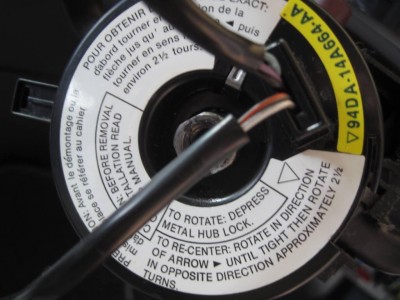

I traced an electrical fault with the EF back to this thingame which sits between the steering wheel and the indicator/light stalks. The wires go to the airbag, horn and cruise on the steering wheel. There is no 12V at this plug, however there is power at a similar plug on the back of this gadget. I have tried reasonable force to remove them. Can someone tell me the correct way to disconnect this plug? Also are there any surprises with this round 'device'. Is it going to fly apart like a jack in the box if I open it? ciao





Attachments:
IMG_2118.jpg [ 87.27 KiB | Viewed 20 times ]



_________________

Any man over the age of 26 that drives a car of less than 8 cylinders with a 0-100kph time greater than 7 seconds must consider himself a failure.

Top
 Profile


 Post subject: Re: EF How do I remove this plug?
Posted: Mon Oct 18, 2010 9:15 pm
Getting Side Ways
Offline

Posts: 790

Joined: 18th Mar 2005

Gallery: 4 images

Location: Adelaide
SA, Australia

Jeez its not an airbag thingy is it? be careful....



_________________

351 4V XB Coupe running LPG

Top
 Profile


 Post subject: Re: EF How do I remove this plug?
Posted: Mon Oct 18, 2010 9:28 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

G'day it's a clock spring, you don't pull it apart un plug it at the airbag/horn end, and unplug it at the other end down towards the foot well.
It's what allows your steering wheel to turn, and your functions to work, it has a certain amount of ribbon cable wrapped in it, and can fail.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: EF How do I remove this plug?
Posted: Mon Oct 18, 2010 10:44 pm
Parts Gopher
Offline

Age: 37

Posts: 87

Joined: 7th Sep 2009

Location: melbourne
VIC, Australia

Thanks for the info... do you know how to disconnect the electrical plugs so that I can replace it, cheers
