hay dudes im looking to make my own intake and want to replace the piping from the throttle body to the filter but have no clue of what the sizing or angles have to be to do so???

can anyone help thanx...
Top
 Profile


 Post subject: Re: ef intake piping
Posted: Sat Aug 14, 2010 12:00 am
Stock as a Rock
Offline

Age: 32

Posts: 132

Joined: 18th Oct 2009

Gallery: 5 images

Ride: EF xr6 AU3 220kw xr8

Location: frankston
VIC, Australia

http://s953.photobucket.com/albums/ae15 ... g&newest=1
3 inch piping from super cheap and silicone hosing as required, i pretty much a*** it just took the original ducting in and guessed what i needed, the silicone hosing isn't cheap tho. Cut the 3rd rocker cover stud flat as it will rub on the piping. Expect it to rub on the inside of the bonnet too unless you can get the exact piping bent for you. I was gunna use this setup as a guide to get my own bent to the right size and weld it up.
Good luck



_________________


Top
 Profile


 Post subject: Re: ef intake piping
Posted: Sat Aug 14, 2010 12:09 am
Fordmods Newbie
Offline

Age: 31

Posts: 2

Joined: 19th May 2010

Gallery: 1 images

Ride: ef futura

Location: lithgow
NSW, Australia

sweet..........thanx dude.
Top
 Profile


 Post subject: Re: ef intake piping
Posted: Sat Aug 14, 2010 12:43 am
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

kickn_it wrote:
http://s953.photobucket.com/albums/ae15/fordefxr6/?action=view&current=DSCN0071.jpg&newest=1
3 inch piping from super cheap and silicone hosing as required, i pretty much a*** it just took the original ducting in and guessed what i needed, the silicone hosing isn't cheap tho. Cut the 3rd rocker cover stud flat as it will rub on the piping. Expect it to rub on the inside of the bonnet too unless you can get the exact piping bent for you. I was gunna use this setup as a guide to get my own bent to the right size and weld it up.
Good luck


Your engine bay looks smick :mrgreen: :mrgreen: Nice intake BTW :D At the moment I am just running the EF intake with an 80mm airbox outlet, seems to work alot better than the stock EL air intake.

You could also just get a rocker cover bolt of an EL instead of cutting it or the first bolt of a wreck ef cover.

That Aunger cold air intake snorkel is massive compared too the stock V8 EL GT one I am using, about 3 times the size!!!!!!!.



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile


 Post subject: Re: ef intake piping
Posted: Sat Aug 14, 2010 11:45 am
Stock as a Rock
Offline

Age: 31

Posts: 116

Joined: 18th Jul 2010

Gallery: 10 images

Ride: xp falcon, xt falcon, xh xr6

Power: 182 rwkw

Location: melbourne
VIC, Australia

go to the wreckers and by a standard au pipe (exacly the same shape as ef and el) and take it to an exhaust joint as a sample. then u can pull the top off your airbox, pull the reducer sleeve out, undo the 4 bolts, turn the pipe around, bolt back in from opposte side, and cut the excess plastic pipe sticking out from the airbox. it will make it 4" pipe on the inside of the lid and 3" on the outside, its a little bit of f**k round but it works good,then just run a silcone joiner.
i got a 3" mandrel bend pipe made for $120. then made an adaptor to take a ba gtp air box. ill post pics up soon of how it looks. only cost $400 to made it but made a little bit more power but the throttle was heaps "snappier"
Top
 Profile


 Post subject: Re: ef intake piping
Posted: Tue Aug 17, 2010 7:31 pm
Stock as a Rock
Offline

Age: 31

Posts: 116

Joined: 18th Jul 2010

Gallery: 10 images

Ride: xp falcon, xt falcon, xh xr6

Power: 182 rwkw

Location: melbourne
VIC, Australia

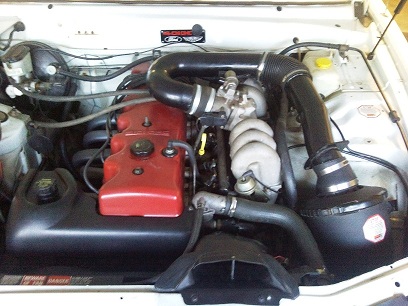

heres the pic, hope it helps
