EF intake runner, vs EL intake runner



Page 1 of 2 [ 28 posts ] Go to page 1, 2  Next


 Post subject: EF intake runner, vs EL intake runner
Posted: Sat Nov 03, 2007 5:52 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 829

Joined: 5th Nov 2004

Ride: 2004 Mazda Tribute

Here's somethng I've always found interesting.

The EF has a Dual length intake runner, from the intake pipe, to the throttlebody, seemingly, having had a decent amount of development spent on it.

The EL, went to a single rubber elbow pipe, from the intake pipe to the throttlebody, (as seen in the pix below.


What I want to know is...

1. Why was this change made?

2. Is there an advantage to the Dual length runners, on this engine?

3. Are they self contained? (don't need any input from the ECU/engine system to actuate, etc)

4. Are they able to be fitted to an EL, in place of the rubber elbow pipe?

5. Would this make any difference to the engine? (positive OR negative)





Attachments:

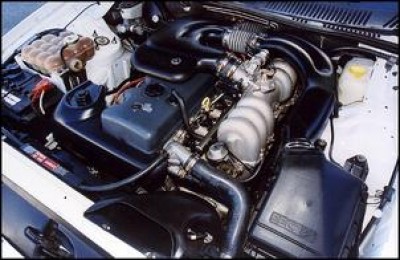

File comment: EL - Sinple elbow pipe intake
el8.jpg [ 14.06 KiB | Viewed 45 times ]

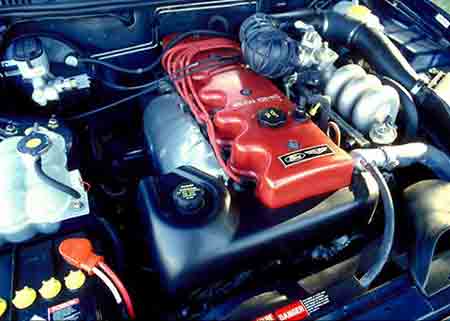

File comment: EF intake runners - Dual Length
2233_9lo.jpg [ 17.47 KiB | Viewed 54 times ]
Top
 Profile


Posted: Sat Nov 03, 2007 7:06 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

apparently the el one was made like that to make it cheaper or some BS?

I think people stick BA ones on these days which are similar to the EF one..
Top
 Profile


Posted: Sat Nov 03, 2007 7:21 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

they not a dual length pipe. they simply split in to two pipes then join back up again. nothing realy special about it at all.

ford could have had any number of reasons for changing it.
noise, better flow, cheaper, doesn't matter. you won't notice a difference if you change it



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Nov 03, 2007 7:58 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Use the search function...this topic has been covered :D

http://www.fordmods.com/forums/el-intak ... ake%20pipe

http://www.fordmods.com/forums/viewtopi ... ake%20pipe

And if you were wondering about Air Intakes...CAI/Pod/Panel filter stuff...read the following thread.

http://www.fordmods.com/forums/viewtopi ... ake%20pipe

Please use the search function...I know there may be 60 odd pages of results, but it doesn't take long to read skin through the list to find something similar.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sat Nov 03, 2007 9:54 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 829

Joined: 5th Nov 2004

Ride: 2004 Mazda Tribute

phongus wrote:
Use the search function...this topic has been covered :D


I know... and I did use the search function... (I've been here since early early FM MkI)

after 2 hours of trawling, I found the following

Dual Length (3 results, none relevent)
EF Intake (nothing)
EF Plenum (nothing)
Intake runner ("dual length intake runners and turbos" only, irrelevant)
Top
 Profile


Posted: Sat Nov 03, 2007 10:05 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

96ghia wrote:
phongus wrote:
Use the search function...this topic has been covered :D


I know... and I did use the search function... (I've been here since early early FM MkI)

after 2 hours of trawling, I found the following

Dual Length (3 results, none relevent)
EF Intake (nothing)
EF Plenum (nothing)
Intake runner ("dual length intake runners and turbos" only, irrelevant)


I noticed...It is tedious to go through the results list. You just extended the list one more thread :P :lol:

Hope the links helped though.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sat Nov 03, 2007 11:31 pm
Getting Side Ways
Offline

Age: 29

Posts: 1538

Joined: 4th May 2006

Gallery: 4 images

Ride: ef fairmont turbo

Power: 213 rwkw

Location: melbourne
VIC, Australia

tickford_6 wrote:
they not a dual length pipe. they simply split in to two pipes then join back up again. nothing realy special about it at all.

ford could have had any number of reasons for changing it.
noise, better flow, cheaper, doesn't matter. you won't notice a difference if you change it



best possible answer.



_________________

96 EF FAIRMONT
Garrett gt40turbo, iceman plenum, ported head, turbo cam, double valvesprings, 023 fuel pump, 36lb injectors 4' cat, 4' dump, 2.5 exhaust, build bottom end, hypertonic pistons rods & rods, king bearings, j3. c10 3500 stall
232rwkw@4psi

Top
 Profile


Posted: Sun Nov 04, 2007 7:23 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 829

Joined: 5th Nov 2004

Ride: 2004 Mazda Tribute

phongus wrote:
96ghia wrote:
phongus wrote:
Use the search function...this topic has been covered :D


I know... and I did use the search function... (I've been here since early early FM MkI)

after 2 hours of trawling, I found the following

Dual Length (3 results, none relevent)
EF Intake (nothing)
EF Plenum (nothing)
Intake runner ("dual length intake runners and turbos" only, irrelevant)


I noticed...It is tedious to go through the results list. You just extended the list one more thread :P :lol:

Hope the links helped though.

phong =P~


Thanks, but unfortunately they ended up being threads flaming someone who tried posting some BS under 2 aliases :-)

Next time I'll just start at the top and click through every post header, after searching.

Luckily this thread (if people DO search) now has a definative answer (makes no difference with EF or EL)
Top
 Profile


Posted: Sun Nov 04, 2007 9:56 pm
Fordmods Newbie
Offline

Posts: 18

Joined: 6th Aug 2006

Location: Brisbane
QLD, Australia

I have seen a dyno sheet of a AU XR6 with an EL intake and EF and the EF made another 3 kw towards the top end.If this is anything to go by the EF is your answer but on the down side they are alot more exspensive to by new and a wrecker one is usually broken.
Top
 Profile


Posted: Sun Nov 04, 2007 10:58 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 474

Joined: 15th Jun 2005

Gallery: 20 images

Ride: ef/el halfbreed

Location: penrith
NSW, Australia

if you want a ef version i seen three that were in perfect condition at pick n payless today at blacktown, haha i was going to find the el version but now i might keep my ef version haha



_________________

Destroy everything and dont look back!!!!!!

94 ef-el-xr-fairmont. No idea anymore.

Top
 Profile


Posted: Sun Nov 04, 2007 11:44 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

My EF gained better top end after putting a AU intake on it.



_________________

Member Number 8804

Top
 Profile


Posted: Mon Nov 05, 2007 12:28 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Get a custom 3" mandrel bent intake with a big 180 bend into the throttlebody. Should be far better than either of them.

I think the EF looks better, but the EL intake would be better if you had a sprayed up/chromed rocker cover or stuff like that... but then again so would the custo intake.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Mon Nov 05, 2007 12:45 am
Getting Side Ways
Offline

Age: 29

Posts: 1538

Joined: 4th May 2006

Gallery: 4 images

Ride: ef fairmont turbo

Power: 213 rwkw

Location: melbourne
VIC, Australia

lukey39 wrote:
I have seen a dyno sheet of a AU XR6 with an EL intake and EF and the EF made another 3 kw towards the top end.If this is anything to go by the EF is your answer but on the down side they are alot more exspensive to by new and a wrecker one is usually broken.


ive seen the same car have 3 dyno runs wich all varied with in 5rwkw. all within a 5min period. 3kw is f**k all



_________________

96 EF FAIRMONT
Garrett gt40turbo, iceman plenum, ported head, turbo cam, double valvesprings, 023 fuel pump, 36lb injectors 4' cat, 4' dump, 2.5 exhaust, build bottom end, hypertonic pistons rods & rods, king bearings, j3. c10 3500 stall
232rwkw@4psi

Top
 Profile


Posted: Mon Nov 05, 2007 8:59 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

4dlvr wrote:
lukey39 wrote:
I have seen a dyno sheet of a AU XR6 with an EL intake and EF and the EF made another 3 kw towards the top end.If this is anything to go by the EF is your answer but on the down side they are alot more exspensive to by new and a wrecker one is usually broken.


ive seen the same car have 3 dyno runs wich all varied with in 5rwkw. all within a 5min period. 3kw is f**k all


that 3kw could be anything, condition of engine, trans, slight differences in engine from factory



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


Posted: Mon Nov 05, 2007 9:09 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Ford changed the the intakes as a cost saving. There were some flow tests done somewhere., I can't find the results so can't back up what I say, but from memory the EF intake flowed better than the EL unit and if I remember rightly there was stuff all between the EF and the 3" Mandrel pipe. The EF intake can be fitted to the EL but you need the Rocker cover bolts from an EF to mount it. I put an EF Intake on my wifes EL Wagon and I think it now idles better as well as being a little more responsive. This included the top of the EF airbox as these are different to the EL. The reason I changed was for another reason but I think the EF unit looks muck better than the EL.
Top
