EL Air Box & Pod HELP!!



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: EL Air Box & Pod HELP!!
Posted: Wed Jan 10, 2007 5:11 pm
Fordmods Newbie
Offline

Age: 32

Posts: 11

Joined: 26th Nov 2004

Ride: BF GT

Location: Melbourne
VIC, Australia

Just bought a pod filter to be put on an EL 6cly.
I was about to put it on and noticed its different to the EF Airboxes!!
Need Advice on attaching the pod to the airbox...
The top airbox does not have a neck like the EF's..
What should i do??
Top
 Profile


Posted: Wed Jan 10, 2007 5:17 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 514

Joined: 29th May 2006

Gallery: 3 images

Ride: eb falcon

Location: perth
WA, Australia

it shud havi it otherwise id get some pipe clap it to the intake hsoin and put the pod on then box it... ive got both an ef and an el box and both are the same



_________________

own a falcon?
live in perth?

www.perthfalcons.com

Top
 Profile


Posted: Wed Jan 10, 2007 5:20 pm
Getting Side Ways
Offline

Posts: 416

Joined: 7th Apr 2006

Ride: ea falcon

Location: melbourne
VIC, Australia

I thought it was the EF's that didnt have the "neck"


Solution A. Make it fit!

Solution B. (the easier way) go to a wrecker and buy an airbox lid that that does have a "neck"
If they try to charge you more than $20-$30 tell them to f**k themselves!



_________________

EB XR6 project almost complete!

Soon on road with pics!

Top
 Profile


Posted: Wed Jan 10, 2007 5:24 pm
Fordmods Newbie
Offline

Age: 32

Posts: 11

Joined: 26th Nov 2004

Ride: BF GT

Location: Melbourne
VIC, Australia

Ok...might try getting a neck peice from the wreckers!! I can't believe that the EL's are different!
Top
 Profile


Posted: Wed Jan 10, 2007 6:51 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

the neck piece alone should be around $15, thats how much i payed for mine at pick and pay less.



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Wed Jan 10, 2007 6:55 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 795

Joined: 14th Jun 2005

Gallery: 11 images

Ride: EF f a i r m o n t

Power: 315 rwkw

Location: perth
WA, Australia

umm just go to bunnings and buy some pipe/anything to make it work.



_________________

1995 EF Fairmont with all the Gear.

Top
 Profile


Posted: Wed Jan 10, 2007 10:03 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

one thing u can do is, take off that plate that is screwed to the back of the air box and replace the plastic pipe with just a staight peice of 3" pipe long enough to reach into the air box, then you can flexi hose off that...



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Wed Jan 10, 2007 10:04 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

also i think there is a doco on this, has come up again and again, have a search...



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Wed Jan 10, 2007 10:26 pm
Parts Gopher
Offline
User avatar

Posts: 67

Joined: 17th Sep 2006

Gallery: 5 images

Ride: 95 EFII Futura Wagon

Location: Sydney
NSW, Australia

RuchEa wrote:
Solution B. (the easier way) go to a wrecker and buy an airbox lid that that does have a "neck"


What he said. The EFs also have a larger opening.

RuchEa wrote:
If they try to charge you more than $20-$30 tell them to f**k themselves!


That too!



_________________

"My theory is that the universe is made out of stupidity because it's more plentiful than hydrogen" - Frank Zappa

Top
 Profile


Posted: Thu Jan 11, 2007 4:39 pm
Getting Side Ways
Offline

Posts: 558

Joined: 6th May 2006

Location: cbd melb.
VIC, Australia

um... ef air box lid, is 80mm (3inches) opening and it has the neck that is inside the box and goes to 50mm (i think)....

the el air box lid, is 50mm opening, just like the ef neck, but the el doesn't have the neck.

with ur problem, maybe just buy the ef air box lid and u can continue ur pod mod. i bought the ef lid from a wrecker and i didn't even use the neck (cut it up to use the 80mm/3inch opening) and stuck a k@n panel in the box. what i did is have 80mm/3inchs all the way from t.b to the panel air filter and then ran a el gt snorkel, which is either 80mm wide or more or less in width..
Top
 Profile


Posted: Thu Jan 11, 2007 7:59 pm
Parts Gopher
Offline

Age: 30

Posts: 58

Joined: 24th Dec 2006

Ride: falcon futura 96 ef2

Location: toowoomba
QLD, Australia

mUTHA wrote:
it shud havi it otherwise id get some pipe clap it to the intake hsoin and put the pod on then box it... ive got both an ef and an el box and both are the same

yeah the box is the same but the size of the intake pipe coming out of the back of the air box is smallier on the el to the ef i have a pod filter on my ef and i got the el intake pipe and it works well if you go to super cheap or some were you can buy the brakcet to mount the pod but you need to un screw the four bolts on the back of the in take box and get four more that are long enough to go trouogh the bracket to the pod and the in take pipe
i will show you a pick



_________________

it is not speed that kills you see it is the sudden stop

Top
 Profile


Posted: Thu Jan 11, 2007 8:01 pm
Parts Gopher
Offline

Age: 30

Posts: 58

Joined: 24th Dec 2006

Ride: falcon futura 96 ef2

Location: toowoomba
QLD, Australia

how do you put a pick on herre i dont know how



_________________

it is not speed that kills you see it is the sudden stop

Top
 Profile


Posted: Thu Jan 11, 2007 9:21 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 243

Joined: 12th Apr 2005

Gallery: 5 images

Ride: Falcon EL XR6

Location: sydney
NSW, Australia

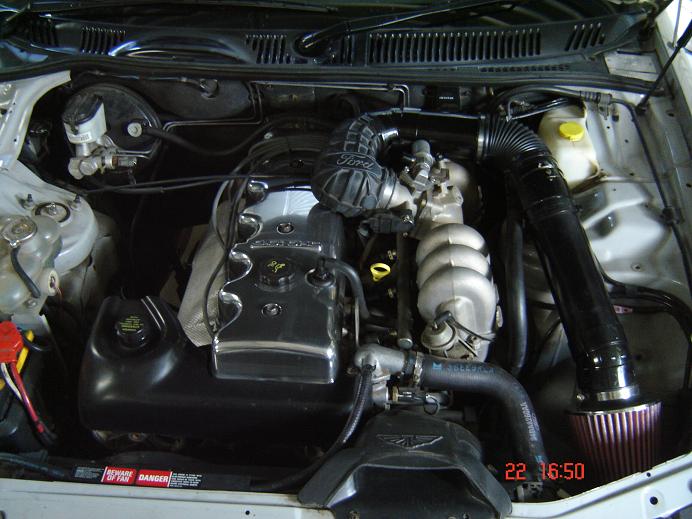

this is what i did, 90mm pvc from bunnings, i painted it black and used a couple of small bends.
get rid of the airbox all together, and hear the whistle.
since this pic was taken, i also changed the piece that goes over the intake manifold to 90mm pvc as the original Ford unit has a big restriction in it to clear the manifold.





Attachments:
pod install 012paint.JPG
pod install 012paint.JPG [ 67.81 KiB | Viewed 27 times ]



_________________

EL Falcon XR6, 2.5in exhaust, extractors, ported throttle body, sequential intake, CMS stage 2 head. Tickford cam!!!!!
"158 RWKW"

http://www.youtube.com/watch?v=ErQSNeJmXsk (video of my XR6 on the Dyno)

Last edited by BOSS 4LTR on Thu Jan 11, 2007 9:26 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Jan 11, 2007 9:21 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 243

Joined: 12th Apr 2005

Gallery: 5 images

Ride: Falcon EL XR6

Location: sydney
NSW, Australia

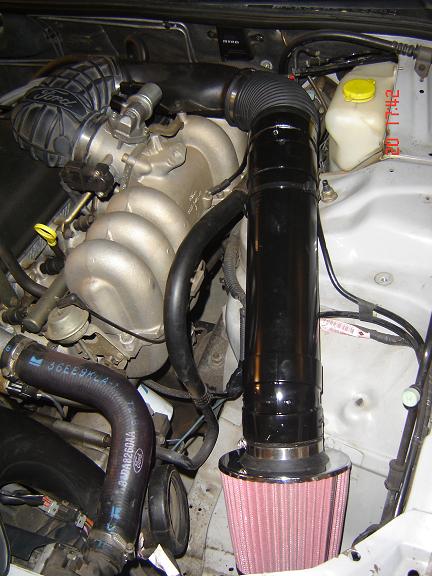

actually i just found a current pic of how it looks now, also with polished rocker cover.

next ill be putting an alliminium cover over the top of the pod to make it legal.





Attachments:
intake mod.JPG
intake mod.JPG [ 77.44 KiB | Viewed 50 times ]



_________________

EL Falcon XR6, 2.5in exhaust, extractors, ported throttle body, sequential intake, CMS stage 2 head. Tickford cam!!!!!
"158 RWKW"

http://www.youtube.com/watch?v=ErQSNeJmXsk (video of my XR6 on the Dyno)

Top
 Profile


Posted: Fri Jan 12, 2007 12:12 am
Tyre Shredder
Offline
User avatar

Age: 27

Posts: 365

Joined: 14th Feb 2006

Ride: BA falcon

Location: Adelaide
SA, Australia

wher and how do u polish the rocker cover and how much, bcoz mine is starting 2 peal around the oil cap and wondering if i shuld get it done.



_________________

Real Men Smoke Rubber

Top
 Profile
