el engine rebuild



Page 1 of 1 [ 11 posts ]


 Post subject: el engine rebuild
Posted: Fri Mar 16, 2007 3:06 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

can i and should i use an au rebuild kit??



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Fri Mar 16, 2007 3:10 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

not unless you have a hybrid engine.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Mar 16, 2007 5:09 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

its not hybrid,so el should be good,not au pistons or anything?



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Fri Mar 16, 2007 5:13 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

If you go au pistons you need au rods

the main bearings on the AU are a different size as well



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Mar 18, 2007 1:22 am
Stock as a Rock
Offline

Age: 63

Posts: 168

Joined: 31st Oct 2006

Ride: 4.0 EL/dads taxi

Location: Kingaroy
QLD, Australia

Whats the build date and have you got an alloy (cast) sump or steel one?
Also read the sticky's on different engines at start of this forum.



_________________

The thunder of .05 will echoe around Bathurst for ever.

Top
 Profile


Posted: Sun Mar 18, 2007 3:23 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I thought you could use AU pistons in an EL engine, as long as the gudgeon pin sizes are the same, deck heights are the same.?????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Mar 18, 2007 3:45 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

cjh wrote:
I thought you could use AU pistons in an EL engine, as long as the gudgeon pin sizes are the same, deck heights are the same.?????


pin size is the same, deck height is the same, but rod length/pin height is different. AU pistons will sit .120" lower in the bores on EL rods.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Mar 18, 2007 6:34 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I meant deck height of the pistons, pin to top of piston distance......are they the same????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Mar 18, 2007 7:02 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

nope

E-series use a 5.88" rod, AU onwards use a 6" rod with higher pins.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Mar 18, 2007 7:38 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

stockstandard wrote:
nope

E-series use a 5.88" rod, AU onwards use a 6" rod with higher pins.


Stockstandard.............What is the crankpin journal size on an AU ???



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Apr 07, 2007 4:03 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

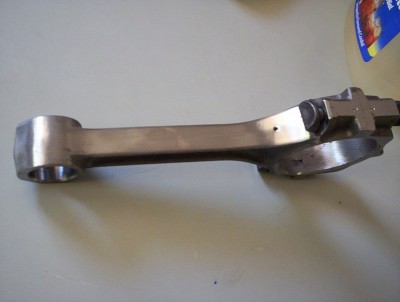

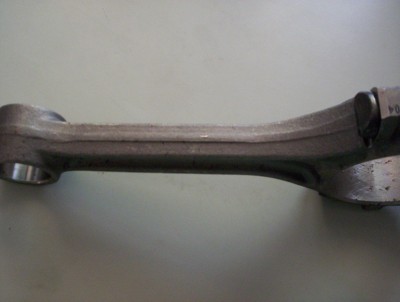

I now have the correct rods for the pistons I'm using. They are AUII rods, brand new, and have cleaned them up a bit.





Attachments:
New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 008.jpg
New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 008.jpg [ 396.7 KiB | Viewed 16 times ]
New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 011.jpg
New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 011.jpg [ 385.9 KiB | Viewed 15 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
