Spend $50 and by a gregorys manual! seriously its a handy thing to have and it shows how to line up the timing system.
Top
 Profile


Posted: Sat Apr 14, 2007 1:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ea_falcon wrote:
yes i have made it alot harder......................but how do i make it work again lol

Seriously ive got the crank at top dead center and the rotor in the dizzy is pointing to number one.................where do i go from here?


Luck you did that then............have you got a w/shop manual for it???
It will show you where to set up the cam sprocket.
On the sprocket is a mark, this mark needs to sit about 3 degrees above the cyl head on the pass side of the engine.
When you do get it back together, turn the engine over by hand and see if it rotates easily without it coming to a complete stop all of a sudden.
Anyway, get a w/shop manual, and read it till you fully understand it, ok.?



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Apr 14, 2007 10:41 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

You mean sudden stop as in valves hitting the piston? turn the engine by hand with the spark plugs out so as there is no compression.
Top
 Profile


Posted: Sun Apr 15, 2007 5:19 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

joolz wrote:
You mean sudden stop as in valves hitting the piston? turn the engine by hand with the spark plugs out so as there is no compression.

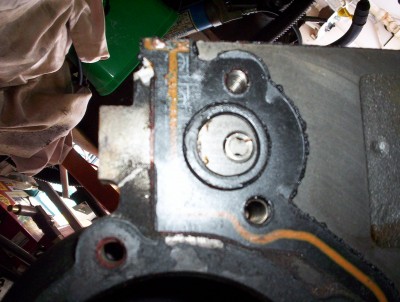

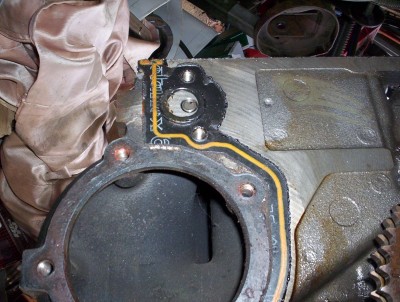

Here's a pic of that O'ring on the front of the block.





Attachments:
1997 EL 4.0 engine 002.jpg
1997 EL 4.0 engine 002.jpg [ 547.16 KiB | Viewed 35 times ]
1997 EL 4.0 engine 003.jpg
1997 EL 4.0 engine 003.jpg [ 447.21 KiB | Viewed 23 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Apr 15, 2007 7:43 pm
Tyre Shredder
Offline
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

Dont forget to fish the lower chain dampener out of the sump once you've removed the timing cover... Unless your dropping the sump that is.



_________________

13.28@103.73mph

Top
 Profile


Posted: Mon Apr 16, 2007 10:51 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Anyways i replaced the timing chain kit yesterday. Found out that the dizzy sprocket was out 1 tooth from new. That would explain why it was so hard to set the base timing. The "O" ring in above pics is for the oil send to the chain tensioner. Be careful not to loose the small piston thing that fits in the centre of the "O" ring. Well its all back together now and all good. Drives alot quieter mainly due to the correct timing along with new quides as the old ones caused it to whistle when hot.
Top
 Profile


Posted: Mon Apr 16, 2007 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

damn it...should have made a doco.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Mon Apr 16, 2007 1:36 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Yeah i should have! I had to find out the hard way that the lower chain guide can fall into the sump, i couldnt find it so there it stays! The hard part was getting the cover back on as the head makes it a tight fit when fitting the lower locating dowels. Also when lining up the sprokets be sure to keep tension on the chain from the right side from the crank sprocket up to the cam sprocket as it will give you a false alignment if tesioned on the left.
