el motor rebulid pics



Page 1 of 4 [ 47 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: el motor rebulid pics
Posted: Sun Dec 17, 2006 7:07 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

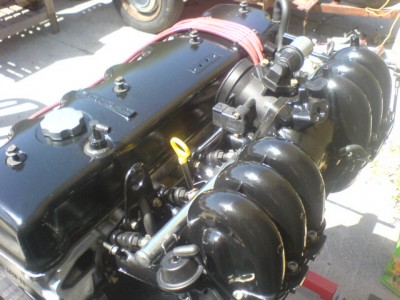

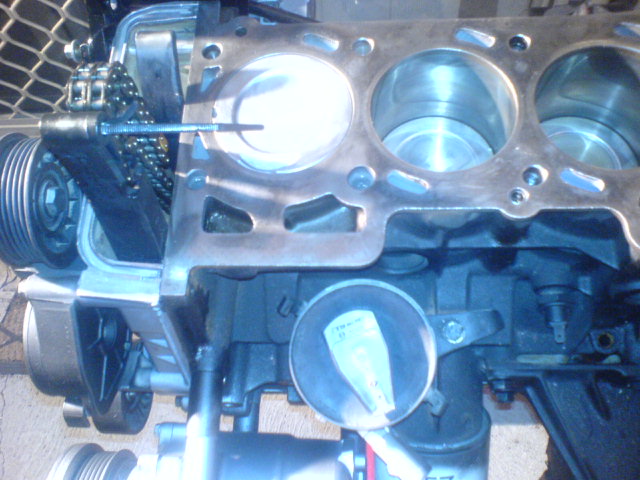

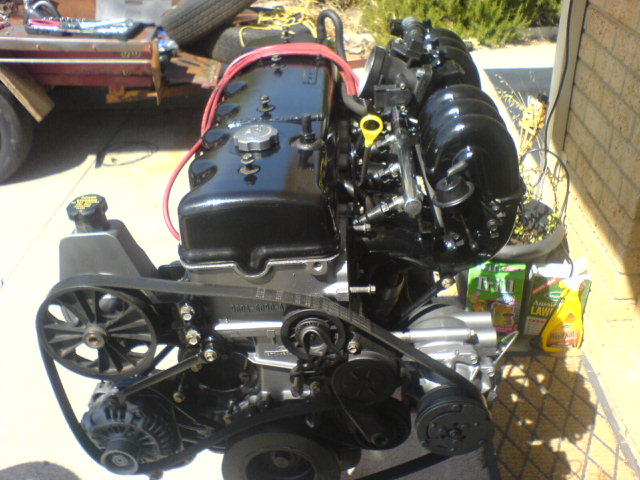

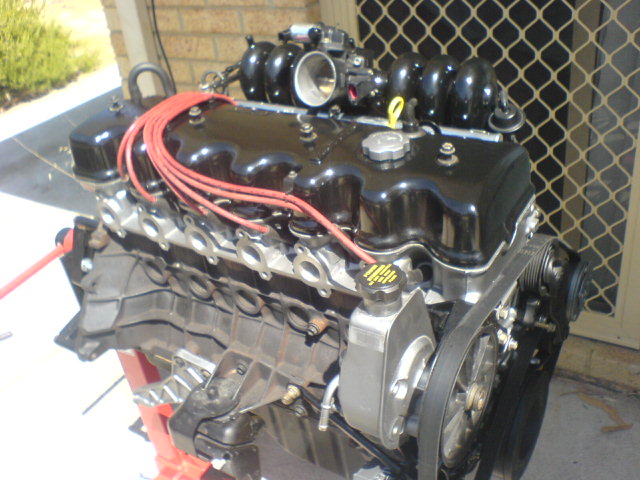

hey guys just thought id post up some pics of how the rebulid is slowly comming along.

will have a few questions on vacum hoses and such later but for now heres a few pics





Attachments:
DSC00393.JPG [ 81.56 KiB | Viewed 31 times ]
DSC00398.JPG [ 75.22 KiB | Viewed 24 times ]
DSC00416.JPG [ 87.06 KiB | Viewed 25 times ]
DSC00415.JPG [ 81.67 KiB | Viewed 22 times ]
DSC00414.JPG [ 89.92 KiB | Viewed 35 times ]
Top
 Profile


Posted: Sun Dec 17, 2006 7:11 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

looking good. Stock rebuild or is it getting performance bits?

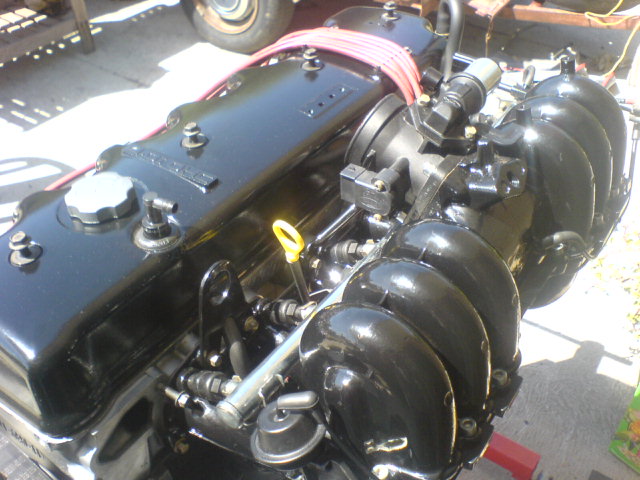

Black painted intakes seem to be coming into fashion. Might want to give the block a coat of gloss while you can as well.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 17, 2006 7:13 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

not painted


powder coated as well as all brakets and nething that could go threw the oven. like rocker cover etc
Top
 Profile


Posted: Sun Dec 17, 2006 7:20 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

stg 2 cam in it full acl race series gasket kit over it.

motor is going into my eb which has paceys high flow cat 2 1/2' zorst manual converted . the intake will be 3' polished to pod in air box.

this motor is just going to be for a decent daily.

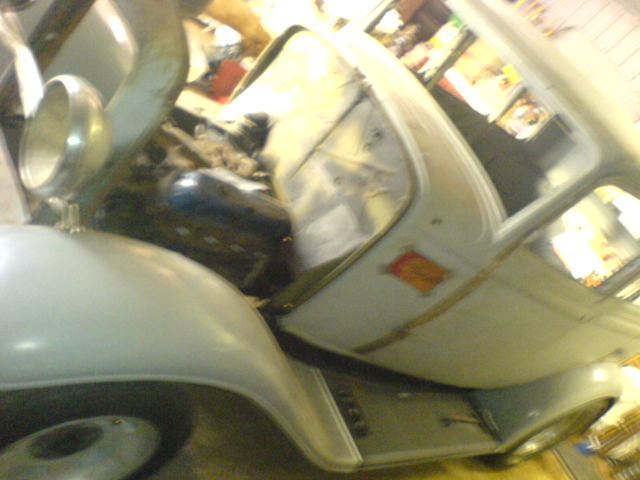

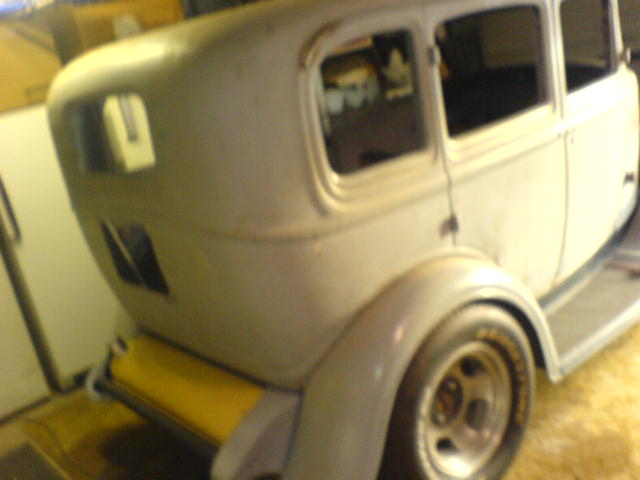

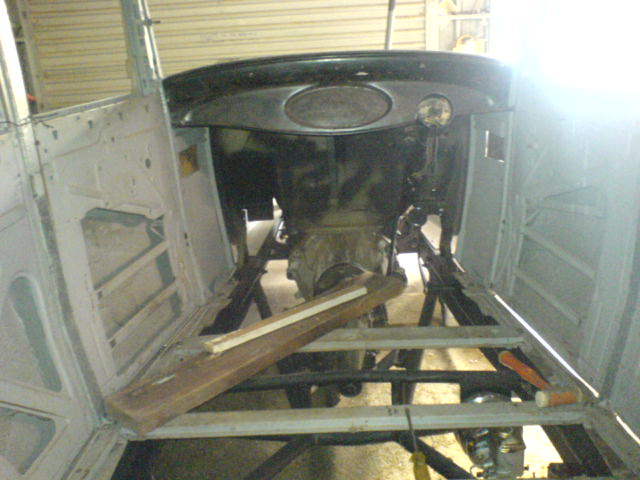

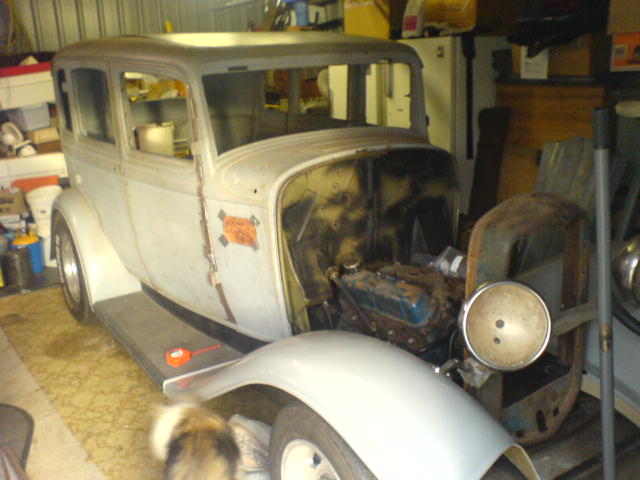

this is what my dad my brother an i are working on getting on the road for shows etc heres some pics of that befor and where its up to now

c if ne1 can guess what it is ?





Attachments:
DSC00404.JPG [ 70.54 KiB | Viewed 13 times ]
DSC00021.JPG [ 46.72 KiB | Viewed 20 times ]
DSC00018.JPG [ 36.21 KiB | Viewed 14 times ]
DSC00017.JPG [ 51.52 KiB | Viewed 15 times ]
DSC00016.JPG [ 50.81 KiB | Viewed 13 times ]
Top
 Profile


Posted: Sun Dec 17, 2006 7:51 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

back to the motor.

well i just tryed to rotate the crank but it will only go 1/4 of a turn then stop seems like something is stopping it. ( clockwise direction ) no plugs r in either

all ive done to date is take the intake off take the head off got head skimed replaced timing guides reset timing
then put back to gether.

can ne1 help of why it may not be able to turn ?
Top
 Profile


Posted: Sun Dec 17, 2006 8:00 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Have you reset the timing chain tensioner?

Pull the rocker cover off and see if its binding up somewhere.

and whatever you do dont force it until you work out what it is.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 17, 2006 8:13 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

yeh tensioner has been reset.

i took the rocker gear off and tryed it and its all fine turns freely.

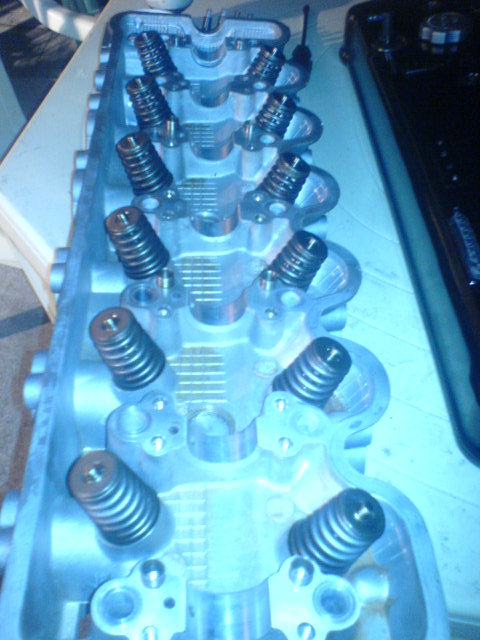

i did replace the valve stem seals but made sure it all went back wher it cam out. as i did 1 at a time.
so hmm thinking maybe it was a valve hitting a piston ? if so what do i do to rectify the prob and how could this of occured ?
Top
 Profile


Posted: Sun Dec 17, 2006 8:15 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

My guess is the timing chain was moved a few teeth



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 17, 2006 8:17 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

so now it turns if i was to put the rocker gear back on and then it hits again whats up ? woul dhave to be valves then?
Top
 Profile


Posted: Sun Dec 17, 2006 8:19 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

If you forced it hard enough you would.

When you put the piston to TDC where is the timing mark on the cam gear sitting?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 17, 2006 8:20 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

basicly level with the top of the head
Top
 Profile


Posted: Sun Dec 17, 2006 8:24 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

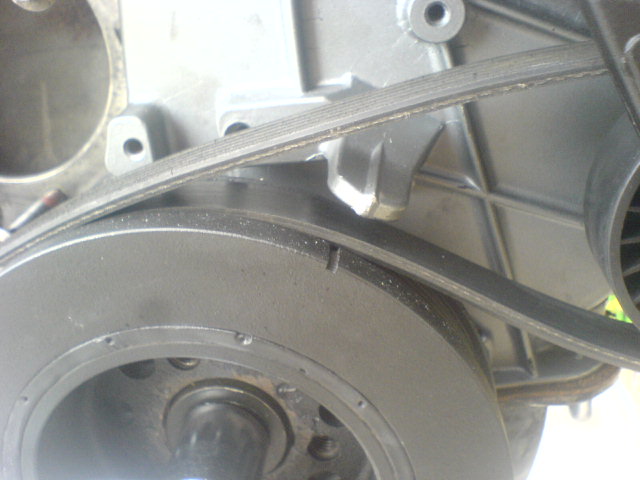

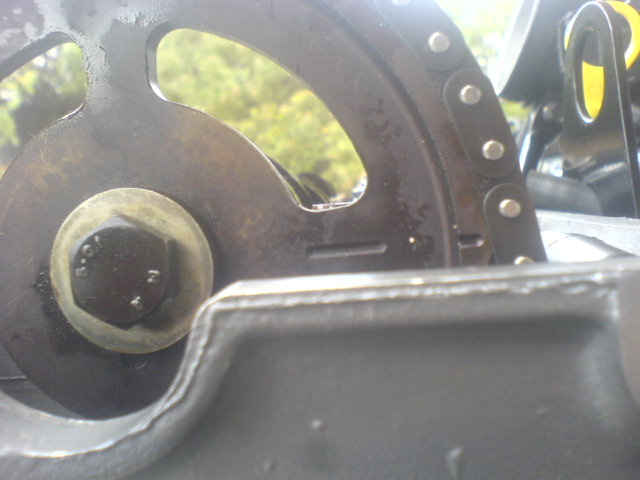

heres a pic





Attachments:
DSC00417.JPG [ 51.05 KiB | Viewed 18 times ]
DSC00418.JPG [ 53.15 KiB | Viewed 16 times ]
Top
 Profile


Posted: Sun Dec 17, 2006 8:25 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

basically level = level or no more than 3mm above?

Are you finding TDC using the mark on the balancer? If so are you sure it hasn't slipped?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 17, 2006 8:32 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

im sure it hasnt. and u can see from the pics where it sits.

is that the right side the timing mark should be on ?
Top
 Profile


Posted: Sun Dec 17, 2006 8:37 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

ur not using an ef cam with hybrid rockers are you?

or any other combination? i noticed the hybrid springs.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile
