 Post subject: EL XR6 Dyno Result
Posted: Sat Oct 25, 2008 6:57 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

Hey guys this is my latest Dyno result.
Fresh rebuilt engine with 30 thou bore, 1673 Wade Cam, Auto, 2.5 inch Exhaust cat-back.
Expected more, not that happy with the results considering a mates standard EL Futura made 121.9kw atw.





Attachments:
File comment: Wade 1673 Cam Spec
Wade Cam Spec Sheet.JPG
Wade Cam Spec Sheet.JPG [ 54.63 KiB | Viewed 783 times ]

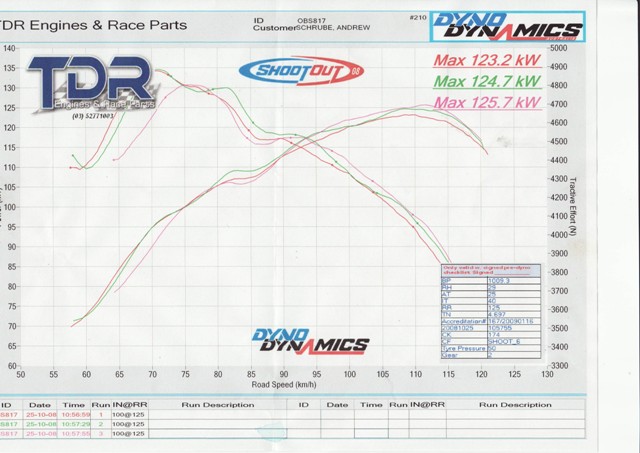

File comment: Dyno Print
Dyno Print.JPG
Dyno Print.JPG [ 69.79 KiB | Viewed 784 times ]
Top
 Profile


Posted: Sat Oct 25, 2008 7:51 pm
Getting Side Ways
Offline

Age: 38

Posts: 668

Joined: 24th Jul 2006

Gallery: 4 images

Location: Geelong
VIC, Australia

u go tdr's today yeh, i made 145.3 on tony's dyno with wade 1673 exhaust and manual smthin goin on with your setup maybe, look at timing itll give u some more power.....

How was it today anyone pull any crazy numbers



_________________

EL Fairmont - GT steering wheel -3.45 lsd - superlows - white line sway bars - xr kit - au11 xr8 engine - 3500 convertor -BA XR8 leather interior - ltd woodgrain - di filippo extractors - trick flow track heat manifold - tfs1 camshaft - twin 2.5 inch system venom cats hooker mufflers - 187rwk

Top
 Profile


Posted: Sat Oct 25, 2008 8:01 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Got a graph with air/fuel?



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


 Post subject: EL XR6 Dyno Result
Posted: Sat Oct 25, 2008 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

Nah sorry only what is there.
Top
 Profile


Posted: Sat Oct 25, 2008 8:31 pm
Getting Side Ways
Offline
User avatar

Posts: 653

Joined: 2nd May 2006

Gallery: 1 images

Ride: FG G6E Turbo

Location: Melbourne
VIC, Australia

do you know what the cam was dialled in at?
I am running the 1637, had it on -2, ran like s**t, put it to +4 the torque comes on really good now from 3500 to the redline



_________________

FG G6E Turbo
Grandpa Spec!

Top
 Profile


 Post subject: camshaft
Posted: Sat Oct 25, 2008 8:58 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

i havent even got that timing gear as yet all i did when i rebuilt my motor made sure the timing marks line up correctly and it runs fine but power on dyno not so good.
Top
 Profile


Posted: Sat Oct 25, 2008 9:07 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Well the loss off power would be due to not correctly dialing in the cam. Once you dial your cam in properly, you'll see a much better improvement.

I'm running 144rwkws with the same set up as yours...minus 30 thou bore, with 3" intake.

Prior to dialing in the cam, the car ran pretty average, after setting the cam right, it pulled much harder.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: camshaft
Posted: Sat Oct 25, 2008 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

thanks for help phongus. which mark is ur cam gear set to so when i get my cam gear i can just do the same if possible?
Top
 Profile


 Post subject: Re: camshaft
Posted: Sat Oct 25, 2008 10:11 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

jamie22_cole wrote:
thanks for help phongus. which mark is ur cam gear set to so when i get my cam gear i can just do the same if possible?



try doing some googleing on how to dial in a cam shaft.
after few mins of reading, you'll realise how dumb that question is.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: cms cam
Posted: Sun Oct 26, 2008 11:49 am
Getting Side Ways
Offline
User avatar

Posts: 708

Joined: 9th Nov 2004

Ride: Falcon

Location: Liverpool
NSW, Australia

Our last head & cam package was an EF XR6 with only My Stage 2 Head & Cam with the normal inlet & exhaust mods that everyone else does. We pulled 149 rwkw and this was tested with 91 octane fuel. I'm sure if Sam (aka Fullysick XR) wants to he can post the Dyno readings.

Thanks
Joe
Top
 Profile


Posted: Sun Oct 26, 2008 12:03 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

im sure theres an underlying problem, that dialing the cam in wont fix. Maybe shagged auto draining the power, compression, injectors.... the list is endless.

However heres a link to a thread where i posted a basic rundown of how i dial in my cams.... im sure someone will say its all wrong, but it will do until someone gives you more detailed info

http://www.fordmods.com/forums/cam-and- ... 68269.html
