Extractor fitting help, kinda urgent



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 6:40 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

so i went to fit my extractors today, and i cant get the to fit, they get stuck between the engine and cross member? anyone fitted them that can point me in the right direction?



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 7:52 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

what car?
what extractors?



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

ef 6 cylinder, not sure on brand but same shape/size as pacemakers



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 8:19 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

they should be anywhere near the x-member.

Are they the correct type?



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 8:22 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

Krytox wrote:
they should be anywhere near the x-member.

Are they the correct type?


ill go take photo's its easier, to understand, and yeh, they should be the right type i bought them off ftg auto salvage off an el xr6



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 8:30 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

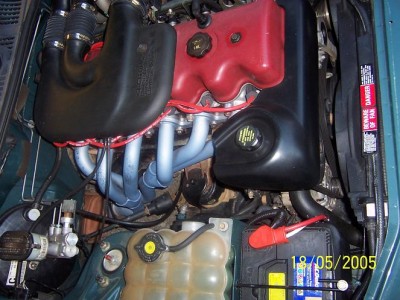

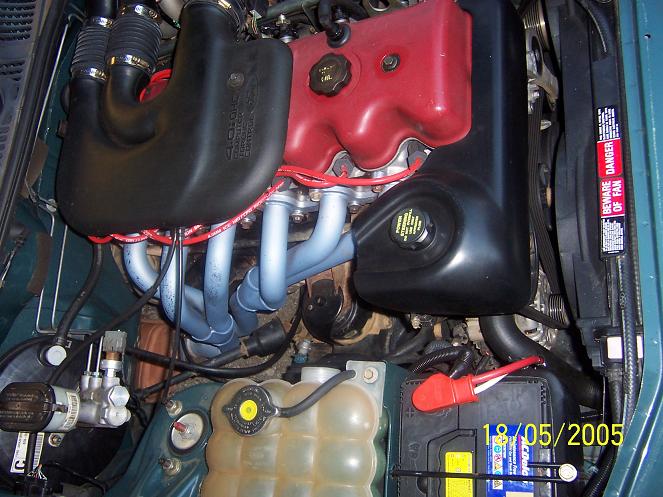

This is old, but just for reference.





Attachments:
camping 006s.JPG
camping 006s.JPG [ 76.09 KiB | Viewed 39 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 8:45 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

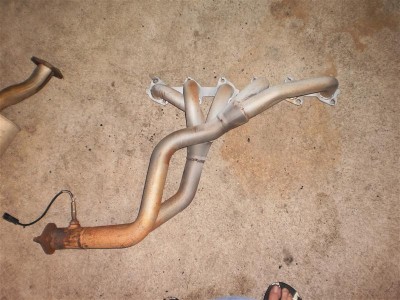

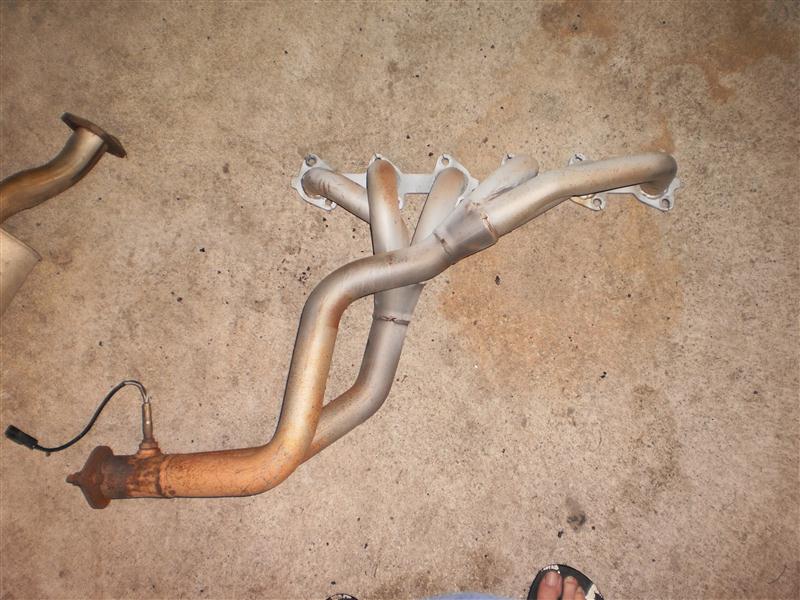

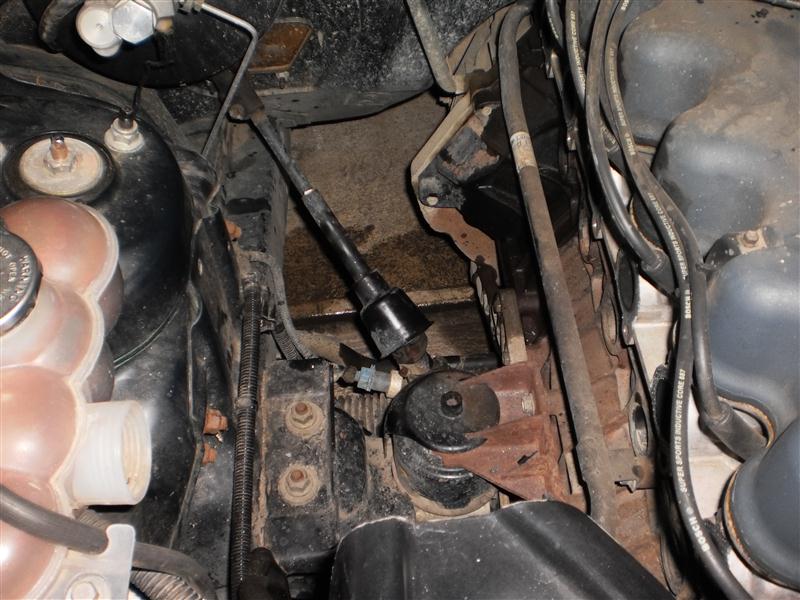

ok, probly shouldnt of said cross member, but what i meant is the rod you can see coming across, i cant get the manouevre the extractor in between that and the motor, heres the pics





Attachments:
small_P4090034.JPG [ 82.68 KiB | Viewed 44 times ]
small_P4090032.JPG [ 81.96 KiB | Viewed 31 times ]



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 9:23 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

remove the intermediate shaft, it's easy enough to do!



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

67RCE wrote:
remove the intermediate shaft, it's easy enough to do!


that the shaft in pic? thats all i needed to hear, i knew to move it, but anything i gotta be careful of with it, wasnt sure what it is for



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 9:47 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

might need to amend that leak you have first!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 9:49 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Ash wrote:
That comes off your steering column onto your steering rack.

Remove the 10mm headed bolt on both ends and it'll come right off.


Also...if you remove the intermediate shaft...I suggest you not turn the steering wheel once removed. If you need to tie a brick to the steering wheel so that you can't turn the wheel. If you turn it and reconnect the intermediate shaft by accident or someone else does, by half a turn, you may inadvertedly damage your clock spring when you go lock to lock when steering.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

Krytox wrote:
might need to amend that leak you have first!


on the ground? thats water, its raining here lol, and if you mean on the block thats just wd40 i sprayed to loosen some bolts on the cat pipe, dw i plan on cleaning up the bay before i put them on



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sat Apr 09, 2011 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

thanks guys ill give it a shot tommorow, as always great help from all, thanks



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sun Apr 10, 2011 12:06 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

uniacidz wrote:
They aint pacemakers of course and not same shape

And with that much length near the flange, shouldnt be a issue.

Done mine, with paccies, on my old car and new car and threaded em in from the top of course. Needed a firm hand but in the end got it in quick smart.

Not painting em of anything like that whilst they are off? I went over mine with pacemaker blue paint.


nah, when i said pacemakers i meant roughly same shape lol, and really cbf painting them, and we trying for about 30 mins to manouevre it in lol



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Extractor fitting help, kinda urgent
Posted: Sun Apr 10, 2011 1:03 am
Parts Gopher
Offline

Age: 28

Posts: 61

Joined: 13th Feb 2010

Ride: ED futura

Location: sydney
NSW, Australia

uniacidz wrote:
They aint pacemakers of course and not same shape

And with that much length near the flange, shouldnt be a issue.

Done mine, with paccies, on my old car and new car and threaded em in from the top of course. Needed a firm hand but in the end got it in quick smart.

Not painting em of anything like that whilst they are off? I went over mine with pacemaker blue paint.


i shat bricks when i realised your pacies were levitating. but theres like something right near the #5 isnt there?
Top
 Profile
