Fordmods Logo

Flat top pistons : do they need a valve relief in I6 4.0



Page 1 of 1 [ 12 posts ]


 Post subject: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Sat Jan 06, 2007 8:33 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Hello people The question is do you need a valve relief in the crown of the pistons (flat tops, with same deck heights as OE.) ?
The cam has 0.500" lift at the valve and is 282/292 in/ex.
The OE pistons had a valve relief, but did they really need it?
Any help appreciated.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Jan 07, 2007 12:21 am
Stock as a Rock
Offline

Age: 31

Posts: 153

Joined: 28th Apr 2005

Gallery: 4 images

Ride: EA Falcon Hybrid

Location: geelong
VIC, Australia

could try and put the head together turn it till the valve is fully open and see if it will hit buy lookin how far into the chamber it goes? if it will clear then it will be ok :wink:



_________________

<<<DAN's CARS>>>
* 88 EA Falcon X2
* 81 FJ40
* 73 KE26 X2
* 73 KE20 x2
* 69 KE10 X2
and more

Top
 Profile


Posted: Sun Jan 07, 2007 1:57 pm
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

hope someone knows this (stockstandard?)
as i have a very similer problem.



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Tue May 31, 2011 11:14 pm
Oompa Loompa
Offline

Posts: 38

Joined: 14th Mar 2010

Ride: Ford EL

Location: Hunter Valley
NSW, Australia

I'm digging up this post again because I'm interested in fitting Intech (flat tops) into my EL block.
It's ready for a rebuild and I'd like to up the compression as much as I can.
Obviously I will be shaving the head and thinning down the gasket.
I could possibly machine the valve clearance at work but if it isn't required then even better.

Anyone done it yet?
Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Wed Jun 01, 2011 12:14 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

They certainly do from my measurements, but maybe not as big as they were on the EA to EL. I did one the same size as the AU relief which is alot smaller as I did not want to take out more than necessary. I measured valve to piston clearance with the AU relief size cuts (I used BA forged pistons) and whilst there was enough clearance, I wouldn't say there was heaps. Cant remember what lift the cam was but nothing extraordinary.



_________________

Turbo 6s rule

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Wed Jun 01, 2011 12:48 am
Oompa Loompa
Offline

Posts: 38

Joined: 14th Mar 2010

Ride: Ford EL

Location: Hunter Valley
NSW, Australia

Sweet!
Definately need to get it checked with a dummy assembly anyway but at least I know it's been done before.

I'm wanting to roll a 1673 wade cam (0.512" ex, 0.485in), shave the head and AU gasket. It's gonna be very close I reckon.
Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Thu Jun 02, 2011 11:31 pm
Oompa Loompa
Offline

Posts: 38

Joined: 14th Mar 2010

Ride: Ford EL

Location: Hunter Valley
NSW, Australia

I've been informed the AU Piston Compression Height of 30.88mm/1.216in
is way different to EL 25.5mm/1.004in

Not such a good idea after all. :?
Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Fri Jun 03, 2011 1:07 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

fitz wrote:
I've been informed the AU Piston Compression Height of 30.88mm/1.216in
is way different to EL 25.5mm/1.004in

Not such a good idea after all. :?

AU run a shorter rod too.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Fri Jun 03, 2011 8:02 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

fitz wrote:
Sweet!
Definately need to get it checked with a dummy assembly anyway but at least I know it's been done before.

I'm wanting to roll a 1673 wade cam (0.512" ex, 0.485in), shave the head and AU gasket. It's gonna be very close I reckon.


How much compression do you want? If you are rebuilding get pistons to suit rather than shaving the head, leaves you little room to play with if you do a headgasket and need a skim (ouch if a worked head) and you can get chain play.

AU rods are 6" (or 6.060") from memory, and E series rods are 5.88". If you are going for an N/A build use an AU rod/piston length combo, as will be your cheapest/best option to rev with.



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Wed Jun 15, 2011 5:54 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

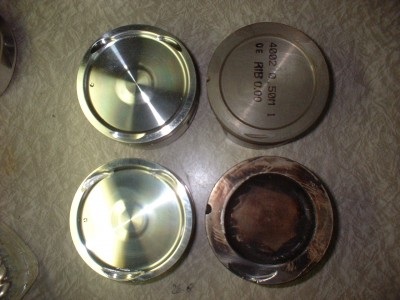

I was just looking thru some photos. THis will give you some idea





Attachments:
File comment: Weisco Forged BA, stock ED and Stock AU
millcrest3 004.jpg
millcrest3 004.jpg [ 318.25 KiB | Viewed 62 times ]



_________________

Turbo 6s rule

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Wed Jun 15, 2011 5:56 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

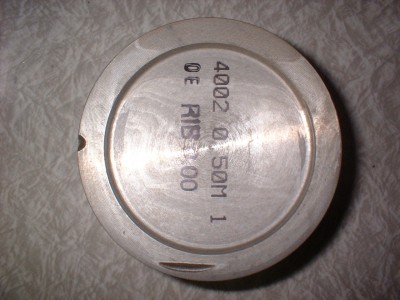

close up of a stock AU piston





Attachments:
File comment: stock AU
millcrest3 013.jpg
millcrest3 013.jpg [ 313.96 KiB | Viewed 32 times ]



_________________

Turbo 6s rule

Top
 Profile


 Post subject: Re: Flat top pistons : do they need a valve relief in I6 4.0
Posted: Wed Jun 15, 2011 11:06 pm
Oompa Loompa
Offline

Posts: 38

Joined: 14th Mar 2010

Ride: Ford EL

Location: Hunter Valley
NSW, Australia

Cheers for the replies.
Looks like it's easier to just use an AU bottom end with bellhousing and alternator into an EL.

Sump mod is easiest option too.
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 1  [ 12 posts ]

Who is online

Users browsing this forum: No registered users and 25 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Wed Dec 13, 2017 8:23 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
