 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 10:04 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

WagonDad wrote:
Hey guy's, thanks for the replies. Just a quick question how do you do the "Wagondad Wrote:" box with the copied quoted area, I have tried the quote button but it doesn't turn out like the box. Thanks.
Nah mate --- You just use the quote button. When you're writing your message there's a bit at the bottom that says "PREVIEW". Try clicking it, and you'll see what your message really does look like...

Then you can do weird things like this if you get really carried away.....

Which you probably shouldn't, as people would get all annoyed with having heaps of blue all over their screens...

Sad, but true.

Fiend wrote:
Nothing else of note


Good stuff on this thread mate... Click here for a bit of discussion about similar things...
Top
 Profile


 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 3:17 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

What tools/bits did you use for this?
How do you get each port the same?
Do you reckon anyone with a steady hand could have a go?



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 3:41 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Anyone with a steady hand and a bit of basic knowledge of porting could give this a go IMO, but i reckon patience is the key, takes a lot of time to get everything on each cylinder matching, especially when you start reshaping chambers and cutting back, and reshaping the short side radius etc so theres always a lot of measuring involved. Read up on some porting books, articles, or even some porting threads from here and other forums, they might be a bit different but in the end the concepts are basically the same.

You'd need some sort of good air grinder or electric die grinder which will work fine too, preferably something with a longer shaft so you can really get into the ports. With the grinder its a good idea to have some sort of regulator (some grinders have built in reg's) to keep the speeds not too fast and not too slow if you get what i mean, its alloy so its easy to take too much off and clog up the bits. You'll need an assortment of grinding stones, carbide bits if you are doing a lot of cutting/reshaping and other bits like flapper wheels, sanding rolls etc for smoothing/polishing etc. With the head im working on i use a bit of WD-40 to lubricate the alloy to lessen the amount of alloy clogging up the bits when grinding



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 8:20 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

MADXF wrote:
What tools/bits did you use for this?
How do you get each port the same?
Do you reckon anyone with a steady hand could have a go?


KWIKXR wrote:
Anyone with a steady hand and a bit of basic knowledge of porting could give this a go IMO, but i reckon patience is the key, takes a lot of time to get everything on each cylinder matching, especially when you start reshaping chambers and cutting back, and reshaping the short side radius etc so theres always a lot of measuring involved. Read up on some porting books, articles, or even some porting threads from here and other forums, they might be a bit different but in the end the concepts are basically the same.

You'd need some sort of good air grinder or electric die grinder which will work fine too, preferably something with a longer shaft so you can really get into the ports. With the grinder its a good idea to have some sort of regulator (some grinders have built in reg's) to keep the speeds not too fast and not too slow if you get what i mean, its alloy so its easy to take too much off and clog up the bits. You'll need an assortment of grinding stones, carbide bits if you are doing a lot of cutting/reshaping and other bits like flapper wheels, sanding rolls etc for smoothing/polishing etc. With the head im working on i use a bit of WD-40 to lubricate the alloy to lessen the amount of alloy clogging up the bits when grinding



Madxf:
start here.

ford-4l-and-6-cylinder-f1/your-diy-porting-bible-t82450.html



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 10:32 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

MADXF wrote:
What tools/bits did you use for this?
How do you get each port the same?
Do you reckon anyone with a steady hand could have a go?

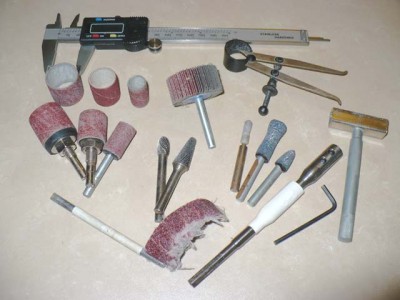

These are the basic tools I used, I started of using a air driven die grinder but it drove me and my neighbours mad so I ended up using a cordless drill, worked good. To get in further to the port I used a spade bit extension, ground down the grub screws so they didn't stick out and put heat shrink over the end so not to damage the seats, the heat shrink just slips back to change bits, to gain more control use a piece of rag over the extension shaft and hold on with your hand. The carbide bits I got off E-Bay for around $10 each I wouldn't use them on cast iron but for alloy they do alright, what KWIKXR wrote about the WD40 works well. The best of the lot is the spiral bands, once you get the basic shape with the carbide bits you can shape the last 10% with these, they give a nice even finish and smooth out any bumps. The funny looking looking thing at the bottom of the picture is my own invention, a 6mm piece of rod with a 15mm hacksaw cut in one end, you slide a piece of 40 grit emery cloth into the slot and it gives a spot on finish to intake ports again covered the shaft in heat shrink.

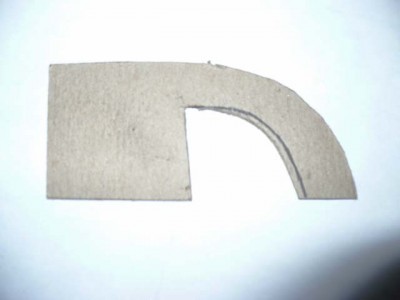

The measuring tools i used are the inside calipers and the digital vernier, a lot of measuring in the bowl area is done off the valve guide a lot of it is done by site and feel and also some cardboard templates, this one is for the intake short radius the black line is is approx where the original turn was.





Attachments:
P1030366.JPG [ 27.36 KiB | Viewed 25 times ]
P1030365.JPG [ 52.83 KiB | Viewed 27 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: Flow Chart Figures.
Posted: Thu Sep 17, 2009 10:36 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

WagonDad wrote:
MADXF wrote:
What tools/bits did you use for this?
How do you get each port the same?
Do you reckon anyone with a steady hand could have a go?



These are the basic tools I used, I started of using a air driven die grinder but it drove me and my neighbours mad so I ended up using a cordless drill, worked good. To get in further to the port I used a spade bit extension, ground down the grub screws so they didn't stick out and put heat shrink over the end so not to damage the seats, the heat shrink just slips back to change bits, to gain more control use a piece of rag over the extension shaft and hold on with your hand. The carbide bits I got off E-Bay for around $10 each I wouldn't use them on cast iron but for alloy they do alright, what KWIKXR wrote about the WD40 works well. The best of the lot is the spiral bands, once you get the basic shape with the carbide bits you can shape the last 10% with these, they give a nice even finish and smooth out any bumps. The funny looking looking thing at the bottom of the picture is my own invention, a 6mm piece of rod with a 15mm hacksaw cut in one end, you slide a piece of 40 grit emery cloth into the slot and it gives a spot on finish to intake ports again covered the shaft in heat shrink.
The measuring tools i used are the inside calipers and the digital vernier, a lot of measuring in the bowl area is done off the valve guide a lot of it is done by site and feel and also some cardboard templates, this one is for the intake short radius the black line is is approx where the original turn was.



it's very obvious by your short turn template as to why you picked up so much flow.....
