 Post subject: FORD EF XR6 HEAD PORTING
Posted: Fri May 31, 2013 7:26 am
Oompa Loompa
Offline

Age: 32

Posts: 39

Joined: 23rd Jun 2011

Ride: ford ef xr6

Location: Oak Flats
NSW, Australia

Was going to attempt to do some head porting myself, seen a few posts on here of people doing it just wanna know how mcuh to take off the inlet and exhaust ports aswell as the valves i seen one photo of die grinding the lump in the inlet valves, just wanna know what else i could do?

Thanks
Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Fri May 31, 2013 9:14 pm
Fordmods Junkie
Offline
User avatar

Age: 45

Posts: 1000493

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

what you need to do us take it to.somone who knows what they are doing,

if you take too much metal away you will screw it up big time,

just gasket match the ports give the exhaust a sick a** polish and be done with it



_________________

RIP SCOTT

Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 01, 2013 5:41 am
Oompa Loompa
Offline

Age: 32

Posts: 39

Joined: 23rd Jun 2011

Ride: ford ef xr6

Location: Oak Flats
NSW, Australia

Disco Frank wrote:
what you need to do us take it to.somone who knows what they are doing,

if you take too much metal away you will screw it up big time,

just gasket match the ports give the exhaust a sick a** polish and be done with it


yeah not planning on doing anything over the top just gonna do what you said just gasket match and and clean it up, whats the best way to clean it up making it look nice? a fine flapper wheel?
Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 01, 2013 9:03 am
Stock as a Rock
Offline

Age: 43

Posts: 112

Joined: 18th Aug 2005

Location: hobart
TAS, Australia

Might be some useful stuff in this article.
the-garage-f53/kwikxr-s-ef-fairmont-t72655-157.html
Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Tue Jun 04, 2013 4:50 pm
Getting Side Ways
Offline

Age: 57

Posts: 914

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

ford-4l-and-6-cylinder-f1/efxr6-head-t103348.html

- I describe what I did to my head in the third post from bottom of page one - worked quite nicely for me.



_________________

Sold the Greenmachine - now driving 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 15, 2013 10:42 am
Oompa Loompa
Offline

Age: 32

Posts: 39

Joined: 23rd Jun 2011

Ride: ford ef xr6

Location: Oak Flats
NSW, Australia

Greenmachine wrote:
http://www.fordmods.com/ford-4l-and-6-cylinder-f1/efxr6-head-t103348.html

- I describe what I did to my head in the third post from bottom of page one - worked quite nicely for me.


heyy just reading through your post on that page, what do you mean by smaller radius?

Thanks
Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 15, 2013 12:47 pm
Stock as a Rock
Offline

Age: 43

Posts: 112

Joined: 18th Aug 2005

Location: hobart
TAS, Australia

Along the bottom of the port, it's the shorter turn where the floor turns to aim for the valve.
http://us1.webpublications.com.au/stati ... 2_12mg.jpg

The head is upseide down of course, the long turn is on bottom of pic as it's the long way around from the port to the valve, top of pic is the short turn radius.
Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 15, 2013 6:05 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

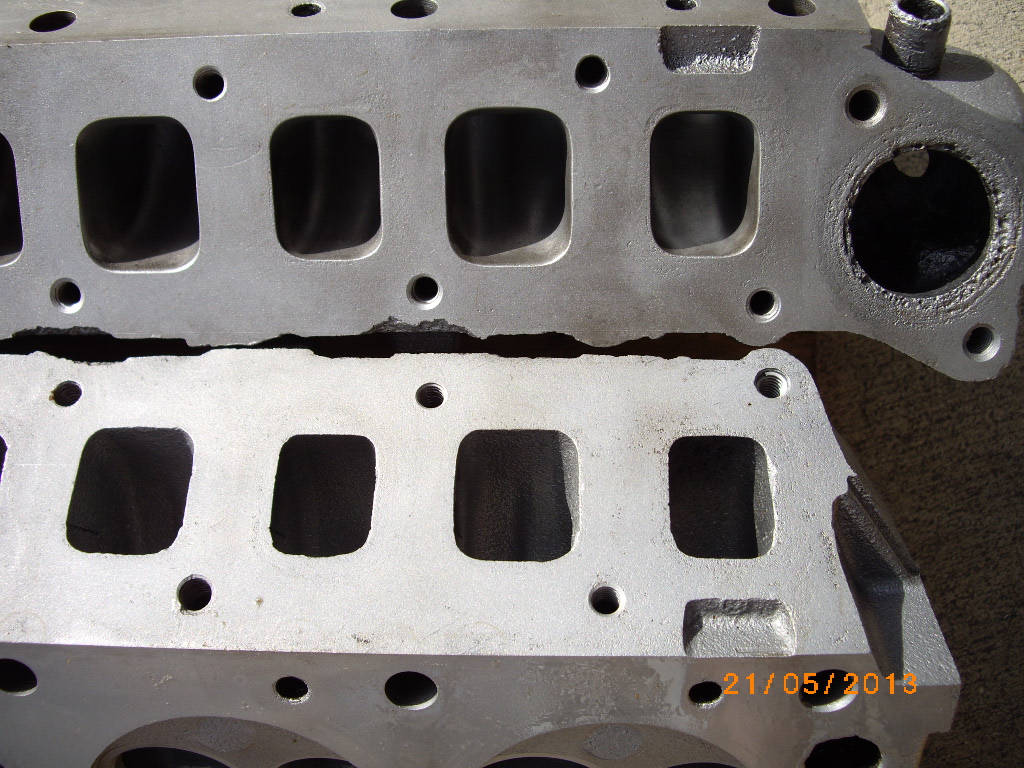

Here's some that i've done......





Attachments:
My 88EA cyl head ported & polished. 002_resize.jpg
My 88EA cyl head ported & polished. 002_resize.jpg [ 105.71 KiB | Viewed 204 times ]
IMGP1376.JPG [ 378.17 KiB | Viewed 205 times ]
100_5444.JPG [ 405.61 KiB | Viewed 220 times ]
My 4.0 EF cyl head 020_resize.jpg
My 4.0 EF cyl head 020_resize.jpg [ 110.34 KiB | Viewed 201 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: FORD EF XR6 HEAD PORTING
Posted: Sat Jun 15, 2013 8:50 pm
Getting Side Ways
Offline

Age: 57

Posts: 914

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

falcon_91 wrote:
Greenmachine wrote:
http://www.fordmods.com/ford-4l-and-6-cylinder-f1/efxr6-head-t103348.html

- I describe what I did to my head in the third post from bottom of page one - worked quite nicely for me.


heyy just reading through your post on that page, what do you mean by smaller radius?

Thanks



Yeah, it's the BOTTOM radius when you think of the head as it's fitted to the engine. In my head, a couple of the exhaust ports were significantly lower - ie. had tighter small radius's than the others - so i matched all six to the one that was smallest / lowest.



_________________

Sold the Greenmachine - now driving 2015 Jeep Cherokee Trailhawk.

Top
 Profile
