 Post subject: Re: ford el overheating (want to fix before c4c)
Posted: Fri Nov 09, 2012 8:33 pm
Stock as a Rock
Offline

Age: 55

Posts: 185

Joined: 30th Apr 2008

Gallery: 3 images

Ride: AU WAGON

Location: Melborune
VIC, Australia

well when your 18 and doing your first trbo build its not always going to go right.anyways il solve it myself thanks anyways



_________________

AU Forte Wagon
Fairmont Front...
17" T-series rims

soon-Superlows
El GT steering wheel(leather need to be replaced.

Top
 Profile


 Post subject: Re: ford el overheating (want to fix before c4c)
Posted: Sat Nov 10, 2012 6:51 am
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Don't be like that homie, when you ask for help take it on board. If you don't want to follow the advice people will get the s**t.
Before you go pulling the engine apart again you should go over everything, everything.
could be a water pump, if not you can put a new on, or replace the gasket and use the old one, not reccomemded.
You're mates radiator may be partially blocked, a radiator dosnt just block 100%, sections of the core block up and reduce flow and cooling, even 20-30% blocked in turbo applications will cause overheating.
Head gasket could be wrong and causing a Massive air locks in the head and no flow in the galleries.
Could need a oil cooler.
Lots of things for you to properly check out before you rip the head off.

How much boost are you runing?
Top
 Profile


 Post subject: Re: ford el overheating (want to fix before c4c)
Posted: Sat Nov 10, 2012 1:54 pm
Stock as a Rock
Offline

Age: 55

Posts: 185

Joined: 30th Apr 2008

Gallery: 3 images

Ride: AU WAGON

Location: Melborune
VIC, Australia

well the plan is to put my other motor in change the headgasket on it along with welch plugs,water pump,rear main and brand new radiator.and in the mean time im going to get this engine rebuilt with acl race series re build kit.ive barely driven the car because ive been waiting on getting my haltech put in and tuned but i went for a quik drive with j3 and ive only got 10 psi out of it with the map sensor cutting out after that.il keep you guys updated and take pictures of my next headgasket change just so you guys can makesure ive done it correctly.



_________________

AU Forte Wagon
Fairmont Front...
17" T-series rims

soon-Superlows
El GT steering wheel(leather need to be replaced.

Top
 Profile


 Post subject: Re: ford el overheating (want to fix before c4c)
Posted: Sat Nov 10, 2012 5:10 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

el-ghia wrote:
well the plan is to put my other motor in change the headgasket on it along with welch plugs,water pump,rear main and brand new radiator.and in the mean time im going to get this engine rebuilt with acl race series re build kit.ive barely driven the car because ive been waiting on getting my haltech put in and tuned but i went for a quik drive with j3 and ive only got 10 psi out of it with the map sensor cutting out after that.il keep you guys updated and take pictures of my next headgasket change just so you guys can makesure ive done it correctly.


Surface finish is very important to the sealing ability of the head gasket.....as well as cleanliness.
Have a look at some ACL literature.





Attachments:

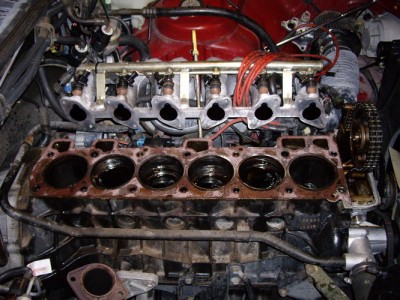

File comment: BEFORE CLEANING
IMGP0722_resize.JPG [ 151.21 KiB | Viewed 143 times ]

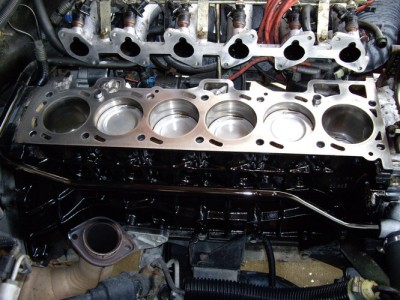

File comment: AFTER CLEANING
IMGP0732_resize.JPG [ 139.29 KiB | Viewed 148 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
