Today I replaced the coil on my falcon ED.
Look at the photos of the Bosch coil. It seems faultless until you remove the 2 brackets which expose 2 long hairline cracks. THIS MUST BE A DESIGN FAULT! :shock:
The coil is bolted on the engine block under the inlet manifold in a position which would expose it to high temperatures (not just the engine heat but road heat as well on a hot day). The expansion and contraction properties of the metal brackets and the plastic casing are different and probably account for the cracks!
One good rainy day, a puddle or an engine wash will suffice in damaging the secondary high voltage coil.

I thought of putting the new coil near the windscreen washer reservoir. This way I would not have to lengthen the cable that connects to the distributor cap.

Have any of you have any suggestions ? :roll:





Attachments:

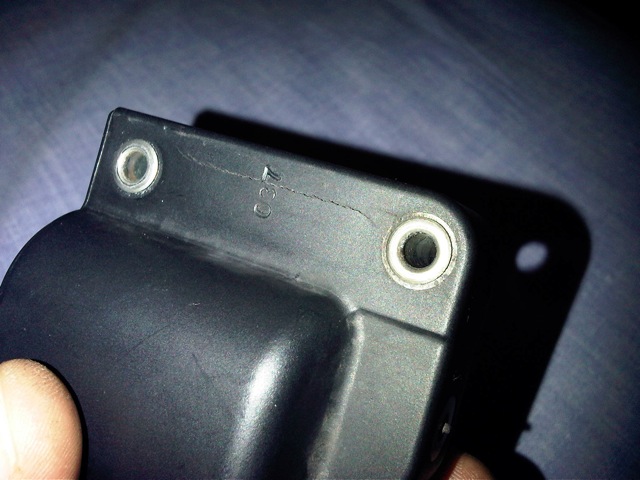

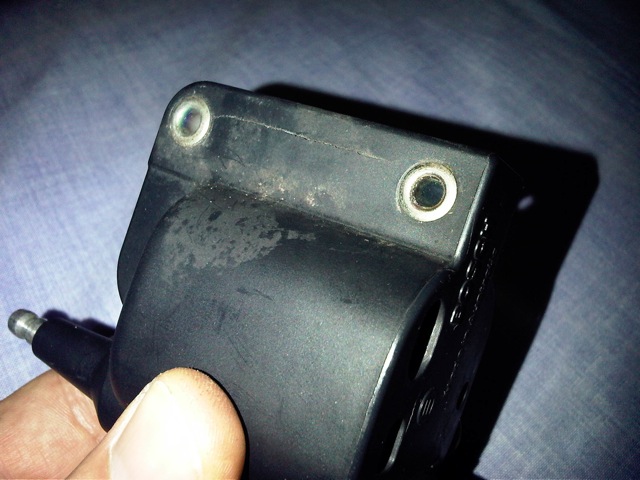

File comment: The hairline crack is clearly visible on both sides of the coil
IMG00268-20110322-2104.jpg [ 81.94 KiB | Viewed 291 times ]

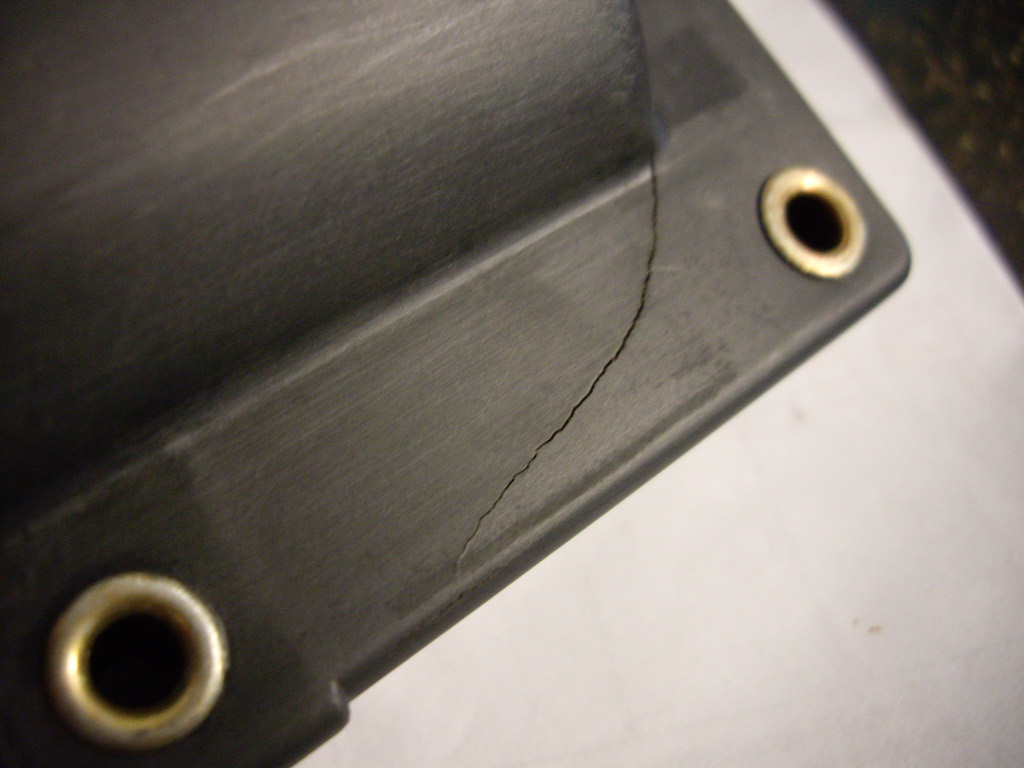

File comment: but when we remove the 2 metal brackets which are tightly bolted onto the plastic case...
IMG00267-20110322-2104.jpg [ 86.35 KiB | Viewed 161 times ]

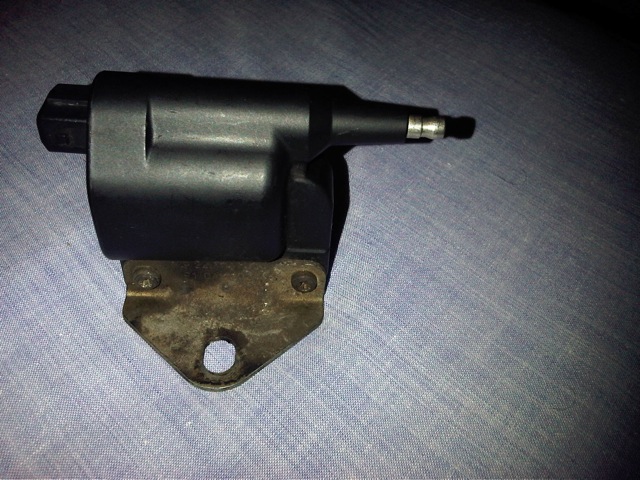

File comment: The Bosch coil shows no "apparent" damage
IMG00263-20110322-2102.jpg [ 116.85 KiB | Viewed 158 times ]
Top
 Profile


 Post subject: Re: Ford Falcon EA EB ED Bosch Ignition Coil FAULTY
Posted: Wed Mar 23, 2011 9:36 am
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

I have extended the coil loom plug and mounted the coil on the passenger side Strut Tower just near the airbox. This was he only spot I could find, so I could keep using the standard length coil-dizzy lead. BTW The e-series race cars all move the coils to the strut tower.

cheers...



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile


 Post subject: Re: Ford Falcon EA EB ED Bosch Ignition Coil FAULTY
Posted: Wed Mar 23, 2011 10:18 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

its not that they are faulty, its that the crack from heat and engine vibration..
Top
 Profile


 Post subject: Re: Ford Falcon EA EB ED Bosch Ignition Coil FAULTY
Posted: Wed Mar 23, 2011 10:30 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I was replacing ignition coils under warranty back in the 90's at a Ford dealership I worked at.

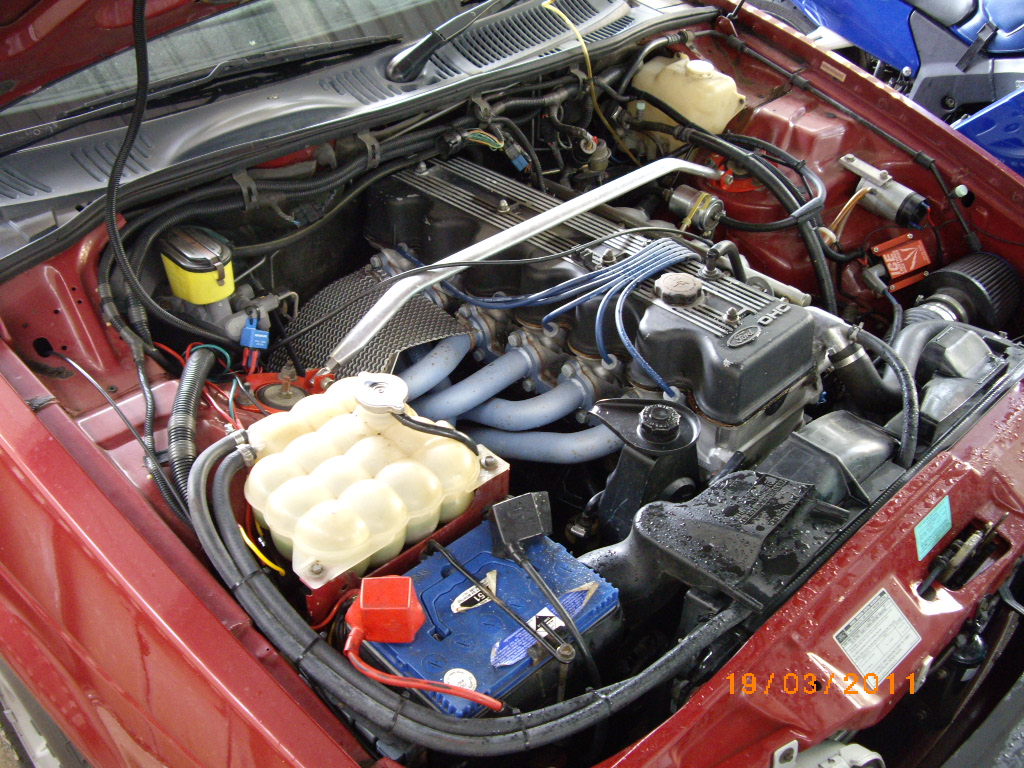

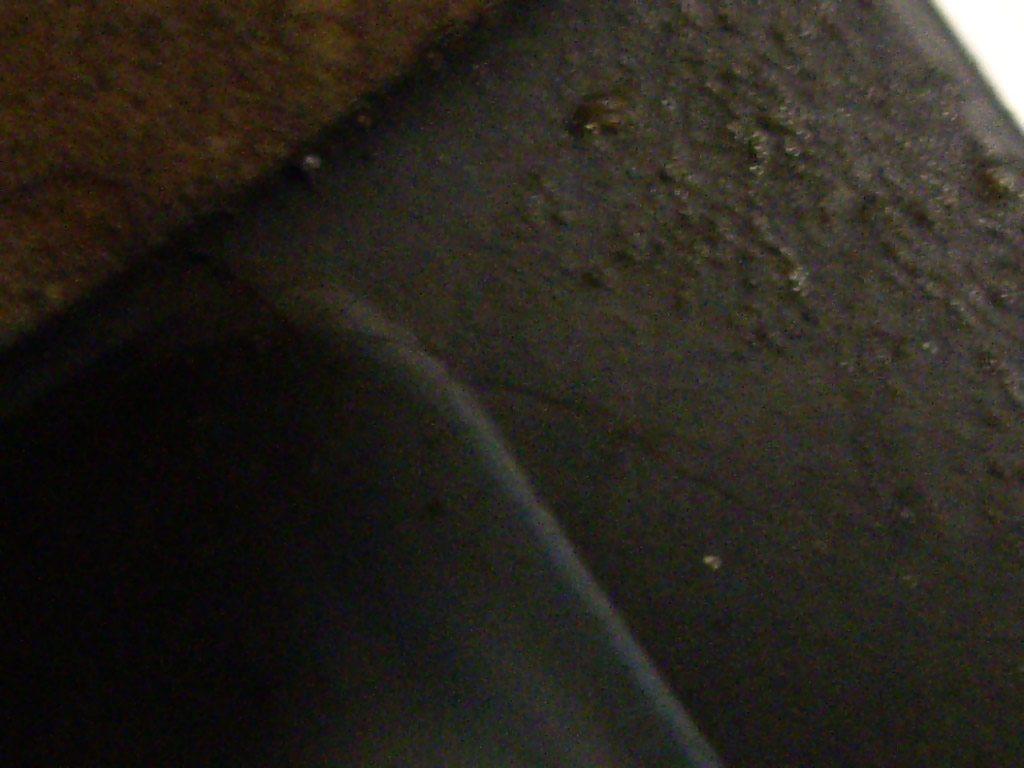

This is a pic of an EL coil.
I have since fitted an ICE 7amp ignition system......the gain from that was a really flat torque curve.





Attachments:
IMGP7183.JPG [ 490.58 KiB | Viewed 571 times ]
IMGP3961.JPG [ 212.09 KiB | Viewed 118 times ]
IMGP3963.JPG [ 272.4 KiB | Viewed 142 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Ford Falcon EA EB ED Bosch Ignition Coil FAULTY
Posted: Wed Mar 23, 2011 11:58 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 21st Mar 2011

Ride: Ford Falcon ED 1994 SW

Location: sydney
NSW, Australia

cjh wrote:
I was replacing ignition coils under warranty back in the 90's at a Ford dealership I worked at.
This is a pic of an EL coil.
I have since fitted an ICE 7amp ignition system......the gain from that was a really flat torque curve.



Interesting....
I guess you replaced the coil, cables, distributor and TFI module?...what $ ball park...
Could one just et the ICE 4000 coil and leave Mother Ford's other ignition components?

Given your experience, what other faulty "critical" components were there in the ED model? I am referring to items that could leave you stranded (on a cold wet winter's night... :lol: )
I asked a wreck yard owner and he said the TFI module has a bad reputation....
Top
 Profile
