ford falcon ef airflow suggestions



Page 1 of 1 [ 15 posts ]


 Post subject: ford falcon ef airflow suggestions
Posted: Mon Mar 24, 2008 12:03 am
Oompa Loompa
Offline

Age: 34

Posts: 33

Joined: 23rd Mar 2008

Gallery: 4 images

Ride: 95 FALCON EF

Location: perth
WA, Australia

i just got my car not to long ago n i want to get some good airflow mabye a BA/BF snorkel n pod filter but not sure wat im doin really any suggestions
Top
 Profile


Posted: Mon Mar 24, 2008 3:09 am
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 613

Joined: 5th Aug 2007

Location: Ararat
VIC, Australia

not enough ventilation, ef no grille
run a 4inch pipe directly under the bumper straight to the airbox, then it will suck in lots a cold air!



_________________

EF Ghia 5L V8
BAMk2 XR8 Velocity/Cobra 19's

Top
 Profile


Posted: Mon Mar 24, 2008 10:18 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 423

Joined: 17th May 2007

I added a 4'' pipe in the fron of the airbox taking air from behind the headlight, worked well in conjunction with a pod filter. The ultimate though is to do what the dude above said.
Top
 Profile


Posted: Mon Mar 24, 2008 1:26 pm
Oompa Loompa
Offline

Age: 34

Posts: 33

Joined: 23rd Mar 2008

Gallery: 4 images

Ride: 95 FALCON EF

Location: perth
WA, Australia

ohk then cheers
Top
 Profile


Posted: Mon Mar 24, 2008 9:05 pm
Oompa Loompa
Offline

Age: 34

Posts: 33

Joined: 23rd Mar 2008

Gallery: 4 images

Ride: 95 FALCON EF

Location: perth
WA, Australia

hey u have nay pics of how to get it from the box under the bumper coz i had a look n didnt really no how to get it there ??
Top
 Profile


Posted: Tue Mar 25, 2008 12:30 am
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

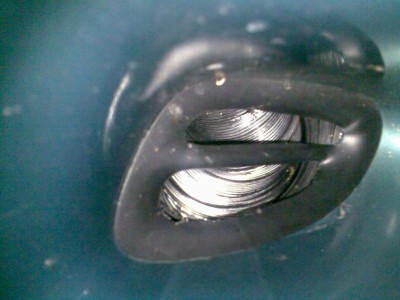

cut / drill holes in the airbox / car chassis to gain access under headlight. send the hose to the front air vent to pickup cold air. This helps get cool air/ pressurised air and keeps airspeed high through the hose and through the box. I used the existing vent trim to keep it hidden away at the front but cut open the vent holes so it enlargens the area where air can enter.

4inch hose is a tight fit between the abs module and purge cannister and the wheel splashguard, i cut a hole in the splashguard so the hose didnt get too squashed, just make sure the wheel doesnt contact the hose.





Attachments:
Image014.jpg [ 182.68 KiB | Viewed 131 times ]
Top
 Profile


Posted: Tue Mar 25, 2008 12:37 am
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Uhh wouldn't cutting into the chassis kind of void the car from being legal?

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Tue Mar 25, 2008 12:38 pm
Stock as a Rock
Offline

Age: 42

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

I also wonder what happens in the rain, does something like that suck in lots of water?
Top
 Profile


Posted: Tue Mar 25, 2008 12:57 pm
Getting Side Ways
Offline

Posts: 6911

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Water will pool in the bottom of the hose and airbox but it won't make it past the air filter so water isn't a problem.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Tue Mar 25, 2008 1:12 pm
Stock as a Rock
Offline

Age: 42

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

fair enough but i like having the intake up high, after the massive storms we had in melbourne a few months back i enjoyed driving through some water and watching a supra park on the side as it couldnt go through...
Top
 Profile


Posted: Tue Mar 25, 2008 1:46 pm
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

water doesnt get into the airbox, ive taken it on the highway in downpours and driven it hard so it sucks in alot.. the hose does get wet, but doesnt pool significantly. flexi hose you can easily punch a few small drain holes if you want but normally not needed.

Flood waters, though ive never driven through any, i would imagine as long as the water level is not crazy high, anywhere up to the bottom of the airbox, youve still got the snorkel sucking air from up high, so dawdling through should still be ok, ie, not revving the guts out of it.
Top
 Profile


Posted: Tue Mar 25, 2008 2:23 pm
Getting Side Ways
Offline
User avatar

Posts: 1079

Joined: 18th Sep 2005

Ride: AUII Fairmont

Location: Belmont
WA, Australia

If the flood water level is high enough that it gets in through those front vents you would be crazy to drive through it anyway. Think of your suspension, wheel bearings, etc etc
Top
 Profile


Posted: Tue Mar 25, 2008 2:59 pm
Stock as a Rock
Offline

Age: 42

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

yeah true, water was only about a foot at its deepest i think, fine for a stock EF :p my z wouldnt have made it though, thing is stupid low (stock) and the air intake is a pod which sits low at the front... would have had to park it just like the supra haha, i love having the falcon now :D

ahhh i didnt realise you did this mod in adition to the normal intake at the top... sweet as :D
Top
 Profile


Posted: Tue Mar 25, 2008 5:03 pm
Getting Side Ways
Offline

Age: 37

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

could u do this mod with the pipe facing the rear of the car???

i understand the airspeed would be minimized but cold air would be good with less drama of water and dirt leaves etc
Top
 Profile


Posted: Tue Mar 25, 2008 5:07 pm
Getting Side Ways
Offline

Age: 37

Posts: 1087

Joined: 1st Sep 2007

Ride: '07 LT XR5

Power: 133 rwkw

Location: sydney
NSW, Australia

ringastinga wrote:
could u do this mod with the pipe facing the rear of the car???

i understand the airspeed would be minimized but cold air would be good with less drama of water and dirt leaves etc
wait, so you want to point the pipe backwards? and what air exactly are you going to get?

leaves and dirt wont really become an issue unless u ditch the car into a mound of dirt



_________________

So much RAM the motherboard twisted off the POST.

I lost 3 cylinders... but gained a turbo...
