 Post subject: Front Main Seal
Posted: Sat Jun 02, 2012 10:51 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 673

Joined: 23rd Jul 2011

Gallery: 10 images

Ride: XG

Location: Bendigo
VIC, Australia

First up tried searching but couldn't find anything about it in depth,,

basically gonna change rear main seal and thought should do front has well, is their anything to look out for when taking off the harmonic balance pulley and keeping it at TDC etc?, and do these seal require any sealant of some sort or is it just a simple plug in has is?

Thanks.



_________________

XG Ute - 3 Seater - Auto - Dual Fuel

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sat Jun 02, 2012 10:56 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

Oil seals need some fresh oil before installation.

Put a small amount of silicone on Crankshaft Keyway before installing the Harmonic Balancer.



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sun Jun 03, 2012 9:56 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

The OD of the seal should be clean and dry.
A small amount of oil or grease on the ID.


DO NOT put any sealer on the crank before you put the balancer back on. It will ooze out on the inside of the engine.
If you must, put a small amount on the retaining bolt washer.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sun Jun 03, 2012 4:57 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 673

Joined: 23rd Jul 2011

Gallery: 10 images

Ride: XG

Location: Bendigo
VIC, Australia

oh ok buts whats a OD/ID sorry, note this is my first time doing this!

Thanks.



_________________

XG Ute - 3 Seater - Auto - Dual Fuel

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sun Jun 03, 2012 8:26 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

OD = outside diameter
ID = inside diamter



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sun Jun 03, 2012 9:11 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Take note how far in the old seal is and work in the new one evenly.
Ofcourse ou need to clean the seal mating surface
Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Sun Jun 03, 2012 9:54 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 673

Joined: 23rd Jul 2011

Gallery: 10 images

Ride: XG

Location: Bendigo
VIC, Australia

ok thanks guys will see how I go.

Thanks



_________________

XG Ute - 3 Seater - Auto - Dual Fuel

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Mon Jun 04, 2012 10:10 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

First off....what is the condition of the seal surface of the HB ???
If it is grooved, you will need to determin whether the HB is any good, ie; rubber is hanging out, swollen, etc.
If the HB is OK, apart from a groove in it, you will need to fit a speedi-sleeve.
When I fit a HB seal, I use like WD40 on the OD, and engine oil on the ID.
Then as per Ford directions, apply some silicone ( I use Grey Maxx ) to the outer part of the Keyway on the balancer......this is to stop oil creeping up the keyway.
I use a Holden upper spindle bolt to refit the HB, as it is the same thread, just longer, and use the Ford HB washer.

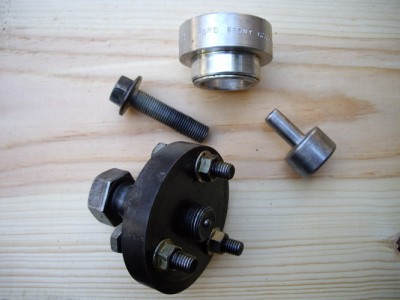

These are the tools I use for the job.





Attachments:
IMGP1107_resize.JPG [ 80.41 KiB | Viewed 20 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Front Main Seal
Posted: Mon Jun 04, 2012 10:47 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 673

Joined: 23rd Jul 2011

Gallery: 10 images

Ride: XG

Location: Bendigo
VIC, Australia

not sure changing the rear cause its leaking so figured I'd do the front also, will have to see if its ok first I guess if it is could leave it but read numerous times if do one do the other basically.

Thanks.



_________________

XG Ute - 3 Seater - Auto - Dual Fuel

Top
