Hey Guys

I just picked a EB2 4L head (travel 388thou kms) and a few other things for 100 dollars of a my (immature) mate will take some photos tomorrow in the sunlight.. (although we all know what a head looks like).

Going to basically reco it myself (or rebuild it). And then I will port and polish it (slow and steady wins the race).

Just a few Q's!
Are the bits and peices required available new non-gen? (or should i just heavyily clean the internal bits)
Shouls I get the head sandblasted to bring it near new?

That is about it any suggestions well worth it.



_________________

R.I.P Tobias my son.

Last edited by Froudey on Sat May 31, 2008 11:16 pm, edited 2 times in total.

Top
 Profile


Posted: Tue May 20, 2008 8:02 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

See how it cleans up with some degreaser & similar stuff.
Have you got the gear to pull it down???
You can get aftermarket HLA's, not sure how good they are though.
You can get aftermarket valves & valve springs & valve stem seals.
It takes awhile to port & polish the head, and to get them as close as possible as to be all the same as each other.
Have you got the gear to do that too???
You should get the head checked for straight, cracks, and get it machined.
What condition are the valves & seats in????





Attachments:

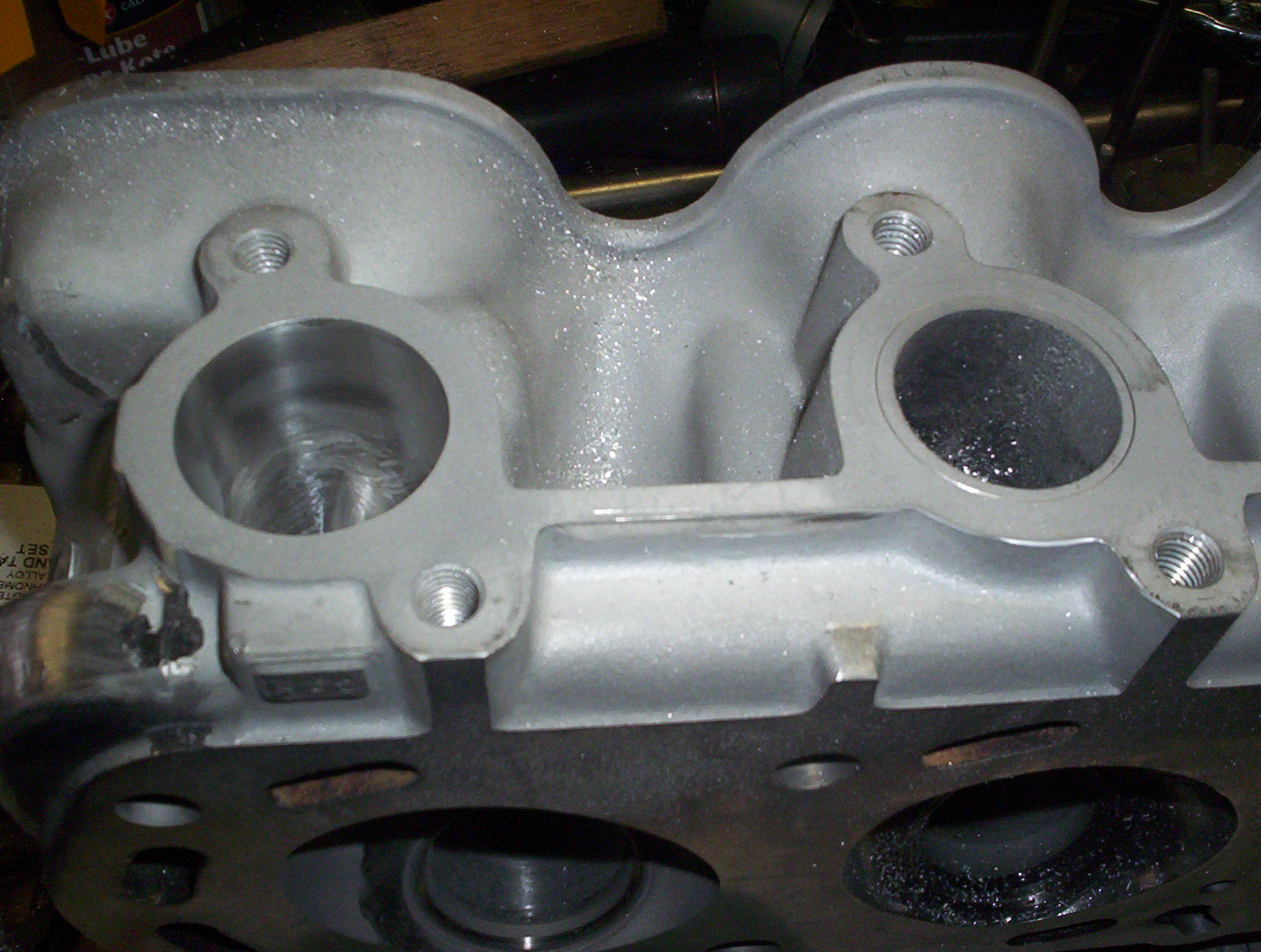

My 4.0 EF cyl head 009.jpg
My 4.0 EF cyl head 009.jpg [ 301.35 KiB | Viewed 34 times ]

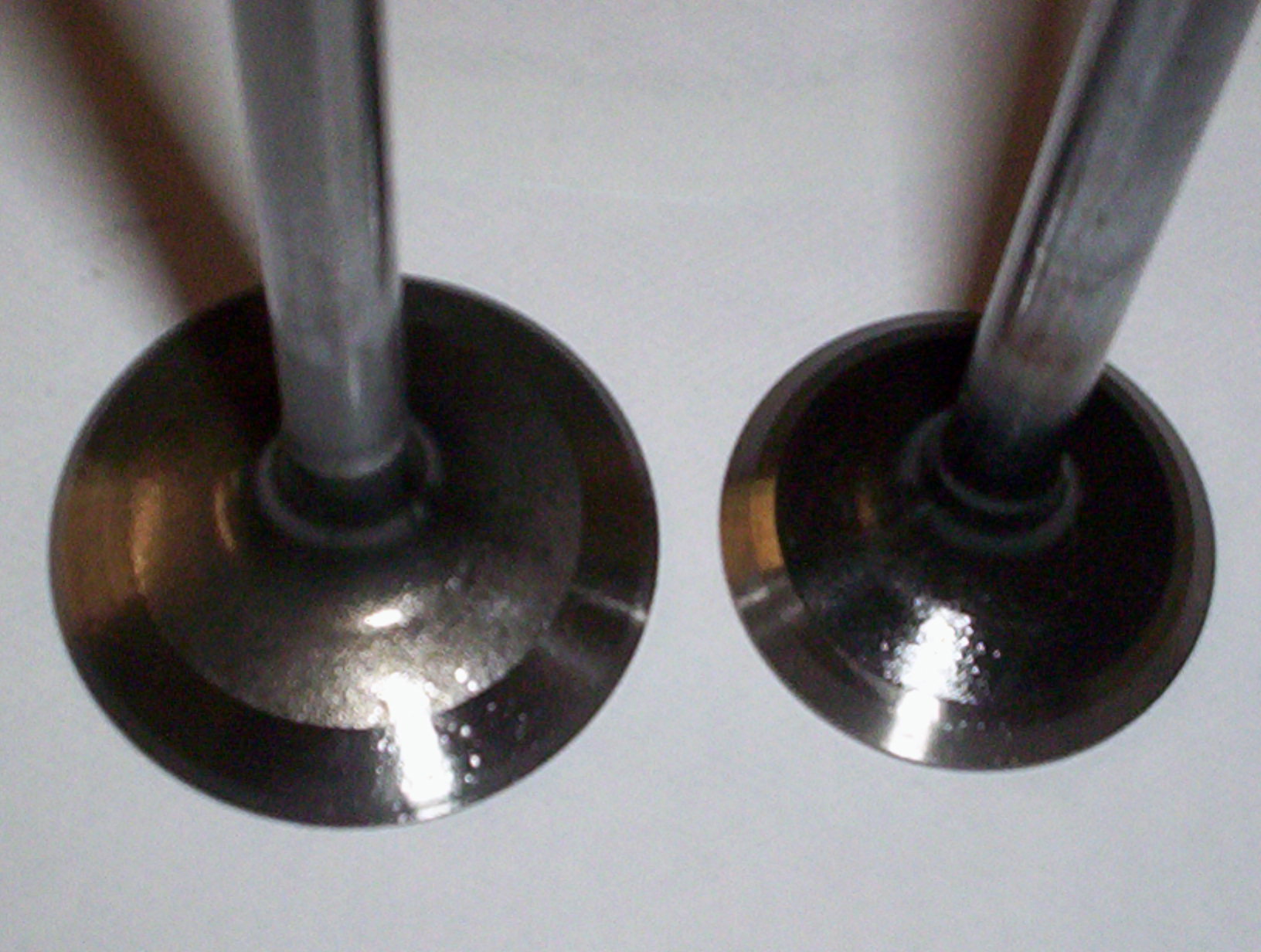

Modified 4.0lt valves 002.jpg
Modified 4.0lt valves 002.jpg [ 282.25 KiB | Viewed 31 times ]
100_5444.JPG [ 405.61 KiB | Viewed 32 times ]

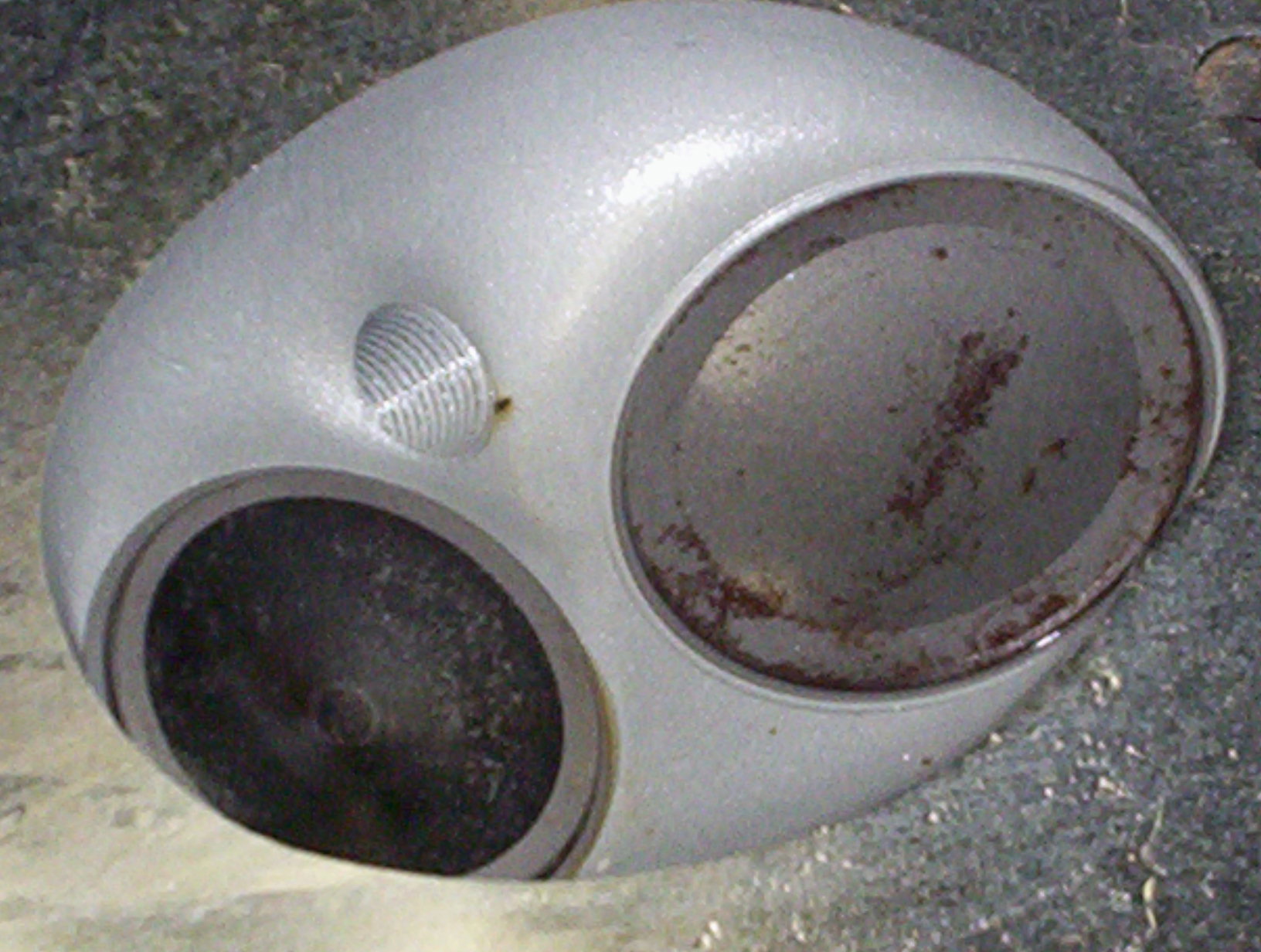

My 4.0 EF cyl head 020.jpg
My 4.0 EF cyl head 020.jpg [ 367.6 KiB | Viewed 32 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue May 20, 2008 8:21 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

the person i got it off did 5 years work experiance at a local wreckers and was taught by an experianced distmantler.
He checked it for cracks as he was taught (but will double check in sunlight).

Quote:
Have you got the gear to pull it down???
what like i have an array of tools but none head related what do you suggest?
Quote:
Have you got the gear to do that too???
i will be getting a basic dremal set in the upcoming weeks..

I am not going to rush into going to research and take notes and read.



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Tue May 20, 2008 8:24 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

a dremel is not what i would use

air tools will work best :)



_________________

RIP SCOTT

Top
 Profile


Posted: Tue May 20, 2008 8:30 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Disco Frank wrote:
a dremel is not what i would use

air tools will work best :)


what kind of air tools??



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Tue May 20, 2008 8:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Froudey wrote:
the person i got it off did 5 years work experiance at a local wreckers and was taught by an experianced distmantler.
He checked it for cracks as he was taught (but will double check in sunlight).

Quote:
Have you got the gear to pull it down???
what like i have an array of tools but none head related what do you suggest?
Quote:
Have you got the gear to do that too???
i will be getting a basic dremal set in the upcoming weeks..

I am not going to rush into going to research and take notes and read.

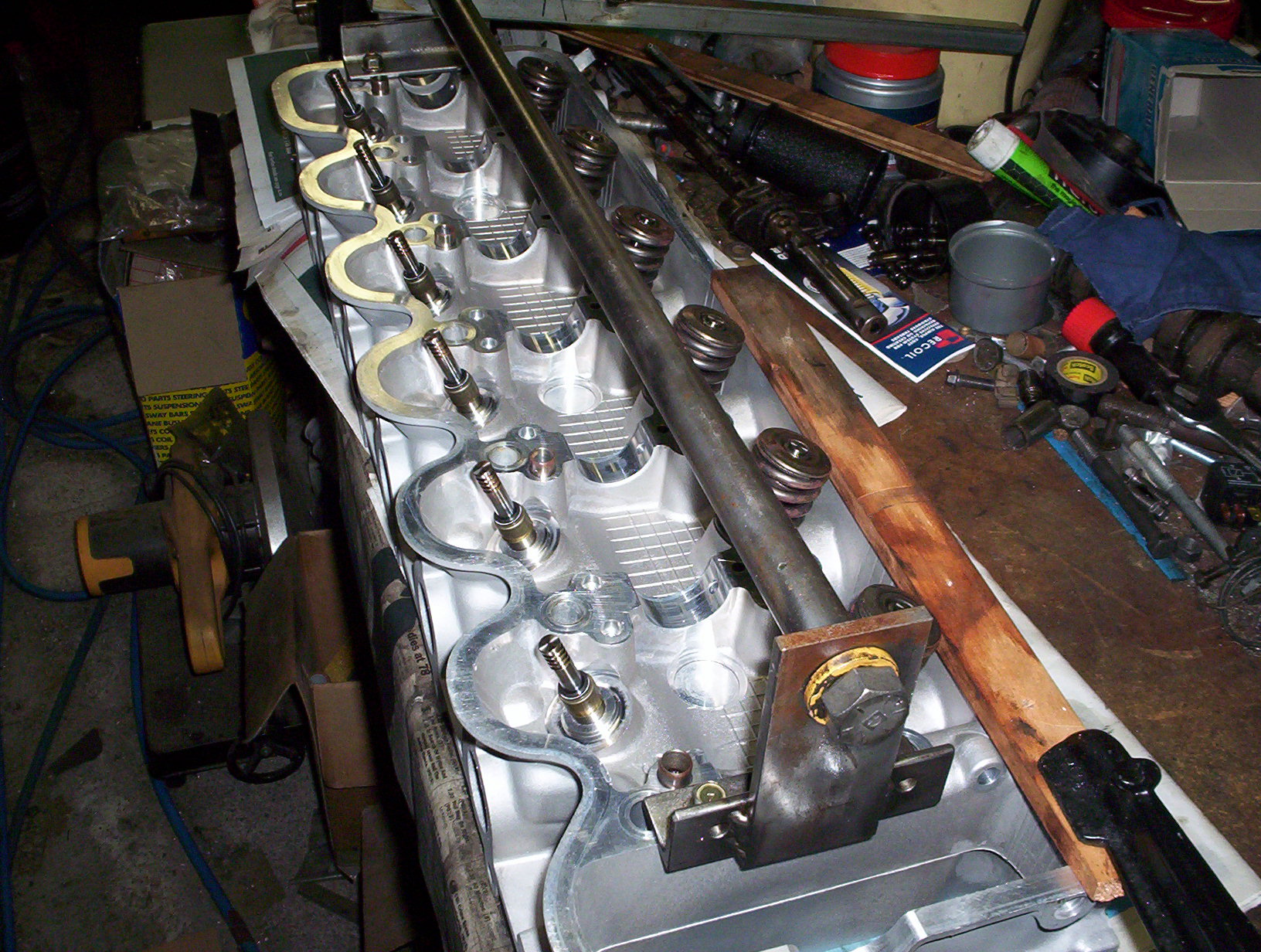

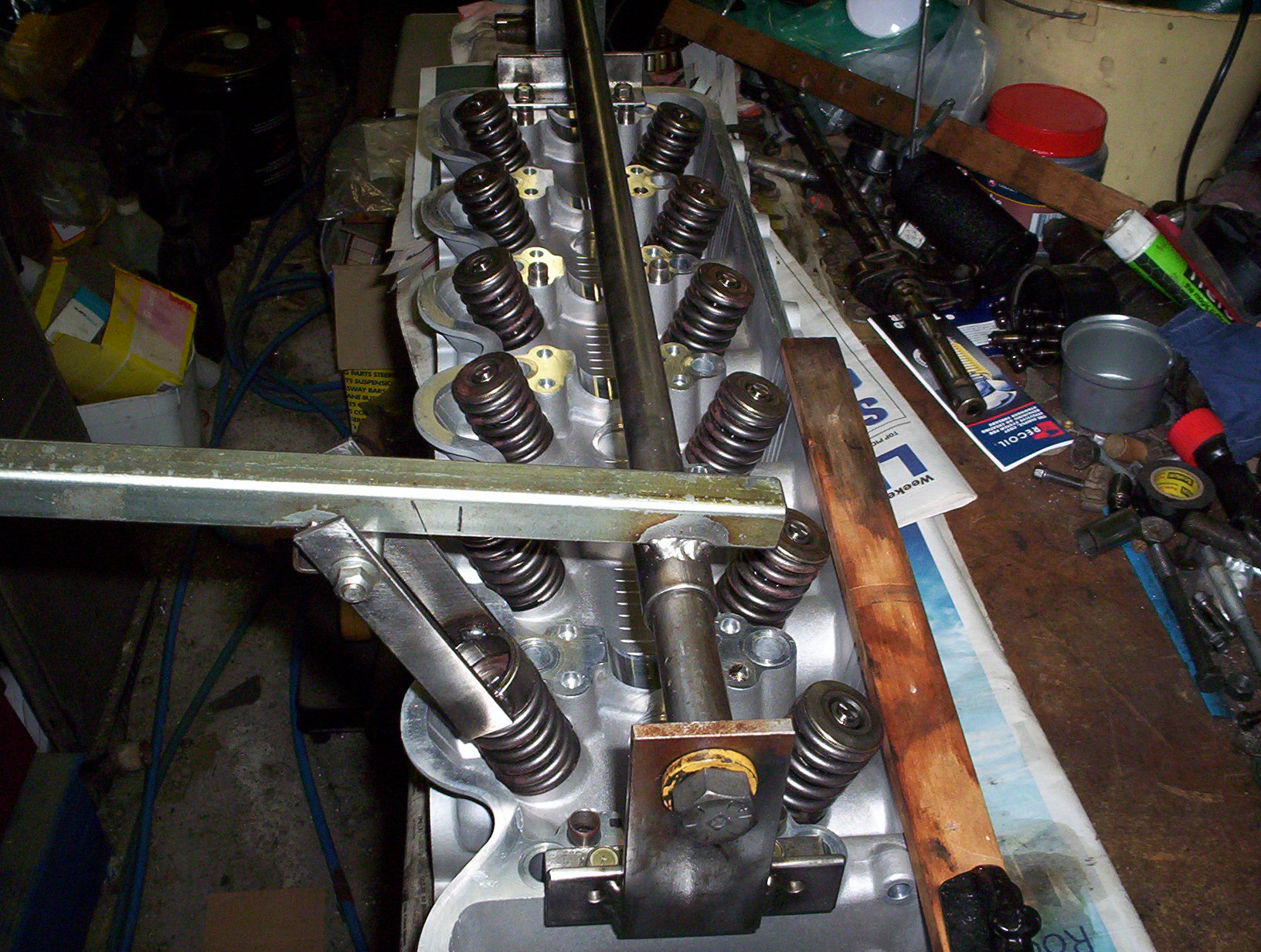

I made my own tooling to assemble/disassemble the head. I made it from what I had lying around. ( i have heaps of materials, leftovers from all sorts of projects..LOL )
The pics are of the same head in the previous post.





Attachments:
My 4.0 EF cyl head 011.jpg
My 4.0 EF cyl head 011.jpg [ 549.49 KiB | Viewed 41 times ]
My 4.0 EF cyl head 010.jpg
My 4.0 EF cyl head 010.jpg [ 530.7 KiB | Viewed 43 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue May 20, 2008 8:33 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

so the springs need to be compressed???



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Tue May 20, 2008 8:38 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Froudey wrote:
so the springs need to be compressed???


Yeah!!!, how else did you think you were going to get it apart???
You had better get a w/shop manual, eh?



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue May 20, 2008 8:56 pm
Smokin em up
Offline
User avatar

Age: 49

Posts: 298

Joined: 23rd Nov 2007

Gallery: 5 images

Ride: 03 BA

Location: st marys
NSW, Australia

very well done (cjh ) i like
Top
 Profile


Posted: Tue May 20, 2008 9:05 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

badkiwi wrote:
very well done (cjh ) i like



Thanks dude, been doin this stuff for a while.....LOL.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue May 20, 2008 9:31 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

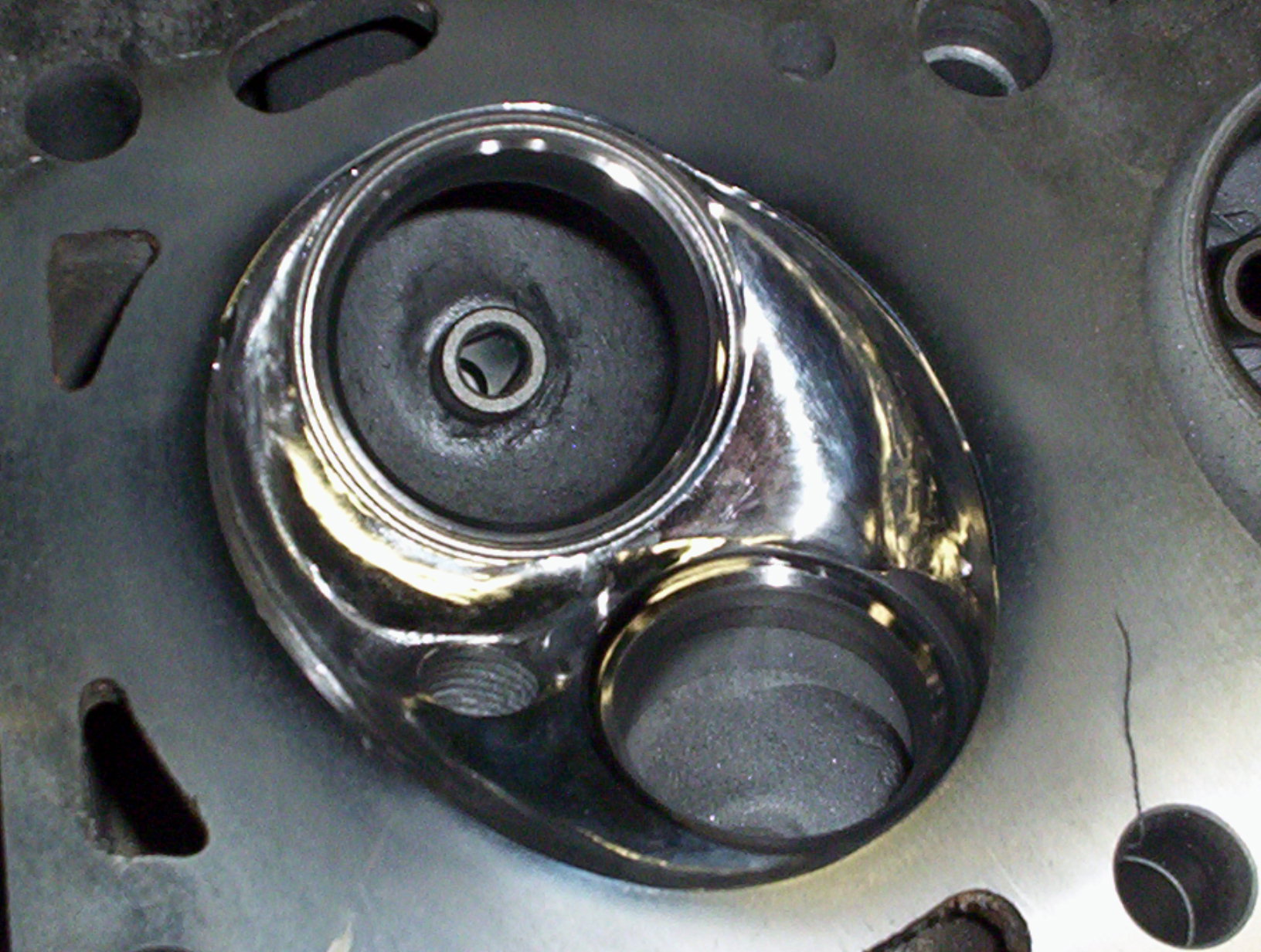

far out mate!
the combustion chamber on that head is that smooth its like a mirror lol...

now thats what i call a polish...
Top
 Profile


Posted: Tue May 20, 2008 10:10 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

You can get spring compressors at your local auto shop...or if you are handy with making your own tools like cjh's tool, then that is your best bet. But I'd get a spring compressor :D.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Tue May 20, 2008 10:29 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

cjh wrote:
Froudey wrote:
so the springs need to be compressed???


Yeah!!!, how else did you think you were going to get it apart???
You had better get a w/shop manual, eh?


i have a work shop manual for 3.9 series. is much if any differences from the 4L onwards?

i will price a spring compressing tool and purchase one when i have the cash. As i said before slow and steady...

Another queastion...
If this head is any good and i go well what is the go with the whole compression issue.... (ie 3.9 raises a 4L compression and a 4L lowers the decompression) is this an issue at all, eg. lower the power out put or torque or even raise said things



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Tue May 20, 2008 10:59 pm
Oompa Loompa
Offline

Posts: 35

Joined: 25th Mar 2007

Location: Penola
SA, Australia

The 3.9 head would raise compression because it has smaller ports/ combustion chambers whereas the 4.0 head flows better because of the larger ports and combustion cambers (which means less compression).


I would recommend doing a flow test for the stock 4.0 head you plan to mod, then do another after you have completed your work and determine the differences.


Also, by getting a machinist to skim off the surface of the head, you can raise compression on any head (this will come in handy if you are building a N/A motor).


Maybe try and build it with tickford spec valves and springs to keep costs down?
Top
 Profile


Posted: Tue May 20, 2008 11:08 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Will do the whole ring around tomorrow to get prices and alike.

But what would i expect to pay to get the head surface "skimed"...
