 Post subject: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 10:09 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Does anyone have a picture of an inline fuel filter disconnect tool suited to remove this clip.

I just wanna know what the tool looks like

Cheers

Attachment:
off1.jpg [ 59.86 KiB | Viewed 355 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 10:47 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1618

Joined: 12th May 2005

Gallery: 2 images

Ride: BA 3V Tunna

Location: S.E. Melbourne
VIC, Australia

as far as i know you just squeeze the clips on it by hand and push it towards the filter, then it should unclip and will come off..
Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 10:54 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Shum's EL wrote:
as far as i know you just squeeze the clips on it by hand and push it towards the filter, then it should unclip and will come off..

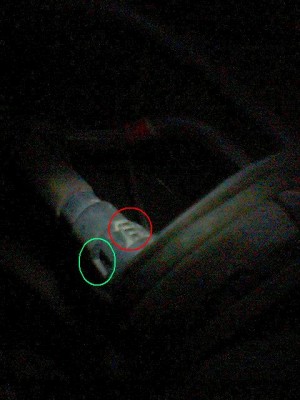

When you say squeeze, which part is it?

The red or the green bit? - see picture

Attachment:
tt.JPG [ 55.95 KiB | Viewed 319 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 11:07 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

I just went out to the garage and tried to squeeze both sides.

I can't for the life of me unplug it.

Have you actually squeezed it yourself? or is this a method you read off somewhere?

cheers



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 11:12 pm
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

Oh KAY this / these are pricks to do. You need to push the sides in and push forwards and then pull backwards.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 11:14 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Froudey wrote:
Oh KAY this / these are pricks to do. You need to push the sides in and push forwards and then pull backwards.


when you say push the sides in, you mean the white bit inside? looks like i might need some sort of small tool to push it in, cause my finger can't fit in there



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 11:27 pm
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

falcon1999 wrote:
Froudey wrote:
Oh KAY this / these are pricks to do. You need to push the sides in and push forwards and then pull backwards.


when you say push the sides in, you mean the white bit inside? looks like i might need some sort of small tool to push it in, cause my finger can't fit in there


you need to spread the inner bit by pushin the sides in... it is a prick to do,, Bursons sell a tool but meh, get two smallish screw drivers and push them in.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Mon Aug 03, 2009 11:32 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Froudey wrote:
falcon1999 wrote:
Froudey wrote:
Oh KAY this / these are pricks to do. You need to push the sides in and push forwards and then pull backwards.


when you say push the sides in, you mean the white bit inside? looks like i might need some sort of small tool to push it in, cause my finger can't fit in there


you need to spread the inner bit by pushin the sides in... it is a prick to do,, Bursons sell a tool but meh, get two smallish screw drivers and push them in.


Yes i agree, it's a prick to do



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Wed Aug 05, 2009 9:46 pm
Getting Side Ways
Offline

Age: 38

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

squeeze the red bits in as good as you can,usually by hand is enough,while squeezing them push the filter towards the hose,like you were putting the filter on,you should feel it move forward,when you feel it move forward then pull the filter back/take it off,if you can twist the filter aswell as your pulling it back,and be squeezing the bits you circled in red the whole time



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


 Post subject: Re: Fuel Disconnect Tool - Inline Fuel Filter
Posted: Thu Aug 06, 2009 12:16 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia

and dont stand right underneath it with your mouth and eyes open once it comes off :P



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly
