 Post subject: Gasket Set AU/EF
Posted: Tue Jul 09, 2013 8:04 am
Parts Gopher
Offline
User avatar

Age: 70

Posts: 57

Joined: 29th Mar 2011

Ride: Ford Futura EFII S/W

Location: Johnsonville
New Zealand

Is the cyl head gasket set for a 1998 AU 4 litre 6 ok to use on a 1996 EFII XR6 head?

Cheers.
Bruce.
Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Tue Jul 09, 2013 12:00 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Yep. The AU has the Multi-Layer Steel (MLS) gasket, which is far superior to the EF's composite gasket. It solves the E-series's bad habit of blowing head gaskets. It is also much thinner, so you will get a small increase in compression ratio - which tends to help power and economy. I put one in my EF over five years ago, and no problems since.

One warning, though: As the gasket is much thinner and harder, it has less "give", so the head surface must be dead flat. Get your head lightly skimmed to guarantee a good seal. You can skim a bit more if you want higher compression, but you may need to use 95+ octane fuel exclusively.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Tue Jul 09, 2013 10:17 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

efxr6wagon wrote:
Yep. The AU has the Multi-Layer Steel (MLS) gasket, which is far superior to the EF's composite gasket. It solves the E-series's bad habit of blowing head gaskets. It is also much thinner, so you will get a small increase in compression ratio - which tends to help power and economy. I put one in my EF over five years ago, and no problems since.

One warning, though: As the gasket is much thinner and harder, it has less "give", so the head surface must be dead flat. Get your head lightly skimmed to guarantee a good seal. You can skim a bit more if you want higher compression, but you may need to use 95+ octane fuel exclusively.



this!!!!!!


the only issue with too much head skimming you may run into clearance issue with the valves and pistons!



_________________

RIP SCOTT

Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Wed Jul 10, 2013 4:01 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

There is a limit to how much you can safely skim. The head may already have been skimmed at some point. Any decent head shop will be able to check, as there are pads moulded into the head to measure from. I have taken 15 thou (.015") off the head on my EF, which is not much. Others have taken way more off without notching the pistons for valve clearance.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Wed Jul 10, 2013 6:04 pm
Parts Gopher
Offline
User avatar

Age: 70

Posts: 57

Joined: 29th Mar 2011

Ride: Ford Futura EFII S/W

Location: Johnsonville
New Zealand

Thank you both for your helpful information.

I planned to have the head crack tested so I can get the, "Headmaster" a specialist machine shop here in town, to do a skim or at least check that a skim is necessary or not. I'm not sure, but I understand that the head I have was removed from a Fairlane or an LTD but it does have the tell-tale "T" at one end of the head.

The top end gasket set that I plan to buy to get the AU head gasket also includes gaskets for the exhaust, inlet manifolds, rocker cover gasket and several smaller gaskets for various things but all together in the set is labelled for an AU head, Soooo, will these gaskets in the AU set also work on my EFII Tickford/XR head or will I need to buy the AU head gasket and the EF set separately - if all that makes sense?

Cheers.
Bruce.
Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Wed Jul 10, 2013 8:49 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

citylimits wrote:
Thank you both for your helpful information.

I planned to have the head crack tested so I can get the, "Headmaster" a specialist machine shop here in town, to do a skim or at least check that a skim is necessary or not. I'm not sure, but I understand that the head I have was removed from a Fairlane or an LTD but it does have the tell-tale "T" at one end of the head.

The top end gasket set that I plan to buy to get the AU head gasket also includes gaskets for the exhaust, inlet manifolds, rocker cover gasket and several smaller gaskets for various things but all together in the set is labelled for an AU head, Soooo, will these gaskets in the AU set also work on my EFII Tickford/XR head or will I need to buy the AU head gasket and the EF set separately - if all that makes sense?

Cheers.
Bruce.



the gasket set will be fine the only thing that will not fit if it is included would be the valve stem seals as they are different e series - au
the head will need to be skimmed for the MLS gasket



_________________

RIP SCOTT

Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Thu Jul 11, 2013 1:39 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

You'll have to make sure the block is in excellent condition, especially where the fire ring sits on the block.

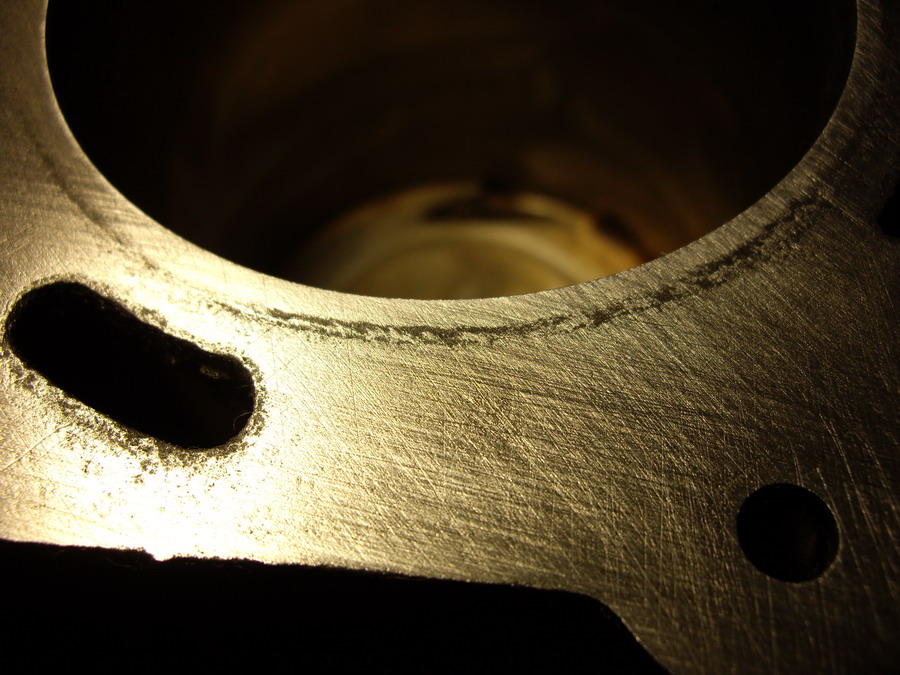

As you can see in this photo, that I had used a sanding block with wet n dry on it to try to remove as much as possible of the pitting where the fire ring sat before....this pitted surface will be no good for an MLS gasket.
A composite gasket was used here, and no problems were encountered after that for some time.





Attachments:
IMGP2405_resize.JPG [ 124.79 KiB | Viewed 34 times ]
IMGP2404_resize.JPG [ 139.96 KiB | Viewed 28 times ]
IMGP2403_resize.JPG [ 169.93 KiB | Viewed 42 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Gasket Set AU/EF
Posted: Mon Jul 15, 2013 4:41 pm
Parts Gopher
Offline
User avatar

Age: 70

Posts: 57

Joined: 29th Mar 2011

Ride: Ford Futura EFII S/W

Location: Johnsonville
New Zealand

Thanks again for the additional and nessesary information - I hadn't been aware of these things before so what you've told me here is golden.

Cheers. Bruce.
