Head done....now to the install???



Page 2 of 4 [ 59 posts ] Go to page Previous  1, 2, 3, 4  Next


 Post subject: Re: Head done....now to the install???
Posted: Thu Mar 12, 2009 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Lol Troyman beat me to it, but he is spot on!!

Basically what he said, although i usually set TDC before removing the head to save doing it later on.

Fit a new gasket, put the head back on, torque it up as per specs, put the cam in and match the keyway on the camshaft with the sprocket and push it on to the cam, fit rocker gear tighten sprocket and remember to take the zip ties off if you tie the chain to the sprocket (i remember reading about someone on here who forgot to take the zip ties off the chain and it made a mess :lol: )

But yeah hopefully the chain hasnt moved at all and skipped a tooth cause it could cause dramas



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Thu Mar 12, 2009 10:04 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Too easy! Thanks fella's. That makes perfect sense.
I was careful to make sure that the chain hadn't moved at the base and that the sprocket remained in the same position. So fingers crossed it will all go good and I will have it all running by Sunday :)
Cheers



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Fri Mar 13, 2009 10:31 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Another question oh wise ones! :oops:
What is recommended to clean the block deck before fitting the gasket and head? I probably should hit the water channels with a dremel tool as well considering they were pretty badly blocked up (have broken through them with a screw sriver). Also gunna give the cylinders a good blasting with compressor and high pressure air gun. Anything else I should be considering before fitting it all back up???
Cheers,
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Fri Mar 13, 2009 1:26 pm
Getting Side Ways
Offline

Age: 30

Posts: 410

Joined: 27th Jul 2005

Ride: Mazda CX-5 & 96 EL Falcon

Location: Adelaide
SA, Australia

i took an angle grinder with a wire brush to my old EB when i did that, block only :lol: came up good without any scratches or anything, i would however block off the water and oil channels first, saves getting crap into them.

Possibly not the best way but it worked, oh and watch for bits of wire coming off the brush and embedding themselves in to your hand or arm



_________________

My EL Gli.

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Fri Mar 13, 2009 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

I lightly used a air grinder with a very fine grinding pad attachment to clean all of the old gasket off as i didnt have any gasket remover spray on stuff and it was really stuck on, it was the original ford gasket which had done over 200,000kms :lol: . But it worked very well, the block came out looking very sexy and clean lol. Didnt bother with the water channels or anything though but i guess it would pay to at least try and cover them up to stop all the s**t getting in there - i found out the hard way with all the s**t that got into the coolant reservior.

I also scraped as much carbon as i could off the pistons but very carefully so that the bores werent touched as quite a bit of carbon was built up on the dish. Then blew the bores out with the airgun and then head as well to make sure - well i had to seeing as i had a go a with deburring the ports lol filings everywhere. Then just give the block deck a once over again with grease remover or methelated spirits to make sure the surface is as clean as possible, give it a minute to airdry then put the gasket on, fit the head etc.



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Fri Mar 13, 2009 8:52 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

While the head is off, I'd be doing the Welsh plugs too. There are 5 on the exhaust side, 2 on the inlet side, and 1 on the back of the block ( remove g'box and flywheel/flexplate & block plate to replace ), all are 40mm.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Fri Mar 13, 2009 9:26 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Would if I had the time. But I just need to get it up and running so I can get the pink slip done by the 20th.
The head looks like new now it has been "serviced". They even replaced the valve guides....all for $160. :shock:
I managed to grab an hour this arvo before it got dark and ran over the block deck with a small paint scraper....feelin nice'n'smooth now. Gunna give it a good clean up with the air gun in the morning, then a final clean up with some metho. fit it all up and then give everything (oil/water) a couple of flushes to clean out all the s**t that would have found it's way into the system from the cleaning process.



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 4:43 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

I have a little problem...literally :evil:
When I was pulling the old head off the other day, I removed the injector rail and I dropped a bloody injector hat down beside the engine. I moved the car today to make it easier to work on and expected to find it on the grass under the car, but no such luck. The friggin thing just seems to have dissapeared :twisted:
When it comes time to fire it up tomorrow, I don't want such a tiny issue to get in my way from seeing how I went. All the local wreckers will be closed tomorrow, not sure if this will cause me any drama's if I put the injector rail on without an injector hat on 1 injector. (small piece of plastic that looks like a little hat with a hole in it :? )

Comments :?:
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 4:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hmm i think it will still run..
but its best if it was there..
it might be on the k frame somewhere??
can you steel one from your other car?? the eb mont or have you sold it??

atleast that way you can get the na up and running and get another injector later on..??
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 8:03 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

:evil: :evil: :evil: aaaarrrrggghhhh :evil: :evil: :evil:

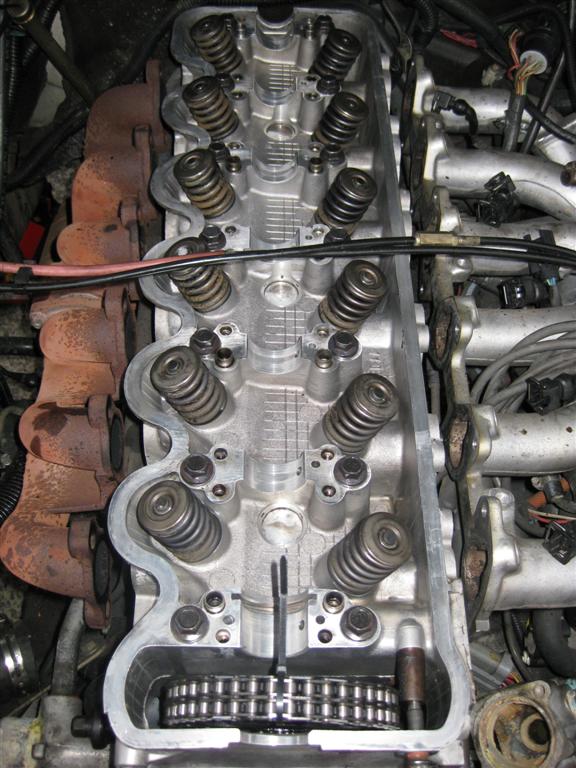

FFS! Got the head on, tensioned it all up, then went to fit the cam and rocker gear. All of the tappets were in a little bag tied to the rocker gear....also in the bag were these two f**k
Attachment:
IMG_1706.jpg [ 59.81 KiB | Viewed 22 times ]

Attachment:
IMG_1708.jpg [ 80.12 KiB | Viewed 19 times ]

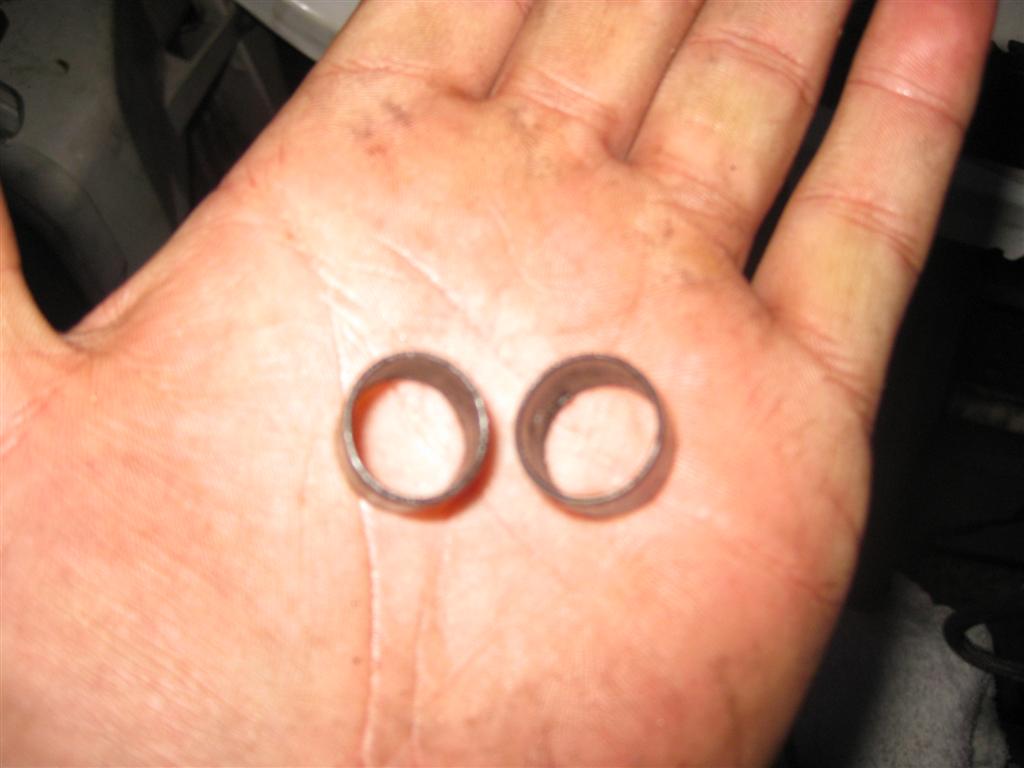

Now obviously these were removed when the head was shaved and funny thing was I was saying to the neighbour who was "helping me out" that when I have done the heads on my 351 a few years back, the heads had a couple of guide pins to line the heads up :oops:
Well didn't I feel like a d**k when I opened the bag up and found them in there.

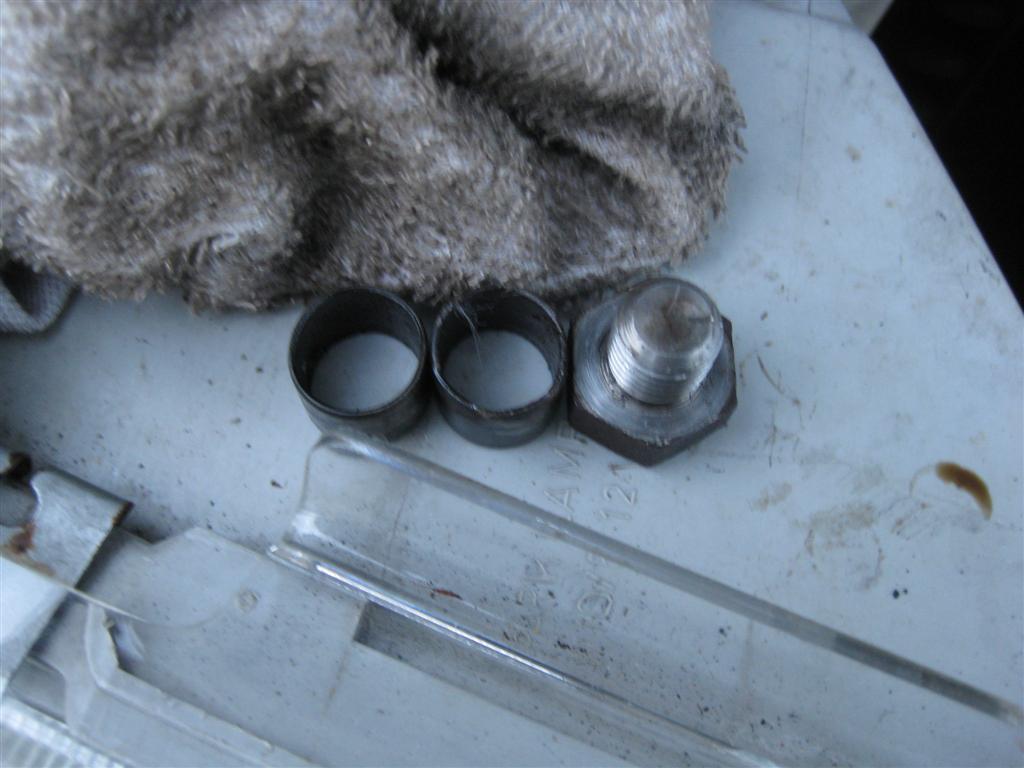

I then went and checked my old head and sure enough, there were the 2 guide rings :twisted:
and it was all going so well :?
Attachment:
IMG_1705.jpg [ 91.36 KiB | Viewed 17 times ]

Oh, and thanks for getting back to me troyman, I found the friggin injector hat sitting on top of the starter motor bracket :roll:
I also pulled out over 10 litres of mud
Attachment:
IMG_1701.jpg [ 178.16 KiB | Viewed 15 times ]

My sons finally showing interest in cars....and as all good apprentices, was happy to deal with the s**t jobs :lol:
Attachment:
IMG_1702.jpg [ 176.57 KiB | Viewed 24 times ]

Oh well, better news tomorrow I hope! Live and learn :P
Cheers,
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 8:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

no problem mick.
glad to help. :)

wow dont you hate the oil when its that colour... :shock:
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 10:37 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

I've also been told by a couple of people now, that I should put 5 litres of diesel in the engine, quickly turn it over and then drain it back out to clean the rest of the mud out of it.
Good idea....or is there a better way? I did buy 2 oil filters and 2 bottles of oil with the intention of filling it with cheap oil and running it for a week and then do a complete oil change with the good stuff.
Whats best for removing the gastric coloured s**t from the engine???



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Man that sucks about the locating dowels for the head/block, guess your taking the head back off to put them back in? Lol it always seems to be little things that turn out to be a big issue when doing work on cars. Head came out looking pretty clean aye :wink:

Hahaha cant believe the state of that oil, ive never seen oil that colour in my life, or was it just mud? :lol:

Wouldnt have a clue about flushing the engine with diesel oil, i know you can get actual engine flush fluid but i have heard lots of people use diesel to the same effect.

Good luck with the rest of the install!!



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 11:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i would just use cheap oil and new filter..
run it for a couple of hundred kms and change the oil and filter again..
most of the milkyness is water and the little bit thats left should evaporate from the oil in a few days of engine heat

but i would change it again soon after...
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 11:26 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Better to stick to plan A then.....thanks fella's. I knew I bought 2 filters for a reason :P



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
