 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 11:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i would just use cheap oil and new filter..
run it for a couple of hundred kms and change the oil and filter again..
most of the milkyness is water and the little bit thats left should evaporate from the oil in a few days of engine heat

but i would change it again soon after...
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sat Mar 14, 2009 11:26 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Better to stick to plan A then.....thanks fella's. I knew I bought 2 filters for a reason :P



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sun Mar 15, 2009 5:52 am
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

I always clean my blocks oil aglleries with petrol before re assembly. The deisel is a good idea. Put 2 litres in, crank for 5 secs, l;et it sit for 30 mins, then drain. Works a treat
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sun Mar 15, 2009 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

So, So close to getting it running today......that was until I went and did this :evil:
Attachment:
IMG_1713 (Large).jpg
IMG_1713 (Large).jpg [ 77.03 KiB | Viewed 21 times ]

Attachment:
IMG_1714 (Large).jpg
IMG_1714 (Large).jpg [ 121.25 KiB | Viewed 22 times ]

Attachment:
IMG_1718 (Large).jpg
IMG_1718 (Large).jpg [ 78.58 KiB | Viewed 22 times ]

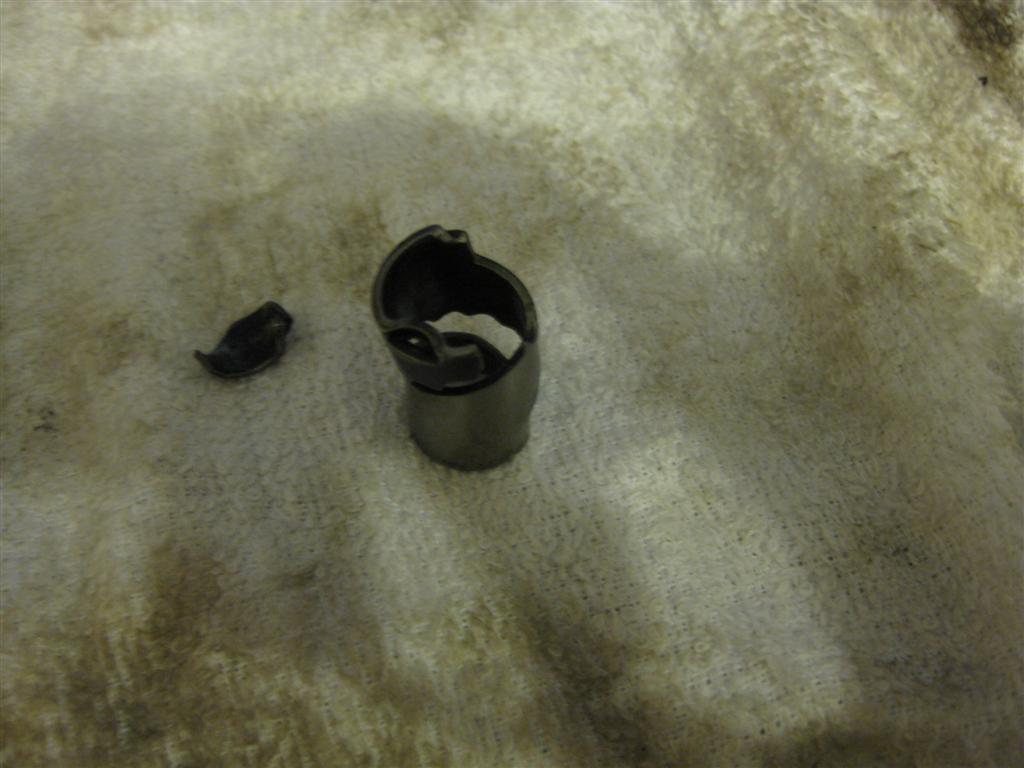

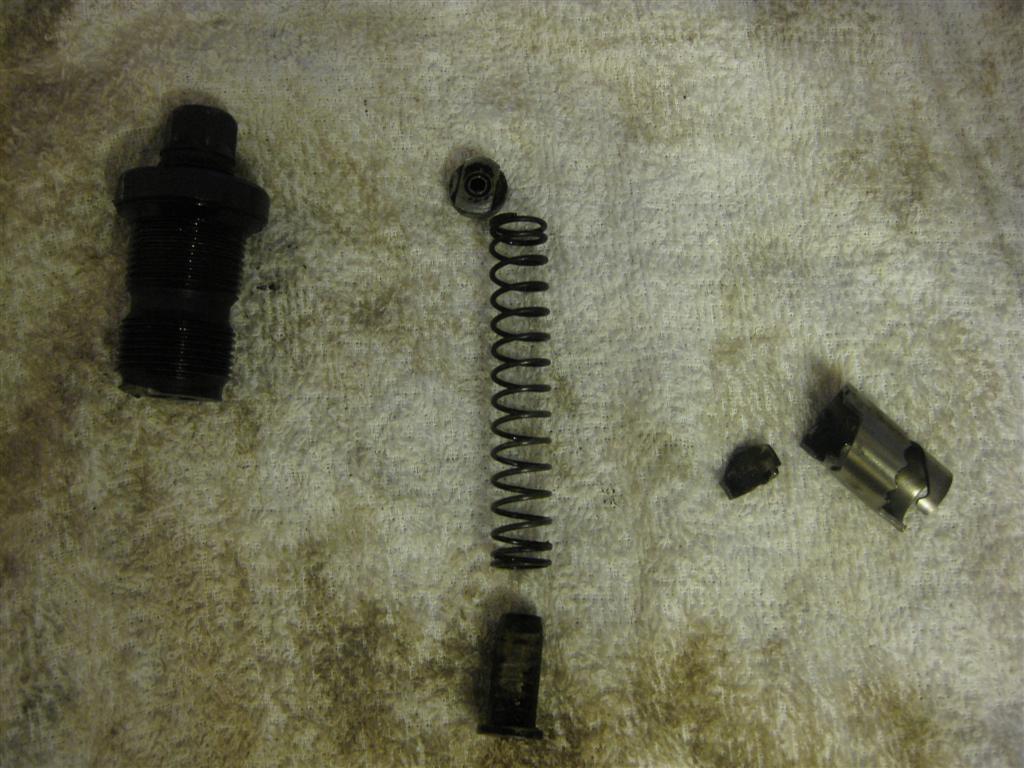

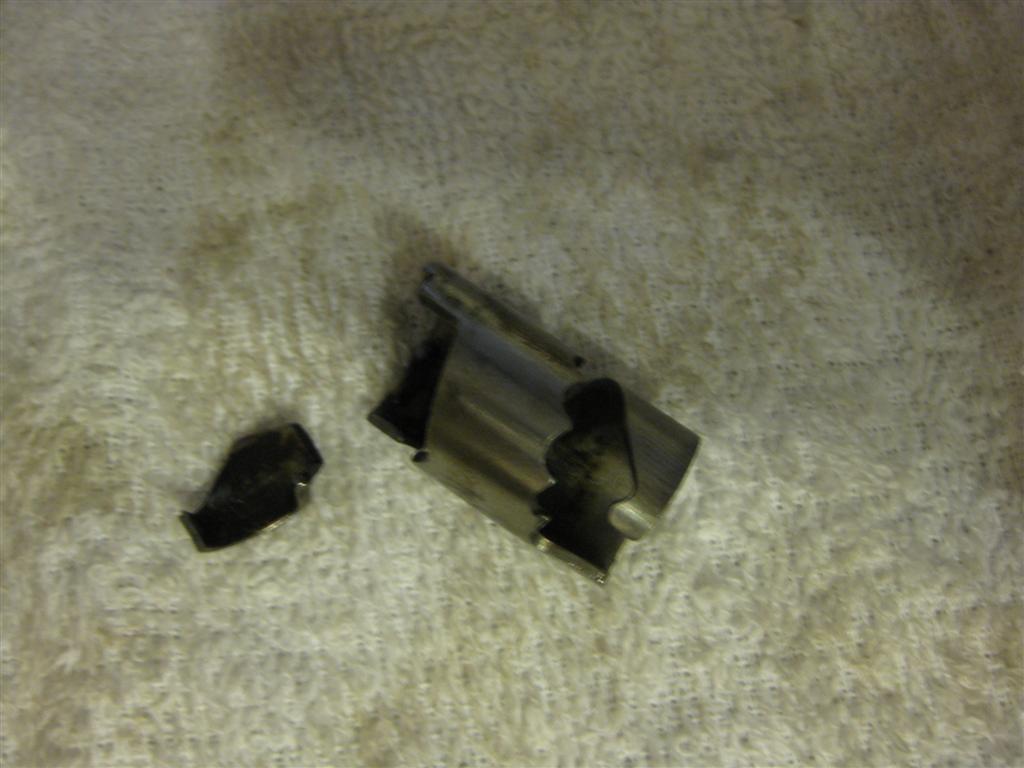

I was doing up the timing chain tensioner and all was going good until I felt a "crunch" :? . f**k knows how I did it, the main outer bolt was only 3/4 the way in and was originally flush with the block.
On a better note, I removed the head, again, and fitted the locating guide dowels. and everything else just seemed to fall into place......well, not really, it bloody took me all day to get it all back together again. Next time I'll leave it to the friggin professionals :P
Attachment:

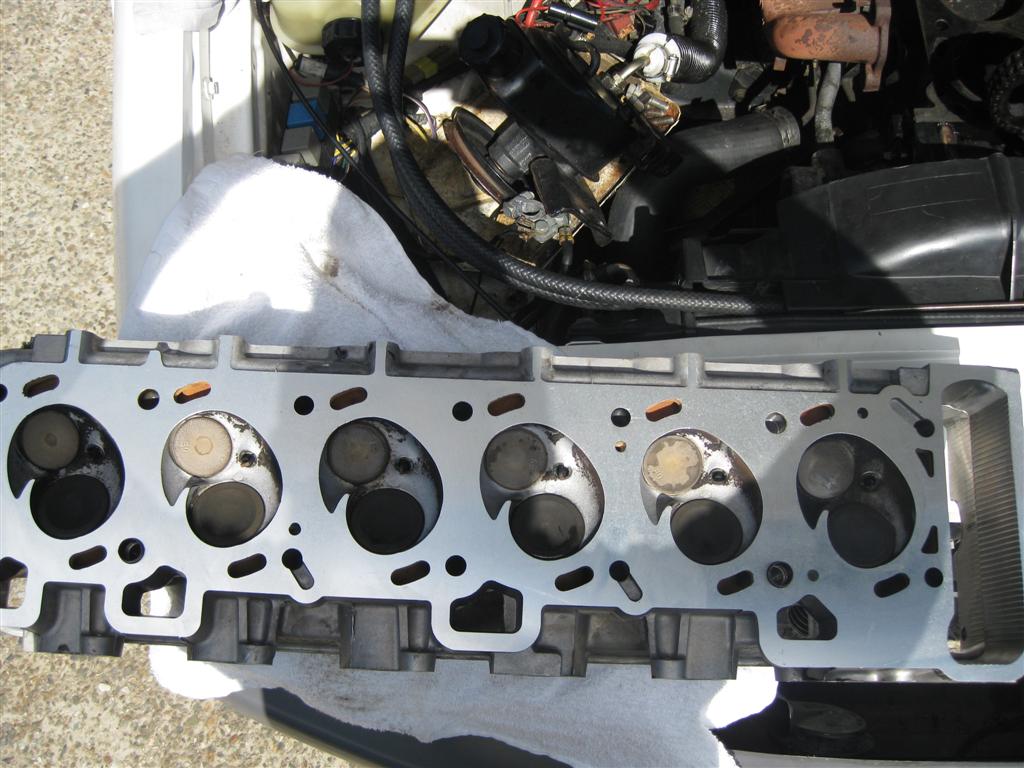

File comment: Nicely shaved and now with locating dowels
IMG_1711 (Large).jpg
IMG_1711 (Large).jpg [ 120.44 KiB | Viewed 23 times ]

Attachment:

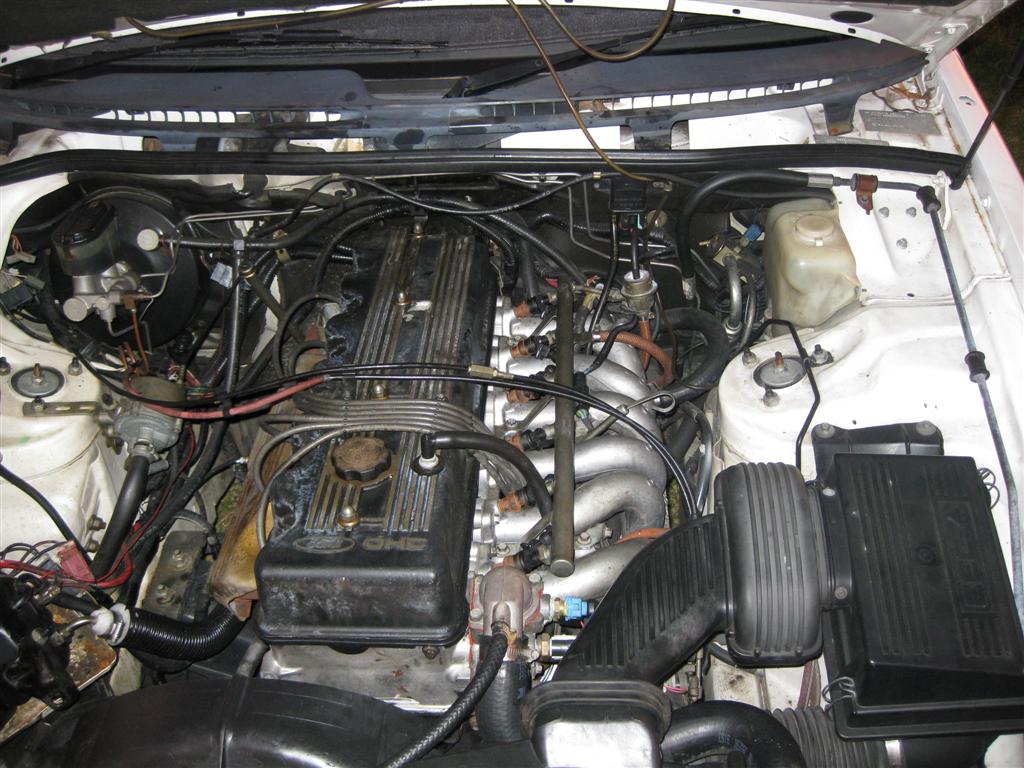

File comment: All together again.....well, almost
IMG_1729 (Large).jpg
IMG_1729 (Large).jpg [ 143.1 KiB | Viewed 27 times ]

Hopefully I can find a wrecker who has a 3.9 I can pinch the timing chain tensioner from....or I'm screwed :roll:
Cheers,
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sun Mar 15, 2009 11:29 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Mate, I think the 3.9 tensioner is the same as a 4.0l.

Can anyone confirm?

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Sun Mar 15, 2009 11:49 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

yeah shouldnt be any difference



_________________


Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 8:08 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the 3.9 and 4.0l tensioners are all the same...
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 10:38 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Actually they are slightly different, the outer bolt part is different, but the internals are the same.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 11:58 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

Mick, did you pay attention to the Headgasket change that I did not too long ago?

It's in this section of the forum's somewhere in the pile of "papers" :P.

A note that I should add, although it might not happen for you.

After I did the head, when driving on the freeway at 100km's, the ED seems to surge, at the moment I'm running shell's VPower, and the surgeing is alot less, however, I think the ED is pinging, because I do here this kinda small backfiring when you touch the throttle very slightly, and that's with all the doors open, otherwise I don't notice anything. Reading a document that Voxace made, I noted that you could I THINK advance the timing abit more than standard, but it would mean that if doing so you would need to run a higher octane fuel. Well I think I've somehow taken the timing out of wack when doing that head change, and I still haven't gotten round to making sure that the timing is still correct, maybe that will be something for me to do today?

My 1c worth for today :P.



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 1:17 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Thanks for the tips fella's.
Can you believe nobody I rang had a 3.9L I could rape to pinch the tensioner from :shock:
I end up ringing Pryce Engines back who serviced the head and they can get me a new one over night for $45...phew!
Can anyone shed any light on why/how I could have busted it in the first place :? And secondly, do I need to remove the timing set to replace the tensioner as it seems to be connected to the chain guide it pushes against???
Appreciate the help!
Cheers,
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 1:37 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

ford-4l-and-6-cylinder-f1/ed-head-gasket-replacement-t75307.html

Have a read.

You have to take out the Radiator, those idler pulley's, Power Steering Pump Mount, undo all sump bolts EXCEPT the 2 at the very rear, just loosen them, Alternator Mount, and then it's just the timing cover bolts, that should reveal the timing section.

Try and be carefull when you take the cover off, there is a plastic guide that is susceptible to falling down the sump, if your carefull enough to still save it, when you put the cover back on, I siliconed that guide on so it didn't come off when assembling it back together, might pay to replace the timing chain aswell, mine rattles at high RPM.

If that guide does fall down the sump, don't stress, just go to ford and get a new one, I tried our local burson's, they don't sell that guide as single.



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 2:56 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

when you pulled the tensioner out did you just undo the big bolt and remove the tensioner?
or did you lock the tensioner before you un did the bolt??
as the tensioner has a locked position to be in before you put it back in.. then you release the tension with a 3mm allen key..

ill post up a pic for you soon
Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 3:03 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

Thanks Troyman,
I just finished reading your thread Speedy :shock: ........you poor bastard, you had more drama's than I did, and I thought I was doing it tough :lol:
But good news from what I have read is I don't need to remove the timing cover and all that crap. I just need to pick up my new tensioner tomorrow and fit it correctly. In hindsight, I wish I didn't remove it in the first place, was not necessary from what I have learnt :?
To answer your question Troyman, yeah I removed the whole tensioner (piston is still at the end against the timing guide, luckily). When I went to release the centre bolt, the whole lot just came out, and because of my curious nature, I decided it would be a good idea to remove the f**k :evil: When I put it back in, I didn't lock it together, which is why I broke the bugger.
One good thing to come from all of this is that I have learnt a hell of a lot about the ford straight six....more that I ever wanted to know :roll:
I'll just pick up my new one tomorrow, get some advise from the experts on fitting it all in properly, and I should be on my way to rego time :mrgreen:
Cheers,
Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 3:19 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

NCIILANE wrote:
Thanks Troyman,
I just finished reading your thread Speedy :shock: ........you poor bastard, you had more drama's than I did, and I thought I was doing it tough :lol:


Yep, thought I should soften you up :twisted:

That was exactly what I did, I removed the whole tensioner, it isn't neccessary, but I've learnt that even if you take the whole sucker out, it still releases the tensioner :P, although I have to somehow do something about that middle bolt, because every time I go to undo that bolt, the whole thing comes out, not just the one singular bolt, because I swear I still need to tension that tensioner properly, my only worry at the moment is my timing, which I must have somehow taken way out of wack, it's retarded from what I know so far, but the bloke (I'll leave him unnamed :P) told me to double check here, hence why I posted not too far down from this very thread itself :).



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: Head done....now to the install???
Posted: Mon Mar 16, 2009 3:28 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

thats good news mate. atleast you got another one thats the main thing..

i got a few pics just incase your not sure.

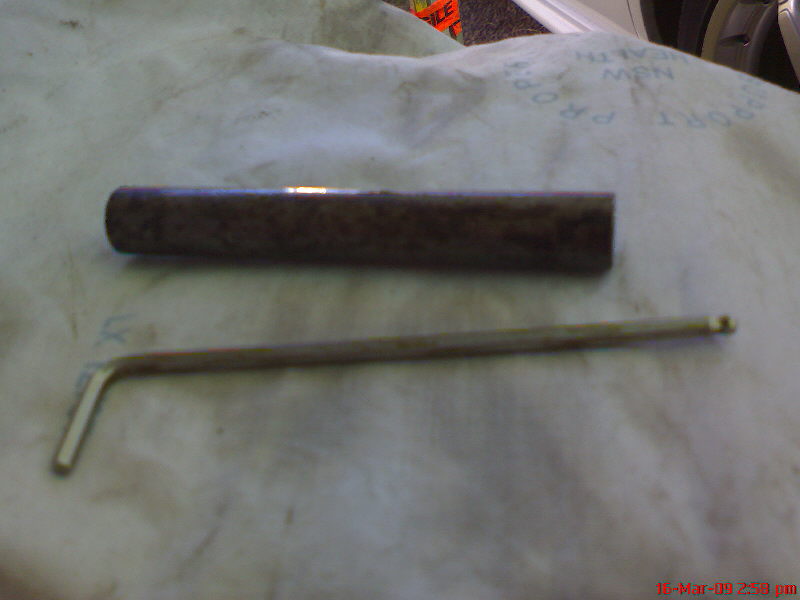

you need something like this to release the tensioner from its compressed position once it has been fitted..
its a long reach 3mm allen key with a 12mm tube.
Attachment:
DSC01316.JPG [ 43.82 KiB | Viewed 20 times ]

to release it you need to fit the tensioner in the compressed position and fit the large outer part of the tensioner bolt.(with the centre bolt removed)
once its tight you insert the steel tube and allen key into the centre together and push in and rotate it anti clock wise and the tensioner will release puting tension back on the cam chain..
then you put the centre bolt back in and your back in buisnes......

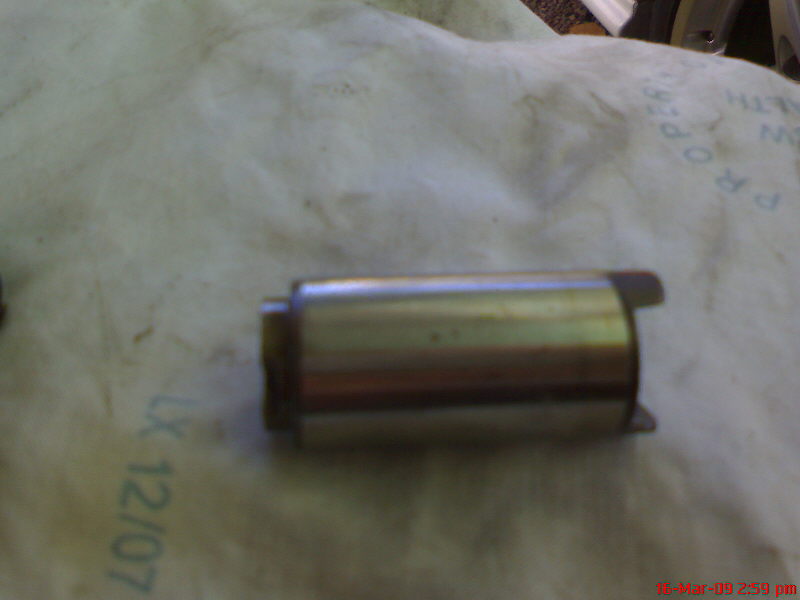

this is what the complete tensioner looks like in its compressed position(no tension)
Attachment:
DSC01318.JPG [ 38.9 KiB | Viewed 21 times ]

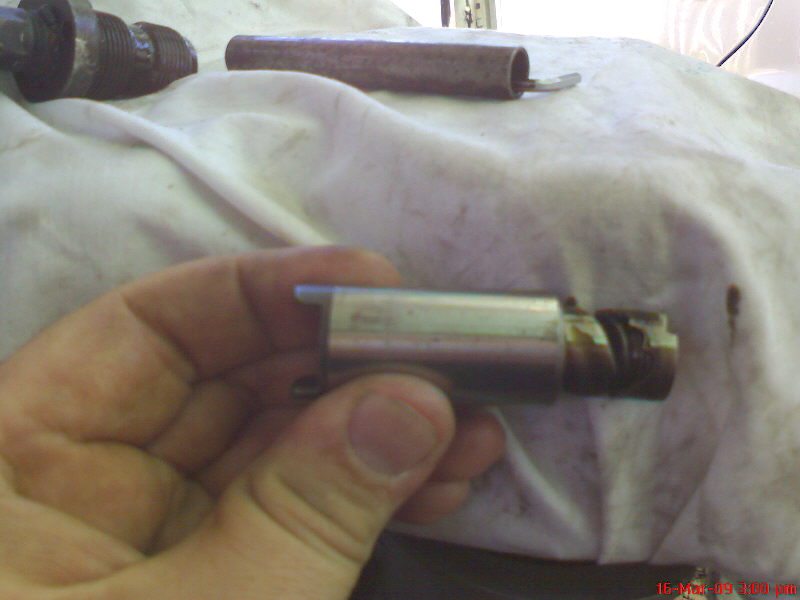

this is what it looks like in its released position..
Attachment:
DSC01321.JPG [ 52.35 KiB | Viewed 19 times ]

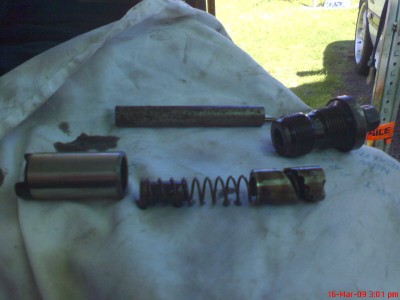

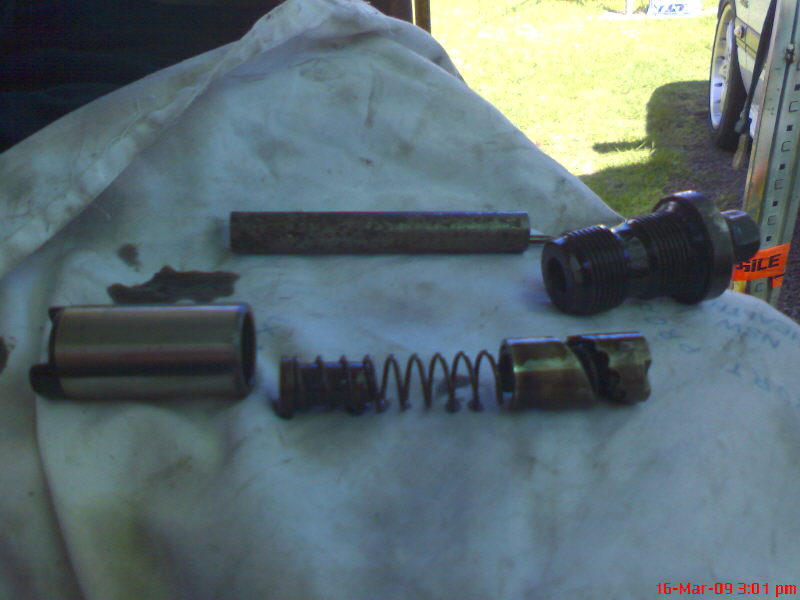

this it what it looks like disassembled..
Attachment:
DSC01322.JPG [ 58.03 KiB | Viewed 20 times ]


hope this helps???
