Posted: Tue Nov 25, 2008 5:19 pm
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

can the clutch pedal be adjusted and how cause it got free play in it



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Tue Nov 25, 2008 6:35 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the height of the pedal is determined by how you have the clutch adjusted.
there should be a spring that goes from the pedal to the floor to take out the free play...
Top
 Profile


Posted: Thu Nov 27, 2008 7:43 pm
Oompa Loompa
Offline

Posts: 33

Joined: 11th Nov 2008

Ride: EA S PACK

Location: melbourne
VIC, Australia

This is my plate i made it and put it on before my car was even manual because i was planing to convert it to manual anyway wich i did down the track.


Top
 Profile


Posted: Fri Nov 28, 2008 4:00 am
Oompa Loompa
Offline

Age: 49

Posts: 39

Joined: 1st Nov 2008

Gallery: 9 images

Ride: EF

Location: Orange
NSW, Australia

HA!
I had the same problem (cracked firewall) in my EF I bought on the 10th of October, first thing I did before buying it was take it home & went over it with a fine toothed comb, spotted the cracked firewall straight away, took it back to the car yard, told them I'd take it for $1500 less & on condition that they'd weld the crack up, Just to make sure they'd do the job properly I went into work made up a new reinforcing plate in the tool shop to cover the crack, pre-drilled for cable & all, took it back to the car yard, gave it to them & low & behold.........they tossed it!

Because of the pressure exerted on the firewall from the cable, that section had sunk about half an inch inwards compared to the rest of the firewall.
God Damn Frigging Amateurs!!!!

The least they could have done was jam a screw driver behind the cracked section to bring it into line, Tack it into place & remove the screw driver & finish the weld........ but NOOOOOOOO!!!!!!!!

Should see this freaking mess, Slag Spalling hanging off it like dags on a sheep's a***!

Jeezus, you try & make it easier for some people & they still want to jack you around

I'd have done better doing it myself with a Mig.

Bottom line NEVER EVER trust a Mechanic who takes a wage from someone else, if they don't run/own their own business then they just plain don't give a F@#K!

/ rant mode.



_________________

This thread is useless without pics!

hey look, I made Oompa Loompa!

"Oompa Loompa doompadee doo
I've got another puzzle for you
Oompa Loompa doompadah dee
If you are wise you'll listen to meeeee"!

Top
 Profile


Posted: Mon Dec 01, 2008 10:50 am
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

any one had the problem of a bent clutch pedal my mates got that problem he as an ef futura...... also im replacing the heavy duty clutch what should i get i dont want another heavy duty one???



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Mon Dec 01, 2008 10:57 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

usually if the pedal looks bent you will find the pedal box is cracking around the clutch pedal pin..
unfortunatly the firewall and pedal box are both huge failing points in the e series falcons..

ive had both fail and needed to re enforce and repair them both
Top
 Profile


Posted: Mon Dec 01, 2008 11:42 am
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

i just repaired the firewall how do i repair this.... its givving me the s**t



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Mon Dec 01, 2008 11:58 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

unfortunatly the dash needs to be removed to get the pedal box out..

if your good you might be able to weld it in the car but its a bit of a fire risk...

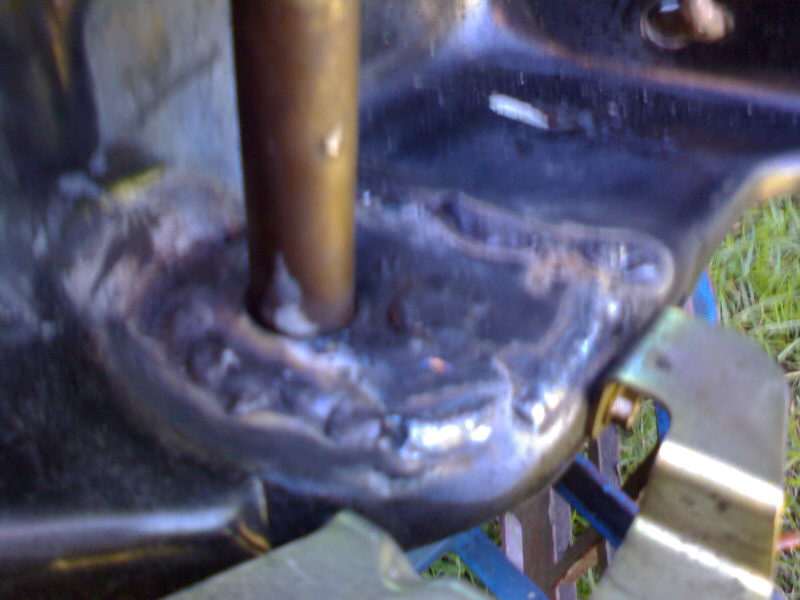

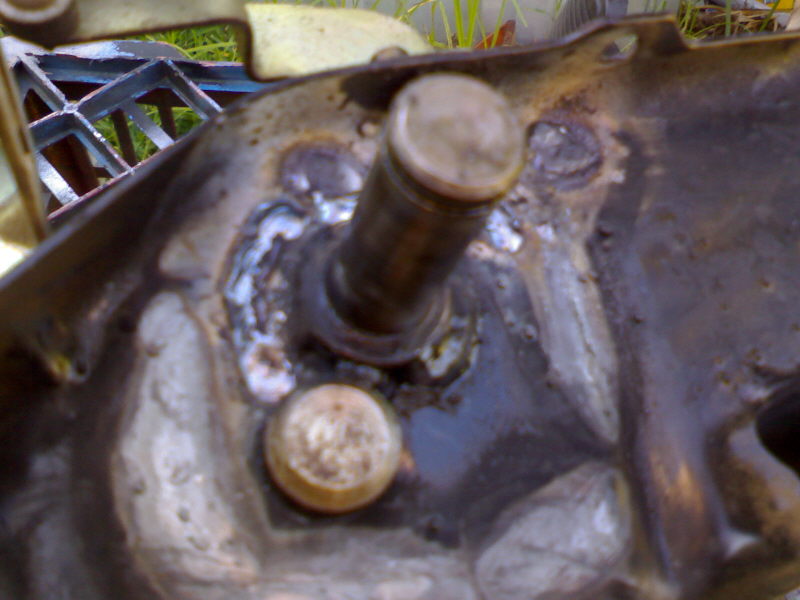

this is mine after i repaired it..





Attachments:
dsc00298 resize1.jpg
dsc00298 resize1.jpg [ 68.6 KiB | Viewed 235 times ]
dsc00297 resize1.jpg
dsc00297 resize1.jpg [ 63.4 KiB | Viewed 231 times ]
Top
 Profile


Posted: Mon Dec 01, 2008 12:11 pm
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

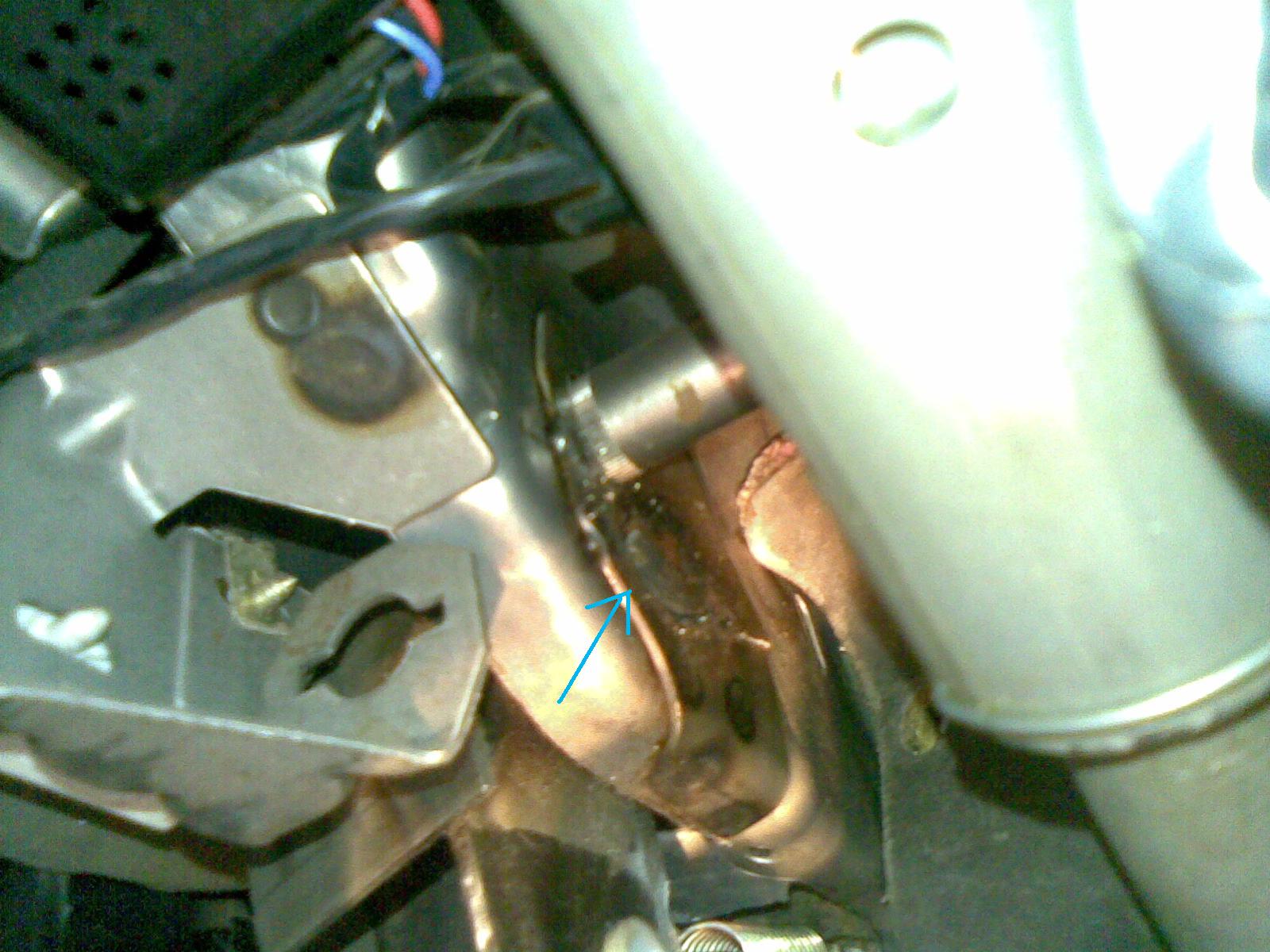

is that the actuall pin where the cable goes too.
mine cracked around where the arrow is i think





Attachments:
01122008.jpg [ 228.55 KiB | Viewed 232 times ]



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Mon Dec 01, 2008 12:17 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

thats the pin/shaft the pedal goes on.
and thats where they normally fail...
Top
 Profile


Posted: Mon Dec 01, 2008 12:23 pm
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

so i have to pull the dash a part to get to that..... is there a tutorial on this or how much for a smash repairer to do it u reokon..??



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Tue Dec 02, 2008 5:23 pm
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

??????



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Tue Dec 02, 2008 7:19 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the whole dash needs to come out or atleast pulled back about a foot to get to the top bolts on the pedal box...

i dont think there is a doco on it but there should be a few topics about it..
Top
 Profile


Posted: Tue Dec 02, 2008 10:27 pm
Getting Side Ways
Offline

Age: 29

Posts: 454

Joined: 31st Mar 2005

Gallery: 8 images

Ride: 05 XR6 Mk II Falcon Ute

Location: thornton
NSW, Australia

ok thats tommorow job after work...... whats a good clutch to get??
this is my first falcon soooo yeah i need as much help as i can get



_________________

EL Futura 5 speed factory:PH47FL goneeeee :(
04 BA XR6 Mk II Sedan: XR67OY gonneee..
2010 250R ninja: gooneeee.
BF 2007 F6 typhoon:F6FOON gonnnee.
05 BA XR6 Mk II Ute: latest

Top
 Profile


Posted: Wed Dec 03, 2008 3:58 am
Oompa Loompa
Offline

Age: 49

Posts: 39

Joined: 1st Nov 2008

Gallery: 9 images

Ride: EF

Location: Orange
NSW, Australia

Clampy, what's wrong with keeping the Heavy duty clutch?
Just repair the crack in the firewall & leave it, chances are you will NEVER need to replace the clutch for the life of the car.

Treat em nicely & they'll be low maintenance, I got 10 years out of the Clutch & Brakes on my EA, in fact they're still good, I just got a better car for the right money.



_________________

This thread is useless without pics!

hey look, I made Oompa Loompa!

"Oompa Loompa doompadee doo
I've got another puzzle for you
Oompa Loompa doompadah dee
If you are wise you'll listen to meeeee"!
