 Post subject: HELP easiest way to remove motor from ef xr6 and replace it
Posted: Fri Aug 26, 2011 7:41 pm
Fordmods Newbie
Offline

Posts: 17

Joined: 21st Apr 2008

Location: sydney
NSW, Australia

hey i need help on removing ef xr6 and replacing with another ef xr6 engine need to know what tools whats gasket what i have to remove in order to take it out and ill figure it out once its out
Top
 Profile


 Post subject: Re: HELP easiest way to remove motor from ef xr6 and replace it
Posted: Fri Aug 26, 2011 9:01 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

There are 2 ways about it...with or without transmission attached. Removing with the transmission attached will be harder to get it out of the engine bay, however it will make a hell of a lot easier removing and installing the transmission.

Remove bonnet or undo bonnet struts and get someone to hold the bonnet (if it's windy and you're doing it outside...I suggest you remove it)
You'll need to remove the intake manifold and exhaust manifold. either completely or just push them aside. Assuming you are just replacing engine...not including manifolds. If the other engine also has manifolds attached, just unplug all the wiring and vacuum hoses and leave the manifolds attached. Remove the intake and exhaust system from their respective manifolds.
You need to remove the thermos and while you're at it, remove the radiator and give it a flush since you need to drain the coolant anyway.
Remove all coolant hoses...pretty much just 4 you need to worry about, hoses at thermostat housing, lower hose at pump and the hose under the intake manifold connected to the heater bypass piping.
Remove the power steering pump...you can either completely remove it or push it aside...might as well remove it and put new fluid in the thing.
AC compressor needs to be removed off engine, you can't remove it completely unless you get a qualified person to degas it...venting into atmosphere is illegal and frowned upon, so just push it to the side.
Unplug all electrical wiring, engine harness and vacuum hoses.

If you remove it with the transmission attached, undo tailshaft from diff and remove it, undo transmission mount and support it with a jack stand for the time being. Remove engine bolts while engine is supported/connected to engine crane. Lift engine up on an angle so that the sump clears the radiator support while the end of the transmission is pretty close to the floor. Obviously be careful when moving the engine away from the bay so that nothing gets caught or jammed. When the engine clears the radiator support you should be able to tilt the whole assembly so the transmission can clear it. Remember to unplug the wiring to the transmission as well as oil coolant lines before you remove it.

Without transmission you will need to remove the tail shaft and obviously the transmission completely. Let it sit under the car while you remove the engine. Once engine is back in put it back together.

That's a basic run down. I probably missed something but can't think straight at the moment. Good luck and have fun.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: HELP easiest way to remove motor from ef xr6 and replace it
Posted: Sat Aug 27, 2011 10:07 am
Fordmods Newbie
Offline

Posts: 17

Joined: 21st Apr 2008

Location: sydney
NSW, Australia

Yeah I'm doing engine and manifold replacement and trans but is there any differences between xr6 trans and standard
Top
 Profile


 Post subject: Re: HELP easiest way to remove motor from ef xr6 and replace it
Posted: Sat Aug 27, 2011 10:17 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4583

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

no difference between transmissions



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: HELP easiest way to remove motor from ef xr6 and replace it
Posted: Sat Aug 27, 2011 2:36 pm
Parts Gopher
Offline

Posts: 73

Joined: 28th Nov 2010

Ride: EF Futura wagon, BF MKIII Wagon

Location: Brisbane
QLD, Australia

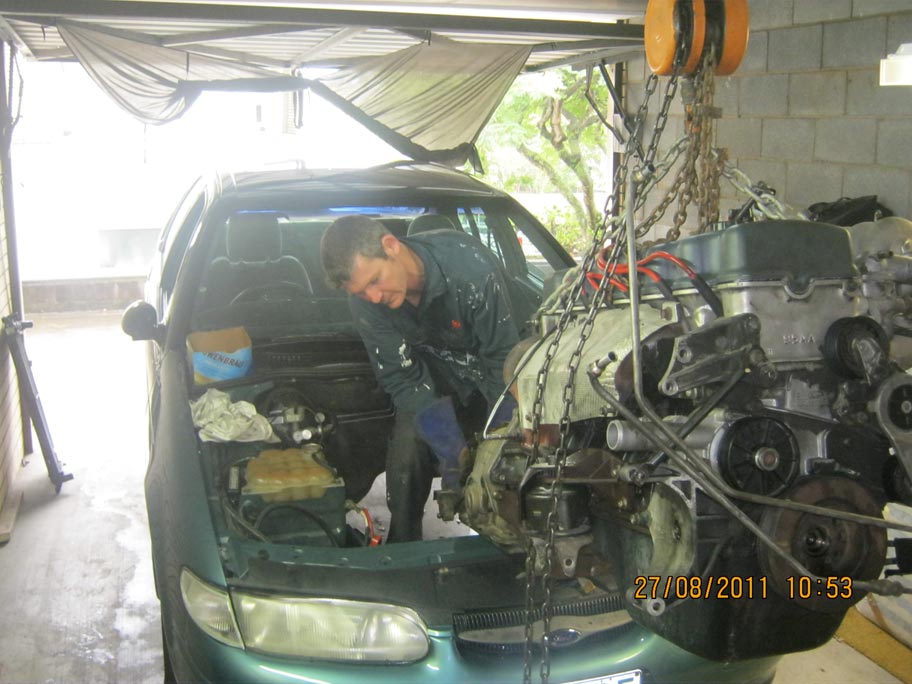

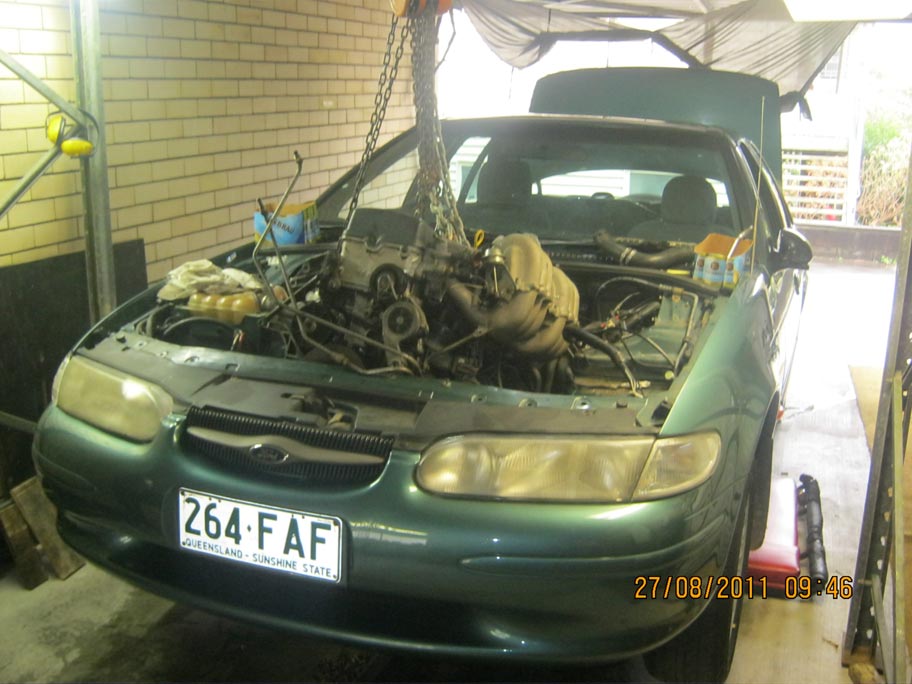

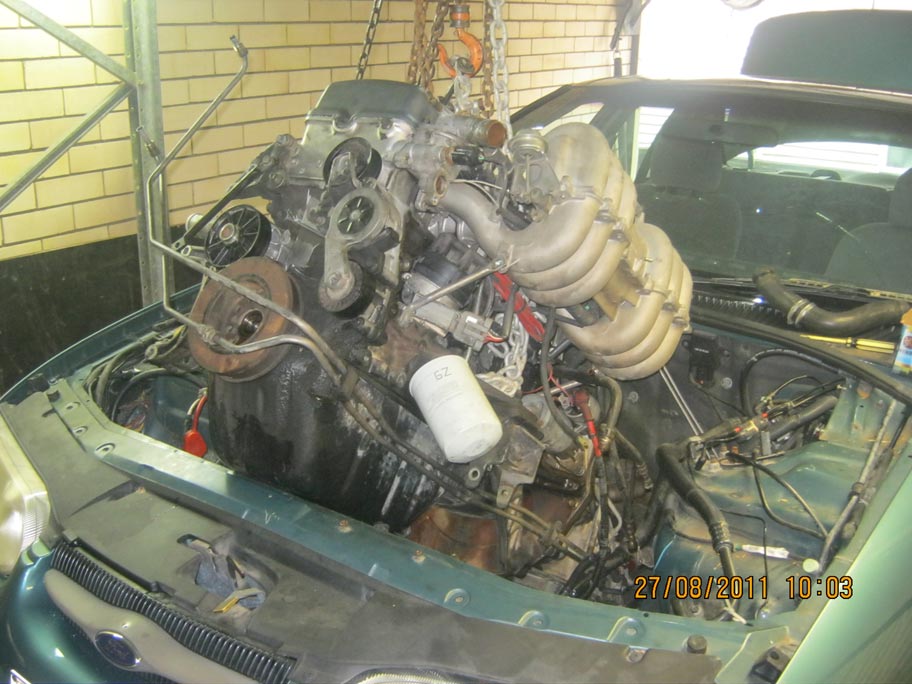

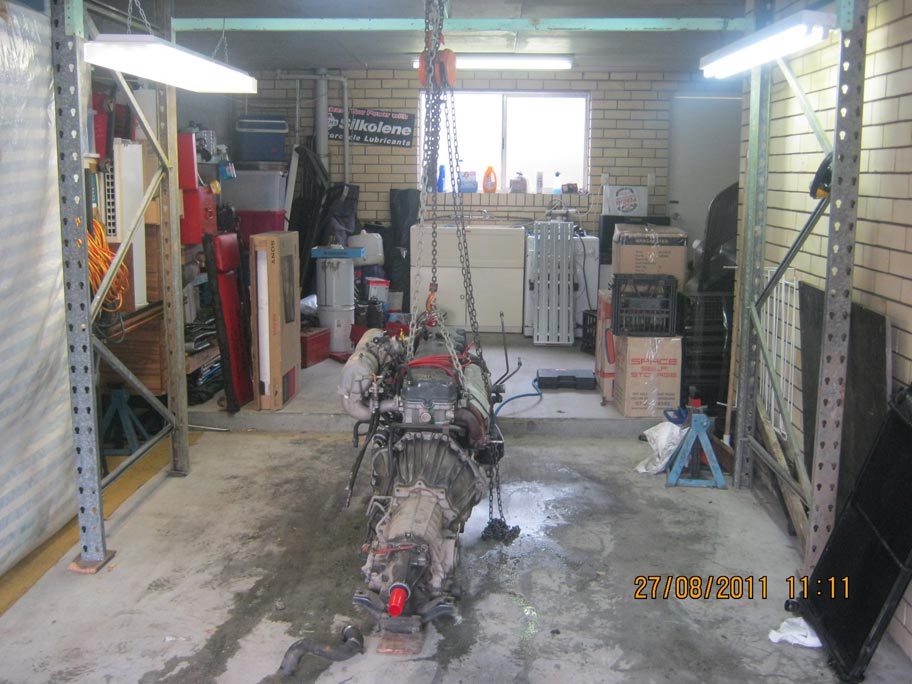

aus_eb....did this job this morning....engine and transmission out together...bit of a juggle to get the chain positioned right to get the best balance for clearance, fortunately a mate popped over and after a few adjustments on the chains it came out easy...
