 Post subject: HELP ef crank pullety
Posted: Wed Dec 30, 2009 2:25 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 398

Joined: 31st Aug 2005

Gallery: 9 images

Ride: Explorer

Location: St clair
NSW, Australia

so the timing case decides to crack and needs replacing. i have removed everything but the crank pulley as it is a pain in the a** to get off. is there an easy way of doing this? i have been trying to pry it out for bout 45min with no sucess, and yes i did take the bolt out aswell.



_________________

kangaroos and radiators are a bad mixture

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 2:36 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

with a balancer removal tool?

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 2:40 pm
Oompa Loompa
Offline

Posts: 44

Joined: 25th Nov 2009

Ride: Ford Falcon GLi sedan

Location: sydney
NSW, Australia

getting sideways, I am about to attack my hbp and would like to know if I use two, or three bolts and if 2, which 2. there 3 different lengths. Too many choices always confuses me.
Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 2:40 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

You need a Harmonic balancer puller......how did the timing cover crack?

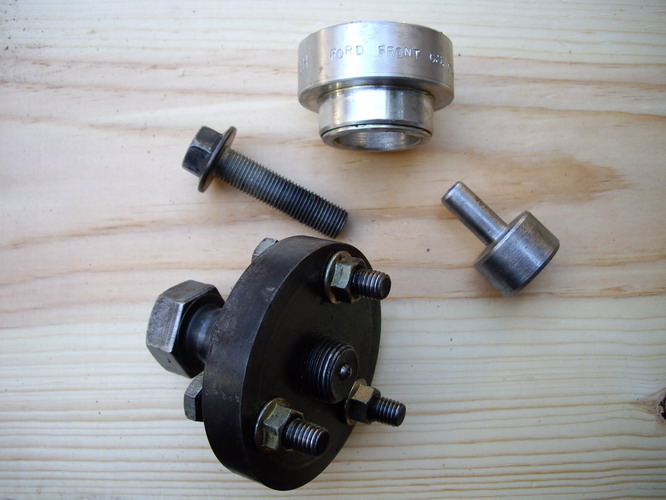

This is a pic of my tooling for those jobs, the puller, a bolt to pull the balancer back on, and a seal installer. I made them, except for the bolt.





Attachments:
IMGP1107_resize.JPG [ 80.41 KiB | Viewed 23 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 2:56 pm
Oompa Loompa
Offline

Posts: 44

Joined: 25th Nov 2009

Ride: Ford Falcon GLi sedan

Location: sydney
NSW, Australia

getting sideways, I not trying to hijack this thread but am changing the hbp off an EL so I can fit an EF one with the toothed cog using the same puller you show in your first reply to this post. From the looks of your picture of your puller, and a mighty fine puller it looks too, I would be using 3 bolts?
Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 3:01 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Yep, fits from EA to EL.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 4:35 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

I bought my puller 2 days ago from Repco.
Only problem with the kit was it only had 2 3/8th bolts and needed 3.
Simple fix was to go buy 3 bolts from the hardware store.



_________________

Member Number 8804

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Wed Dec 30, 2009 8:58 pm
Stock as a Rock
Offline

Age: 47

Posts: 123

Joined: 22nd Jul 2009

Ride: Falcon ED

Location: Cairns
QLD, Australia

I dodgied up a balancer puller, using a timing chain cog and some bolts from the shed. The holes all lined up perfectly.
Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Thu Dec 31, 2009 11:13 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

MadMatt wrote:
I bought my puller 2 days ago from Repco.
Only problem with the kit was it only had 2 3/8th bolts and needed 3.
Simple fix was to go buy 3 bolts from the hardware store.


The holes are metric, 10mm.....not imperial.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Thu Dec 31, 2009 3:34 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

cjh wrote:
MadMatt wrote:
I bought my puller 2 days ago from Repco.
Only problem with the kit was it only had 2 3/8th bolts and needed 3.
Simple fix was to go buy 3 bolts from the hardware store.


The holes are metric, 10mm.....not imperial.

Double check that on a EF/EL and get back to us....



_________________

Member Number 8804

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Thu Dec 31, 2009 3:45 pm
Tyre Shredder
Offline

Age: 26

Posts: 371

Joined: 6th Jan 2009

Gallery: 21 images

Location: mackay
QLD, Australia

quick question do you need to remove the raditor to fit the puller in to pull the balancer off?



_________________

xb falcon 500: currently being striped for full respray
ef falcon gli wagooon: currently finishing bodykit and then doors closed respray
the-garage-f53/ef-wagon-kit-pics-up-t77713.html

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Thu Dec 31, 2009 6:59 pm
Oompa Loompa
Offline

Posts: 44

Joined: 25th Nov 2009

Ride: Ford Falcon GLi sedan

Location: sydney
NSW, Australia

depends on the length of the bolt that goes through the center of the puller. You might get away with just removing the fans and serpentine belt. Not a lot of room to work tho.
Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Thu Dec 31, 2009 7:31 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

say you've got a large puller. how would one go about moving the condenser?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Fri Jan 01, 2010 2:08 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

MadMatt wrote:
cjh wrote:
MadMatt wrote:
I bought my puller 2 days ago from Repco.
Only problem with the kit was it only had 2 3/8th bolts and needed 3.
Simple fix was to go buy 3 bolts from the hardware store.


The holes are metric, 10mm.....not imperial.

Double check that on a EF/EL and get back to us....


I was using that tool back when ED's were under warranty with oil leaking up the keyway.
Had to remove the balancer and glue up the keyways. Had to do the EF1's too.
My tool doesn't require the removal of the radiator...just the fan/fans.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: HELP ef crank pullety
Posted: Fri Jan 01, 2010 4:12 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

fiftyone wrote:
say you've got a large puller. how would one go about moving the condenser?



:shock: if you have to remove the condenser then get a smaller bolt much easier and cheaper than degassing, removing front bar to get to the condenser then re gassing a/c system
