 Post subject: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Fri Feb 12, 2010 9:20 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

Hi ppl, just need some help, i have Put an El Xr6 head and wade stage 2 cam on my Eb 4L.now the timing has not changed as i cable-tied the timing chain to the cam gear. it had band new oil, oil filter and plugs. ignition leads r on correctly, runs rough still and blows heaps of black smoke which i believe is oil problem.

what could this be?
what can i do to try diagnose the problem?
i will need instructions.
cheers sean



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Fri Feb 12, 2010 9:31 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia

did u just throw the cam straight in? or have you tuned it and adjusted the TPS voltage? also what Wade cam is it?

black smoke is a sign of running rich.



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Fri Feb 12, 2010 9:41 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

alfy wrote:
did u just throw the cam straight in? or have you tuned it and adjusted the TPS voltage? also what Wade cam is it?

black smoke is a sign of running rich.


yeh, put cam straight in, was told it may not need tuning coz the timing chain had not come off cam gear, tps voltage not changed, wade stage 2 regrind im sure



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Fri Feb 12, 2010 9:41 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

yeh, put cam straight in, was told it may not need tuning coz the timing chain had not come off cam gear, tps voltage not changed, wade stage 2 regrind im sure



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 12:04 am
Getting Side Ways
Offline
User avatar

Posts: 1539

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia

Get on to Jason from T.I Performance, tell him all the details of your motor, cam grind number ect and he'll make you up a chip to correct the overfueling issues ect.



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 12:15 am
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007

Rat wrote:
wade stage 2 regrind im sure


that cam doesnt exist..... a part number should be engraved into the end of the cam. You could possibly have a massive Wade cam in there.... or you could have something like the 1636 which wont cause your car to pour out black smoke
Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 12:30 am
Stock as a Rock
Offline
User avatar

Posts: 103

Joined: 7th Jul 2008

Location: perth
WA, Australia

Check to see all vacuum lines are connected. And make sure the map is still connected too.



_________________

1995 EF Futura
Port and Polished 94DT Tickford Head - Crow valve springs - 68mm Throttle Body - Wade 1673
4499 Pacemakers - 2.5" exhaust - Ti J3 Chip - 2J1 Techedge Logger -EL Tickford 3.45LSD -
XR low springs - Boge Turbo Shocks - Front DBA slotted Rotors - BA ESS shifter - Shift Kit

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 1:24 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

yeh map is all connecetd and so are vaccume hoses, still blows smoke..



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 2:08 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

if you cable tied the cam gear you obviously didn't install a vernier gear...

and you didn't time the cam shaft? You might have had to move that gear 1 tooth either way in the chain...

These things have to be timed to the crank and depending on the cam grind it could be anywhere... The specs sheet that cam with it will give you a lift at top centre on intake on number 1 cyl...

This sort of thing is not a straight swap over... you must check timing...

and I second that smoke is too much fuel... because its not time it could have backfired and blown the guts out of the map sensor, as when these fail over fuelling is common...

You need to get a diagnostic scanner on it to check the sensors and make sure they are in range...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 2:20 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

i was told the cam was a wade stage 2, but i found it wierd wen the cam said 94da so i thought it was a regrind, maybe its just a std cam in an xr6 head, the cam was given to me out of a f**k bottom end



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 2:20 pm
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

i was told the cam was a wade stage 2, but i found it wierd wen the cam said 94da so i thought it was a regrind, maybe its just a std cam in an xr6 head, the cam was given to me out of a f**k bottom end



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 2:29 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

if it is a regrind did you fit the extra shims, or was the rocker gear off it supplied that had extra shims?

It almost sounds like a map to me... But you must have killed it for a reason...

I'd be pulling it back to bits and getting the wade number out of it emailing wade saying I have this cam, what size shims do I need (then check what is in it) and can you guys send a spec sheet on where to dial it in...

Take it too Ford and them to plug their CAM tester on it and see if the map is s**t itself, or alternatively if you have a spare try that...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sat Feb 13, 2010 2:33 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Rat wrote:
i was told the cam was a wade stage 2, but i found it wierd wen the cam said 94da so i thought it was a regrind, maybe its just a std cam in an xr6 head, the cam was given to me out of a f**k bottom end


It might be a regrind, but without verifying the numbers stamped on the end of the cam, noone will know what cam it is. Cam grind stamp is usually at the end of the cam which the camshaft sprocket is held onto. If you can remove it and have a squizz at that, then everyone will know just a little bit more about this cam.

Also check that the vacuum hose at the map sensor isn't split. it may be connected, but if it has a split, you might as well not have it connected.

When you took the camshaft sprocket off, did you reset the timing chain tensioner?



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sun Feb 21, 2010 12:06 am
Parts Gopher
Offline
User avatar

Age: 33

Posts: 81

Joined: 22nd Dec 2005

Gallery: 1 images

Ride: '99 XH XR6 5 SPEED

Location: Melbourne
VIC, Australia

yeh i re tensioned the timing chain, thats all good, i havent been near the car in a week so when i get the chance i will, it must be ita regrind because ot had the ford stamp 94DA on it.



_________________

SIGNATURE REMOVED DUE TO BREACH OF GUIDLINES.

Top
 Profile


 Post subject: Re: HELP, HEAPS of BLACK SMOKE- Eb 4L, EL XR6 Head,Wade Cam
Posted: Sun Feb 21, 2010 9:16 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2425

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

The '94DA' is just a standard marking on the cam from Ford, it's got nothing to do with the profile ground on the cam if it has been ground by Wade :wink:

As Phongus suggested, check the end of the camshaft where it bolts to the cam sprocket/gear. If, it has been reground, the company who did the grind will have either stamped or engraved their company name and grind number in this place.

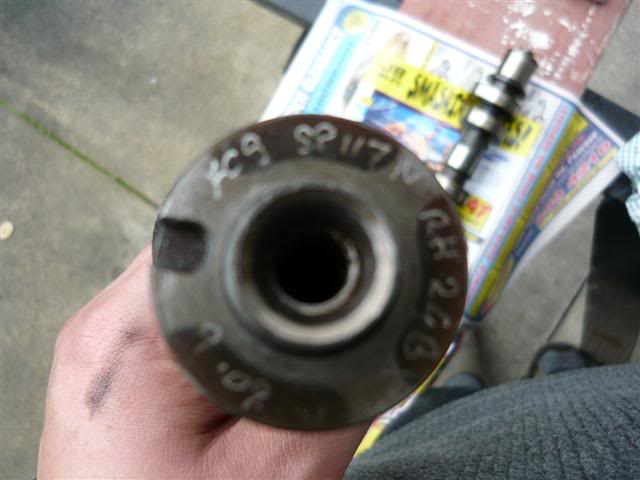

Something like this:
Attachment:
P1000915Small.jpg [ 33.83 KiB | Viewed 132 times ]



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile
