help needed with au motor into xg ute



Page 2 of 2 [ 29 posts ] Go to page Previous  1, 2


Posted: Mon Nov 03, 2008 6:33 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

i'm blown away by the willingness to help with info and alternatives to solve problems for us newbies. work calls for next few days then back into the xg. thank you ,cheers mate
Top
 Profile


Posted: Mon Nov 03, 2008 7:14 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

also if you have issues with fitting the bbm or dont want to?

you can still use the log with the xh tensioner on the serpentine, and you can also use the el ecu with the log manifold aswell..
that way you get a higher rev limit.. and you will get good results with the el ecu with the log manifold you just advance the ignition timing a bit more than you would with the std ecu... :)
Top
 Profile


Posted: Mon Nov 03, 2008 8:54 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

snap0964 wrote:
IIRC someone on here did say the BBM won't clear the XG bonnet.Hopefully someone can confirm or deny this.

http://www.fordmods.com/forums/serpenti ... 60421.html



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Nov 05, 2008 10:25 pm
Getting Side Ways
Offline

Age: 42

Posts: 1343

Joined: 14th Dec 2007

Gallery: 1 images

Ride: EL fairmont offroader

Location: seaspray
VIC, Australia

TROYMAN wrote:
that way you get a higher rev limit.. and you will get good results with the el ecu with the log manifold you just advance the ignition timing a bit more than you would with the std ecu... :)

Since you actually did this to an AU motor, maybe i should withdraw my concerns about the timing.

With my EL and log the engine only runs a bit rough when idling cold, and only pings very mildly and very occasionally (once so far) under extreme circumstances, and i get 11L/100kms which i think is decent under the circumstances.



_________________

wrecking 9/97 EL fairmont sedan burgundy 6cyl auto 270k modBAintake

Last edited by relaxed_diplomacy on Sun Nov 09, 2008 2:21 pm, edited 2 times in total.

Top
 Profile


Posted: Sat Nov 08, 2008 5:41 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

just a quick note on progress to xg. bought xh tensioner,fits no worries. next task belt, lucky enough to have a few mates cars as donors for size. after several attempts size for conversion is 6PK2440, at least in my case. next was set up of dizzy as per workshop manual,fit radiator,air box,few checks here and there.turned key xg come to life. after few minutes set timing,all seemed good but noticed oil leak from s/h p/s pump and water leak from thermostat housing. end of conversion is near.take chance to thank contributors for great info and interest.hope to help if possible in future. thanks
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Mon Aug 08, 2011 8:19 am
Oompa Loompa
Offline

Age: 51

Posts: 38

Joined: 30th May 2011

Ride: V8 XG VAN / V8 NL fairlane ghia

Location: Melbourne
VIC, Australia

how did you get around the swaybar hitting the sump ???
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Mon Aug 08, 2011 3:15 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

Had the sump cut and welded to clear the swaybar.This is a great conversion for XG's, you'll love the difference.
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 2:35 pm
Tyre Shredder
Offline

Posts: 376

Joined: 5th Feb 2009

Ride: Ford Falcon XG

Location: Bendigo
VIC, Australia

i can second that. nice improvement to performance and steering is a fair bit lighter with the serpentine belt. i couldnt get the sump cut in time before the conversion so my sway bar is resting on the front of the sump. im trying to work out a way to fit some small spacers for sway bar clearence
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 5:17 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

Have done the BBM conversion as well and would recommend, much better again. :mrgreen: :mrgreen:
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 5:18 pm
Tyre Shredder
Offline

Posts: 376

Joined: 5th Feb 2009

Ride: Ford Falcon XG

Location: Bendigo
VIC, Australia

Razza when you did your BBM conversion what did you do with header tank and battery ect?
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 6:00 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

The header tank is still in original position, i replaced original hoses for the heater and thermostat pipe with some i made up. By having no curves in the hose from the header tank you can reduce down to 19mm from 25mm lower than the BBM. All my connections were from BCF and made from poly,nice and cheap. They have reducers and joiners while the hoses came from any spares shop. Battery is in original place as is the airbox. :) :)
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 6:02 pm
Tyre Shredder
Offline

Posts: 376

Joined: 5th Feb 2009

Ride: Ford Falcon XG

Location: Bendigo
VIC, Australia

the standard airbox would be the wrong way around wouldnt it? any pics?
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Wed Aug 10, 2011 6:11 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

I use the air box in reverse the opening from the lid to the throttle body and use the bottom opening to draw fresh air from under the front of the car. I'll try and get some photos up tomorrow. Should mention i flipped the filter over for this.
Top
 Profile


 Post subject: Re: help needed with au motor into xg ute
Posted: Fri Aug 19, 2011 3:21 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

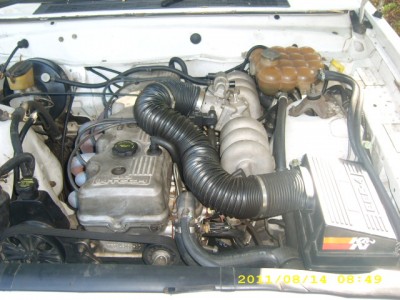

Attachment:
DSCI0038.JPG [ 200.71 KiB | Viewed 77 times ]
