HELP!! SPARK PLUG LEADS



Page 2 of 2 [ 20 posts ] Go to page Previous  1, 2


Posted: Fri Apr 21, 2006 11:27 pm
Getting Side Ways
Offline

Posts: 418

Joined: 23rd Jan 2005

Location: Rockhampton
QLD, Australia

its like 40kv isn't it hence has possibly 2 pull 40cm arc
ive seen leads glow ble and pull a massive arc.

whena m8's dad was helping me put on 350 holley when we put the leads back on he got them in teh right order, it just started at the wrong spot on the dissy and hence were all one out.
Top
 Profile


Posted: Sat Apr 22, 2006 9:11 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

borrow a workshop manual from someone. next time, change them one at a time. its a logical idea if you don't know the firing order.

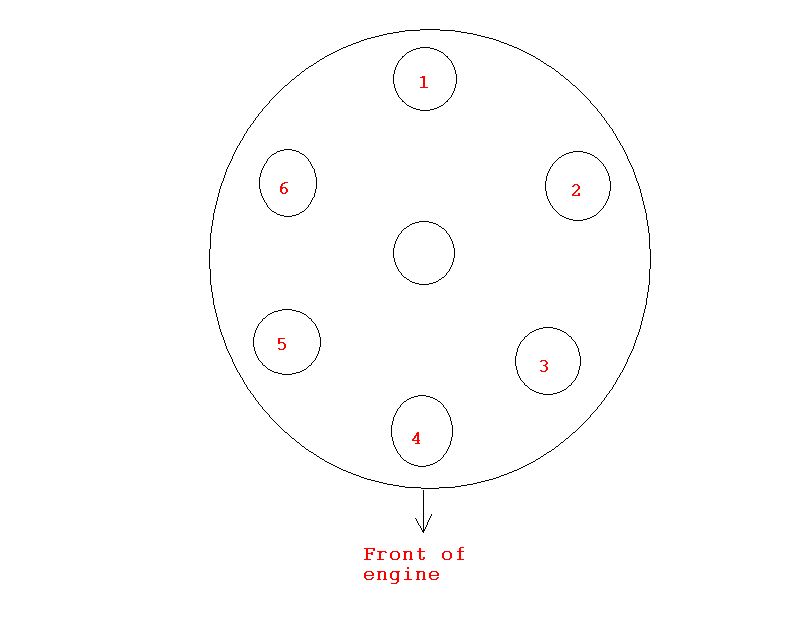

Can someone match the right order according to the picture below.
example: 1 is 5, 2 is 4, 3 is 2, 4 is 1 & so on

Did you cut a slit on the lead boots? if u didn't air trapp inside will just pop the boot up again. causing it to missing or what ever, the arc has to jump.





Attachments:
firing order.jpg
firing order.jpg [ 22.93 KiB | Viewed 22 times ]



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Sat Apr 22, 2006 11:15 am
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

cheers for those tips. I only figured out to use the workshop manual (which i have) about 2 hours after posting this thread ( :oops: )



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Sat Apr 22, 2006 11:57 am
Stock as a Rock
Offline

Posts: 100

Joined: 16th Nov 2004

Location: Mornington
VIC, Australia

Slick wrote:
borrow a workshop manual from someone. next time, change them one at a time. its a logical idea if you don't know the firing order.

Can someone match the right order according to the picture below.
example: 1 is 5, 2 is 4, 3 is 2, 4 is 1 & so on

Did you cut a slit on the lead boots? if u didn't air trapp inside will just pop the boot up again. causing it to missing or what ever, the arc has to jump.



Exactly what i did 1 at a time.



_________________

Bacon and eggs for breakfast.
One days Commitment for a chicken.
A lifes Commitment for a pig.

No matter how much you do your Standard Falcon up - Its still not an Xr!

Top
 Profile


Posted: Sat Apr 22, 2006 12:45 pm
Getting Side Ways
Offline

Age: 38

Posts: 1320

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

If the car has the original cap, and the dizzy has never been installed incorrectly, there should be very small numbers next to each post on the cap referring to which lead / plug that post should connect to.

Usually number 1 lead is the one closest to the corner of the timing cover and hte block, and clockwise from there 5,3,6,2,4.
If your not 100%, take the cap off and the dizzy will have a mark labelled "finish" that is where the #1 post is.
Top
 Profile
