 Post subject: HELP! WTF is this engine noise.
Posted: Sun Oct 05, 2008 8:36 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

OK guys,

I was having timing chain tensioner rattle at 1000-1500rpm when cold a while back and changed the tensioner to try and fix this. I created a few other dramas then (slipped tooth on chain) but after lining it all back up everything seemed OK (~170psi on all 6). Thats when the noise started. I have since replaced all guides and the chain in an effort to kill this noise which I thought was chain related. I even put my old (much lower seat presure) valve springs in (no noise with these puppies) to see if it helped but im still getting it at the same point which is making me think its not the chain at all. It happens at 3000rpm~.

Heres a video.

http://www.youtube.com/watch?v=pLXZoFXPXAE

Anyone have any ideas? im f**k sumped and cant really drive it like this...
Top
 Profile


Posted: Sun Oct 05, 2008 8:41 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

when u changed the guides did u make sure the regulator valve was put back in?



_________________


Top
 Profile


Posted: Sun Oct 05, 2008 8:52 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

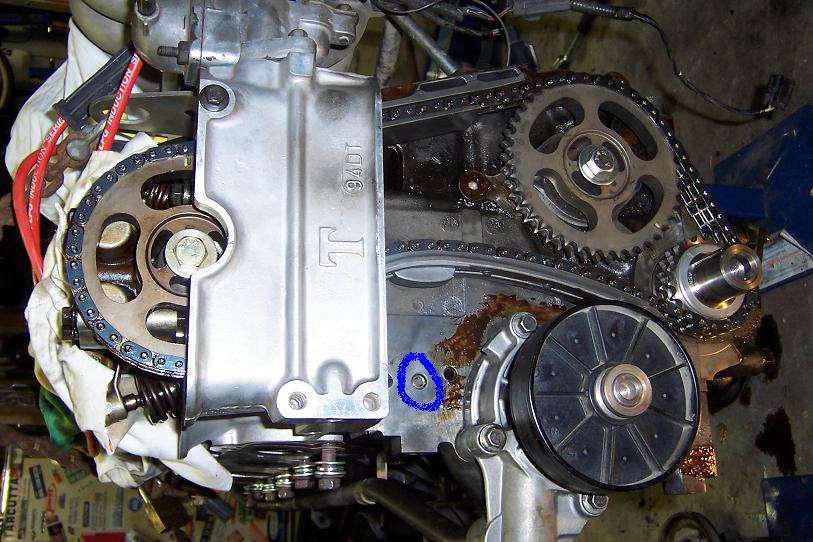

I was thinking the same thing as gogetta and the oil pressure regulator for the timing chain tensioner. See pic for location (circled in blue)





Attachments:
timing_cover.JPG [ 103.33 KiB | Viewed 1012 times ]
Top
 Profile


Posted: Sun Oct 05, 2008 9:22 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Hopefully you don't have to go to the extent I did in that pic!

Try cleaning out the tensioner bore with fine wet and dry on a dowel.

Also I've heard of people installing small washers to give the spring more tension, I haven't needed to, but its a worthwhile try.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Oct 05, 2008 9:41 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

thanks for the replies guys.

yes, regulator valve is in place (so is the o-ring). the last time i had it apart (last weekend) i poked a pin in the holes to make sure it worked, and some oil came out so i guess it is. i have cleaned out the tensioner bore and sanded it out, and the piston moves freely.

from the noise in the video, do you think its chain related at all???

i have had the front cover off 3 times in 2 months, ford are making a fortune from gasket sales to me...
Top
 Profile


Posted: Sun Oct 05, 2008 9:43 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

the sound quality in the video aint the best....so its of no real use..

how much have u had taken off the head and block?



_________________


Top
 Profile


Posted: Sun Oct 05, 2008 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 839

Joined: 10th Sep 2006

Gallery: 3 images

Ride: V8 Falcon, Nissan Patrol

Location: Brisbane, Bouncing off 5800RPM
QLD, Australia

Video seems to be offline ATM.



_________________

1993 Ford Fairmont EB II 5.0L V8 Wagon
1992 Nissan Patrol TI 4.2L Diesel 4x4 Wagon

Top
 Profile


Posted: Sun Oct 05, 2008 9:57 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

you can hear the noise 3 times when i rev it from 0:10 onwards... doesnt sound much like a normal 1500-1800rpm type chain rattle but sounds f**k.

the head had a small amount off, nothing abnormal. block is stock.
Top
 Profile


Posted: Sun Oct 05, 2008 9:58 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

FairmontXR6 wrote:
Video seems to be offline ATM.


basically at high rpm, its sounds like a lawnmower engine.

Cant really say what it is, as most of the things you have already replaced or bought new?!!
Top
 Profile


Posted: Mon Oct 06, 2008 7:47 am
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

everything on the chain except the sprockets are new.

could it be starving for oil? no idea why it might be, no other signs of this.

could it be a lifter collapsing? when i run it with the cover off, the #5 exhaust lifter sprays a LOT more oil than the rest.
Top
 Profile


Posted: Mon Oct 06, 2008 10:10 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

so far suggestions are:

- try new set of rocker arms
- try with no drive belt

any other ideas to narrow it down?
Top
 Profile


Posted: Mon Oct 13, 2008 9:51 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

i am in vic.

tonight i changed the oil pressure sender, so now my dash gauge is working. it doesnt show any sign of dropping when the noise starts, just sits where it always did (before i broke the sender a while ago). also i changed the oil filter (clutching at straws here). also removed the cam sync sensor to check s**t out. looked fine to me (no wear marks, no metal shavings, spun freely).

so far i have:

- changed all guides, chain
- f**k with tensioner 100x
- tried w/ no belt
- removed/refitted intake checking for rattles
- whole new rocker assembly (lifters and all)
- checked sync sensor
- removed/refitted balancer

it either has to be something in the bottom end (why would it only do it after 3 grand???), something in the torque convertor (i never touched it), or the aux shaft (how could it be f**k? i thought they just seized?).

any more ideas? im dying here!
Top
 Profile


Posted: Mon Oct 13, 2008 10:09 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

have u tried removing the tensioner and pushing on the guide with a large screwdriver whilst the engine is running...u would need an assistant to start the engine while you kept pressure on the chain



_________________


Top
 Profile


Posted: Tue Oct 14, 2008 10:38 pm
Getting Side Ways
Offline

Age: 42

Posts: 1343

Joined: 14th Dec 2007

Gallery: 1 images

Ride: EL fairmont offroader

Location: seaspray
VIC, Australia

I wonder if i had a problem in this area whether i would just get another engine. If something goes wrong in this area you tend to need to anyway.



_________________

wrecking 9/97 EL fairmont sedan burgundy 6cyl auto 270k modBAintake

Top
 Profile


Posted: Wed Oct 15, 2008 7:29 am
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

thats where im heading, but i dont have the tools (or patience) needed to do an engine swap.

gogetta, no i havent, but as i have said above, i dont think its the tensioner (i have tried two different units, shims on the spring, shims on the non-chain end). i will try this when i get time + assistant...
