Home made Intake pipe.



Page 1 of 3 [ 41 posts ] Go to page 1, 2, 3  Next


 Post subject: Home made Intake pipe.
Posted: Sun May 06, 2007 7:00 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

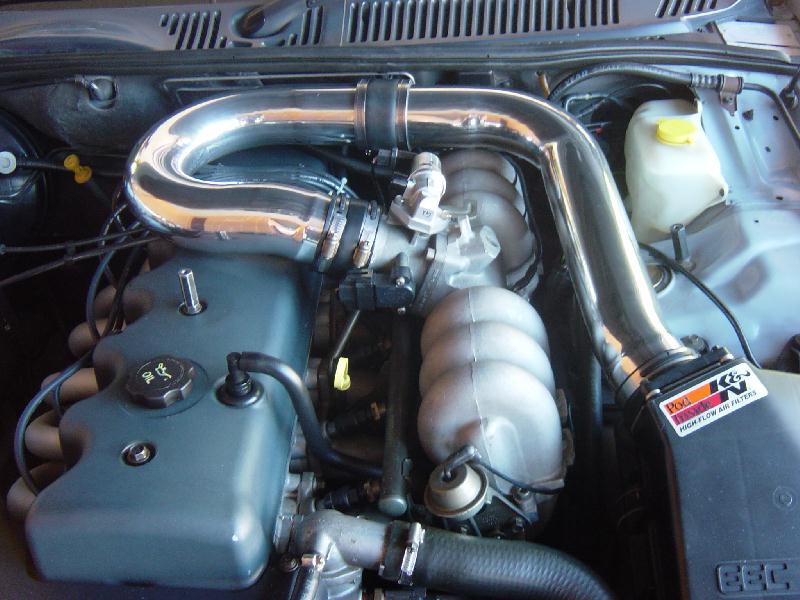

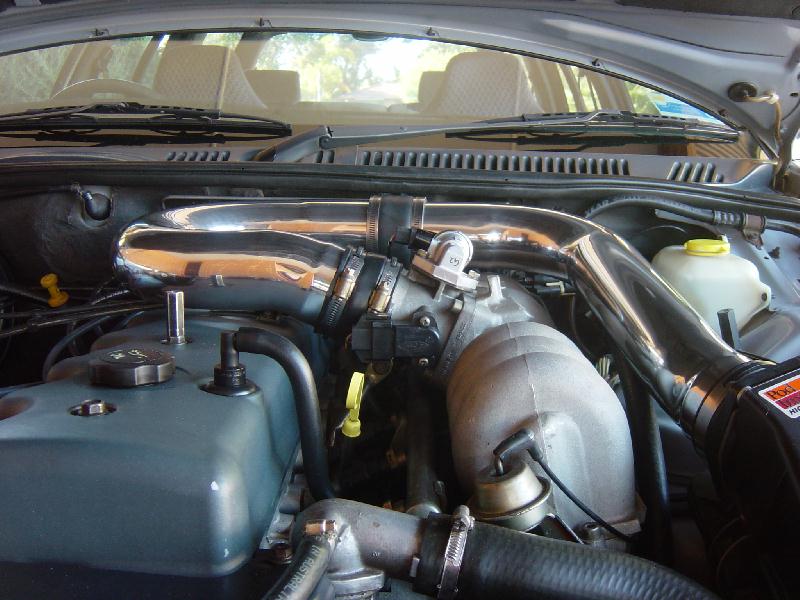

Just had to show someone, probably cost about the same as some of the group buys, but there's something to be said for having a go yourself. Pretty happy with the results.





Attachments:
DSC03763.JPG [ 91 KiB | Viewed 40 times ]
DSC03760.JPG [ 88.68 KiB | Viewed 101 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Sun May 06, 2007 7:01 pm
Getting Side Ways
Offline
User avatar

Posts: 2945

Joined: 24th Jan 2005

Gallery: 18 images

Ride: XW, EL, Territory, VFR800

Power: 129 rwkw

Location: Adelaide
SA, Australia

That's freakin awesome man! I can't see clearly from the pic but are they all mandrel bends? You wanna make me one???
Top
 Profile


Posted: Sun May 06, 2007 7:01 pm
Technical Contributor
Offline
User avatar

Age: 30

Posts: 1452

Joined: 27th Apr 2005

Ride: BA

Location: campbelltown
NSW, Australia

Good work. how did you go by making it?



_________________

"Chuck Norris does not sleep. He waits."
"Chuck Norris is so fast, he can run around the world and punch himself in the back of the head."
"Chuck Norris ordered a Big Mac at Burger King, and got one."

Top
 Profile


Posted: Sun May 06, 2007 7:04 pm
Stock as a Rock
Offline

Age: 30

Posts: 112

Joined: 5th Feb 2006

Ride: EL gli

Location: Perth, NOR
WA, Australia

wow, yer great work. Definately jealous :D
Top
 Profile


Posted: Sun May 06, 2007 7:17 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

make me one??



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Sun May 06, 2007 7:42 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Thanks for the replies guy's. It,s 75 x 1.6 mm aluminium, got the mandrel bends from super cheap they sell them as intercooler pipes. I used two 180* bends and two 300mm straight pieces, cut them up to fit (got all the angles and measurements if any one needs them) got the ends flanged at the local exhaust place and got the welding done at the local stainless and alloy place. Hardest part was grinding back the welds and then wet and dry sanding to remove the grinding marks, my fingers were bleeding towards the end, and then the final polish with meguires all metal polish. A bit of stuffing around but what else are you going to do with your time.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Sun May 06, 2007 7:46 pm
Getting Side Ways
Offline
User avatar

Posts: 2945

Joined: 24th Jan 2005

Gallery: 18 images

Ride: XW, EL, Territory, VFR800

Power: 129 rwkw

Location: Adelaide
SA, Australia

Measurements would be awesome. Notice much difference performance/response wise?
Top
 Profile


Posted: Sun May 06, 2007 7:55 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

looks great, but i would have put more of a flexable joiner in there as the air box is bolted to the car, and the engine can move quiet a bit when reving.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun May 06, 2007 8:09 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

looks good, but aluminum?? Thats almost the worst material to use for intakes on NA cars :?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun May 06, 2007 8:16 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

I will try and put the measurements into a more understandable format because even I find it hard to understand my scribble. Yeah I was concerned about the flexible join, but with the intake being so light I havent got any support tags, it sits in place just with the two ends being supported, this gives three points of movement and the air box is also mounted on rubber mounts so it also moves I will keep an eye on it and see how it goes.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Sun May 06, 2007 8:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Yeah, I dunno if my engine mounts are shot - very possible, but when I'm pulling the accelerator cable in the engine bay, she'll leen over a fair way.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun May 06, 2007 9:54 pm
Getting Side Ways
Offline

Age: 31

Posts: 1679

Joined: 9th Jul 2005

Gallery: 8 images

Ride: BA XR6 TURBO

Location: Newcastle
NSW, Australia

twr7cx wrote:
Yeah, I dunno if my engine mounts are shot - very possible, but when I'm pulling the accelerator cable in the engine bay, she'll leen over a fair way.


open the bonnet, give the car a big, quick rev, u will know if the engine mounts are broken.. mechanic scared me one day by saying have a look at this and the engine jumped up about 2ft out of the bay

scary
Top
 Profile


Posted: Sun May 06, 2007 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1110

Joined: 25th Mar 2007

Gallery: 7 images

Ride: BA MKII Fairlane GHIA

Location: Berwick
VIC, Australia

looks great , have you notice an increse in power ,better fuel economy,better responce
Top
 Profile


Posted: Sun May 06, 2007 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Cant say Iv'e noticed much if any increase in performance, cutting a 100mm hole through the bottom of the air box into the inner guard area made more of a difference, dont cut through the brake lines like I did even though I knew they where there. Hey it looks better and it cant hurt.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Sun May 06, 2007 11:05 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

yeah count me in for those measurments..
