How much would it cost to replace the inlet manifold gasket



Page 3 of 4 [ 48 posts ] Go to page Previous  1, 2, 3, 4  Next


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Thu Feb 25, 2010 9:36 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

phongus wrote:
pugz18595 wrote:
Nah just petrol...bloody prick of a thing to get the bolts off aye...I kind of given up and rather pay someone to change the gasket..was looking forward in doing it too.
So no sealant needed then huh?


No sealant, just make sure the gasket is on the right way around, I've done that mistake lol.

Don't give up yet, perseverance will pay off.


i'll second the no sealent.

And make sure you have an MPI gasket, I've had to fix one that some one fitted a CFI gasket too. (no cutouts for the injectors) the injectors spray fuel on to the back of the gasket and it dont run so good.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 4:11 pm
Fordmods Newbie
Offline

Age: 45

Posts: 19

Joined: 31st Mar 2007

Location: Hastings
New Zealand

Thanks heaps for the advise guys. I have decided to do the job myself and I am stuck on the last 2x bottom bolts on the manifold....what a b-tch alright. Any ideas other than a flexi extension bar to get at it. They don't have any at the local auto store where I live. I did see an extra long 10mm ring spanner made by powerbuilt..$42.00NZ what a rip....
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 4:36 pm
Tyre Shredder
Offline

Posts: 341

Joined: 5th Dec 2009

Location: Perth
WA, Australia

MadMatt wrote:
milo 302 wrote:
phongus wrote:
milo 302 wrote:
yep what gassa said, you can get to the bolts way easier if you remove the top half first,then you can use the ratchet spanner youre getting :D


But then you need to replace 2 gaskets...gasket between top and bottom manifold (if original) will most likely be stuffed.


And when you have a sore back you will be spewin you were a tight a*** and didnt just get both gaskets :D
If the bolts were loose then id say its stuffed anyhow dude, may as well replace it now.Wont have to do it again :D


What the?
So you would rather spend more time bent over under the bonnet doing more work than you need to?
I have a torn disc in my lower back and can change 1 of these gaskets on a ef or el in under an hour.
You don't use sealent on this gasket, the fuel from the injectors will melt it.


i will spell it out, it is much easier to get to the back bolts with the top half off.
So you spend less time fiddling and bending over getting lower back injuries :D
makes sense to me :wink:
Takes me around 5 minutes to get the top half off and saves half an hour + of mucking round, work that out.
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 4:55 pm
Fordmods Newbie
Offline

Age: 45

Posts: 19

Joined: 31st Mar 2007

Location: Hastings
New Zealand

So true milo 302, when you say remove top half first, what exactly are you talking about? I'm not a mechanic, your help is greatly appreciated if you could walk me through it....Thanks
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 5:19 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

How many have you changed Milo? did they take you less than an hour to change?



_________________

Member Number 8804

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 7:17 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

Shouldn't need to split the manifold, I've done heaps of them, and never used anything other then basic spanners and sockets.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 7:22 pm
Fordmods Newbie
Offline

Age: 45

Posts: 19

Joined: 31st Mar 2007

Location: Hastings
New Zealand

so how did you get the bottom last two bolts Tickford? What did you use?
Cheers
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 8:38 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

pugz18595 wrote:
so how did you get the bottom last two bolts Tickford? What did you use?
Cheers

I do those first and with a ratchet spanner.



_________________

Member Number 8804

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 10:17 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

pugz18595 wrote:
so how did you get the bottom last two bolts Tickford? What did you use?
Cheers


do them first, and just use a normal 10mm spanner from the top untill they are finger loose.
those two bolts take up half the time of the job and the first one took AGES to do.
If you can i spose you use a stubby spanner from the bottom.

You should be able to buy a JBS ratchet spanner for only a few $$ that would speed things up



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sat Feb 27, 2010 10:29 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

you dont need to remove the top half of the manifold, thats just silly!!
the rear lower bolts can be difficult, i use ratchet ring spaner and normal ring spanner then use the tips of my fingers to remove the last few turns...

if you have long skinny arms (which i dont) you can reach them by putting your arm underneath the manifold from the front..
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sun Feb 28, 2010 12:46 am
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

TROYMAN wrote:
you dont need to remove the top half of the manifold, thats just silly!!
the rear lower bolts can be difficult, i use ratchet ring spaner and normal ring spanner then use the tips of my fingers to remove the last few turns...

if you have long skinny arms (which i dont) you can reach them by putting your arm underneath the manifold from the front..



I agree with Troyman as above

This thread seems to be getting more complicated than it needs to be the bolts to undo and to do up are a pain in the a*** and yes frustrating but jeez just use a small socket universal joint and some long extentions and 10 mil spanner and get it done.
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sun Feb 28, 2010 5:12 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Yes straight forward on an SOHC motor, done in a few hours but I just spet 12 hours getting my DOHC off, drilling in LPG injector nozzles and reinstalling it. Right pain with the ZF oil cooler and lines in the mix as well..



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sun Feb 28, 2010 7:31 pm
Fordmods Newbie
Offline

Age: 45

Posts: 19

Joined: 31st Mar 2007

Location: Hastings
New Zealand

Yeah ha I did it, the bolts were pr-cks alright but I did it..(jumping for joy)....I accidently undone the thermostat bolts and pulled that out and when I put it all back together it leaked coolant from there..Can you buy a gasket or something sealant? for this....Thanks to phongus for telling me not to give up..I was determined to get those bolts off. I brought a 1/4" ratchet spanner and was great!!!!!

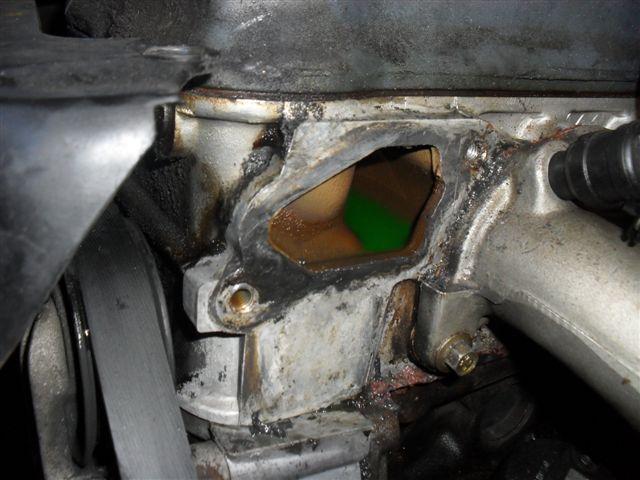

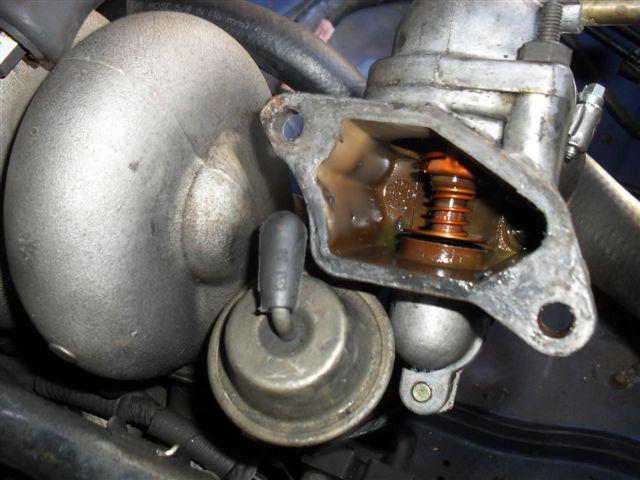

Here's a photo of the thermostat thingy that I need to seal somehow...
Attachment:
3.jpeg [ 48.81 KiB | Viewed 90 times ]
Attachment:
4.jpeg [ 48.25 KiB | Viewed 74 times ]
Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Sun Feb 28, 2010 7:53 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

pugz18595 wrote:
Yeah ha I did it, the bolts were pr-cks alright but I did it..(jumping for joy)....I accidently undone the thermostat bolts and pulled that out and when I put it all back together it leaked coolant from there..Can you buy a gasket or something sealant? for this....Thanks to phongus for telling me not to give up..I was determined to get those bolts off. I brought a 1/4" ratchet spanner and was great!!!!!

Here's a photo of the thermostat thingy that I need to seal somehow...
Attachment:
Attachment:


No problem mate. It's a good feeling once you have achieved something :D

Also you can get a new thermostat housing-to-head gasket. Shouldn't cost too much. I think no more then $10.

While you're at it, if money allows, flush the cooling system out with water, replace the thermostat and thermostat gasket. If you want, change hoses as well if they look a bit out of date. Once you connect everything back up, you can run just water through the cooling system and drive around the block, check for leaks and then replace water with coolant/water mixture if all is good.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: How much would it cost to replace the inlet manifold gasket
Posted: Mon Mar 01, 2010 4:33 am
Fordmods Newbie
Offline

Age: 45

Posts: 19

Joined: 31st Mar 2007

Location: Hastings
New Zealand

Yip I feel great alright considering I am in no way a mechanic but like to dab in things like this. I made my own OBDI diagnostic reader ages ago by just soldering here and there.
Hey is there any sealant needing to go on this gasket? If so what type?
