How to pull my head.



Page 1 of 3 [ 31 posts ] Go to page 1, 2, 3  Next


 Post subject: How to pull my head.
Posted: Tue Apr 18, 2006 2:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

OK, the time is here. Time to remove the head. All bolts are out. Anyone know how much it weighs? cause it won't budge. I wanna know if it won't budge cause its too heavy or there is too much gasket crap stuck to it. Any ideas? I plan on having me and 3 other guys to lift it out. Any persons experiences would be greatly appreciated.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Tue Apr 18, 2006 2:45 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

get a good rubber mallet and give the head a whack or two, you should be able to life it off on your own



_________________

Banned

Top
 Profile


Posted: Tue Apr 18, 2006 2:53 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

whs ^^

dont use a screw driver were the head meets the block either!



_________________

RIP SCOTT

Top
 Profile


Posted: Tue Apr 18, 2006 4:34 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

sweet, the rubber mallet got it off. Thats good :) . Only thing is in the process, the timing chain guide snapped off at the top. Thats bad :(. Why did they make it out of plastic?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Tue Apr 18, 2006 4:52 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

i htoght it was a type of graphite but yeah i had my guide snap and fell and jammed the chain which snapped and you can guess what else happened
Top
 Profile


Posted: Tue Apr 18, 2006 4:55 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

yeh, i managed to retrieve the piece that fell in, (don't ask me how it got caught on the chain). I can tell this is probably gonna give me a headache. What did you do to fix it?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Tue Apr 18, 2006 5:55 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

smiley235 wrote:
yeh, i managed to retrieve the piece that fell in, (don't ask me how it got caught on the chain). I can tell this is probably gonna give me a headache. What did you do to fix it?


hahaha... Oh s**t... Bad...

Depends where it broke. If its just high up on the guide (like the round bit where the bolt goes through) then it will be OK.

If its alot further down, close to the top of the timing cover, then it may be wise to replace the guide. Which means timing cover off and a new guide to be done. You could probably leave broken (if its broken like in this manner), but it may not do too good for the chain.
Top
 Profile


Posted: Tue Apr 18, 2006 6:05 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

off topic just a lil but when i saw the title "how to pull your head" i thought u just wanted to know where to put your hand!!!! :lol: :lol: :wink: my bad!! :twisted:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Apr 18, 2006 7:02 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

smiley235 wrote:
yeh, i managed to retrieve the piece that fell in, (don't ask me how it got caught on the chain). I can tell this is probably gonna give me a headache. What did you do to fix it?


I did the same on my EA. The bottom half is firmly held in place by the timing cover. So if its only the very top piece you shouldn't have a problem with it staying broken.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


 Post subject: Re: How to pull my head.
Posted: Tue Apr 18, 2006 7:24 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

smiley235 wrote:
OK, the time is here. Time to remove the head. All bolts are out. Anyone know how much it weighs? cause it won't budge. I wanna know if it won't budge cause its too heavy or there is too much gasket crap stuck to it. Any ideas? I plan on having me and 3 other guys to lift it out. Any persons experiences would be greatly appreciated.

Too late, I would have mentioned the guide, I broke mine putting the head back on. The guide does not cost much but it is a pain to replace. You need to remove the timimg chain cover
which involves removing the harmonic balancer and I think dropping the sump down a bit to achieve. Someone may confirm this as I have heard after I did it that it can be done without dropping the sump.
Cheers
TW



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Tue Apr 18, 2006 7:57 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

best off to replace the guides. you can get a timing kit that come with a new chain, tensioner, guides and all the needed gaskets.

taking the head off and on should always be done by two people. the guy at he front making sure not the let the head touch the guides



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Tue Apr 18, 2006 8:57 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

smiley235 wrote:
sweet, the rubber mallet got it off.

allways have faith in the saying "if at first you dont succeed, use a bigger hammer"



_________________

Banned

Top
 Profile


Posted: Wed Apr 19, 2006 9:42 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

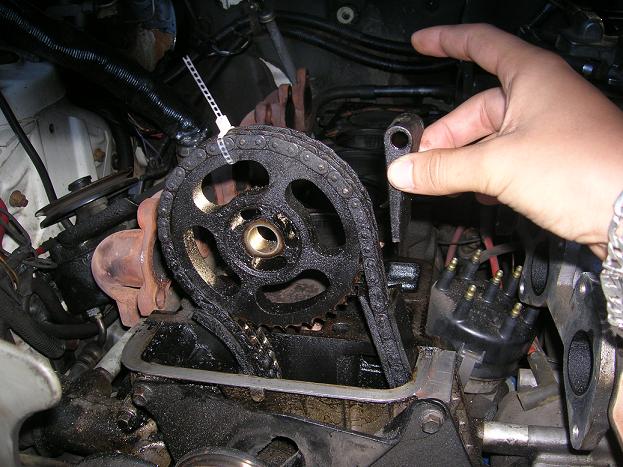

Ok, here is the picture of the broken guide. I reallycan't be bothered replacing it if I don't have to, What do you all think?





Attachments:
DSCN0876_temp.JPG [ 73.34 KiB | Viewed 42 times ]



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Wed Apr 19, 2006 9:50 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 637

Joined: 25th Nov 2004

Ride: Toyota Surf, EF Fairmont

Location: Melbourne, Northern Suburbs
VIC, Australia

same spot i broke mine in the ol eb. i gave up and took it to the mechanic.
i couldnt get the timing cover off. my gregorys book said the sump needed to be droped at the front to allow the cover to come off. i tried unsucseesfully. and it made the mechanic rich
Top
 Profile


Posted: Wed Apr 19, 2006 9:55 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

If i binded it back together with a heat resistant adhesive coupled with the fact that it will be bolted at the top, do you reckon it will hold?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile
