How to tell a 6sp to a 5sp Auto.



Page 1 of 5 [ 62 posts ] Go to page 1, 2, 3, 4, 5  Next


 Post subject: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 4:59 pm
Getting Side Ways
Offline

Age: 26

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

Hey FM. Not sure where to put this (more than likely off topic...)

I'm after an FG 6. Not too fussed if it's an XT or XR or G6 etc.
My only qualm is that I do want the ZF 6sp. Now, I've noticed that some of the FG's in the ads I've found say that it's a 4sp... which is mighty confusing as NONE of the FG's ever had the option of a 4speed seeing as the BF MKII got rid of them. I've also noticed that some of the XR's, G6's and G6E's have a leather strip up the centre of the shifter if it's a ZF, yet some don't???

So my question is, how do I tell if it's a 6sp just by looking at the vehicle. If I were to test drive the vehicle, I could tell straight away by just using tiptronic and going up to 6th.



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:04 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

From what I know of them the 6 speed ZF has a 6 speed badge on the centre console next to the shifter.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:09 pm
Getting Side Ways
Offline

Age: 26

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

I'll have a quick squiz through the ones that I see. How big is this tag, and is it noticeable from a s**t angle shot (eg. shot coming from driver or passenger door looking into car)??



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:13 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

It's pretty small, it's on the auto shifter surround. Google it so you know what we're talking about it... It's about 15mmx40mm maybe... Been a while since I've seen one. Just says 6 speed on it.



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:18 pm
Getting Side Ways
Offline

Age: 26

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

Found one that has it. Thanks for the heads up :)

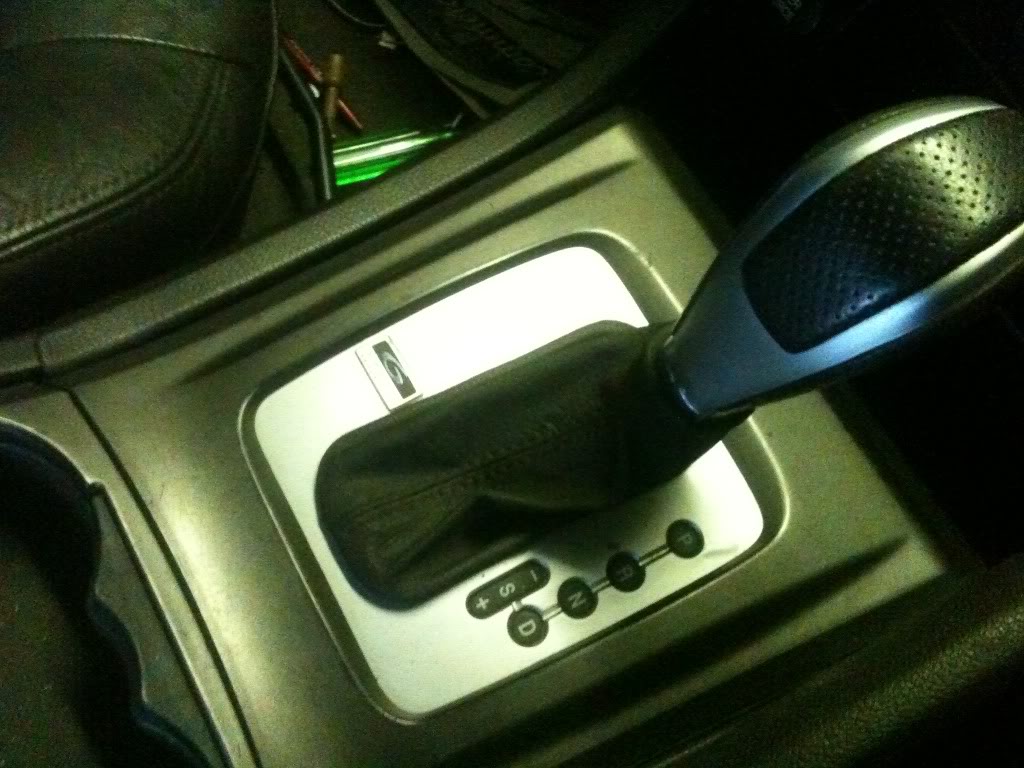

Attachments:
jessepics420.jpg [ 118.83 KiB | Viewed 46 times ]



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:20 pm
Getting Side Ways
Offline

Age: 26

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

I think that photo is from a BF but that is what the tag looks like yeah?



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 5:43 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Yes and yes...



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 6:55 pm
Getting Side Ways
Offline
User avatar

Posts: 450

Joined: 24th Jan 2009

Ride: BF wagon

Location: western sydney
NSW, Australia

its a different shifter as well. cant fit the 6 speed shifter on a 4 speed.
Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 7:25 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

only b-series had the badge on the surround

FG just has the black stripe on the shifter handle. The earlier 6 speed XT's (when it was still an option) are usually police packs, which also come with XR suspension & LSD. Police pack's have an indent in the dash next the screen

Last edited by FordFairmont on Tue Nov 27, 2012 8:13 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 8:00 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

I was wrong... Cheers ford fairmont. Wish I had known about the police packs, didn't realise there was Xt's out there with lsd's.



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 8:16 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1507

Joined: 14th Aug 2009

Gallery: 12 images

Ride: BA XT V8

Location: Gosnells, Perth
WA, Australia

also on compliance plate A = 6 spd ZF. and i think its F = 5 spd.



_________________

BA XT V8. Ice Mint. 18" Speedys. XR6T LSD. Full Pacemaker twin 2 1/2inch Stainless Steel system. Custom CAI. Black XR interior with white trimming. Powerbond underdrive kit 25%.
13.65@102mph. 2800 hi-Stall.
230RWKW@5250 rpm. 625NM.

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 8:57 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

FordAUte wrote:
Wish I had known about the police packs, didn't realise there was Xt's out there with lsd's.


there were heaps for sale a few months ago all around 15k, with about 50,000km. Now there is hardly anything......... it all depends when the gov sells off their fleet which usually goes to the dealers.

i did manage to find a couple though as an example.

http://www.carsales.com.au/dealer/detai ... 0-13727851
this dealer doesnt even know its a 6 speed....
http://www.carsales.com.au/dealer/detai ... 0-13367845
http://www.carsales.com.au/dealer/detai ... 0-13610914

Run the VIN through ford Etis, and expand feautres list to confirm
http://www.etis.ford.com/vehicleRegSelector.do

btw FG's did come out with 4 spds :wink:
Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 9:10 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Well I just learnt something... Not just a pretty face lol



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Tue Nov 27, 2012 9:34 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

When you test drive the car, the 5 speeds will up shift 4 times, and 6 speeds will up shift 5 times.
you only need one hand to count on too.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: How to tell a 6sp to a 5sp Auto.
Posted: Wed Nov 28, 2012 9:11 am
Getting Side Ways
Offline

Age: 26

Posts: 1472

Joined: 11th Jan 2011

Gallery: 5 images

Ride: Vixen Red 09 FG XT

Location: Dalby
QLD, Australia

Thank you so much for that info!

Ticky, if only I could test drive them all lol

And I'm pretty certain the only fg that had 4sp now that I remember were the lpg 3 seater utes with column shift?



_________________

VIXEN FG XT Previous best - 14.431 @ 99.69mph with minor mods
Currently 14.235 @ 101mph same mods. Bring on the 13's!

Top
 Profile
