Hybrid Build date?



Page 2 of 3 [ 36 posts ] Go to page Previous  1, 2, 3  Next


Posted: Mon Apr 09, 2007 10:07 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

data_mine wrote:
No all of them do. Mine rocker cover was painted black - like the regular ones. The ONLY way to be sure is the head part number.

Mine also got an AU paint colour. Again EL colours were still made to.

The other differences were phased in as the ELs were finalised.



The rocker covers were not "Black"...they were a dark grey colour, like the EF's. The hybrid engine rocker covers were not painted at all, just left aluminium colour as I mentioned before.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Mon Apr 09, 2007 11:48 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Mine most definitely was a hybrid, and was painted black/dark grey. Until I redid it body colour. Hybrid XR's still got a red rocker cover.

The other 'cost saving' measures were brought in as production ran down, they weren't all brought in at the same time as when they changed engine specs.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Apr 09, 2007 1:03 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

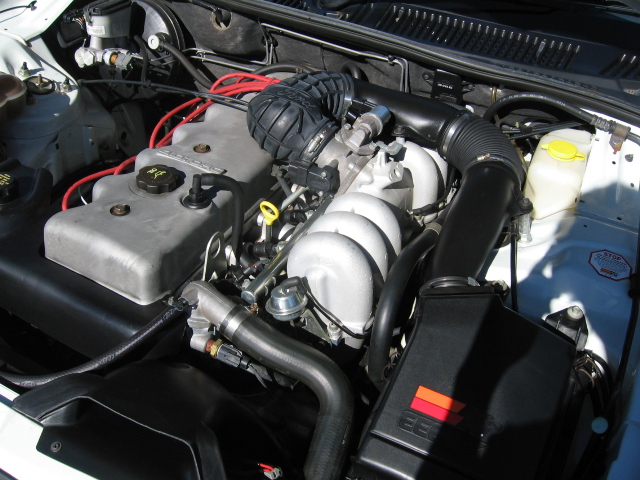

Im pretty 100% sure mine is Hybrid, built June 98 heres a pic.





Attachments:
IMG_1143.JPG [ 181.36 KiB | Viewed 46 times ]



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Mon Apr 09, 2007 5:28 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

yeah thats def a hybrid but as said some still had the painted rockers covers, hybrids came in during feb 98 but some feb 98's are hybrid and some aren't, all march builds were hybrids
Top
 Profile


Posted: Mon Apr 09, 2007 5:31 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

wtf is hybrid el



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Mon Apr 09, 2007 5:45 pm
Getting Side Ways
Offline

Posts: 1302

Joined: 10th Nov 2006

Location: Allmods suck so do viruses
WA, Australia

Pretty Much When the AU's Came out in 1998 they had used 1 or more parts in the EL

correct me if im wrong



_________________

Your all a bunch of f**k Heads delete this f**k account stupid useless C*** who run this site cant even sell something useless wankers

Top
 Profile


Posted: Mon Apr 09, 2007 5:46 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

oh so that late el was almost half a au cool



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Mon Apr 09, 2007 5:55 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

The late model EL's ended up getting AU spec heads.

A lot of the hybrids also got POV packed. With things going unpainted (engine block, rocker cover, engine bay)

The hybrid engine was pretty good for a stocker. Mine revved easier than E series I6's, but modding was a pain as the cams were AU spec, but AU performance cams didn't do all that much on the hybrids often running very poorly.

I ended up getting 150RWKW from mine with cam, intake, and exhaust mods.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Apr 09, 2007 6:00 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

The hybrid also has the AU crankshaft but using the EL pistons



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Mon Apr 09, 2007 10:16 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

GeZza200 wrote:
The hybrid also has the AU crankshaft but using the EL pistons


No, has AU conrods and AU pistons. The pistons are shorter, and the rods are longer, has same pin size, same big end journal size.
The main bearing caps have ears on them for the later to come alloy sump for the side bolts. The Hybrid also has the crank main cap girdle too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Mon Apr 09, 2007 10:36 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

my mate has an early EL and the code on the head is "94AB" same as the EF's, go figure?

Gab
Top
 Profile


Posted: Mon Apr 09, 2007 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Gab1 wrote:
my mate has an early EL and the code on the head is "94AB" same as the EF's, go figure?

Gab


That is correct, same as a 93 ED has 91DA on the head, and a late 94 ED has 94DA on the head.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue Apr 10, 2007 12:56 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

so "94AB" is the code for late EF/early EL?

Gab
Top
 Profile


Posted: Tue Apr 10, 2007 1:08 am
Getting Side Ways
Offline

Posts: 1302

Joined: 10th Nov 2006

Location: Allmods suck so do viruses
WA, Australia

i was looking at some parts on my car

Reserve Tank is 92DA
The Head is 96DA
Speedo Cluster 94DA



_________________

Your all a bunch of f**k Heads delete this f**k account stupid useless C*** who run this site cant even sell something useless wankers

Top
 Profile


Posted: Tue Apr 10, 2007 6:47 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Gab1 wrote:
so "94AB" is the code for late EF/early EL?

Gab


Late ED, EF & EFII, and EL, ELII are all the same. ELIII is the Hybrid.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile
