I broke an engine sensor, any radical problems?



Page 1 of 1 [ 10 posts ]


 Post subject: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 7:57 pm
Stock as a Rock
Offline
User avatar

Age: 79

Posts: 179

Joined: 11th Sep 2010

Location: Mount Martha
VIC, Australia

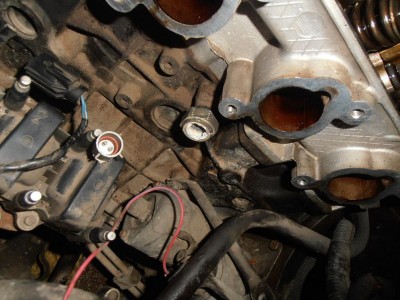

Hi guys, I broke a sensor on my EF, it's on the left engine block under the inlet manifold. It is a bolt with two wires attached. I assume it's for engine temp? What wil happen if I drive without it? I have attached a pic. thanks for your help





Attachments:
broken.JPG [ 95.99 KiB | Viewed 31 times ]



_________________

she dream't she was a bulldozer, she dream't she was alone in a field

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 8:49 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

isn't that where the knock sensor is?



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 8:59 pm
Tyre Shredder
Offline
User avatar

Age: 22

Posts: 337

Joined: 30th Apr 2011

Ride: '97 EL Fairmont Ghia

Location: Melbourne
VIC, Australia

Looks like the oil pressure sensor to me. Unless its connected to the ecu, the only problem it would cause is not knowing if you have low oil pressure.



_________________

The EL ghia
^^^^^^^^^^

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 9:15 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

Low oil pressure sensor, don't start your motor without a new one. Not sure about two wires though, are you sure about that?
Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 9:21 pm
Getting Side Ways
Offline

Age: 38

Posts: 1320

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

its the knock sensor, and you will be able to use the car without it
Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 9:24 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

WILDEB wrote:
isn't that where the knock sensor is?
Yeah, pretty close. You can take it out and drive without it - just get another and fit when you can. Be easiest to fit one while the manifold is off.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 9:28 pm
Stock as a Rock
Offline
User avatar

Age: 79

Posts: 179

Joined: 11th Sep 2010

Location: Mount Martha
VIC, Australia

Thanks for all the replies. Yeah it's just a plain bolt going into the block with a ceramic looking head which has two wires coiming out of it. The top took a very light hit to break off, seems very brittle. It would be a pain to remove the manifold to re-fit another!



_________________

she dream't she was a bulldozer, she dream't she was alone in a field

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Fri Apr 06, 2012 9:58 pm
Parts Gopher
Offline

Posts: 85

Joined: 13th Oct 2008

Ride: XG ute

Location: Gold Coast
QLD, Australia

Sorry about the bum steer ealier mate :oops:
Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Sat Apr 07, 2012 12:20 am
Tyre Shredder
Offline
User avatar

Age: 22

Posts: 337

Joined: 30th Apr 2011

Ride: '97 EL Fairmont Ghia

Location: Melbourne
VIC, Australia

razza01 wrote:
Sorry about the bum steer ealier mate :oops:


+1



_________________

The EL ghia
^^^^^^^^^^

Top
 Profile


 Post subject: Re: I broke an engine sensor, any radical problems?
Posted: Sat Apr 07, 2012 5:17 pm
Stock as a Rock
Offline
User avatar

Age: 79

Posts: 179

Joined: 11th Sep 2010

Location: Mount Martha
VIC, Australia

TheELghia wrote:
razza01 wrote:
Sorry about the bum steer ealier mate :oops:


+1


No worries at all chaps :D



_________________

she dream't she was a bulldozer, she dream't she was alone in a field
