yeah your right, i wasnt thinking properly... theres no roller on the valve side


With *large* cams you can ditch the HLA's and go solid too. theres a couple of different ways of doing this.

Ok, do we know if they are a 11/32 valve stem? or Are they 8.7mm?

There is a difference in the valve world

If they are a 11/32 (0.3415) stem which is 8.674mm there is a whole lot more choices

If however they are 8.7mm which is a 0.3420 inch stem, which have less choices.

I can't find my valve spring compressor since I moved, will pick one up tomorrow, so I can measure a valve.

Unless someone has one and some verniers?

You could have the guides K-Lined to suit an 11/32 valve

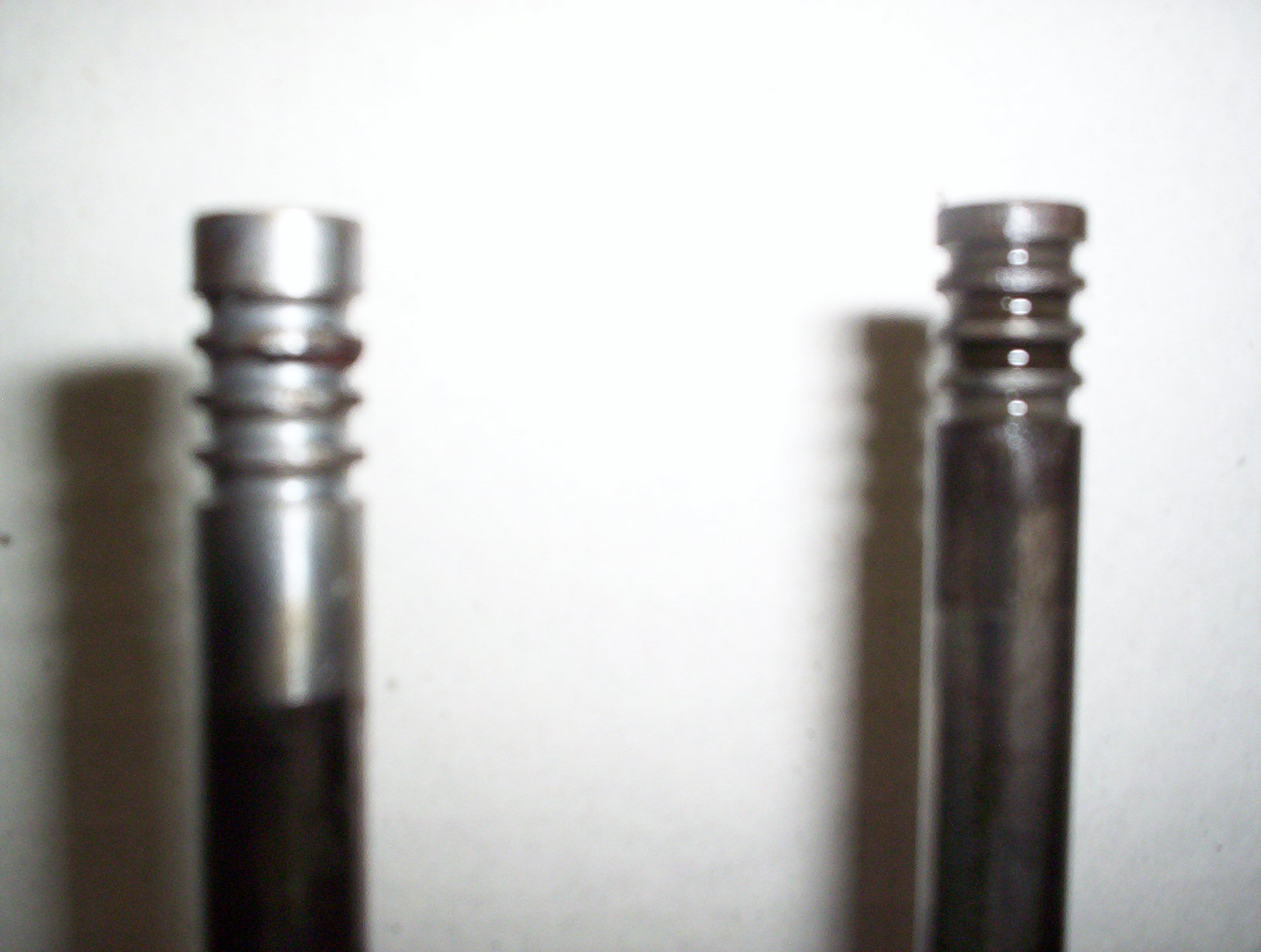

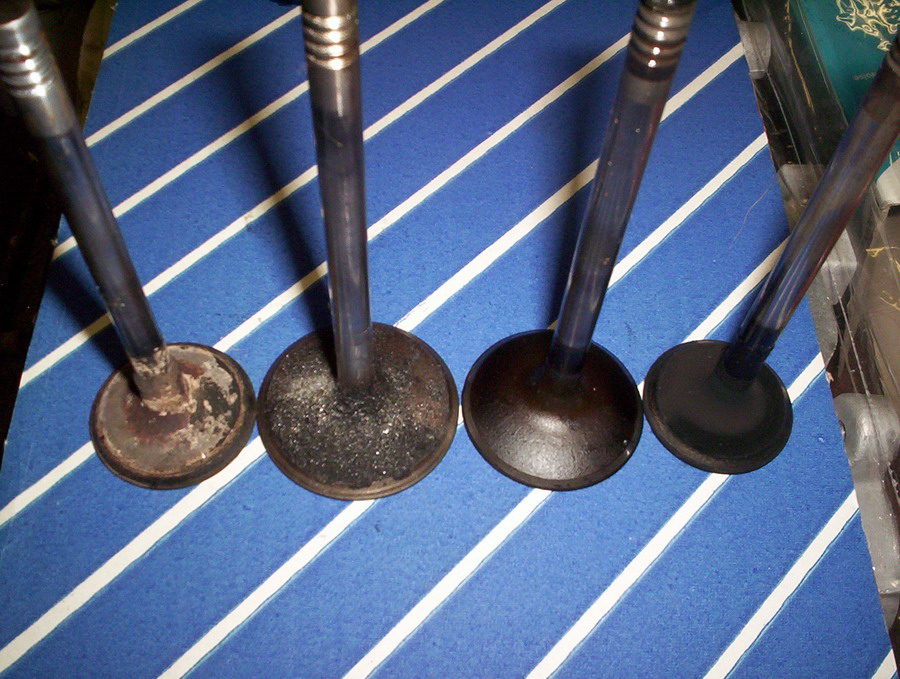

Clevo 2V valves appear to have the same stem size, but they are a little longer, and the collet grooves are in a slightly different spot too.
Sorry about the photos, but, they were taken with a 3 mpixal Kodak.....





Attachments:

351C 2V valves Vs 4.0I6 valves 008.jpg [ 205.53 KiB | Viewed 214 times ]

351C 2V valves Vs 4.0I6 valves 005.jpg [ 376.8 KiB | Viewed 248 times ]

351C 2V valves Vs 4.0I6 valves 007_resize.jpg [ 223.22 KiB | Viewed 242 times ]

351C 2V valves Vs 4.0I6 valves 002.jpg [ 379.86 KiB | Viewed 228 times ]

More work on the valve front,

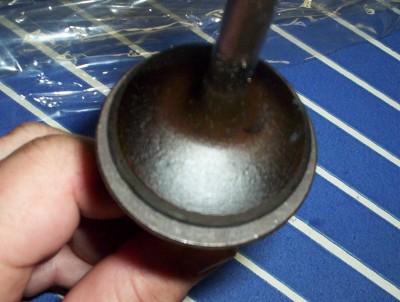

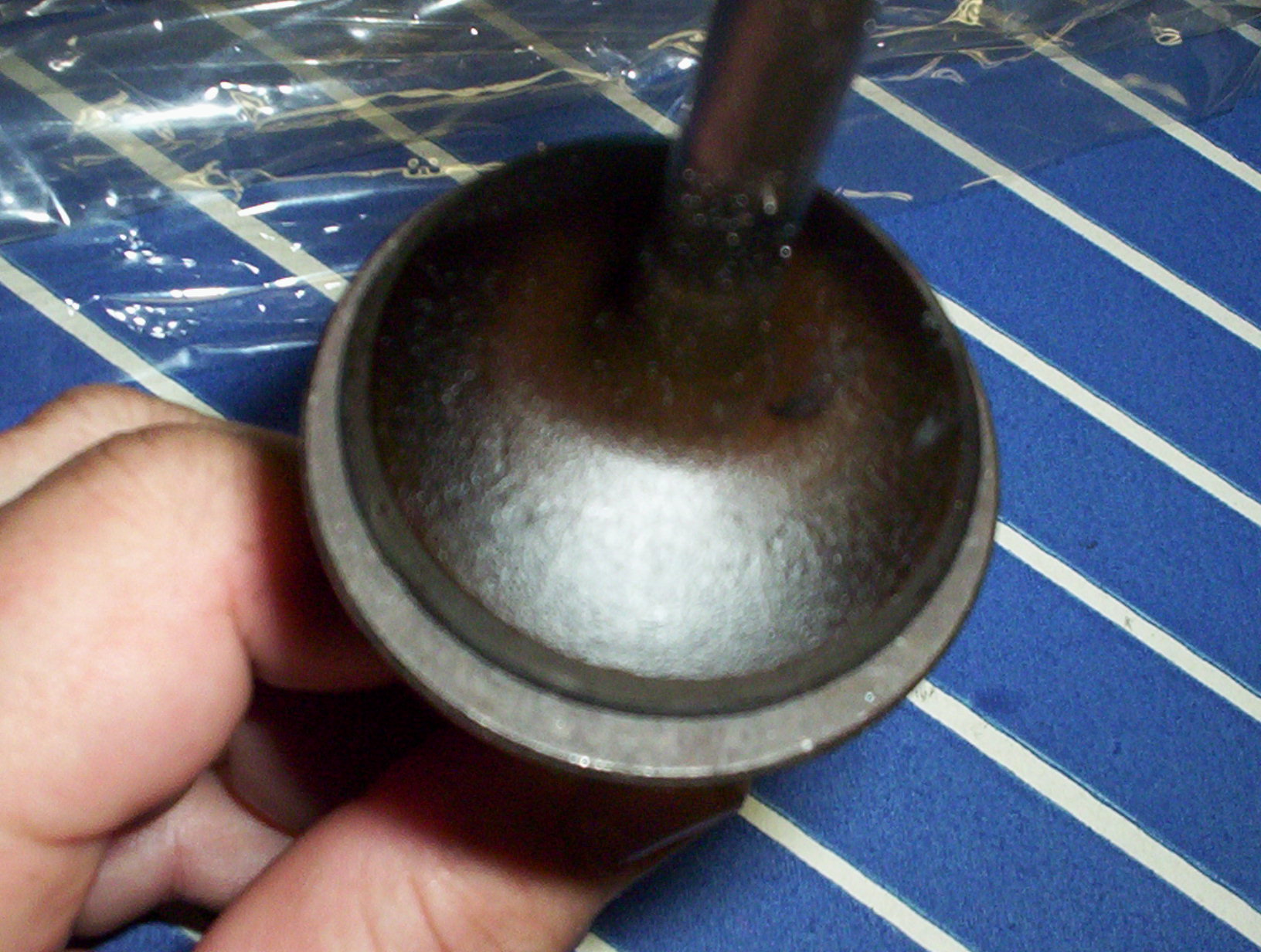

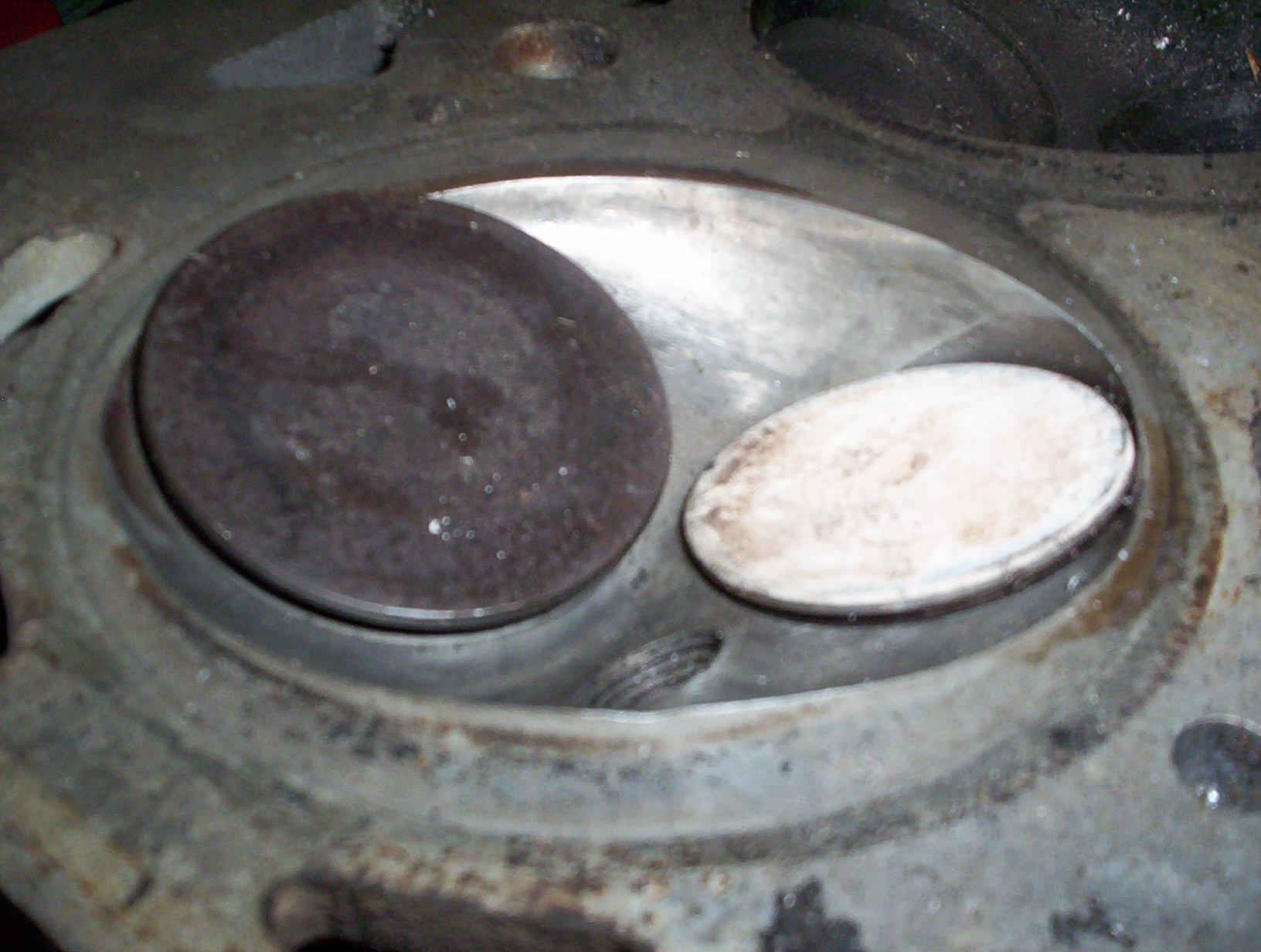

Bought a new valve spring compressor, and pulled the valves out of the 94AB.

Scale drawing of standard set up, valve and valve seat.



Using a 48mm Manley Pro Flow valve, would still leave 0.5mm of seat on the outside, however to benefit from this, the current seat would need to be honed out by 1mm to suit the OS valve.



The difference between standard valves (area shown in red) and a Pro Flow valve
Just changing to a Pro Flow valve, would see flow rates improve, more so at the smaller lifts, but still would improve flow overall, Manley claim flow increases of 5% intake @ .400, and 14% @ .400 on the exhaust, over most standard valves.



I'm thinking what about changing to a 47mm Pro Flow valve on the intake and the exhaust to a 40mm Pro Flow, possibly even opening up the inner diameter of the valve guide to 42mm, with similar laying back of the short turn as WagonDad did, should see a heap better flow?

One head place I talked to today didn't want to touch putting in an oversize valve seat, have a couple more to try this week.

Luckily they are a 11/32 stem, so there are a heap of Manley blanks of the shelf

The current guides would require a light knurl, as there are a couple int/exh that have a bit of play.

too big on the inserts and you will risk cracking between them...

If you're going to buy new intake valves you may as well go bigger then than the stock 47mm, even if it's only to 48mm


Can you do those drawings for the exhaust valve. using a 39mm and a 41 as i have seen many many heads have the stock 39mm valves changed over to tickford 41mm valves. By the looks of the heads i have hear going From 47mm to 49mm would leave the same amount of valve seat as the common exhaust valve swap.
Being the exhaust valve and seat has a harder life, the intake side should cope fine.

If you're going to buy new intake valves you may as well go bigger then than the stock 47mm, even if it's only to 48mm


Can you do those drawings for the exhaust valve. using a 39mm and a 41 as i have seen many many heads have the stock 39mm valves changed over to tickford 41mm valves. By the looks of the heads i have hear going From 47mm to 49mm would leave the same amount of valve seat as the common exhaust valve swap.
Being the exhaust valve and seat has a harder life, the intake side should cope fine.[/quote]

Will measure up the exhust valve tonight.

Has anyone got a Tickford head with the valve out? if so could you measure the inner diameter of the exhaust valve seat please, i want to know how much they opened up the inner when they upped the exhust valve.

I've got one, i'll check it out for you tomorrow

Cheers that would be good, I want to try and order the valves this week.

I'm hopefully picking up the alloy plate that I'm going to mill the throttle body mounts for the manifold out of tomorrow, then the manifold can come together.

Only a bit of progress as the TIG at work is broken, hopefully getting fixed this week.

Should be cutting out the manifold TB plate tomorrow, this is the design, 10mm 6060 Alloy plate


Had an exhaust place use their pipe expander to open up the tube I have for the runners to 48mm ID, these will taper to 42mm at the head.

Hey Tickford_6, any chance you got the Tickford head exhaust seat ID?

are you using 6 individual throttles, or is the spacing suitable for 3x IDF's or DCOE's
Syncing 6 throttles is going to be a pain, you will need adjustable linkages (joiner/balancers) between each one.

In the first post he identifies he will be using individual EFI Hardware TB's on a common butterfly rod...

Cheers

James

6 individual throttle bodies, to use DCOE's require the runners to have a bend, and as I'm using the original injector locations the DCOE's aren't really needed (the 803 series bodies don't have an injector port, but do still have an air bypass screw), EFI Hardware reckon once the manifold is made they can make a butterfly rod that goes through all 6 throttle bodies, which should in theory alleviate the balancing troubles, worst case they can join at least 2 or 3 bodies with the one rod, so maybe 1 or 2 adjusters at most.
