ideler pully bracket



Page 1 of 1 [ 14 posts ]


 Post subject: ideler pully bracket
Posted: Fri Jul 20, 2007 3:48 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

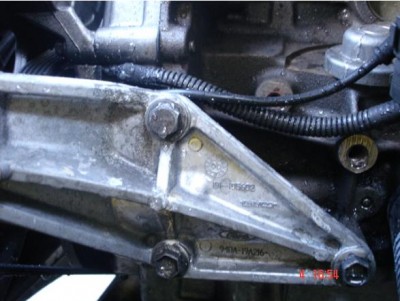

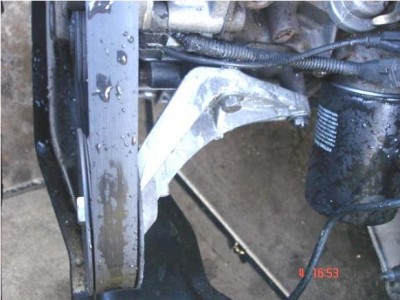

anyone have or know where to get a s/hand ideler pully bracket that replaces the aircon pump on a ef, there a genuine ford part 94DA 19A216.





Attachments:
brak2.JPG [ 40.2 KiB | Viewed 31 times ]
brak1.JPG [ 40.2 KiB | Viewed 41 times ]
Top
 Profile


Posted: Fri Jul 20, 2007 7:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Those are like rocking horse sh!t up here, good luck finding one.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Fri Jul 20, 2007 7:30 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

yer not suprised, i rang my local ford and thay dont have one so he called to see if he could get one in stock and there is only 11 left, at $150 ea. if i cant get a s/hand one i think i might improvise put the $150 towards cam.
Top
 Profile


Posted: Fri Jul 20, 2007 8:38 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

I was after one for ages too, gave up in the end...



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 21, 2007 1:20 am
Getting Side Ways
Offline

Age: 48

Posts: 429

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

they are out of an XH ute



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile


Posted: Sat Jul 21, 2007 2:25 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Check the part no for the XH one - I suspect it will be different, e.g. 95DA - xxxxxx.
The reason I say this is that the upper pulley on an XH tensioner sits higher, and the A/C compressor sits lower (compared to EF/EL), plus the XH belt is longer.

So if the idler is not adjustable, you'll have the issue of the belt fouling the top of the EF/EL tensioner, plus the belt will not be long enough. The only way to fix this is to run an XH tensioner and XH belt.

Given the availability of the bracket, It may be easier to leave the compressor in place, not connected to anything, or have a go and make your own bracket - maybe use a new upper tensioner pulley on a adjuster rail type setup, so you can set it up position wise and let the main tensioner do the rest.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sat Jul 21, 2007 1:31 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

its for race use so i dont really want to have the compressor on the motor, i might have a crack at making a similar one.
Top
 Profile


Posted: Sun Jul 22, 2007 7:45 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

so wot im guessin is this replaces the ac compressor



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Sun Jul 22, 2007 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

cjh wrote:
Those are like rocking horse sh!t up here, good luck finding one.


tropical has them in stock, well they did when i ordered one. oh and beware u will need a smaller belt too



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Sun Jul 22, 2007 11:41 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

i was thinking of downloading a boshe belt cataloge looking to see if i can find a belt that will fit without a pulley at all, i havent looked to say if there will be another part in the way, see how i go anways.
Top
 Profile


Posted: Sun Jul 22, 2007 11:47 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

a blower would be another option!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Jul 22, 2007 11:53 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

Krytox wrote:
a blower would be another option!
ha ha i didnt think of that :P , be nice but i am not allowed to
Top
 Profile


Posted: Mon Jul 23, 2007 12:06 pm
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

Do you only need the bracket or do you need the pulley aswell?

that price is expensive. you can buy just the bracket seperate for about $100



_________________

Now driving a Hilux

Top
 Profile


Posted: Tue Jul 08, 2008 11:50 pm
Getting Side Ways
Offline

Posts: 1687

Joined: 5th Nov 2004

Gallery: 5 images

Ride: 1994 ED Ricer

Location: Perth
WA, Australia

sorry guys
tropical and ford dont have these anymore.
Best bet is a wrecker but good luck. I found one after hunting hundreds of wreckers all over australia..
Top
 Profile
