 Post subject: Ignition coil problems
Posted: Fri Feb 26, 2010 10:33 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I have an old coil for show and tell.
This coil worked fine, till the weather got rainy, or the engine got washed.

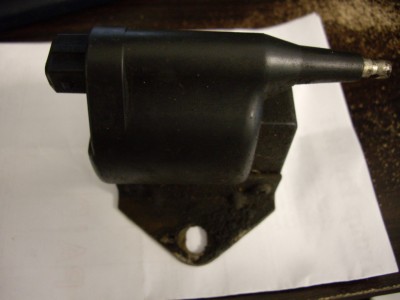

These photos show what happens to them.

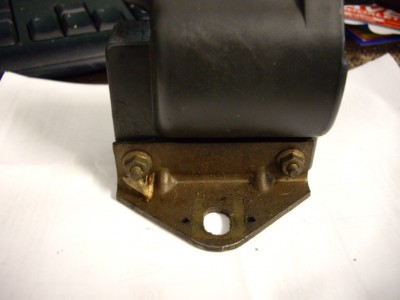

The coil was left dirty as off the car, then cleaned and mounting brackets removed.

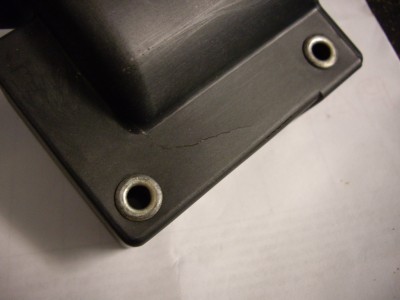

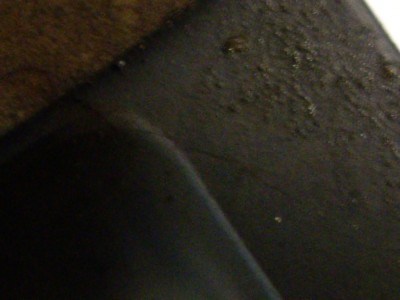

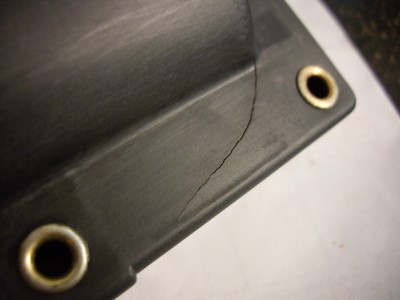

See where the cracks are that let moisture in.....they are usually under the brackets...so when suspecting the coil at fault, take the brackets off for a better inspection, especially if you've gone to the trouble of taking it off.





Attachments:
IMGP3963.JPG [ 272.4 KiB | Viewed 47 times ]
IMGP3962.JPG [ 272.57 KiB | Viewed 41 times ]
IMGP3961.JPG [ 212.09 KiB | Viewed 40 times ]
IMGP3960.JPG [ 239.42 KiB | Viewed 45 times ]
IMGP3958.JPG [ 245.69 KiB | Viewed 33 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Fri Feb 26, 2010 11:27 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3448

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

Bloody crook Bosch design :D
Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Fri Feb 26, 2010 11:36 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Papa Smurf wrote:
Bloody crook Bosch design :D

That was a genunie Ford part too......but look where they mount the thing, on the engine block, so you get heat, and the high frequency vibes too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Fri Feb 26, 2010 1:09 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

I extended the wiriing loom and mounted the ign coil infront of the airbox behind the passenger headlight. Keeps cool, no heat, no oil, no road grime, no water....should last alot longer. Plus I keep another coil in the boot as a spare, very easy too swap over on side of road..



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Fri Feb 26, 2010 6:20 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3448

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

cjh wrote:
Papa Smurf wrote:
Bloody crook Bosch design :D

That was a genunie Ford part too......but look where they mount the thing, on the engine block, so you get heat, and the high frequency vibes too.


Genuine Ford, Bosch design and manufacture. :)

They have been a source of trouble for a long time.
Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Sat Feb 27, 2010 4:00 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

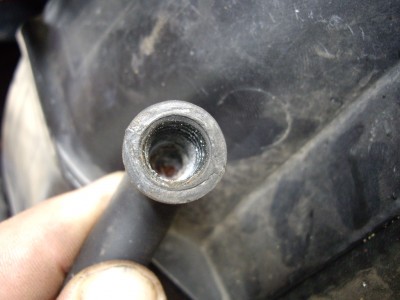

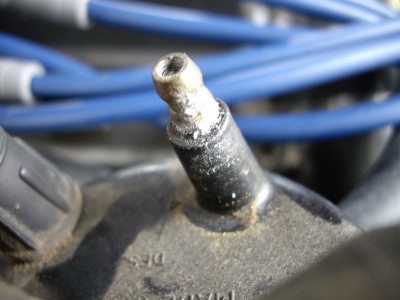

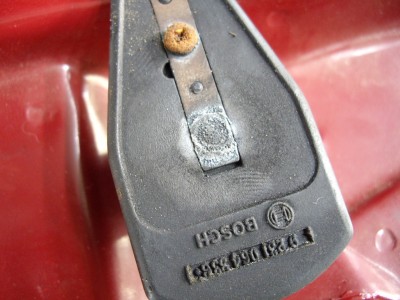

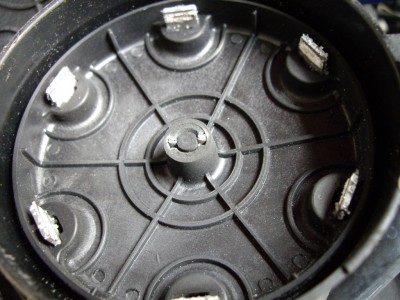

Here are some other causes for coil failure. The coil is getting loaded up by having to pass a spark in corroded terminals, and blown out carbon brushes.





Attachments:
IMGP3966.JPG [ 330.85 KiB | Viewed 40 times ]
IMGP3967.JPG [ 321.24 KiB | Viewed 34 times ]
IMGP3965.JPG [ 385.87 KiB | Viewed 39 times ]
IMGP3969.JPG [ 383.85 KiB | Viewed 48 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Ignition coil problems
Posted: Mon Mar 01, 2010 12:31 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Interesting! I can't say i've seen one of these coils crack like that from being fit normally & thru normal operation. I know the metal tubes are supposed to be crush tubes, but could it have cracked from the bracket being fit too tightly?

Last time i was under the car i was thinking about relocating the coil, but what put me off it was the idea of keeping the primary lead as short as possible. This does remind me that i should take the leads & dizzy cap off & clean them up when i do my next service.

Cheers

ToranaGuy
