Intake mods in progress.....



Page 1 of 1 [ 13 posts ]


 Post subject: Intake mods in progress.....
Posted: Wed Aug 31, 2005 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 516

Joined: 20th Dec 2004

Gallery: 4 images

Ride: EL Manual

Location: S.E. Melbourne
VIC, Australia

Well I tried to find the previous thread on fitting a BA intake to an EL but couldn't so I will just post here.

I have bought and fitted the BA intake and flex pipe from throttle body to airbox.
The plastic bit fits fine with no problems, all bolt holes line up and clearance is fine.
The flex pipe is just a little short.
At first I managed to streach it over the rubber mount on the back of the airbox for the original pipe.

I have been using the Datalogger to record manifold pressure traces before and after the mod.
I have found that at this stage INTAKE FLOW IS WORSE!

Full results will be posted later but with the original intake manifold vaccum at 5000RPM WOT was about 0.9 Inch Hg. After it was 1.1 Inch Hg Of vaccum.

Seat of the pants I couldn't feel any difference although the intake was a little quieter but made a nicer sound.

The datalogger shows that all other parameters (Throttle position, Engine Knock, O2 sensor, Batt V) are within comparable levels.

I belive this was caused by the extra turbulance created becasue the hole in the airbox with the black rubber mount is 50mm dia. And the BA flexi pipe is 80mm. This creates a sharp bend with no radius. Hence turbulence and low flow, this is probabily also the bottleneck.

I have since removed the black rubber mount and inserted a piece of PVC (80mm dia) between the flexi pipe. It extends into the airbox in much the same way as the EF one does.

I will post results when I get the chance to take more measurements.

For comparison the engine draws 20 inches Hg at idle.



_________________

Manual EL Gli.
Mods: Crow Stg3, Chiptorque Dynotune. Lukey Exhaust. DBA slotted rotors, EBC Pads. Whiteline Low Susp. EL GT Swaybars, ROH Envy 17 x235 wheels. Vehicle Datalogger Display V2.0,

Top
 Profile


Posted: Wed Aug 31, 2005 11:15 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Hey that's pretty cool. You should test a heap of intakes out for us FM'ers.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Thu Sep 01, 2005 2:09 am
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

most definatly as im looking for a better intake to!
Top
 Profile


Posted: Thu Sep 01, 2005 2:49 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 516

Joined: 20th Dec 2004

Gallery: 4 images

Ride: EL Manual

Location: S.E. Melbourne
VIC, Australia

Update: With the 80mm pipe. It is now approximately 0.75 Inch Hg Making it better than the original intake. And I can feel the power increase now.

Note that this testing was done when it was approximately 5 degrees warmer than previously.

Also the pipe into the airbox has no bellmouth, I will add one and re-test to see how it goes.

All this testing has been done with the standard air filter which has now done approx 25000 K's.

At the end I will try a K&N and see if it makes a difference.



_________________

Manual EL Gli.
Mods: Crow Stg3, Chiptorque Dynotune. Lukey Exhaust. DBA slotted rotors, EBC Pads. Whiteline Low Susp. EL GT Swaybars, ROH Envy 17 x235 wheels. Vehicle Datalogger Display V2.0,

Top
 Profile


Posted: Thu Sep 01, 2005 3:05 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Confused. You mean the BA intake with 80mm pipe??

Anyways, this is pretty cool. Woul be awesome to see how a mandrel bent one goes...



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Thu Sep 01, 2005 6:18 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 516

Joined: 20th Dec 2004

Gallery: 4 images

Ride: EL Manual

Location: S.E. Melbourne
VIC, Australia

I mean the 80mm piece of PVC that I have now put in place of the black rubber mount on the back of the airbox.



_________________

Manual EL Gli.
Mods: Crow Stg3, Chiptorque Dynotune. Lukey Exhaust. DBA slotted rotors, EBC Pads. Whiteline Low Susp. EL GT Swaybars, ROH Envy 17 x235 wheels. Vehicle Datalogger Display V2.0,

Top
 Profile


Posted: Thu Sep 01, 2005 8:18 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Bellmouth should make a big diff. You gonna just heat up and curve out the PVC, or use one out of a factory airbox?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Sep 01, 2005 8:50 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 516

Joined: 20th Dec 2004

Gallery: 4 images

Ride: EL Manual

Location: S.E. Melbourne
VIC, Australia

I'll just heat and curve the PVC. Going to paint it black first and silicone it into the airbox. Once I bellmouth the pipe I won't be able to get it out again.
The factory one is only 50mm dia and is integrated into the black rubber mount.

It's interesting to note that 0.75 Inch Hg is only 2.54 Kpa or 2.53% restriction when compared to 100% vaccum. So overall gains from a filter or further upgrades should be minimal.



_________________

Manual EL Gli.
Mods: Crow Stg3, Chiptorque Dynotune. Lukey Exhaust. DBA slotted rotors, EBC Pads. Whiteline Low Susp. EL GT Swaybars, ROH Envy 17 x235 wheels. Vehicle Datalogger Display V2.0,

Top
 Profile


Posted: Fri Sep 02, 2005 1:11 am
Fordmods Newbie
Offline

Posts: 14

Joined: 2nd Sep 2005

Location: Adelaide
SA, Australia

i have an ef, i have used the passanger side hole in the bumper to force air while driving in to a 2.5" pipe, doing a 90 deg bend up direct to the air box. yes it is through the pannel below the air box,

it can not be seen, untill you remove the lid from the air box. increase of air flow and better proformace is noticable, cheap and effetive

Vehicals with ABS may have issues. i dont know i dont have ABS.



_________________

For
Only
Real
Drivers

Top
 Profile


Posted: Fri Sep 02, 2005 4:26 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

As far as airbox designs go, it really isn't that great a restriction in the E-Series. A bigger CAI is really all that's needed for most people.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Sat Sep 03, 2005 4:48 am
Oompa Loompa
Offline
User avatar

Posts: 26

Joined: 8th Feb 2005

Location: North Melb
VIC, Australia

i have done the mod u talk about paul in my ef futura and mine does have abs u just gotta use a slightly smaller dia. pipe and u gotta have really bendy hands to be able to make it fit. I've noticed f**k all power difference as most cai mods are crap anyway but it does make the airbox seem cooler than before which must be good :)



_________________

EF Futura 5-Speed 174rwks!!!

Top
 Profile


Posted: Sat Sep 03, 2005 7:22 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 516

Joined: 20th Dec 2004

Gallery: 4 images

Ride: EL Manual

Location: S.E. Melbourne
VIC, Australia

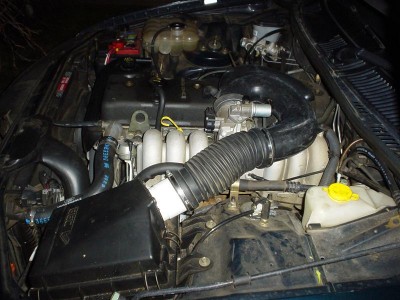

Updated with a pic. I have since painted the PVC bit black. Amazingly this was a standard bunnings pipe fitting, fitted EXACTLY no cutting the airbox or anything.

Yeah like I mentioned 10 inches of water is crap all but have noticed a small increase in power. I would say most of it came from the removal of the 50mm black mount at the rear of the airbox so any intake mod should start there.

People modifying intakes should take note that at first I made it worse! Have you checked the restriction of your intake??

Total cost has been $60.





Attachments:
small.JPG [ 80.41 KiB | Viewed 42 times ]



_________________

Manual EL Gli.
Mods: Crow Stg3, Chiptorque Dynotune. Lukey Exhaust. DBA slotted rotors, EBC Pads. Whiteline Low Susp. EL GT Swaybars, ROH Envy 17 x235 wheels. Vehicle Datalogger Display V2.0,

Top
 Profile


Posted: Sat Sep 03, 2005 7:35 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

You going to upgrade your snorkel next?



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile
