Intake Snorkal?



Page 1 of 1 [ 15 posts ]


 Post subject: Intake Snorkal?
Posted: Mon Jan 15, 2007 6:01 pm
Getting Side Ways
Offline

Age: 26

Posts: 2823

Joined: 26th Jul 2006

Ride: EF Fairmont II

Location: Melbourne
VIC, Australia

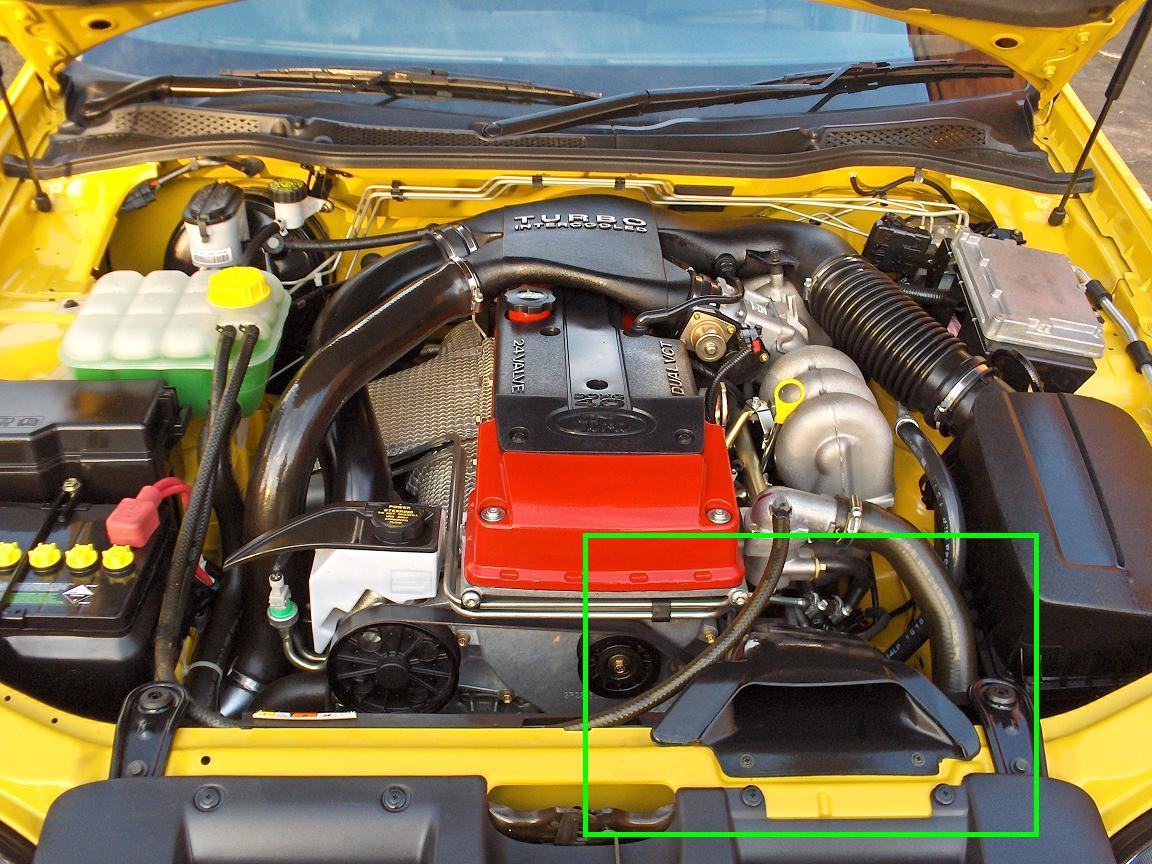

Where does the air go from here? (The green box)

Can somone please describe were this leads to.

If anyone has a pik that will be good also

Cheerz Guys





Attachments:
xr6t_024[1].jpg [ 205.99 KiB | Viewed 41 times ]

Last edited by EFFII on Mon Jan 15, 2007 8:01 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Jan 15, 2007 6:02 pm
Stock as a Rock
Offline

Age: 33

Posts: 145

Joined: 18th May 2006

Ride: EA Falcon

Location: perth
WA, Australia

ummmm, not to make you feel stupid, but thats the intake snorkal. it feeds into the bootom of the airbox



_________________

1989 Fairmont Ghia
3.9L
5 Spd Manual
2.77 LSD
2.5" Mercury Sports exhaust
Extractors

Top
 Profile


Posted: Mon Jan 15, 2007 6:03 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Same as EF/EL/AU - to the bottom of the big black box next to it



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Mon Jan 15, 2007 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 514

Joined: 29th May 2006

Gallery: 3 images

Ride: eb falcon

Location: perth
WA, Australia

ummm... open your bonnet and ahve a look at yours...

u may find its where air goes into the big metaly thing that goes vroom



_________________

own a falcon?
live in perth?

www.perthfalcons.com

Top
 Profile


 Post subject: Re: Cold Air Intake?
Posted: Mon Jan 15, 2007 6:33 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

FaBz wrote:
Where does the air go from here? (The green box)

Can somone please describe were this leads to.

If anyone has a pik that will be good also

Cheerz Guys
where have you been fabz? was this question a "g-up?"... :lol: :roll:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Mon Jan 15, 2007 6:51 pm
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 32

Joined: 8th Nov 2004

Ride: xh xr6 ute

Location: canberra
ACT, Australia

If Fabz is 15 ,maybe he was looking for a sensible answer?



_________________

God made s**t happen, Holden found a way to make it move

Top
 Profile


Posted: Mon Jan 15, 2007 7:05 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Ok, the air goes from the thing in the green box, the air intake snorkel, to the lower part of the air filter box (the black box on the right), sometimes they will have a second snorkel (in the car of the F6's it is in front of the lower half of the air filter box, some people do custom ones, through the bottom of the box through the sheet metal and to the cavity behind the front bar).
From there the air travels through the filter which sits between the two halfs of the air filter box, up the the top lid of the air filter box.
In an NA engine it then travels from there to the throttle body (silver peice center of the inlet manifold - that curly snail looking thing on the left and a bit above of the snorkel and air filter box), through the inlet manifold and into the engine.
In a setup like the picture the air travels over the rocker cover and to the front of the turbo (sitting on the left side of the engine under that heatshield), it goes through the turbo, and is forced through another pipe to the front of the car, where behind the front bar is an intercooler, it goes through the intercooler and the airs temperature cools down, out the other side of the intercooler (in the case of the XR6T the pipe loops back over the intercooler) and back up through the second black pipe you see in the picture, over the rocker cover and into the throttle body and then just like as before, through the inlet manifold and into the engine.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Jan 15, 2007 7:09 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

The red line the the travel of the air to the turbo, the green line is the non visable pipes to the intercooler and the air through the cooler, the blue is the air traveling after the cooler and into the engine...

http://img181.imageshack.us/img181/2779/xr6t0241modgp8.jpg

I shoulda made the lines thicker and more visable, but hopefully you get the idea now!



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Jan 15, 2007 7:45 pm
Getting Side Ways
Offline

Age: 26

Posts: 2823

Joined: 26th Jul 2006

Ride: EF Fairmont II

Location: Melbourne
VIC, Australia

Thanx twr7cx

Thats all i needed to know


And mUTHA i do not have a car i am 15 years old
Top
 Profile


Posted: Mon Jan 15, 2007 7:56 pm
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 527

Joined: 14th Mar 2005

Gallery: 14 images

Ride: ebxr8

Location: adelaide
SA, Australia

well i learn't something aswell,i think,i'm still seeing red blue and green lines.



_________________


Top
 Profile


Posted: Mon Jan 15, 2007 8:03 pm
Stock as a Rock
Offline

Age: 33

Posts: 145

Joined: 18th May 2006

Ride: EA Falcon

Location: perth
WA, Australia

hey man, hope i didnt upset you at all before, didnt realise you were 15. just watch out for some for some members though, as they can be quiet harsh.



_________________

1989 Fairmont Ghia
3.9L
5 Spd Manual
2.77 LSD
2.5" Mercury Sports exhaust
Extractors

Top
 Profile


Posted: Mon Jan 15, 2007 8:12 pm
Getting Side Ways
Offline

Age: 26

Posts: 2823

Joined: 26th Jul 2006

Ride: EF Fairmont II

Location: Melbourne
VIC, Australia

yea its all cool i just dont know too many things under the hood and im just trying to find out..
Top
 Profile


Posted: Mon Jan 15, 2007 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

FaBz wrote:
yea its all cool i just dont know too many things under the hood and im just trying to find out..


hey mate, we all started knowing nothing too, without this site, I'd have no idea too. One thing that really helped me was buying and reading the gregories manual for an EA, very informative.
Also, when I was about your age, I read this article:
http://auto.howstuffworks.com/engine.htm
Gives you a good introduction and starter and i'd suggest understanding this before trying to understanding turbo theory.

Ask as many questions as you want here and you'll get a good answer.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Mon Jan 15, 2007 8:27 pm
Getting Side Ways
Offline

Age: 26

Posts: 2823

Joined: 26th Jul 2006

Ride: EF Fairmont II

Location: Melbourne
VIC, Australia

not so much the turbo just wat the snorkal does but i know now
Top
 Profile


Posted: Mon Jan 15, 2007 8:31 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

good stuff, just think of the snorkel as a mouth on a human, cars need air to burn with fuel so it uses the snorkel to 'breathe'.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms
