Interesting article about the I6's.



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: Interesting article about the I6's.
Posted: Sat Jan 19, 2008 11:39 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

http://www.autospeed.com/cms/article.html?&A=2233

The other half is here:

http://autospeed.com/cms/A_2236/article.html

It says that the EBII and ED have different mapped computers to the EA....

Also says allot of other interesting stuff.

It makes me wonder if I should bite the bullet and buy a smartlock bypass and put an EL computer on the ED motor...

Has anyone tried this? I'm wondering because perhaps if I did this, I could add a dual runner intake as well later.. (and lose the davies craig thermo controller)


rgds

Frank[/url]
Top
 Profile


Posted: Sun Jan 20, 2008 12:14 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

ed motors with el or au heads, cams and manifolds fit quite well in to ea's (with a bit of work) and go very well after too



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Sun Jan 20, 2008 12:55 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

yeah... so far all I have done is put in an ED XR6 cam and today I added a 2.5 inch mandral bent hi flow exhaust...

Still have to put my genie's in after I get a decent cat converter.
Then I am going to toss the factory air box and fabricate something unusual and extreme.. :-)

I have the bug now.. so this may not be enough.. if it's not, then I will start looking at the EL computer with EF head and intake manifold.

Together with an AU gasket, a lumpier cam and possibly water injection and advanced timing.. that would be a pretty nice setup..

The old EA doesn't know what's hitting it.

I was curious to know if anyone had put a smartlock ECU into a non smartlock EA. (I want the EB II/ED mapping for now...)


rgds

Frank
Top
 Profile


Posted: Sun Jan 20, 2008 7:03 pm
Getting Side Ways
Offline
User avatar

Age: 57

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

frankieh wrote:
yeah... so far all I have done is put in an ED XR6 cam and today I added a 2.5 inch mandral bent hi flow exhaust...

Still have to put my genie's in after I get a decent cat converter.
Then I am going to toss the factory air box and fabricate something unusual and extreme.. :-)

I have the bug now.. so this may not be enough.. if it's not, then I will start looking at the EL computer with EF head and intake manifold.

Together with an AU gasket, a lumpier cam and possibly water injection and advanced timing.. that would be a pretty nice setup..

The old EA doesn't know what's hitting it.

I was curious to know if anyone had put a smartlock ECU into a non smartlock EA. (I want the EB II/ED mapping for now...)


rgds

Frank

I have an EL XR6 motor in my 4wd, and it has a smartlock bypass on the ECU. I have been having some niggly idling probs, which i have put down to the purge canister solenoid being stuck open and the fuel pressure is a bit high due to my Bosch motorsport pump. I will be getting rid of the Ford ECU and going with an EMS Stinger.

Cheers

8-) Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Sun Jan 20, 2008 8:38 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

just put a sm,artlock bypass in it, and buy my ED XR ECU, if the EA is a manual that is



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


Posted: Sun Jan 20, 2008 9:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1169

Joined: 23rd Oct 2006

Gallery: 3 images

Ride: BA MKII Futura

Location: melbourne
VIC, Australia

did you notice any gains with the xr cam lol?

xr cam is identical to standard. whoever sold you it took you for a ride buddy
Top
 Profile


Posted: Sun Jan 20, 2008 9:13 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Are you sure?

ED standard is supposed to put out 145kw, XR6 supposed to put out 160...

The head/ECU/valve springs are supposed to be different, why would they change the springs and put the same cam in?

Also, one of the articles I read said that the EF standard is very similiar to an ED XR6 cam, just alittle gentler... so it can't be the same as the standard cam.

Also, i noticed a huge kick in the pants at 3000-3500 rpm that wasn't there before I put the cam in. So I am prepared to bet some $$$ that it is not a standard ED cam. (it also has the tickford part number on it, they would not put a tickford part number on standard parts no?


rgds

Frank
Top
 Profile


Posted: Sun Jan 20, 2008 9:20 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1169

Joined: 23rd Oct 2006

Gallery: 3 images

Ride: BA MKII Futura

Location: melbourne
VIC, Australia

it is the same cam mate and the power kick was all in your head or you old cam was f**k in some way
Top
 Profile


Posted: Sun Jan 20, 2008 9:48 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

frankieh wrote:
Are you sure?

ED standard is supposed to put out 145kw, XR6 supposed to put out 160...

The head/ECU/valve springs are supposed to be different, why would they change the springs and put the same cam in?

Also, one of the articles I read said that the EF standard is very similiar to an ED XR6 cam, just alittle gentler... so it can't be the same as the standard cam.

Also, i noticed a huge kick in the pants at 3000-3500 rpm that wasn't there before I put the cam in. So I am prepared to bet some $$$ that it is not a standard ED cam. (it also has the tickford part number on it, they would not put a tickford part number on standard parts no?


rgds

Frank



My brother inlaw had an ED XR6, and I rebiult the engine for him. While I had the cyl head, for porting & polishing, I checked out the cam. On the cam is a type of part number cast onto it, but the "DA" part was ground off, and in its place was "stamped"...." DT ".
I measured it against a std EL cam, and found no difference in the 2, only that the locating dowl was in a different spot.
When you look at the cam timing specs for an ED XR6 cam, they run 2 dgs retarded compared to std timing, so the pull comes on later, hence the use of 3.45 diff gears. Thats what gives the ED XR6 a kick in the pants higher up the revs.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Jan 20, 2008 10:29 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Quote:
I measured it against a std EL cam, and found no difference in the 2, only that the locating dowl was in a different spot.


That fits.. the article said that the ED XR6 cam was nearly identical to the EF cam. makes sense that the EL would be the same.

having said that, the EF/EL do have a different cam to the standard ED, which has a different cam from the EBII... (standard ED is supposedly milder than the standard EBII with 5kw less output.)

So the ED xr6 cam is similar to the standard EF/EL cam, but NOT the same as the standard ED..

just pulled out the cam I took out of the Ed motor, all numbers totally different.:

standard
cast: 87 DA 62 50 AC
stamped: hard to tell, looks like an N or a Z

Xr6
cast: 62 50 U3 1
stamped 92DT AB

don't appear to be even close..

I also really don't think I imagined the boost.. because I purposely took it for a thrash in the morning before I changed came.. and 2 hours later after i put the new one in..


rgds

Frank

Last edited by frankieh on Mon Jan 21, 2008 1:11 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Jan 20, 2008 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I actually asked about the cam on here before I bought it:

http://www.fordmods.com/forums/post766284.html?highlight=#766284
Top
 Profile


Posted: Sun Jan 20, 2008 11:43 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Just found the article I found when researching the cam.

http://www.trueblueford.com/EF_engine.html

Quote:
Camshaft:
The EF's camshaft now more closely resembled that of the ED XR6 but with a slightly smoother ramp - something to remember when rebuilding an earlier motor and looking for a budget camshaft option.


That seems to indicate that the based the EF cam on the ED Xr6..
Top
 Profile


Posted: Mon Jan 21, 2008 1:08 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

well i wouldnt say there is no difference in the cams but
the differences are minor..

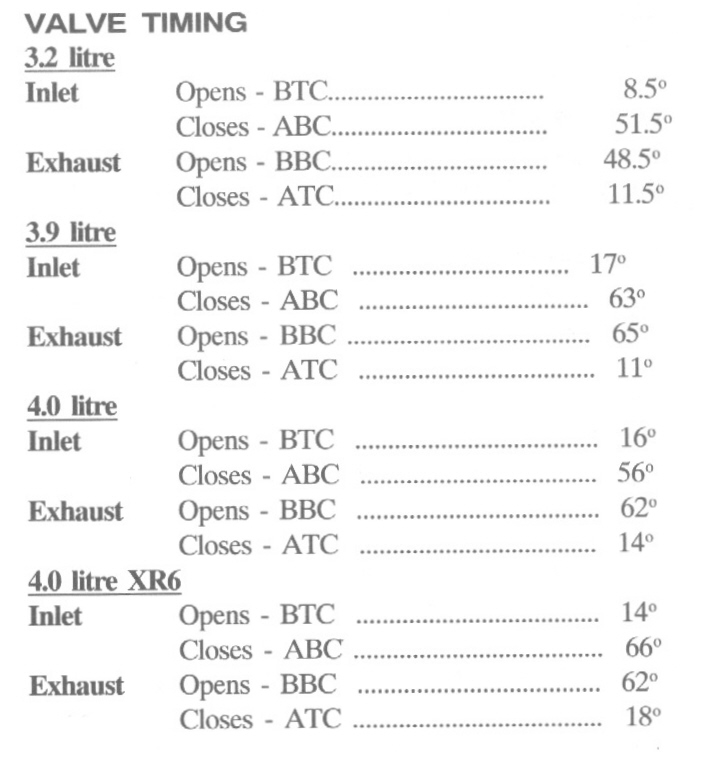

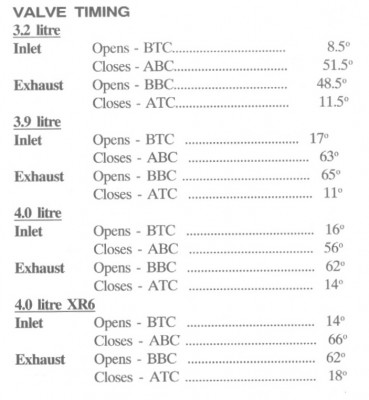

here are the factory specs. from ea to ed.





Attachments:
cam specs.jpg
cam specs.jpg [ 107.76 KiB | Viewed 88 times ]
Top
 Profile


Posted: Mon Jan 21, 2008 1:16 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Cool, so slightly longer duration on inlet and exhaust and with some resultant overlap..

Thanks Troyman, I was starting to stress... :-)
Top
 Profile


Posted: Mon Jan 21, 2008 1:17 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1169

Joined: 23rd Oct 2006

Gallery: 3 images

Ride: BA MKII Futura

Location: melbourne
VIC, Australia

ok sorry i must be mistaken. i was told the lobes are identical and assumed the cam is identical. i guess the dowel is in a different location affecting when the power comes on.
