Is it common to get an oil leak from the tensioner cap/screw



Page 1 of 1 [ 13 posts ]


 Post subject: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 7:19 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

After having the head gasket done, I'm getting clean oil leaking down around number 1 cyclinder on the exhaust side.
Doesn't seem to be coming from the head itself. And it was weeping there before the head gasket was done aswell.

Do oil leaks happen around the tensioner cap and or screw. Could it be just an O-ring failure?
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 9:38 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Kit wrote:
After having the head gasket done, I'm getting clean oil leaking down around number 1 cyclinder on the exhaust side.
Doesn't seem to be coming from the head itself. And it was weeping there before the head gasket was done aswell.

Do oil leaks happen around the tensioner cap and or screw. Could it be just an O-ring failure?


Yes it can leak from there especially if there wasn't any gasket maker put on the tensioner plug thread. The tensioner retainer doesn't need the plug.

If it does have gasket maker on it, you might want to check if the tensioner retainer is on properly.

If all is good there, check your power steering fluid for any leaks.

Hope that helps.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 11:17 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

Thanks mate.

Power steering fluid is all good, no more leaks.

A bit of a whine coming from that area too.
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 11:29 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

No problem.

just to clarify what I said above...

Quote:
The tensioner retainer doesn't need the plug.


That was meant to say....The tensioner retainer doesn't need the gasket maker...only the plug.

Hadn't had my coffee yet :D

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 5:16 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

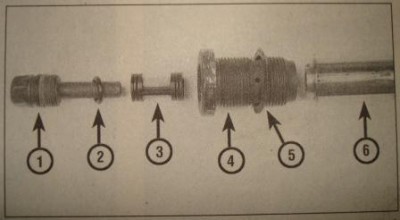

Please see attached pic. You must have number 5 which is a washer (normally aluminium) If it not there or broken it will leak as the oil is under pressure. Hope this helps..





Attachments:
DSC01892.JPG [ 23.14 KiB | Viewed 36 times ]
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 7:33 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

i got a new rubber washer for the retainer from Fraud for $3.00 i think
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Mon Jun 01, 2009 8:16 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

The main oil pressure is around that tensioner so dad tellls me (he is a ford mechanic)

mine has the same trouble... although as always with any sort of fan... its really hard to tell where its coming from coz it always goes everywhere...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Tue Jun 02, 2009 2:19 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

I have a funny feeling this ones my fault.

There was a slight weep from the area of number 1, and tensioner before the gasket change.

But then got worse after the new gasket.
I f**k up when I first filled the car back up, and put in nearly 8L instead of 5.5L. I then ran it that way for a week, and gave it some herbs for 10-minutes too.

Could this have made the initial leak worse?
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Tue Jun 02, 2009 3:14 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

joolz wrote:
Please see attached pic. You must have number 5 which is a washer (normally aluminium) If it not there or broken it will leak as the oil is under pressure. Hope this helps..


iirc from factory the early tensioners have the washer and the later ones use thread sealant..
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Tue Jun 02, 2009 7:17 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

TROYMAN wrote:
joolz wrote:
Please see attached pic. You must have number 5 which is a washer (normally aluminium) If it not there or broken it will leak as the oil is under pressure. Hope this helps..


iirc from factory the early tensioners have the washer and the later ones use thread sealant..


Mines an EL and it only had the thread sealant on 1 and a very brittle plastic washer (5). The timing chain kit that i purchased came with an aluminium washer that i forgot to put on and yes it leaked a fair bit. After putting on the washer its had no leaks since which is over 2 years.
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Tue Jun 02, 2009 7:21 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

joolz wrote:
TROYMAN wrote:
joolz wrote:
Please see attached pic. You must have number 5 which is a washer (normally aluminium) If it not there or broken it will leak as the oil is under pressure. Hope this helps..


iirc from factory the early tensioners have the washer and the later ones use thread sealant..


Mines an EL and it only had the thread sealant on 1 and a very brittle plastic washer (5). The timing chain kit that i purchased came with an aluminium washer that i forgot to put on and yes it leaked a fair bit. After putting on the washer its had no leaks since which is over 2 years.


Thread sealant/gasket maker is only put on the tensioner plug. Though I must admit, I didn't replace the aluminium washer...I just removed it and put a rubber O-ring on...which I think isn't a good idea since it wouldn't allow the tensioner to sit closer to the timing chain once tightened. However, after a year of driving it, it hasn't leaked. So I think it's okay and doing a bloody good job :D...

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Wed Jun 03, 2009 2:57 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

Just spoke to the mechanic working on this.

And they informed me the tensioner screw was all the way in, chain super tight, and no or very little oil was getting to the chain. They also said the saw a little bit of metal shavings.

And the O-ring is stuff and was causing the leak.

More to follow.....
Top
 Profile


 Post subject: Re: Is it common to get an oil leak from the tensioner cap/screw
Posted: Wed Jun 03, 2009 4:18 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

well that explains the whine you've been hearing.
