 Post subject: looking to buy new induction for b series
Posted: Wed Nov 10, 2010 12:24 pm
Stock as a Rock
Offline

Age: 25

Posts: 117

Joined: 17th Aug 2010

Ride: BA XT '02

Location: Darwin
NT, Australia

so as the title says.. im looking to buy a new induction kit or setup for my ba xt. ive looked into SS inductions but they're a bit pricey and ive searched the forums and apparently the F6 typhoon intake is the way to go? any suggestions?

and when people say the f6 lower intake what does that mean...as in there are two "snorkles"? or..

heh thanks



_________________

Holden = Hope Our Luck Doesn't End Now

Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Wed Nov 10, 2010 12:50 pm
Getting Side Ways
Offline
User avatar

Posts: 450

Joined: 24th Jan 2009

Ride: BF wagon

Location: western sydney
NSW, Australia

Yep thats exactly what it means. one upper (over the radiator) one lower (behind the head light.)
A cheap proven intake that still remains stock looking is this
1. Replace top intake with XR6T or XR8 snorkel (same).
2. make own or modify airbox to allow for lower F6 style snorkel.
3. replace airfilter with k'n'n panel filter.
4. replace intake tube with teritory intake tube.

All these parts can be sourced through the for sale sections of forums or from a good wrecker. Alternatively you pay through the nose and buy them all genuine from ford.
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Wed Nov 10, 2010 1:04 pm
Stock as a Rock
Offline

Age: 25

Posts: 117

Joined: 17th Aug 2010

Ride: BA XT '02

Location: Darwin
NT, Australia

ahh ok thanks man! thatll be the next mod after exhausts and that get done. but yeah cheers!



_________________

Holden = Hope Our Luck Doesn't End Now

Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Wed Nov 10, 2010 4:30 pm
Stock as a Rock
Offline
User avatar

Age: 46

Posts: 144

Joined: 24th Sep 2009

Ride: Bionic BA MkII XR6

Power: 175 rwkw

Location: Perth
WA, Australia

Mont5.0 wrote:
Yep thats exactly what it means. one upper (over the radiator) one lower (behind the head light.)
A cheap proven intake that still remains stock looking is this
1. Replace top intake with XR6T or XR8 snorkel (same).
2. make own or modify airbox to allow for lower F6 style snorkel.
3. replace airfilter with k'n'n panel filter.
4. replace intake tube with teritory intake tube.

All these parts can be sourced through the for sale sections of forums or from a good wrecker. Alternatively you pay through the nose and buy them all genuine from ford.


So is the Territory intake tube difefrent/bigger than the std? I didn't know that



_________________

BIONIC 2005 BA Mk2 XR6 - XR8 Snorkle - Typhoon 2nd CAI - K & N Panel Filter - polished BBM intake - polished ceramic coated Pacemaker 4490 headers - Magnaflow 3.5" high flow Cat - Full mandrel stainless exh syst - 4speed SSS -BPT Custom tune - 20% UDrive - XR8 Calipers/rotors - 175 rwkw

Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Wed Nov 10, 2010 5:26 pm
Getting Side Ways
Offline
User avatar

Posts: 450

Joined: 24th Jan 2009

Ride: BF wagon

Location: western sydney
NSW, Australia

its rounder and less restrictive. doesnt have all the casting marks for bolt heads etc in the base of it
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 12:06 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

That sounds exactly like what I'm looking for for me AU2 XR6 VCT. Will this setup fit under the bonnet of my AU (with the lower snorkel shortened to fit)?



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 12:12 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

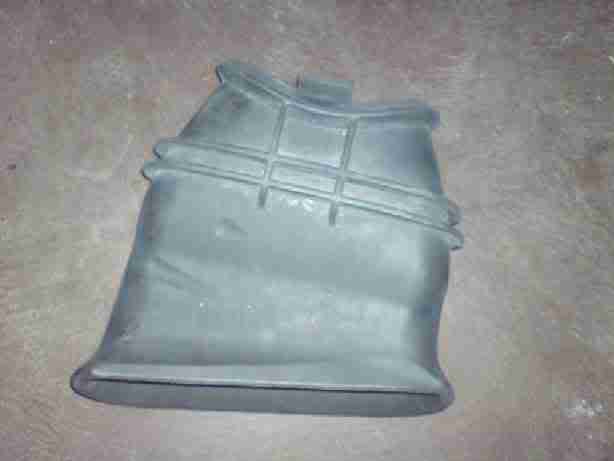

lower snorkel look's like this





Attachments:
3snorkel.jpg [ 6.78 KiB | Viewed 587 times ]
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 12:13 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

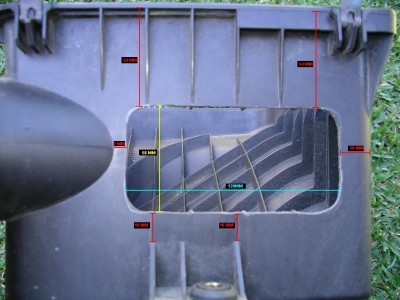

Need to cut a hole in air box like this





Attachments:
measurements intake.JPG
measurements intake.JPG [ 102.69 KiB | Viewed 19 times ]
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 12:18 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

I haven't done it myself, this is what I was told to do when I asked. Instead of doing this I"m am making my own cold air intake. Ever option I looked at was expensive, i.e ss induction $500, blue power $750, and these only replace the air box so I decided I'd replace the lot (everything up to the throttle body) by making my own. Will post results when I get round to it.
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 7:02 pm
Stock as a Rock
Offline

Posts: 188

Joined: 13th Mar 2008

Ride: EL Falcon XR6

Location: Sydney
NSW, Australia

I bought this one
http://cgi.ebay.com.au/COLD-AIR-INTAKE-FULL-KIT-BA-BF-XR6-XR6T-TURBO-FREE-GIFT-/170560850706?pt=AU_Car_Parts_Accessories&hash=item27b6380b12#ht_1491wt_905

But I only paid $50 for it, so it pays to wait and see if they run an auction for it. $250 is way too much.



_________________

1997 EL Falcon XR6 Sedan
Cold Air Intake | Sequential Scoop | Pacemaker 4480 & 2.5" Exhaust

1976 XB Falcon 500 Wagon
Sherwood Green | 3spd/250CI | Hurricane Extractors + Custom Twin 2" Exhaust | Running Whitewalls on a 2.5" Drop

Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Thu Nov 11, 2010 11:33 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

fowlerj wrote:
I bought this one
http://cgi.ebay.com.au/COLD-AIR-INTAKE-FULL-KIT-BA-BF-XR6-XR6T-TURBO-FREE-GIFT-/170560850706?pt=AU_Car_Parts_Accessories&hash=item27b6380b12#ht_1491wt_905

But I only paid $50 for it, so it pays to wait and see if they run an auction for it. $250 is way too much.


Did you notice an increase in power or throttle response?
Top
 Profile


 Post subject: Re: looking to buy new induction for b series
Posted: Fri Nov 12, 2010 7:55 am
Stock as a Rock
Offline

Posts: 188

Joined: 13th Mar 2008

Ride: EL Falcon XR6

Location: Sydney
NSW, Australia

Yeah I lost a dead spot at around 2000rpm and overall power was better + throttle response was a nice improvement over the stock box.



_________________

1997 EL Falcon XR6 Sedan
Cold Air Intake | Sequential Scoop | Pacemaker 4480 & 2.5" Exhaust

1976 XB Falcon 500 Wagon
Sherwood Green | 3spd/250CI | Hurricane Extractors + Custom Twin 2" Exhaust | Running Whitewalls on a 2.5" Drop

Top
 Profile
