LPG - Restrictive Mixers?



Page 1 of 2 [ 28 posts ] Go to page 1, 2  Next


 Post subject: LPG - Restrictive Mixers?
Posted: Wed Jun 21, 2006 11:32 pm
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Hey all,

I have 93 ED classic on LPG and Petrol, sitting at the end of my intake pipe from the airbox is a little silver ring which i think is the mixer (there is a tube running to the LPG converter from it). I have heard from the local ford parts dealer who owns similar car on gas that there can be noticible power gains by getting a "less restrictive" mixer? Is this true?

My car is lucky to get from 0-100 in 11 seconds and thats after I added XH snorkel and 2.5" exhaust. This is on both petrol and LPG, and is incredibly dissapointing!!

Mind you it did make a loud bang once, where later I found out the intake pipe had blown off the throttle body and during the time from the bang to the time I looked under the hood and re-attatched it, it went like the clappers!!!!!! sounded great too!

I guess the only problem there was that the engine was breathing filth for an hour or so.

Anyway, are there less restrictive mixers out there? or should I get used to reading the paper whilst my car attempts to gain speed?
Top
 Profile


Posted: Wed Jun 21, 2006 11:43 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

there is less Restrictive Mixers
3 types what kind do you have a pic that will help me
and you all so need to measure the inner hole ??
then i will be able to help

if i can find a pic in all this s**t on my desk i'll post it up
on the 3 types



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Wed Jun 21, 2006 11:51 pm
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Alright cool,

My next task is to remove the mixer and take photos. I'll also measure the inner hole. Right now its incredible dark and cold outside so i'll do that tomorrow morning.

Will there be much of a performance difference with a bigger or less restrictive mixer?

thanks for the prompt reply aswell!!
Top
 Profile


Posted: Thu Jun 22, 2006 12:21 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

man the thing i'll need to know is do you have a
complex converter and a simple mixxer
or a simple converter and a complex mixxer

how to tell if you have a simple mixxer (there shouldn't) be any adjustments on a simple mixxer

how to tell if you have a complex mixxer (there should)
be a mixture adjustment nobs

oh and what kind of converter do you have ?????

impco??? O.M.V.L ???? Vialle??? lovato?? landi??
tartarini ?? or a optimat???



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Thu Jun 22, 2006 12:24 am
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Hopefully the photos I take, will help the identification of my mixer and converter. I will also post markings and stuff from both of them.

I think my converter is nearly dead due to backfiring and poor performance on gas so maybe I should look at a different combination>??
Top
 Profile


Posted: Thu Jun 22, 2006 1:12 am
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I'm guessing it's just a simple ring mixer, similar to what I had, between TB and intake piping.
There'll be a 'cup' in the middle of the ring, where the gas is injected into, the bottom of the 'cup' facing the airflow.
As the air goes past, the gas is sucked into the airstream.
That 'cup' in mine was literally shaped like a cup (not aerodynamic at all), and was reeaaally restrictive (probably took up 30% of the total area).
I dropped a second at the drags when I took my mixer out, on petrol obviously :D



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Jun 22, 2006 1:24 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

it's all about the VENTURI (throat size) if it's too large
flats spots may occur

dude when was the last time you changed you plug leads
and plugs, cleaned your air fillter?????????

these will play a Big Factor



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Thu Jun 22, 2006 1:30 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

it's all about the VENTURI (throat size) if it's too large
flats spots may occur

dude when was the last time you changed/checked your plug leads
and plugs, cleaned your air fillter?????????
oh and get you oxy sensor checked

these will play a Big Factor



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Thu Jun 22, 2006 1:30 am
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Replaced my plugs two weeks ago. Have ordered new leads, they say they will be there in 2 days and am looking at buying K + N filter soon. I didnt mention my car was on gas when getting the plugs though. THe lady asked when I ordered the leads if it was on gas and quoted 92 for the leads instead of 75 for petrol. Should I get different plugs? The ones I have are NGK standard petrol plugs for ED falcon. Could these factors play a large role in my ridiculously sluggish car?
Top
 Profile


Posted: Thu Jun 22, 2006 2:07 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

plugs should be hotter for gas then petrol
petrol plugs should be colder



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Thu Jun 22, 2006 12:38 pm
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Hi All,

Just took everything apart around the intake area and took some shots of my mixer and converter. Judging from the photos I think my mixer is definately restrictive.

Here they are





Attachments:

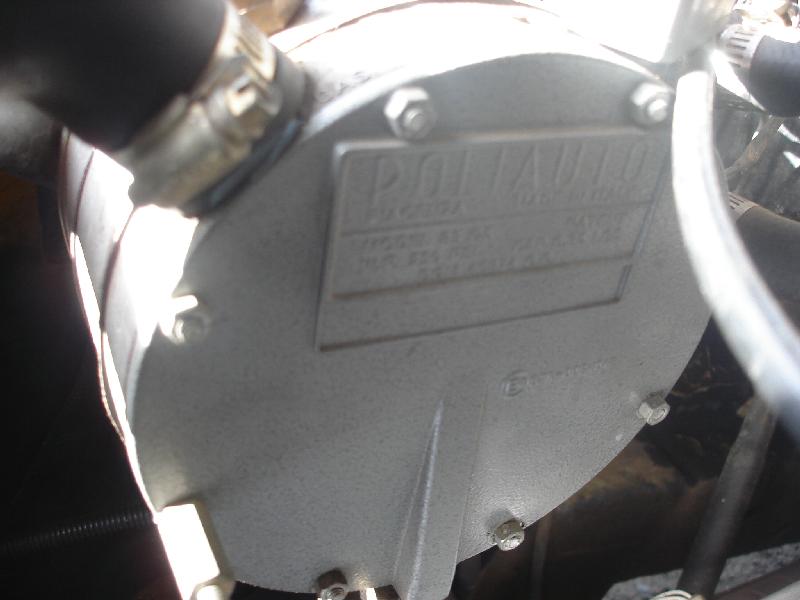

File comment: Converter Not so close up
resize5.jpg [ 39.23 KiB | Viewed 30 times ]

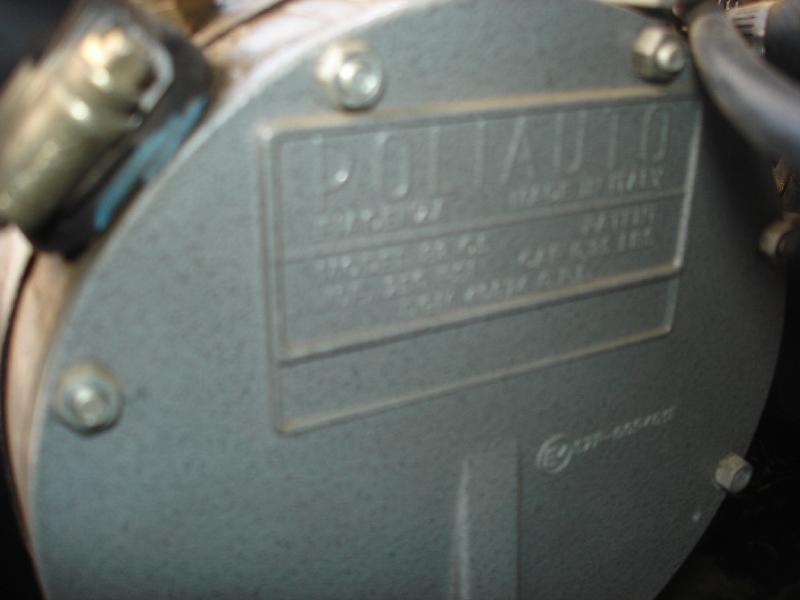

File comment: Converter Close Up
resize4.jpg [ 33.64 KiB | Viewed 24 times ]

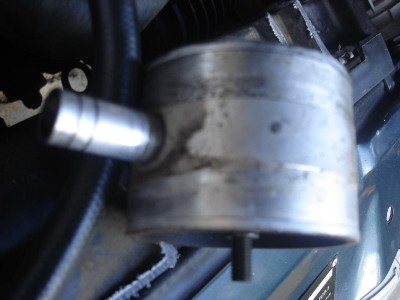

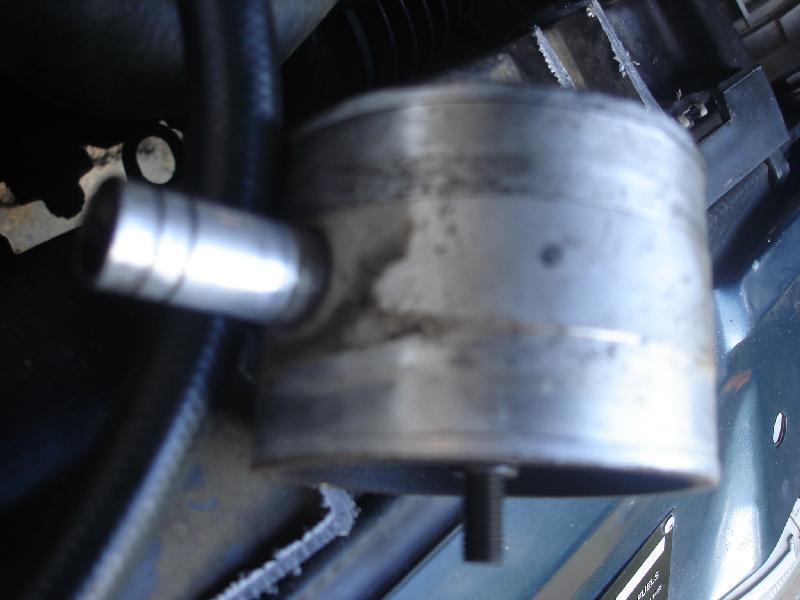

File comment: Mixer back
resize3.jpg [ 57.96 KiB | Viewed 25 times ]

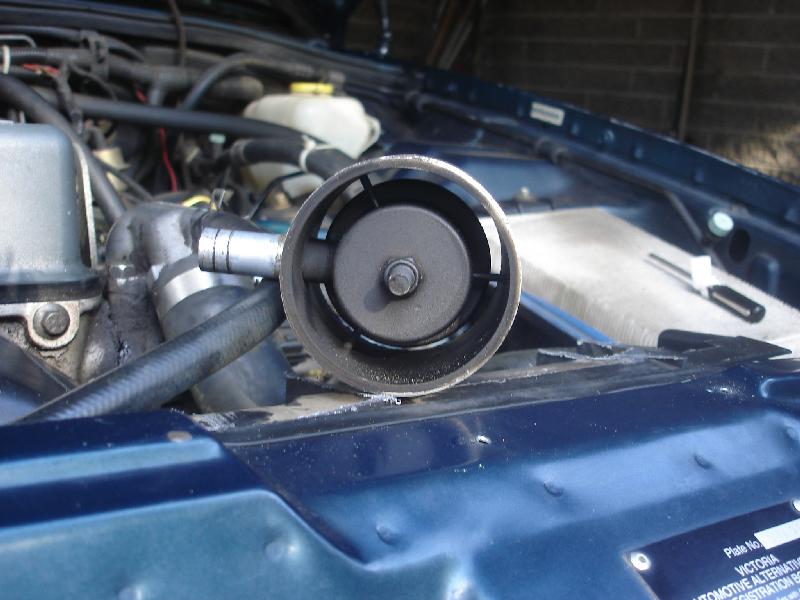

File comment: Mixer above
resize2.jpg [ 38.7 KiB | Viewed 24 times ]

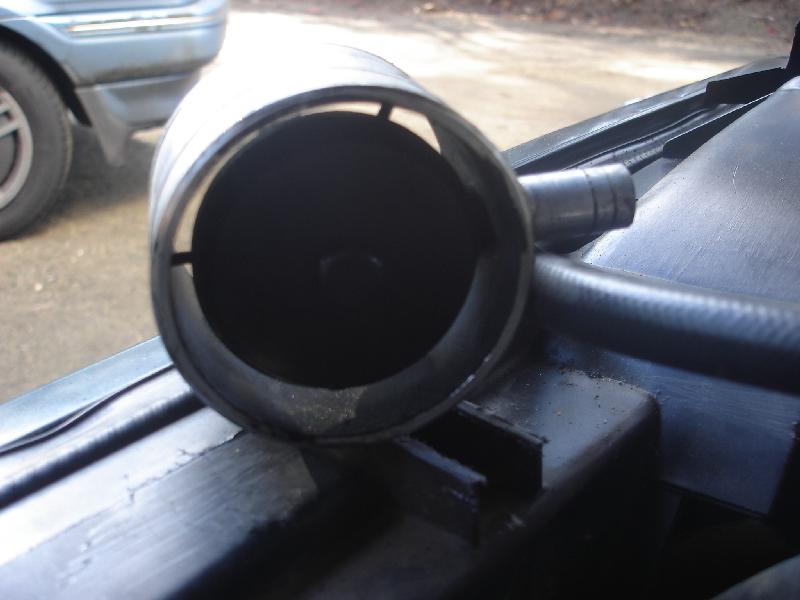

File comment: Mixer front
resize1.jpg [ 41.99 KiB | Viewed 23 times ]
Top
 Profile


Posted: Thu Jun 22, 2006 12:42 pm
Smokin em up
Offline
User avatar

Posts: 243

Joined: 16th Nov 2004

Ride: 03 BA Fairmont

Location: Bunbury
WA, Australia

94_Classic wrote:
Replaced my plugs two weeks ago. Have ordered new leads, they say they will be there in 2 days and am looking at buying K + N filter soon. I didnt mention my car was on gas when getting the plugs though. THe lady asked when I ordered the leads if it was on gas and quoted 92 for the leads instead of 75 for petrol. Should I get different plugs? The ones I have are NGK standard petrol plugs for ED falcon. Could these factors play a large role in my ridiculously sluggish car?


it's unlikely you'll get much more power just with a plug change, but you will at least have the right plug for your car, i think lpg plus are the same as xr6 plugs

plugs and leads are the 2 things that have to be in top condition to stop lpg back firing and blowing your inlet ducting apart

IMHO k+n filters are over rated and over priced, i wouldn't waste my $$$ on one

there is info here, do a search for it, on restrictive mixers on lpg cars
Top
 Profile


Posted: Thu Jun 22, 2006 12:53 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

with that converter you can get away with a less restrictive mixxxer go to your wreckers and ask for a spud or ring type gas mixxer (i recomend ring type) with around 40-45mm inner hole and you should notice the improvments mite cost you $30-40 second hand



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Thu Jun 22, 2006 12:56 pm
Oompa Loompa
Offline

Age: 29

Posts: 22

Joined: 25th Sep 2005

Ride: Falcon ED Classic

Location: Geelong
VIC, Australia

Ok,

So using a different mixer wont effect LPG fuel economy or anything? From the looks of my mixer it almost seems to have been MADE to stop airflow!!
Top
 Profile


Posted: Thu Jun 22, 2006 1:03 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

to point bagger all anyway
it's made to create low air pressure The pressure drop caused
by the venturi encourages the gas to flow through the tube



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile
