Page 3 of 4 [ 47 posts ] Go to page Previous  1, 2, 3, 4  Next


Posted: Sat Aug 25, 2007 7:45 pm
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

nice nice i would think your setup with that cam would produce more torque down low??? Yeah im hoping it hammers lol the guy at the shop is confident in it making good numbers seeing he is matching the cam to the head and my car 3000 stally 4.11's etc...



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sat Aug 25, 2007 8:25 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ebfairmont3.9 wrote:
nice nice i would think your setup with that cam would produce more torque down low??? Yeah im hoping it hammers lol the guy at the shop is confident in it making good numbers seeing he is matching the cam to the head and my car 3000 stally 4.11's etc...


Mine is Manual, using EA box (3.50:1 1st gear), and 3.27 LSD. and RPM clutch. It launches alright, but you gotta pick the revs ( std engine 3.9 MPFI), to many and way too much wheel spin, and too little, and it bogs down, but when I get it right, just a couple of turns of the rear wheels and your off.
Will be interesting to see what its like when the donk is finished.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 9:01 pm
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

are you doing bottom end work as well??

Im just gonna have mine bolted down to the stock AU bottom end.

What would you get outa first??



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sat Aug 25, 2007 9:36 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ebfairmont3.9 wrote:
are you doing bottom end work as well??

Im just gonna have mine bolted down to the stock AU bottom end.

What would you get outa first??


Yes, doing bottom end too.
I don't know, I'm looking at whats in front of me. At a guess, maybe 60???
I haven't measured the total outside diameter of my tyres, but they are taller than stock ones. They are 235/60R15's. I could work it out if I knew that.

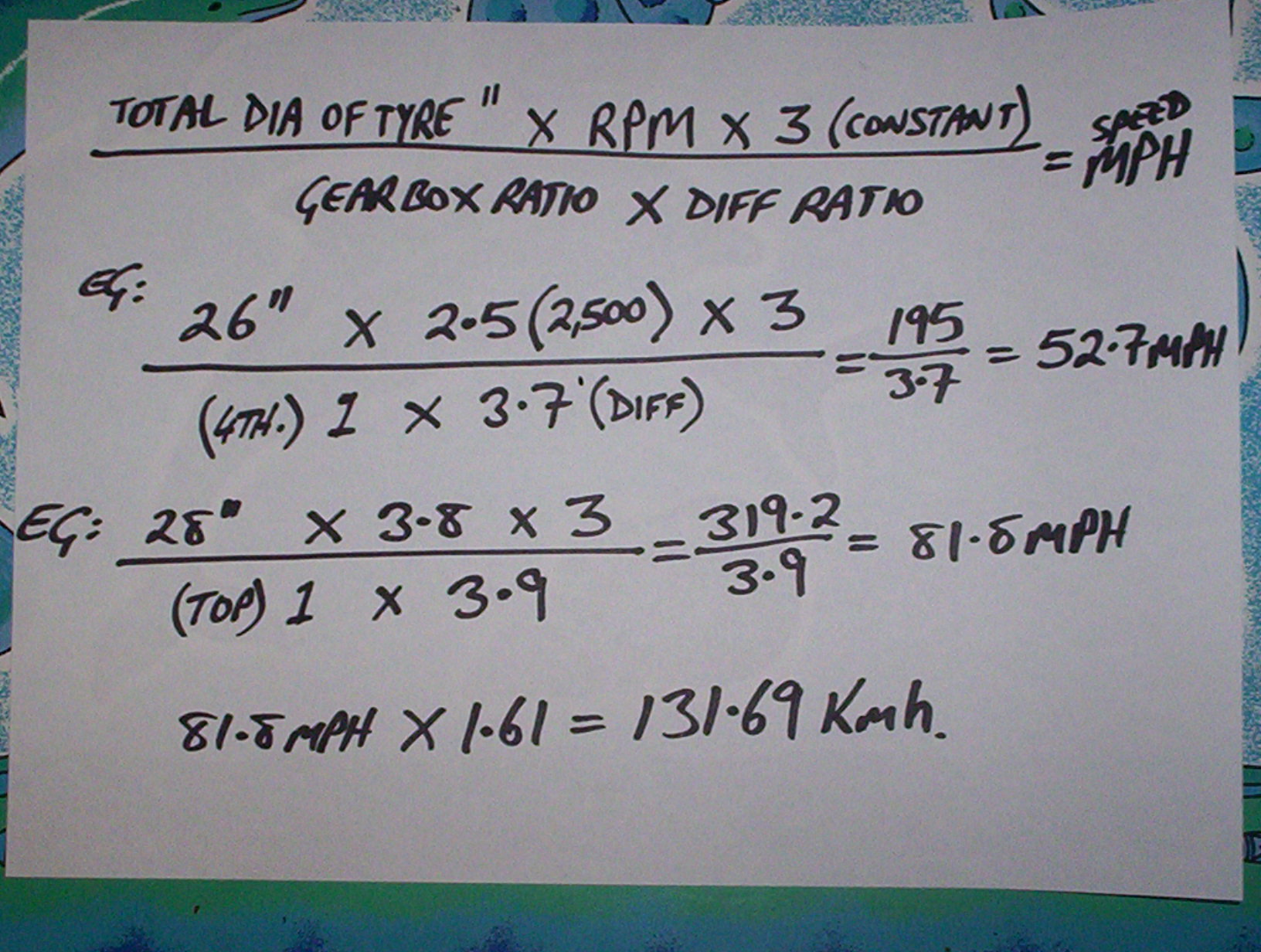

This is the formula for working out speed, with relation to diff ratio, tyre heights, RPM and g'box ratio's.





Attachments:
Speed calculator with example.jpg
Speed calculator with example.jpg [ 353.25 KiB | Viewed 14 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 9:42 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

These are the rods I'm using, and the crank I'm using. Rods are yet to be balanced, and the crank too, when its finished.





Attachments:

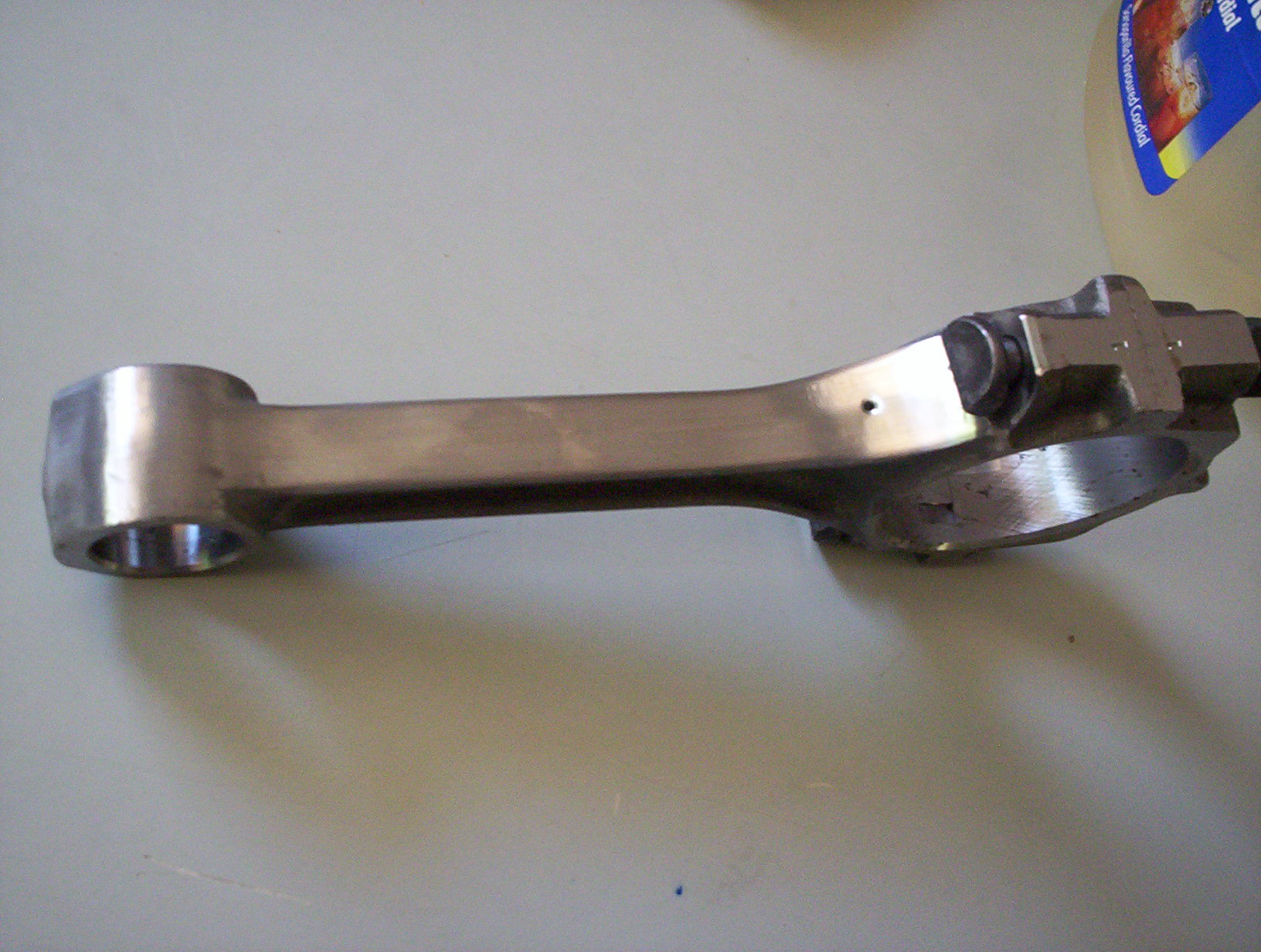

New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 011.jpg
New AU2 conrods & BA LPG pistons & Vernia cam chain set + bearin 011.jpg [ 385.9 KiB | Viewed 21 times ]

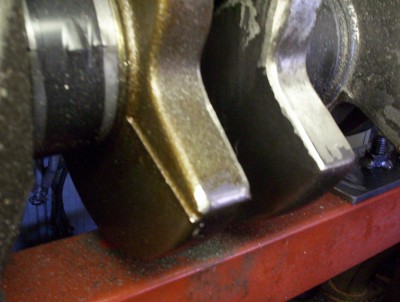

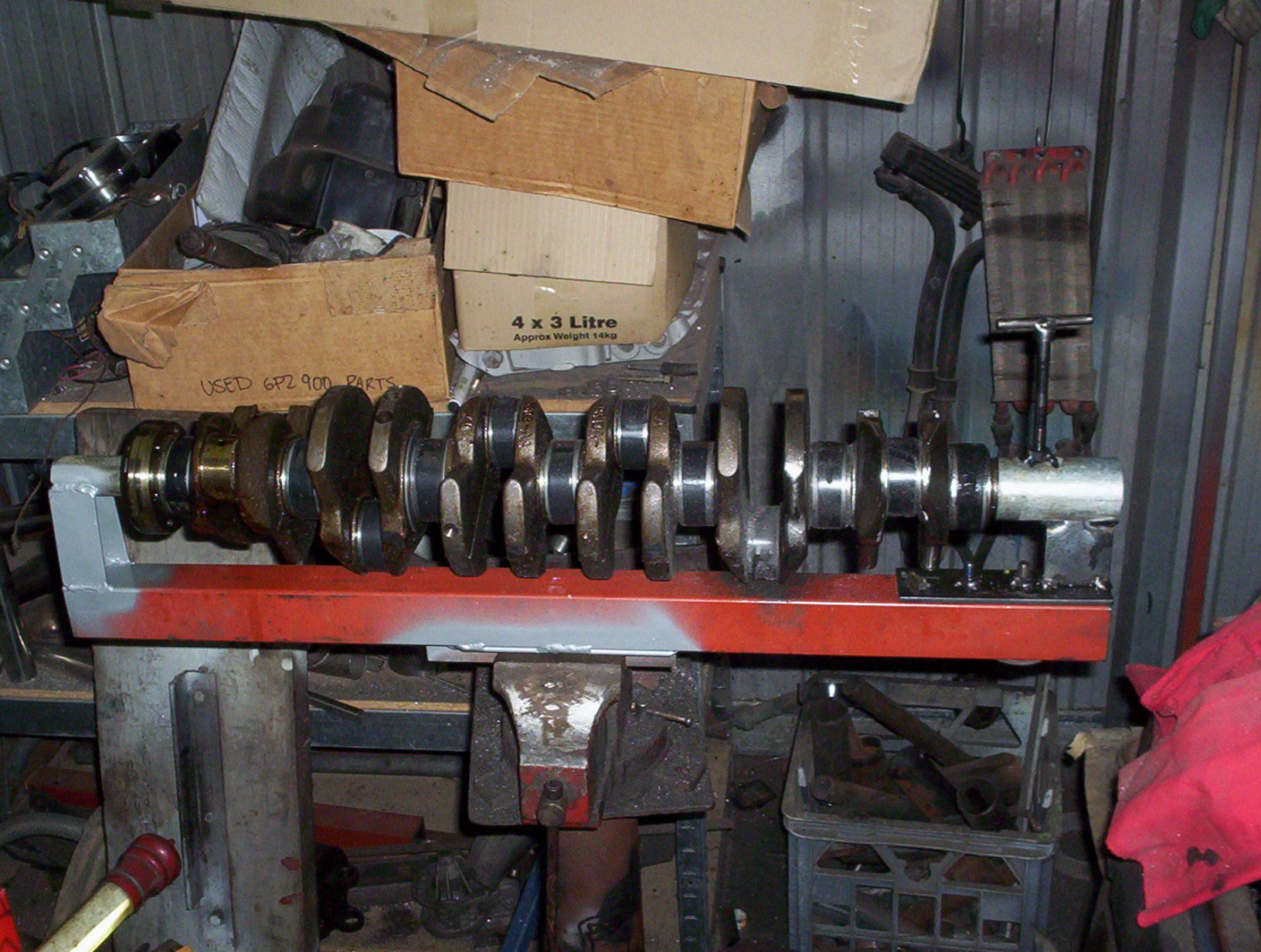

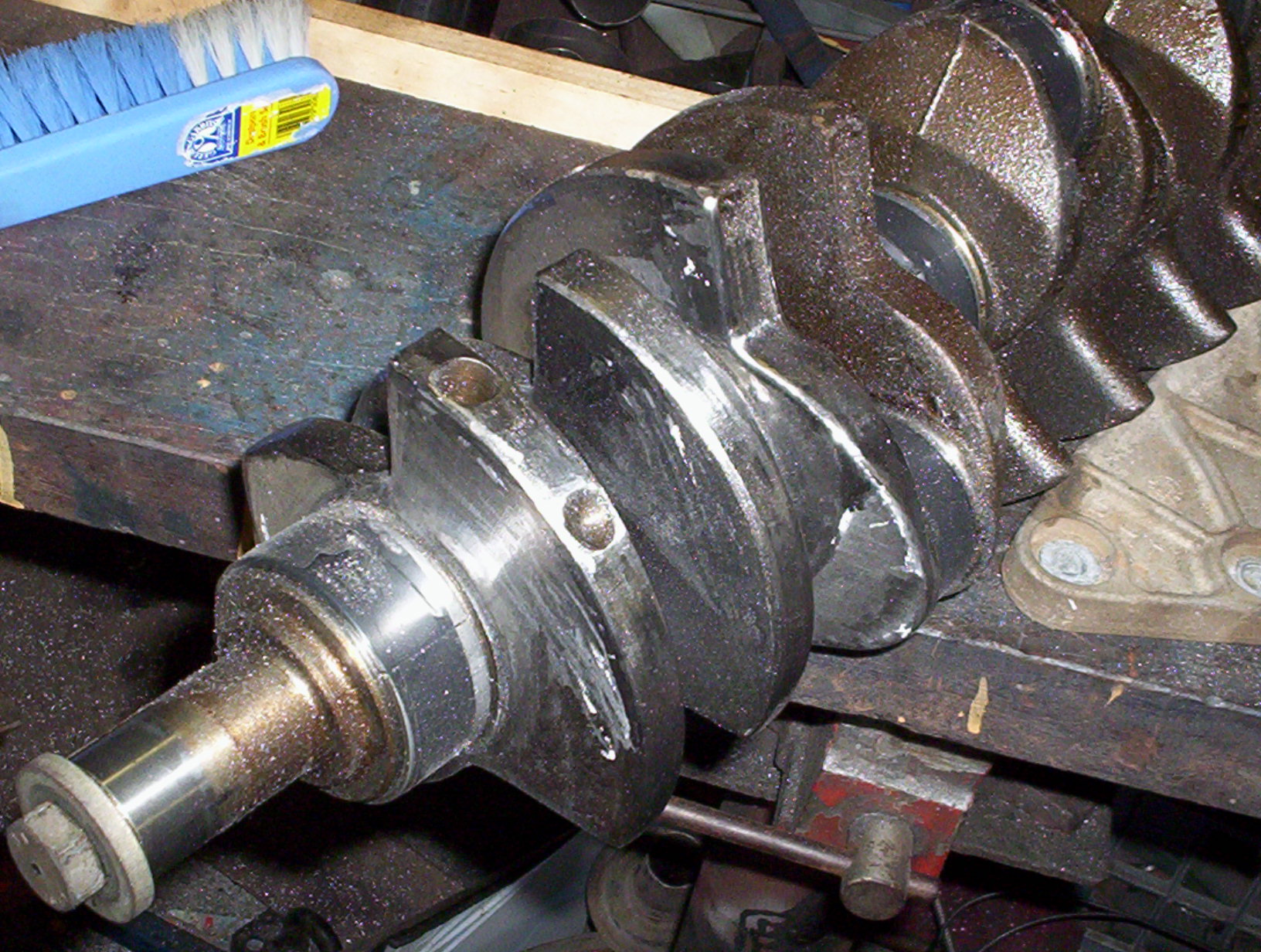

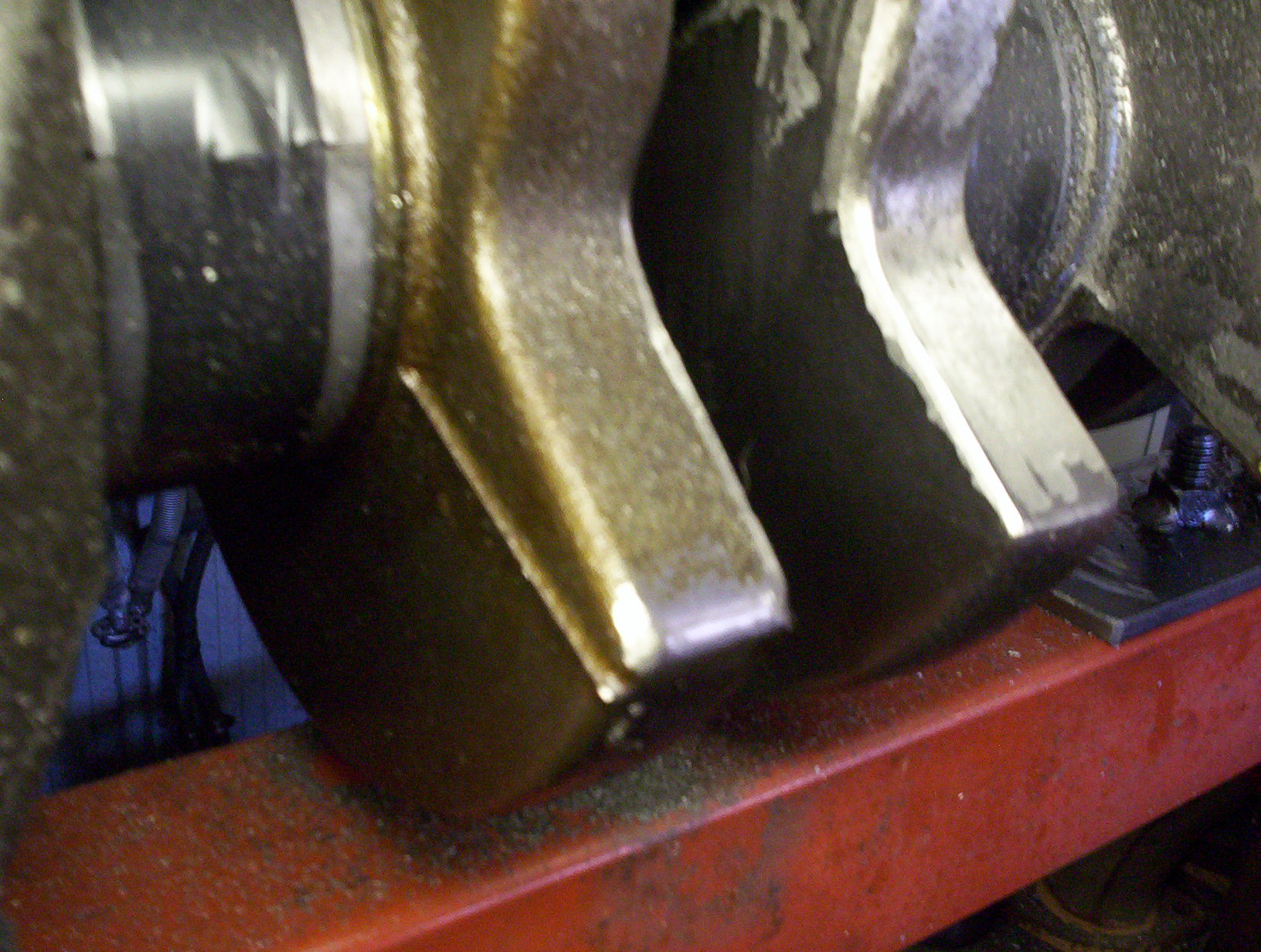

My EL crank being smoothed over 006.jpg
My EL crank being smoothed over 006.jpg [ 439.04 KiB | Viewed 22 times ]
My EL crank being smoothed over 002.jpg
My EL crank being smoothed over 002.jpg [ 504.79 KiB | Viewed 17 times ]
My EL crank being smoothed over 003.jpg
My EL crank being smoothed over 003.jpg [ 519.51 KiB | Viewed 24 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 10:48 pm
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

cjh wrote:
ebfairmont3.9 wrote:
are you doing bottom end work as well??

Im just gonna have mine bolted down to the stock AU bottom end.

What would you get outa first??


Yes, doing bottom end too.
I don't know, I'm looking at whats in front of me. At a guess, maybe 60???
I haven't measured the total outside diameter of my tyres, but they are taller than stock ones. They are 235/60R15's. I could work it out if I knew that.
This is the formula for working out speed, with relation to diff ratio, tyre heights, RPM and g'box ratio's.


try this http://users.bigpond.net.au/ebfairmont/calc



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sat Aug 25, 2007 10:49 pm
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

nice work on the bottom end 2



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sat Aug 25, 2007 10:53 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ebfairmont3.9 wrote:
cjh wrote:
ebfairmont3.9 wrote:
are you doing bottom end work as well??

Im just gonna have mine bolted down to the stock AU bottom end.

What would you get outa first??


Yes, doing bottom end too.
I don't know, I'm looking at whats in front of me. At a guess, maybe 60???
I haven't measured the total outside diameter of my tyres, but they are taller than stock ones. They are 235/60R15's. I could work it out if I knew that.
This is the formula for working out speed, with relation to diff ratio, tyre heights, RPM and g'box ratio's.


try this http://users.bigpond.net.au/ebfairmont/calc


OK, I tried it, and it reckons 54k @ 5000, 0r 60k @ 5500.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 10:54 pm
Oompa Loompa
Offline
User avatar

Posts: 38

Joined: 14th May 2005

Ride: ED Fairmont

Location: Melbourne
VIC, Australia

300rwhp NA, running unleaded petrol, no chance.

Running methanol, I would say possible, a cam with huge duration, no rev limiter, custom bottom end to suit, etc. But even then I would call the car a dyno king, as there would be no low-mid power.



_________________

98' AU 349ci Fairmont Ghia
---------------------------
93' ED 5spd 4.0L NA Fairmont
1/4 mile time: 13.75 @ 101mph

Top
 Profile


Posted: Sat Aug 25, 2007 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Many years ago, a mate had a HJ Sandman P/van, had a 308, M21, 3.08 LSD and at 7500 in first was 110kmh. The funny thing with that donk in it was it was rough till 4000, then smoothed right out all the way to 7500.
It had electronic ignition. Back then, the quick cars were V8 Toranas, and it was funny racing them, mate was in 1st, and they were in 2nd snatching 3rd, and mate was still winding it up a bit more.
It would do 220kmh in top, wasn't bad for a van.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 11:13 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ED I6 wrote:
300rwhp NA, running unleaded petrol, no chance.

Running methanol, I would say possible, a cam with huge duration, no rev limiter, custom bottom end to suit, etc. But even then I would call the car a dyno king, as there would be no low-mid power.


Whats funny is a Val Hemi 265 is capabale of that....why not a 4.0 OHC I6??? Also, a BMW M5 from from the late 80's had 265 kw at the f'wheel, and was only an I6.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Aug 26, 2007 12:00 am
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

exactly and the 4.0L is a more advanced motor compared to a 265.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sun Aug 26, 2007 12:16 am
Getting Side Ways
Offline

Age: 34

Posts: 409

Joined: 5th Nov 2004

Ride: EL Fairmont

Location: Look at that RICE!!
SA, Australia

ebfairmont3.9 wrote:
exactly and the 4.0L is a more advanced motor compared to a 265.


stroke/bore and stroke/rod ratio??? Both would tend to dissagree with the above.



_________________

Soo many idiots. So few bullets

Top
 Profile


Posted: Sun Aug 26, 2007 12:50 am
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

the 4L rev's to 6000 high enough.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sun Aug 26, 2007 1:19 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

dont forget he said 300hp! not kw
