Modifying stock cat to suit extractors



Page 1 of 1 [ 13 posts ]


 Post subject: Modifying stock cat to suit extractors
Posted: Sat Oct 27, 2007 4:15 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 501

Joined: 25th Apr 2006

Ride: ED GLi Classic

Location: Ballarat
VIC, Australia

I have searched to no avail.

Just wondering, are the stock Falcon cats 2.25 inch? And if so, how do you connect them to 2.5 inch extractors / catback?



_________________

RIP Chelsea
96 EF2 Gli - T5 / Exedy / Wade 977b / P+P / JMM Extractors, 2.5" / Port matched BBM / and more
bmICE

Top
 Profile


Posted: Sat Oct 27, 2007 5:01 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

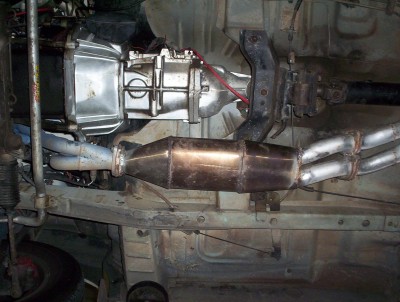

Yes they are. I made my own. Used a Zuna-Starker CAT, modified to suit, using stainless steel. It goes from 2&1/2" to twin 2&1/4".





Attachments:
My homemade Exhaust on 88EA sedan. 009.jpg
My homemade Exhaust on 88EA sedan. 009.jpg [ 485.85 KiB | Viewed 51 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Oct 27, 2007 6:29 am
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

If you are going extractors, then it would be much better to go the straight through cat route. The stock items are very restrictive.



_________________

The older I get the better I was!

Top
 Profile


Posted: Sat Oct 27, 2007 7:37 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

kwaussiekid wrote:
If you are going extractors, then it would be much better to go the straight through cat route. The stock items are very restrictive.


I suggest get a early commodore one like a vn vp, they are 3.8 and the ford is 4.0 so not much difference..... i got some genie extractors fitted and the exhaust bloke was going to modifiy my cat but the cat was rooted so i had only one option to get another cat he told me to if i could get a straight through cat found one at work off a VN he busted the cover and he f**k around and fitted it..

Or u could get an new aftermarket cat installed



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Oct 27, 2007 10:23 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 576

Joined: 4th May 2007

Ride: BA

Location: Mighty Melbourne
VIC, Australia

Froudey, your such a criminal! You know punching thru cats are illegal??? :?


...I agree with Froudey... Punch out the mo'fo... too restrictive :lol: :lol:
Things are only illegal if you get caught! 8-)



_________________

mmmmmmmmmunchy!

Top
 Profile


Posted: Sat Oct 27, 2007 10:25 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 501

Joined: 25th Apr 2006

Ride: ED GLi Classic

Location: Ballarat
VIC, Australia

How exactly do you widen the cat pipe to 2.5 inch?



_________________

RIP Chelsea
96 EF2 Gli - T5 / Exedy / Wade 977b / P+P / JMM Extractors, 2.5" / Port matched BBM / and more
bmICE

Top
 Profile


Posted: Sat Oct 27, 2007 4:38 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Widening the CAT pipe??? The length of the funnel into it is the key.
A new CAT has no more restriction than if it wasn't there. But, a CAT that has had an engine blowing crap into it, like coolant, unburnt fuel ( from a constant miss ), excessive oil consumption, and not giving it some herbs (to give it a blast), will deteriorate the the flow rate of the CAT.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Oct 27, 2007 5:30 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

braidy wrote:
How exactly do you widen the cat pipe to 2.5 inch?


You will need to get a 2.5" pipe and just stick it on the end of the 2.25" pipe of the cat. That's the only way you are going to get a 2.5" pipe coming out, unless you intend on cutting the piping as far back as possible until you find yourself a 2.5" hole and weld in the 2.5" pipe. That's the only way I understood of doing it...in the end I just got a new 2.5" cat cause mine was up s**t creek.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sat Oct 27, 2007 6:55 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Munch wrote:
Froudey, your such a criminal! You know punching thru cats are illegal??? :?


...I agree with Froudey... Punch out the mo'fo... too restrictive :lol: :lol:
Things are only illegal if you get caught! 8-)


no no no i got it done professionally he busted the cover (the outside metal casing) so he could weld the pipes on properly.....

the inside wasn't touched i only got it replace because the ford one had a huge crack in the inside and he refused to put it on....

and imo punchin the cat is asking for trouble from the rta and police



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Oct 27, 2007 7:40 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 613

Joined: 5th Aug 2007

Location: Ararat
VIC, Australia

kwaussiekid wrote:
If you are going extractors, then it would be much better to go the straight through cat route. The stock items are very restrictive.

yeah, have it gutted- u wont regret it.. I did. Just dont drive like a wank, or the pigs will tag you- then the rta will test you then ya screwed.

but it will flow much,much better although I have been told a good high flow cat is not much diff. :wink:



_________________

EF Ghia 5L V8
BAMk2 XR8 Velocity/Cobra 19's

Top
 Profile


Posted: Sat Oct 27, 2007 8:35 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 501

Joined: 25th Apr 2006

Ride: ED GLi Classic

Location: Ballarat
VIC, Australia

Thanks for the replies. However, I am not interested in gutting it, I just was curious about how to modify it to suit the extractors. But I think I will just go a high flow.

Cheers.



_________________

RIP Chelsea
96 EF2 Gli - T5 / Exedy / Wade 977b / P+P / JMM Extractors, 2.5" / Port matched BBM / and more
bmICE

Top
 Profile


Posted: Sat Oct 27, 2007 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1775

Joined: 10th Jul 2007

Gallery: 8 images

Ride: BFII Turbo

Power: 253 rwkw

Location: Waurn Ponds
VIC, Australia

kwaussiekid wrote:
If you are going extractors, then it would be much better to go the straight through cat route. The stock items are very restrictive.


b/s**t. the standard cat is quite acceptable. a bit of pressure restriction can keep flow up by increasing flow speed. its been proven before (without being able to link to, many appologies) that a 2.25 stocker has virtually no diff from a 2.5 in hi- flow cat. the stocker produces better torque low down due to better compresion. Bigger is not always better. whereas the 2.5 might flow volume by CFM the 2.25 flows more in cfm/minute. this is due to a small compression zone that increases gas velocity after cat back. this nonsense about hi flow cats is a scam and should be treated a such.



_________________

enough isn't enough

Top
 Profile


Posted: Sat Oct 27, 2007 9:44 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 613

Joined: 5th Aug 2007

Location: Ararat
VIC, Australia

More Grunt wrote:
kwaussiekid wrote:
If you are going extractors, then it would be much better to go the straight through cat route. The stock items are very restrictive.


b/s**t. the standard cat is quite acceptable. a bit of pressure restriction can keep flow up by increasing flow speed. its been proven before (without being able to link to, many appologies) that a 2.25 stocker has virtually no diff from a 2.5 in hi- flow cat. the stocker produces better torque low down due to better compresion. Bigger is not always better. whereas the 2.5 might flow volume by CFM the 2.25 flows more in cfm/minute. this is due to a small compression zone that increases gas velocity after cat back. this nonsense about hi flow cats is a scam and should be treated a such.


so in that case, not having cat internals(only shell) are you saying a car is worse off?? Just curious? :wink:



_________________

EF Ghia 5L V8
BAMk2 XR8 Velocity/Cobra 19's

Top
 Profile
