 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 9:07 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

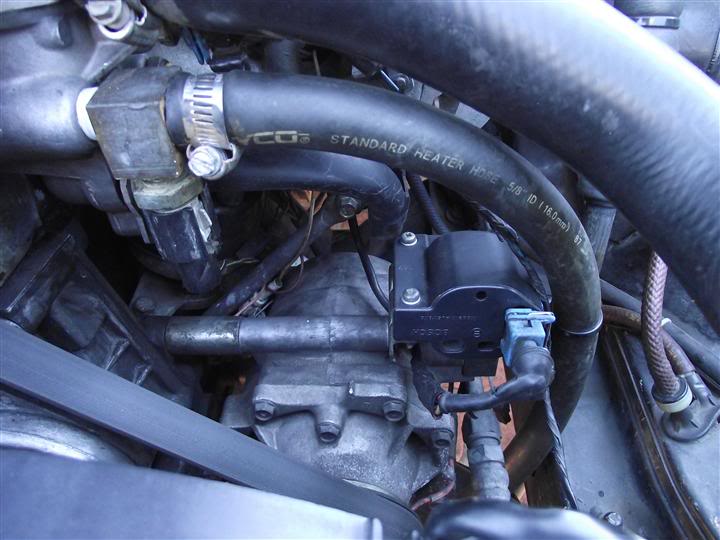

Coil Rolocation, this is a pic of the mod done to Benj Wagon before he fitted the DOHC.

Attachment:
Coil Relocation.jpg
Coil Relocation.jpg [ 56.42 KiB | Viewed 38 times ]
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 9:11 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

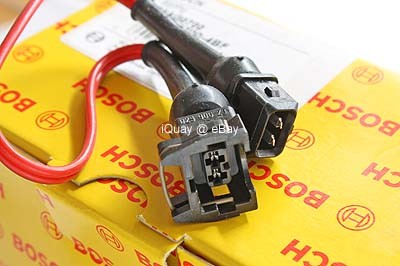

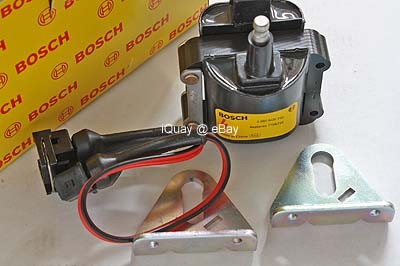

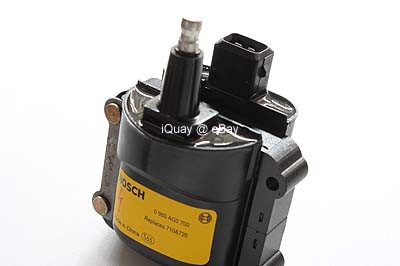

New Bosch Coil

Attachment:
Bosch Coil.jpg
Bosch Coil.jpg [ 45.91 KiB | Viewed 37 times ]


Attachment:
Bosch Coil 2.jpg
Bosch Coil 2.jpg [ 32.81 KiB | Viewed 24 times ]


Attachment:
Bosch Coil extension lead.jpg
Bosch Coil extension lead.jpg [ 49.56 KiB | Viewed 25 times ]
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 9:23 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

awesome that's pretty neat might have to do the same or something similar.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 5:14 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

ive got a bosch coil on my car already the same as in the pic but my brackets are different they are normal type not those ones in the pic
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 5:49 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Just adapt what you have.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 8:22 pm
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

I have mine mounted on the intake side of the motor onto the lifting point up front , i just reversed the spark plug lead it fit fine to the dizzy ,

Just had to drill a hole into the engine lift point and used the mounting kit from the Bosch coil
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 8:38 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

ive notice the bore size on a standard au motor is 92x99mm and the XR6 is 93x99mm my el is an xr6 would this make a difference if im going to a au motor with a 92x99mm bore or should I get it bore out to the same specs as a xr bore size
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 8:55 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Who says the bore is different between an AU block and an XR6 Block?

Bore is the same for the 4.0l since it began. Same for E series 4.0, AU 4.0 and Barra 4.0.

Where do you get your facts from?

If you engine has a 93mm bore, then it is 0.75mm oversize, which is approx 30 thou over.

Bore for E series 4.0 is listed as 92.25mm Nominal with a stroke of 99.31mm nominal. Std motor & XR are same bore.
Bore for AU is listed as the same as the E series, again no difference between Std, XR or VCT engines.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 9:09 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

I got it from this website I thought they were the same but just wasn't sure.
http://fordfalconfacts.com/model-specs/ ... 1996-1998/
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 9:17 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

jamie22_cole wrote:
I got it from this website I thought they were the same but just wasn't sure.
http://fordfalconfacts.com/model-specs/ ... 1996-1998/


Well they are wrong, stroke and bore is the same, compression ratio is different, 9.3:1 for std, 9.35:1 for XR.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 9:43 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

what makes the compression ratio different? cam etc?
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 9:46 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

the head



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

now I understand that website had me abit worried cause I thought I was going backwards in dropping in a std au bottom end with my EL tickford head. thanks for the infro guys.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Mon Oct 07, 2013 10:05 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

SWC wrote:
jamie22_cole wrote:
I got it from this website I thought they were the same but just wasn't sure.
http://fordfalconfacts.com/model-specs/ ... 1996-1998/


Well they are wrong, stroke and bore is the same, compression ratio is different, 9.3:1 for std, 9.35:1 for XR.



thats buggar all differance, compression wise
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Tue Oct 08, 2013 5:07 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Mad2 wrote:
SWC wrote:
jamie22_cole wrote:
I got it from this website I thought they were the same but just wasn't sure.
http://fordfalconfacts.com/model-specs/ ... 1996-1998/


Well they are wrong, stroke and bore is the same, compression ratio is different, 9.3:1 for std, 9.35:1 for XR.



thats buggar all differance, compression wise


AU is 9.65:1 acroos the board Std, I6HO, VCT.
