My heaterbox won't come out!!!



Page 1 of 1 [ 12 posts ]


 Post subject: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 9:34 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

Hey guys, I have an XG ute and I currently have the dash out doing the heatercore as one of the pipes going to it came off when I was pulling a hose off!!

I currently have the dash out and is lying on the floor of the car with some wires still attached, I have enough room to pull out the heatercore.

I have undone the 4 bolts in the engine bay and the other coolant line going to the heater core. I have also had the a/c drained and the ac lines d/c.

When I pull on the box the bit near the drivers side feels loose and wants to come out, but the section near the passenger side still feels really tight, like something else is holding it on.....

Am I missing anything, the ford workshop manual didn't help me too much. It just said, remove bolts from engine bay and remove heater core. It mention something about undoing bolts/screws/clips from the plenum box but I can't find what its referencing too.

Please please please please help!!!!! What am I missing????





Attachments:

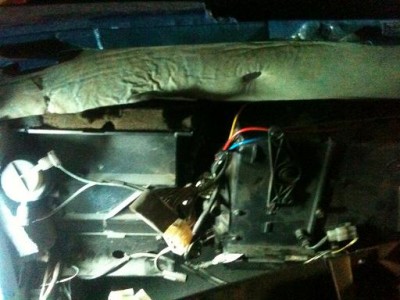

File comment: The box on the left wants to come with the box on the right when I pull on it?

In the middle of the 2 boxes feels as if something is holding it to the fire wall.

heater box.JPG
heater box.JPG [ 45.22 KiB | Viewed 40 times ]



_________________

XG Ute. BBM conversion, EL ECU + J3 Chip, 3" Stainless Steel Intake Pipe, K&N Pod Filter, Wade 1673 Camshaft, Pacemaker extractors, 2.5 Inch Hi-Flow Cat, 2.5 Inch exhaust, Cab Extension, 18" FG GT Rims, resprayed in blueprint.

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 9:37 pm
SA Cruise Moderator
Offline
User avatar

Age: 30

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

from memory when i did my eb you have to lift and wiggle it out.



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 9:38 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i think you will find there is a few more nuts in the engine bay that you missed..
Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 9:39 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

I thought there were 6 nuts in the engine bay? There was in the EB Ghia I wrecked recently. It required some wiggling, and to make sure the a/c is disconnected too.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 9:49 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

Hey guys, thanks for the quick replies!!

Well I have undone a total of 4 nuts in the engine bay? I have had a pretty decent look and can't find any more to undo. There are some other white threads hanging out which look similar to the heater box's but none of these have nuts on them, and they don't move when I violently shake the heater box lol.

I don't really want to pull any harder and I am pretty sure something is going to snap. I have rocked it quite significantly to try to get it out already. I feel like something else is holding it.

Are both those black boxes meant to come out???? The one on the left and the right?

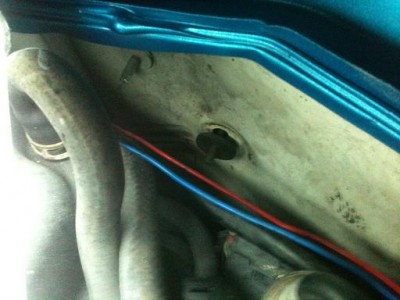

These are the nuts I have undone

6 nuts in the engine bay???? That only makes sense if those white things are nuts??????? See the one in the middle how its painted white. It never had a bolt on it and doesnt move when I wiggle the box.

Is there anything else I am missing on the inside, or does it all just pull out, wiring and all

Attachment:
IMG_0280.JPG [ 33.18 KiB | Viewed 30 times ]


Attachment:
IMG_0281.JPG [ 38.52 KiB | Viewed 29 times ]


Attachment:
IMG_0282.JPG [ 38.55 KiB | Viewed 30 times ]



_________________

XG Ute. BBM conversion, EL ECU + J3 Chip, 3" Stainless Steel Intake Pipe, K&N Pod Filter, Wade 1673 Camshaft, Pacemaker extractors, 2.5 Inch Hi-Flow Cat, 2.5 Inch exhaust, Cab Extension, 18" FG GT Rims, resprayed in blueprint.

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 10:18 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

okay I have been doing a heap of research and Troyman is right, there is a few more screws, there apparently is 6 for the XF and 6 for the EB so therefore there must be 6 for the XG,
So WHY CANT I FIND THEM!!!! I can only see 4!!!!!!!!!! Anyone know where the other 2 are?????

I really appreciate your help everyone, sorry if I sound like a newb but I have honestly had a good look for the other 2!!!!



_________________

XG Ute. BBM conversion, EL ECU + J3 Chip, 3" Stainless Steel Intake Pipe, K&N Pod Filter, Wade 1673 Camshaft, Pacemaker extractors, 2.5 Inch Hi-Flow Cat, 2.5 Inch exhaust, Cab Extension, 18" FG GT Rims, resprayed in blueprint.

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

IIRC on a EA thru ED there is 4 behind the engine, and 2 more up near the heater & a/c pipes, probably have to move something to see them. Check up real close to the inner guard in that area.

Good luck dude.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: My heaterbox won't come out!!!
Posted: Thu Nov 17, 2011 11:34 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

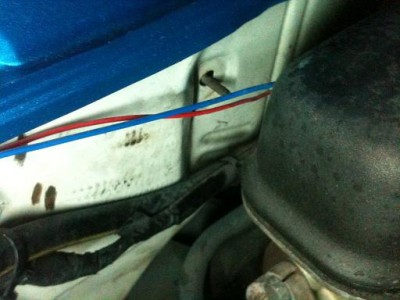

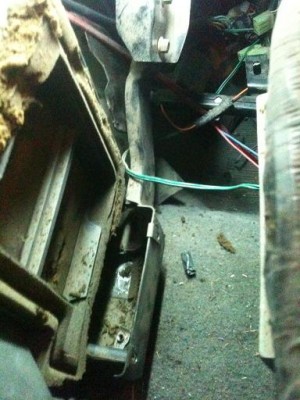

Thanks mate, found one more behind the bracket holding the coolant reservior. The box almost comes out now, I have undone 5 bolts in total. The box seems stuck on this bracket thing!! I can't get it out any further. I still cant find the last nut if there is one. I'm thinking I may have to undo these brackets..... I shouldnt need to should i??
