Posted: Sat Feb 24, 2007 12:12 pm
Getting Side Ways
Offline

Age: 61

Posts: 437

Joined: 11th Nov 2004

Ride: EL GHIA

Location: adelaide
SA, Australia

i bought that part when i did my gas conversion on the EL

it was an AU part number and i had to redrill the mounting holes to fit - i dunno if they gave me the wrong one for the E series but it was only a two minute job and it fitted perfectly - the only headfuk is that you are raising the ISC and it does hit the bonnet insulation
Top
 Profile


Posted: Sat Feb 24, 2007 7:49 pm
Stock as a Rock
Offline
User avatar

Age: 37

Posts: 133

Joined: 6th Nov 2005

Ride: XHII ute

Location: Brisbane
QLD, Australia

yep had to redrill the holes on mine too.
2 minute job anyway.
did you notice a difference tiny56?
would you like to share an engine bay pic?
Top
 Profile


Posted: Sat Feb 24, 2007 7:58 pm
Getting Side Ways
Offline

Age: 61

Posts: 437

Joined: 11th Nov 2004

Ride: EL GHIA

Location: adelaide
SA, Australia

luke111 wrote:
yep had to redrill the holes on mine too.
2 minute job anyway.
did you notice a difference tiny56?
would you like to share an engine bay pic?



not really - i cured my poor idle by cleaning injectors and replacing engine mounts





Attachments:

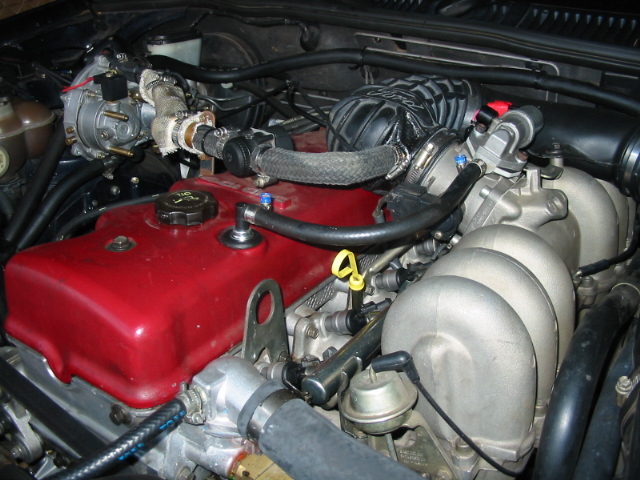

Picture 002.jpg
Picture 002.jpg [ 197.65 KiB | Viewed 39 times ]

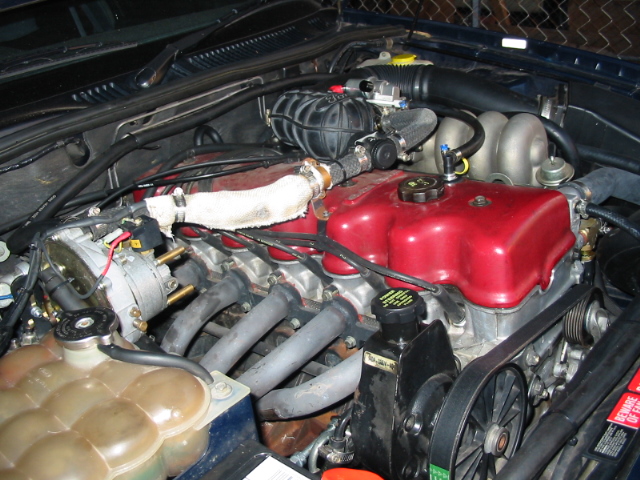

Picture 001.jpg
Picture 001.jpg [ 182.19 KiB | Viewed 43 times ]
Top
 Profile


Posted: Mon Feb 26, 2007 1:30 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

What is the isc, and where is it?

My idle is super crap after the head gasket replacement.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Feb 26, 2007 1:51 pm
Getting Side Ways
Offline

Age: 61

Posts: 437

Joined: 11th Nov 2004

Ride: EL GHIA

Location: adelaide
SA, Australia

Till_Lind wrote:
What is the isc, and where is it?

My idle is super crap after the head gasket replacement.


on the pic above follow the hose from the pcv valve on the rocker cover(next to the oil filler at the front) to the silver solenoid on the inlet manifold - thats it

you can take it off and clean the ports with some carby cleaner or crc as they can get clogged and shaft can stick
Top
 Profile


Posted: Mon Feb 26, 2007 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

If your head gasked had died you may well have a stuffed HEGO sensor.. coolant stuffs them.



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Feb 26, 2007 7:31 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

samftr wrote:
If your head gasked had died you may well have a stuffed HEGO sensor.. coolant stuffs them.


Um, so where is that? What does it do? How much? Etc.

Thanks.

And i'll have a look at my isc now thanks tiny.

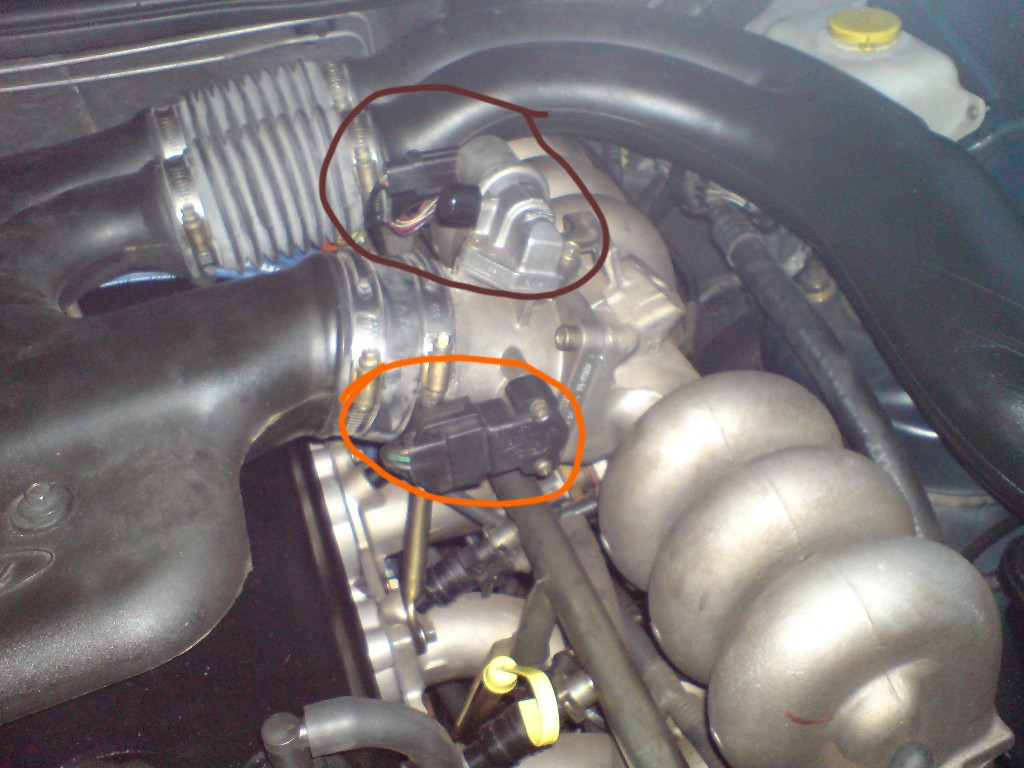

EDIT: See attached picture.

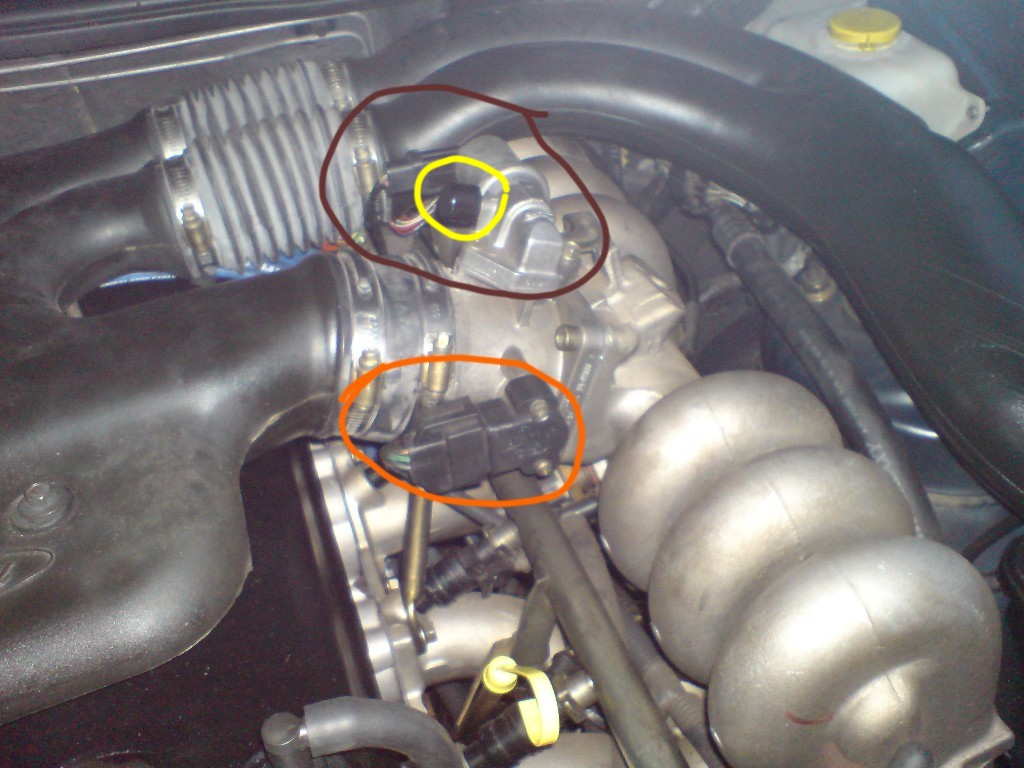

Is it the thing circled orange, or brown? And do I have to disconnect the battery to pull them off? Or just make sure care is off? Do I unscrew from the inlet itself, or just pull the plug off?

Also what is the black knob circled yellow?

Thanks





Attachments:
DSC00111.JPG [ 164.12 KiB | Viewed 18 times ]
DSC00111.JPG [ 163.79 KiB | Viewed 18 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Feb 26, 2007 8:00 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

hey dude the hego sensor or heated exhaust gas oxygen sensor (or O2 sensor if its not heated) detects the presence of oxygen in the exhaust and produces a variable voltage according to the amount of oxygen detected.. that way the ecu can adjust the mixture of fuel injected to the engine (usually our buckets of poo run rich under wide open throttle) its bolted into the exhaust manifold on the drivers side and has from memory three wires
in one plug that hooks onto the suspension tower. :D



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Feb 26, 2007 8:07 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

brown circled is the Idle speed controller assembly. the black thing I *think is a breather type thing* correct me If I am wrong. the other part I believe to be the throttle position sensor. Be safe and unhook the battery, or if you want to be slack just keep it switched off and no loads on the power there.
have you run any diagnostics on the car yet?

I did rectify an idle issue on an eb 3.9 mpi car.. it had a lot of blow by build-up and carbon/oil etc which made the car run horrible to the extent that it would not idle without the accelerator pressed.
sprayed carbie cleaner (nulon) into the throttle body with the intake piping removed and revved the car up whilst doing it for a while then it ran sweet... then i pulled the car apart so that is redundant... :)



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Feb 26, 2007 8:18 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Haven't run diagnostics, don't have the thing that makes it easy to do that.

Thanks for the posts sam, anyone else sprayed carbie cleaner in the throttle body?



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Feb 26, 2007 8:21 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

great stuff champ, welcome!



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Feb 26, 2007 8:30 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

It didnt do squat to the ef, thats for sure..
OH duh I just realised you are in Brisbane, do you go on any cruises with FF or fordmods e series guys? I usually have a diag box in my car for stuffing around with..



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Feb 26, 2007 8:36 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Went on the last one Sam, down to surfers.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Feb 26, 2007 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

yeah i was there :P did you take the mont?



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Feb 26, 2007 9:02 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

no he was in my beast!
