 Post subject: NOTHING!!! DEAD & ANNOYED
Posted: Fri Mar 21, 2008 2:55 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

Just finished putting in the el engine in my ea. Connected battery back up. Acc lights come on when key is turned, and then nothing.... No starter motor turning, fuel pump does start cause i can hear it.... but nothing, no spark, no crank.... must be wiring im assuming... anyone else had this problem when doing an engine conversion.,.. Someone help cause im P**sed off and outta ideas...
Top
 Profile


Posted: Fri Mar 21, 2008 3:00 pm
Getting Side Ways
Offline

Age: 32

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

checked looms etc are you using the log manifold? with ea ecu or el ecu????



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Fri Mar 21, 2008 3:19 pm
Fordmods Junkie
Offline
User avatar

Posts: 11617

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Are the battery terminals in good condition and are all the Earth wires re earthed?

If not does it have smart lock (I know it's an EA but not sure if you changed anything else over). You may need to bypass it.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Fri Mar 21, 2008 3:22 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

EA loom with EL ECU. Already bypassed smartlock... and checked all earths...
Top
 Profile


Posted: Fri Mar 21, 2008 3:23 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

using bbm and battery terminals are fine...
Top
 Profile


Posted: Fri Mar 21, 2008 3:32 pm
Fordmods Junkie
Offline
User avatar

Posts: 11617

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

How about the auto? 3 speed or 4 speed?

may need to do a resistor trick if you have a 3 speed or manual.

Sorry just taking possible stabs here.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Fri Mar 21, 2008 3:42 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

no problem phongus... it s a 5spd manual... i done the resistor trick already and to my knowedge all done correctly.... strange thing is accesory lights come on.... but go to turn it and it doesnt do anything. at one stage the rev tacho went to 6K then back to 0rpm... hmmm.... so frustrating...
Top
 Profile


Posted: Fri Mar 21, 2008 4:13 pm
Fordmods Junkie
Offline
User avatar

Posts: 11617

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Have you checked the ignition relay or maybe your ignition barrel. How is the charge on the battery?

Currently at work, so I can't think of a list of things that might happen...if something pops up i'll keep posting :D.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Fri Mar 21, 2008 4:16 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The main relay, is it working???? Theres two together, a green one ( fuel ) and the brown one ( main ). Just near the coolant bottle.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Fri Mar 21, 2008 4:36 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 251

Joined: 22nd Mar 2006

Gallery: 7 images

Ride: EF XR6 manual

Location: S.E. Melbourne
VIC, Australia

Double check the wires to the starter?? try shorting out the starter with a scewdriver (with car in neutral) to see if there is any kick. If not try a test light to see if you have power at the main lead at the starter, if you have, then get someone to turn the key while you check for power at the starter trigger/soleniod wire.



_________________

EF XR6 5spd 14.57@97mph
154rwkwts

Top
 Profile


Posted: Sun Mar 23, 2008 2:50 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

fixed... had wrong wire onto starter motor.... but anyways which pin does the thermo fans go into on the EL ECU... i tried both pin 33 and 53 but none activated the thermo's....hooked them up properly coz tested using the relays straight to battery and they turned on.... its earthed properly as well.... not sure which pin triggers the relay...???
Top
 Profile


Posted: Sun Mar 23, 2008 2:59 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

by the way thanks everyone the help.... im running both fans off two relays but got it hooked up running in parallel so only one trigger wire instead of using pin 33 and 53 im only using one or the other...
Top
 Profile


Posted: Sun Mar 23, 2008 5:16 pm
Fordmods Junkie
Offline
User avatar

Posts: 11617

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Good to hear you got it sorted...it's the little mistakes that cause a lot of havoc lol. I found that out the hard way all the time.

Sorry can't help you with the Thermos though...I'm sure someone else can.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sun Mar 23, 2008 6:48 pm
Fordmods Newbie
Offline
User avatar

Age: 29

Posts: 16

Joined: 7th Jan 2008

Ride: Falcon

Location: Nowra
NSW, Australia

i know itse little mistakes that really annoy u but at least its easy fixed... yeah im not sure on the trigger wire...when i power the relays straight from the battery the fans tecu urn on... but when the fans are connected to the (pin 33) the fans dont come on... even at operating temperature which i think is about 100 degrees.. i know its running at 100 degrees coz the temp sensor is reading a 0.5V which from wat i understand is 100... just neeed to kn how the thermo's are triggered... which wire which pin really...???
Top
 Profile


Posted: Sun Mar 23, 2008 7:27 pm
Moderator
Offline

Posts: 14498

Joined: 7th Nov 2004

Ride: ford falcon

Location: a shit suburb in sydney
NSW, Australia

hi
pin 53 is to trigger both fans on low.
and pin 33 is to trigger the relay for fans on high..(possibly for when aircon is triggered) or engine temp reaches 100+ deg
but i had issues with pin 33 no trigger.. so the fans would only come on low and they would not go to high when the aircon was turned on or the temperature was high..

but if your going to run the fans on full speed pin 53 should trigger the fans when the temp gets between 1/4 and 1/2..

but if you have working aircon you need to have a trigger to switch the fans on or you will cook your air con..you can test pin 33 and see if it triggers when the aircon is switched on. or you can add a seperate relay to overide the ecu trigger so when your aircon is on the fans are also on...

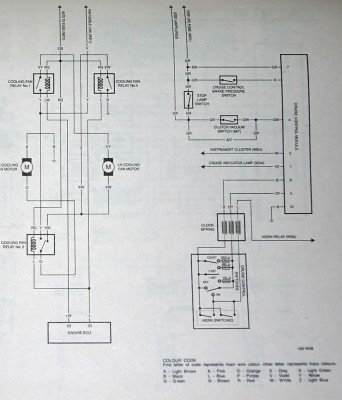

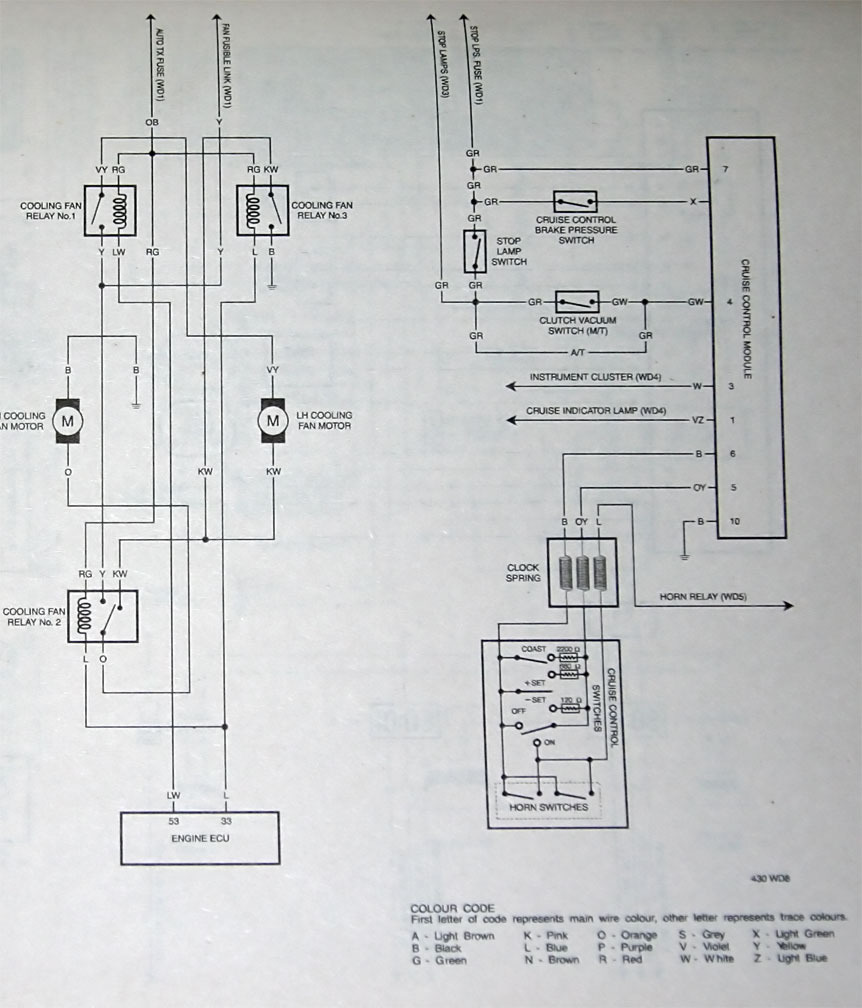

this is the diagram i used when i tried to hook mine up..
but in the end i just used a davis craig thermal switch to trigger the fans instead..





Attachments:
fancopy.jpg [ 164.87 KiB | Viewed 15 times ]
